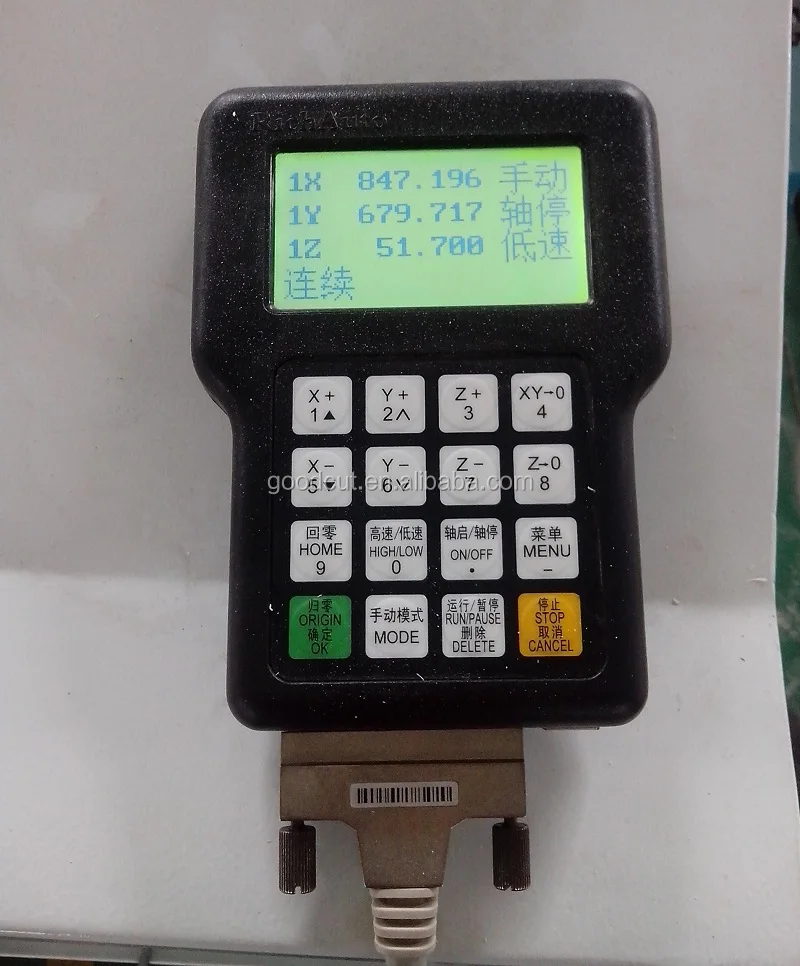

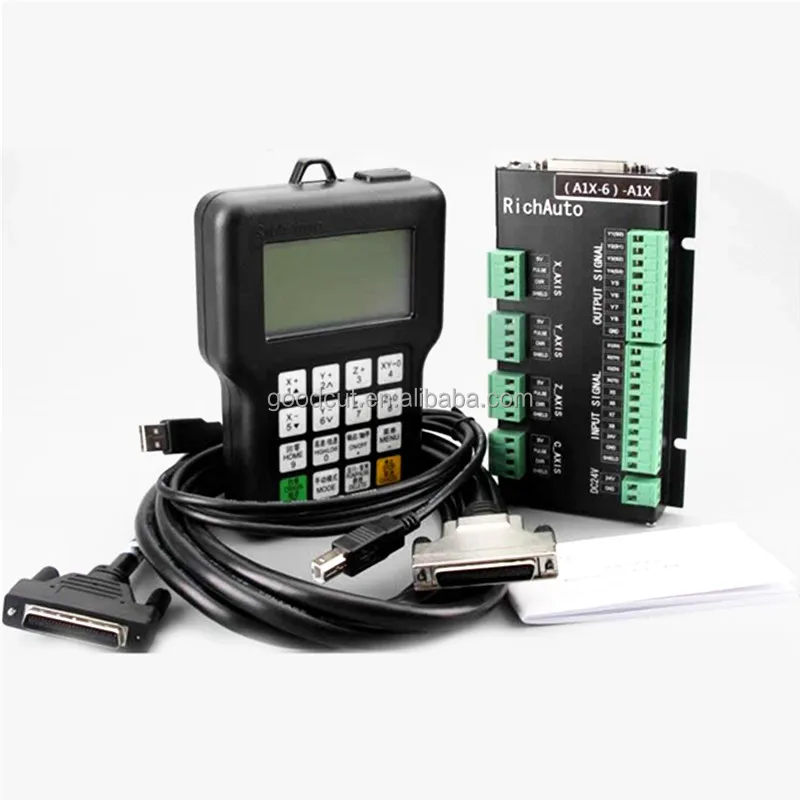

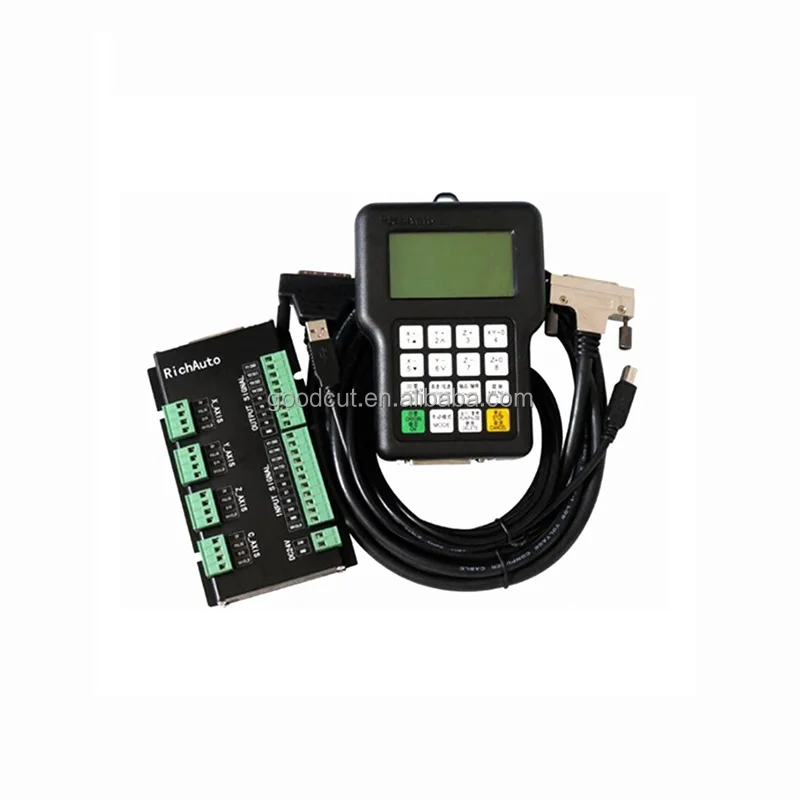

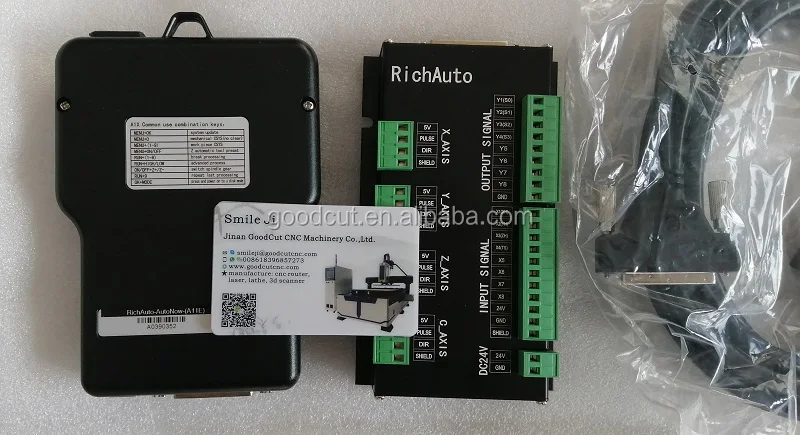

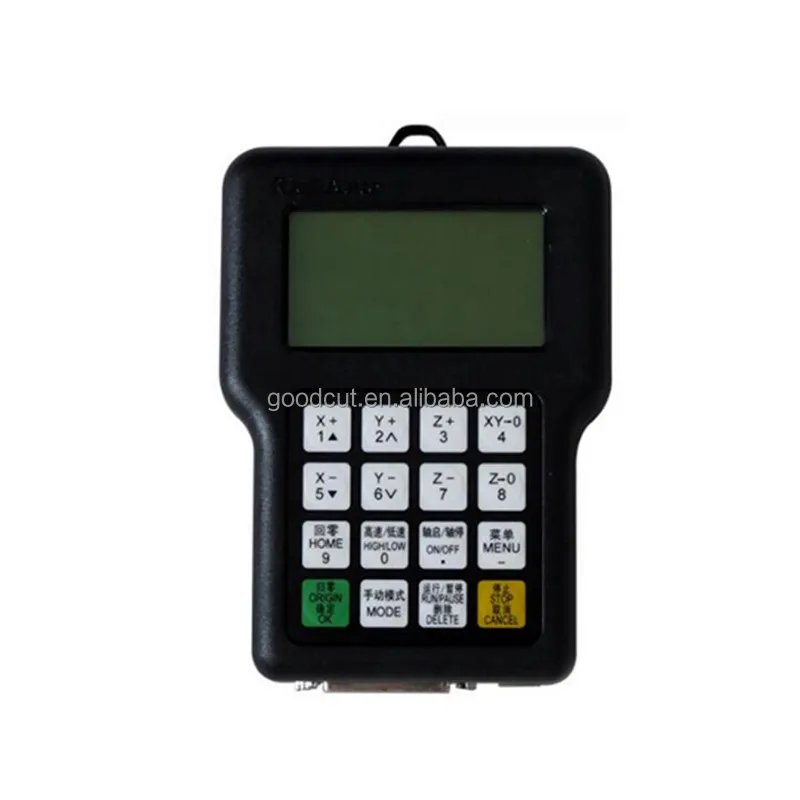

High Sale Richauto DSP A11s Controller for CNC Router Engraving Machine Parts
1.Totally independent from PC platform;
2.Directly read files from U Disk;
3.Easily process G code or PLT file with super size;
4.Strong system and process file examining function;
5.Easy to update system program;
6.It supports high micro step which makes precise and fast process possible;
7.Support to process part of the file;
8.Reliable data protection and recover function;
9.Friendly operating interface;
CNC ROUTER controller:
DSP controller DDCSV2.1
DSP controller RichAuto A11E
DSP controller RichAuto A18
DSP-controller 0501 (RZNC-0501)
Mach3
Weihong NK280
NC studio
Laser controller:
AWC708C
RuiDa RDC6332G
RuiDa RDC6442G
Product Model | RichAuto----A11 |
CPU | DSP |
Internal Memory | 512MB |
Display Screen | 128*64 Monochrome LCD |
Communication Port | U disk,USB cable |
Controlled Axis Number | 3 axes |
Control Signal | differential signal |
Drive System | step motor/servo motor |
Min.Input Unit | 0.001mm |
No Volt Protection | support |
Breakpoint Processing Function | 8 |
External Power Supply Voltage | 24V DC |
Manual Mode | Continuous,point move,distance |
Interpolation Way | line,arc |
Soft/Hard Limit | support |
Max. Pulse Frequency | 1M/S |
Password Protection | support |
Support Language | simple Chinese/traditional Chinese,English,other languages |
Standard Configuration | (1) DSP Handle;(1) 50 core cable (1)USB cable; (1)8 I/O Wiring board;(1) data CD |
Other controller for sale:
Mach3

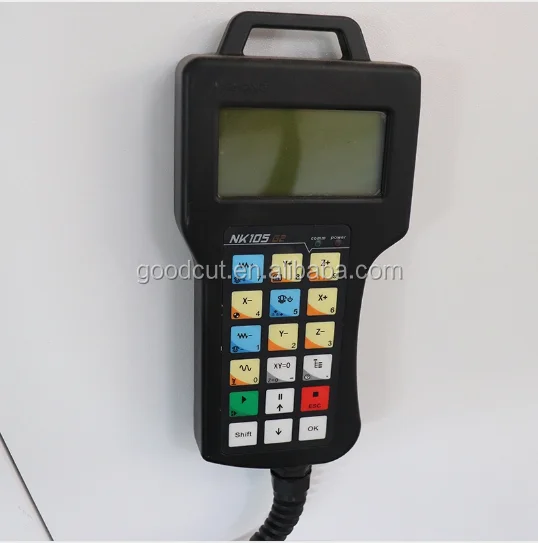

Weihong NK105
