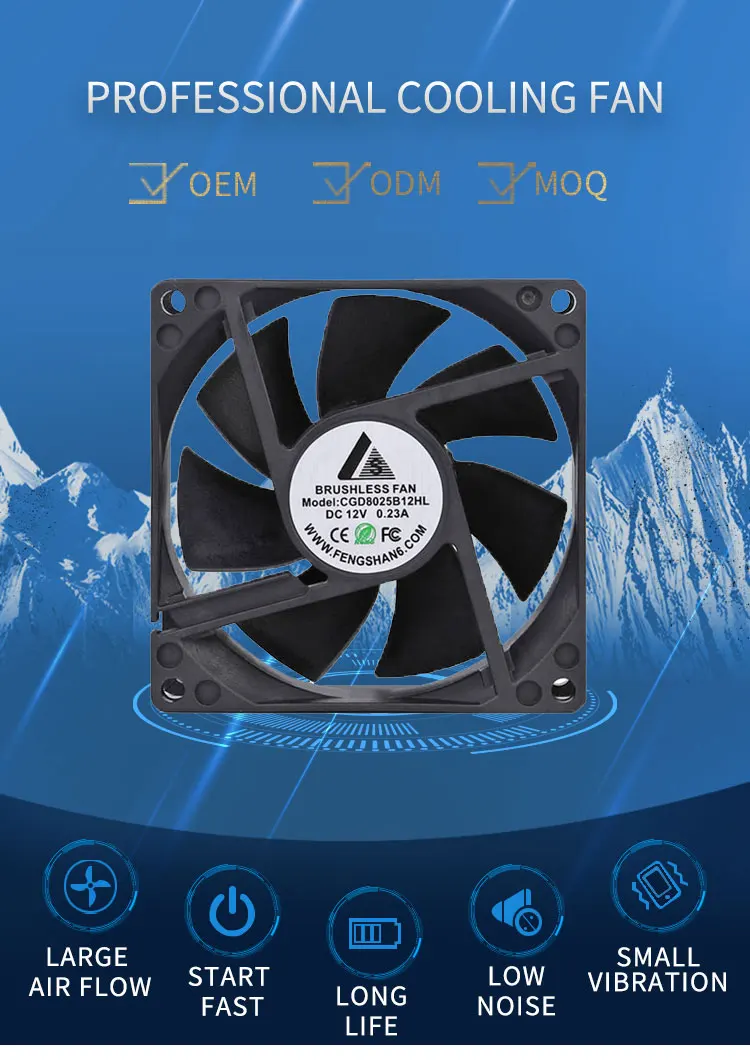

Shenzhen 12v 24v 0.23a Frequency Converter Engine Computer Radiator Dc Cooling Fan
Product Description
SIZE | 80*80*25mm | ||||||
Bearing type | Ball, Sleeve, HY, other | ||||||
Frame materials | Plastic (UL94V-0) | ||||||
Impeller materials | Plastic (UL94V-0) | ||||||
Weight | 85g | ||||||
Certification | CE, ROHS, FCC | ||||||
Wire | 2 pin, 3pin or 4pin with Customized connector | ||||||
Rated voltage | DC5V, 12V | ||||||
Life time | Ball bearing: 5000-100000H, HY beaing: 15000-20000H, Sleve bearing: 8000-10000H | ||||||
FAQ
Q1.What's the difference between the sleeve and ball bearing fan?
The ball bearing brand was NMB bearing imported from Japan.The warranty for
ball bearing fan is 50,000 hours but sleeve bearing just 20,000 hours.
Q2.What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof
(IP68 optional), PWM function ,Temperature control etc.
Q3.What's your MOQ and delivery date ?
MOQ 200PCS
Sample lead time:3-5 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Q4.What's your payment terms ?
We accept Payment by T/T, Trade assurance order of alibaba.Accept 50% deposit +50% balance.
Q5. What is DC Fan and AC fan?
A2: DC fan is power by DC voltage, always is 5V, 12V, 24V, 48V, 60V and 72V.
AC fan is power by AC voltage, always is 110V, 220V and 380V.
Q6. How do we carry out quality control?
Usually, there are two ways to monitor reliability during the manufacturing process.
* Early Life Test This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining
the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at
50C+/-5C for 24 hours.
*On-going Reliability Demonstration This is a longer-term program aimed at providing data on continuous basis to demonstrate the
reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at
50C+/-5C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where
necessary.
The ball bearing brand was NMB bearing imported from Japan.The warranty for
ball bearing fan is 50,000 hours but sleeve bearing just 20,000 hours.
Q2.What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof
(IP68 optional), PWM function ,Temperature control etc.
Q3.What's your MOQ and delivery date ?
MOQ 200PCS
Sample lead time:3-5 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Q4.What's your payment terms ?
We accept Payment by T/T, Trade assurance order of alibaba.Accept 50% deposit +50% balance.
Q5. What is DC Fan and AC fan?
A2: DC fan is power by DC voltage, always is 5V, 12V, 24V, 48V, 60V and 72V.
AC fan is power by AC voltage, always is 110V, 220V and 380V.
Q6. How do we carry out quality control?
Usually, there are two ways to monitor reliability during the manufacturing process.
* Early Life Test This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining
the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at
50C+/-5C for 24 hours.
*On-going Reliability Demonstration This is a longer-term program aimed at providing data on continuous basis to demonstrate the
reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at
50C+/-5C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where
necessary.
