Product Description
1. Introduction
QZ130D is a powerful 3-axis dual-sensor gimbal camera which integrates a 30X optical zoom 1080P HD camera, a 640x512 thermal camera and a 3-axis platform with high stability and accuracy, working in day and night perfectly. QZ130D plays a professional and reliable role along with industrial UAV in activities of patrol and inspection, security, search and rescue, etc.
2. Features
* Get far and near in sight
30X optical zoom camera makes clear and stable images like it’s close at hand.
* Work in dark
Professional high sensitivity infrared thermal imaging, object viewing clearly in night, temperature detect precisely and
directly.
* All directional object tracking
Excellent high-precision inertial stabilized platform, 360° continuous view without blocking, optical and infrared dual object tracking.
* Military class working condition
Military alloy structure and industrial components ensure working in different severe conditions.
* Small and light, but powerful
Precise optical, mechanical and electronic integration design, it’s smaller and lighter compared with same level products, but more powerful.
* High compatibility with multi-interface
RS422, RS232, PWM and S.BUS for communication, HDMI, SDI, synchronized 422 and Ethernet for video.
3.Applications
Police service, electrical power-line inspection, security patrol, search and rescue, fire emergency.
Specification
Outline dimensions
Title goes here.
Thermal imager spec | ||
Detector type | Uncooled focal plane | |
Detector pixel | 640×512 | |
Lens focal length | 25mm（35mm optional） | |
FOV | 17.5°×14°（±5%） | |
Pseudo color | 8 | |
Digital zoom | ×2，×4 | |
Temp. measurement range | -20℃～150℃ (Temp. measurement featured version) | |
Temp. measurement accuracy | ±2K or 2% (Temp. measurement featured version) | |
Image storage | All temperature data (Temp. measurement featured version) | |
Video storage | All temperature data (Temp. measurement featured version) | |
Camera spec | ||
Resolution | 1920×1080 | |
Lens focal length | 4.3mm～129mm | |
Horizontal viewing angle | 63.7°～2.3° | |
Optical zoom | 30X auto-focus | |
Gimbal spec | ||
Yaw/Pan | 360°×n | |
Pitch/Tilt | -120°～+90° | |
Roll | -60°～+60° | |
System parameters | ||
Object tracking | Automatic | |
Working voltage | DC +20V～+36V | |
Power consumption | typical：≤20W | |
Weight | ≤1Kg | |
Dimension | ≤131mm×155mm×208mm | |
Interfaces | ||
Control | RS422/RS232/PWM/S.BUS | |
Video | HDMI/SDI/synchronized 422/100M Ethernet | |
Storage | Mini SD card/32G | |
Environment conditions | ||
Working temperature | -20℃～＋55℃（-40℃ optional） | |
Storage temperature | -40℃～＋60℃ | |
Protection level | Work in light rain | |
Product name | Gimbal Drone |
Usage | Aerial Photography |
Function | Night Light |
Color | Black |
Size | 116mm*115mm*184mm |
Keywords | uav camera Night Vision |

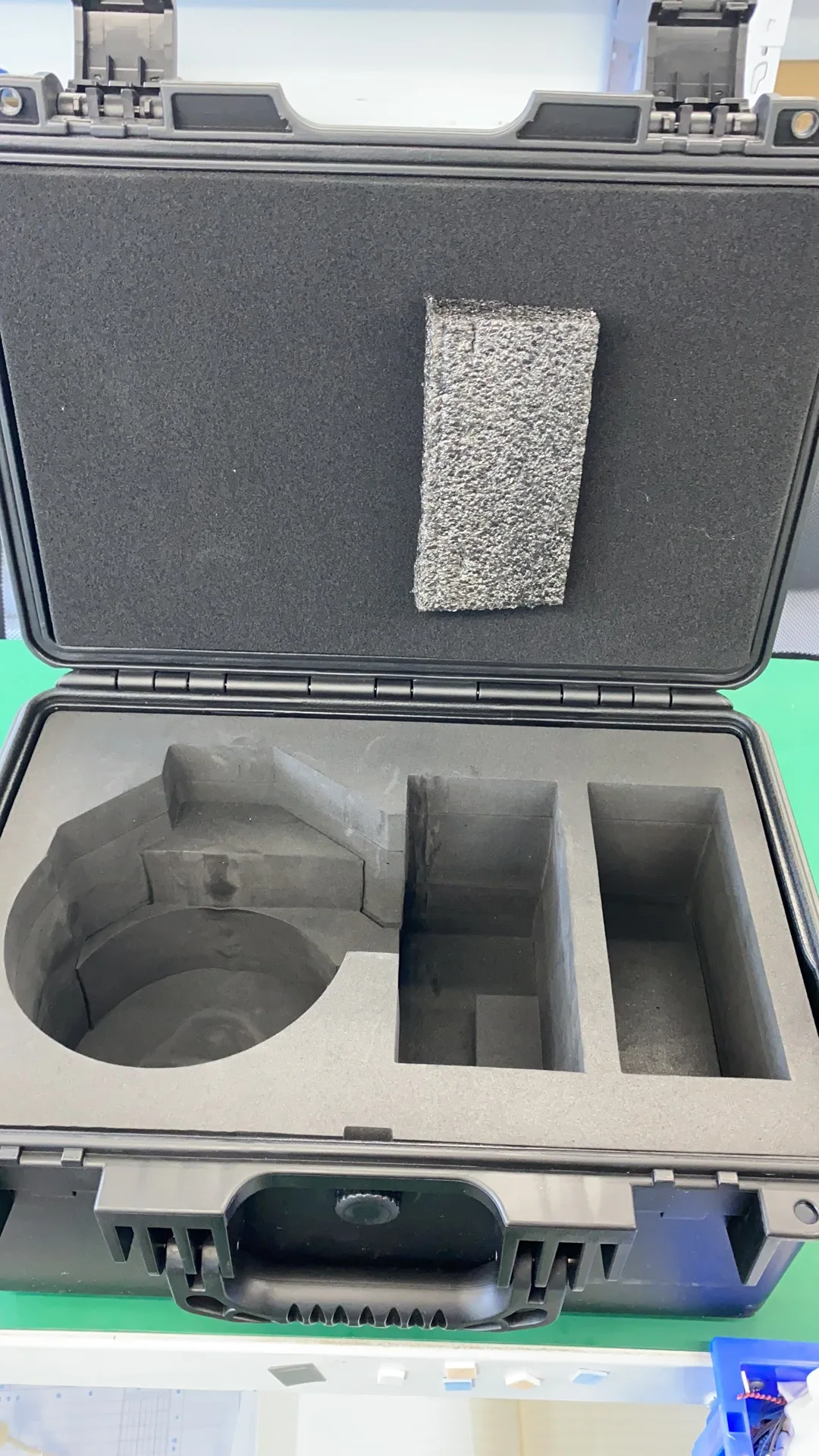

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

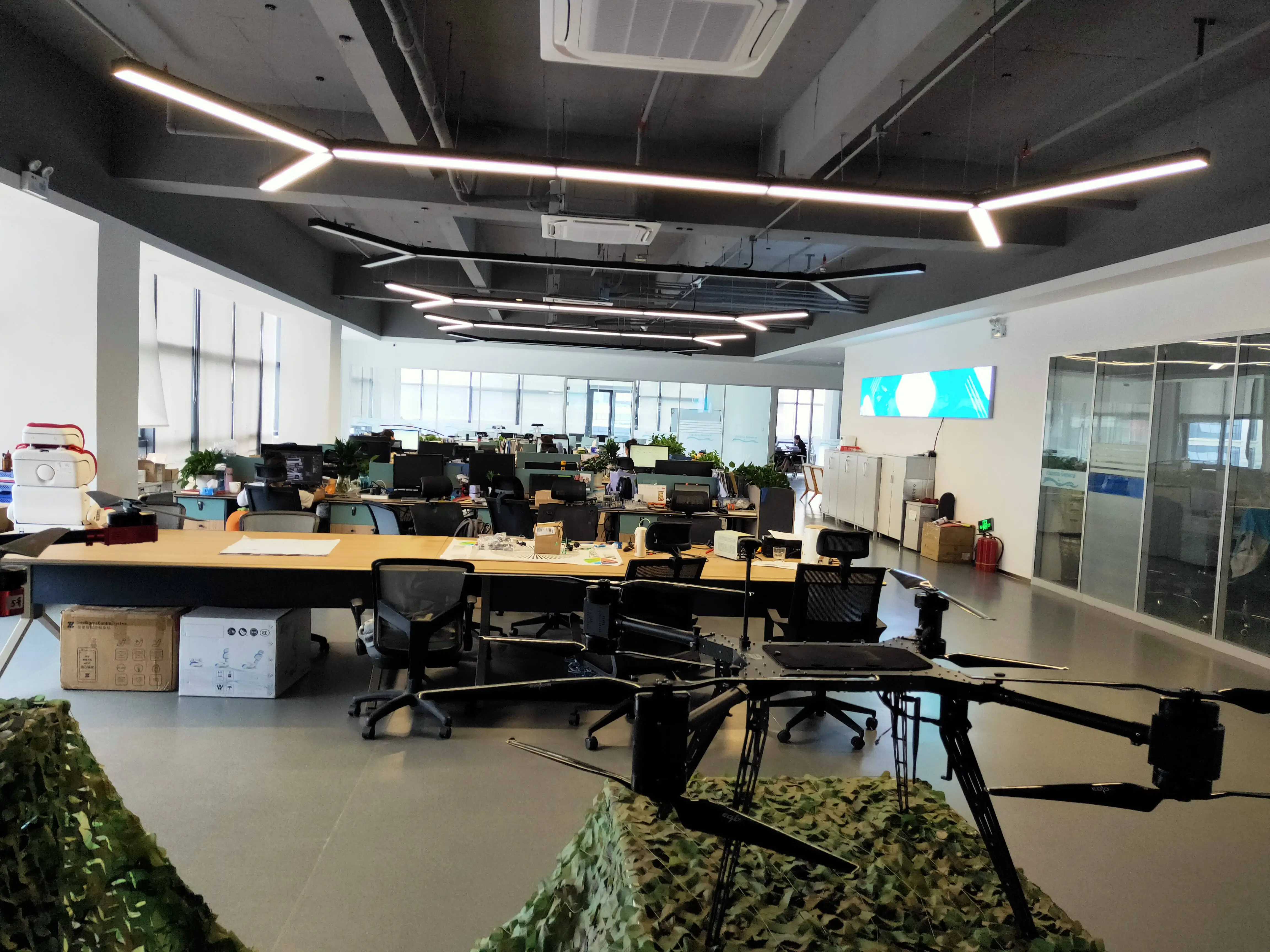

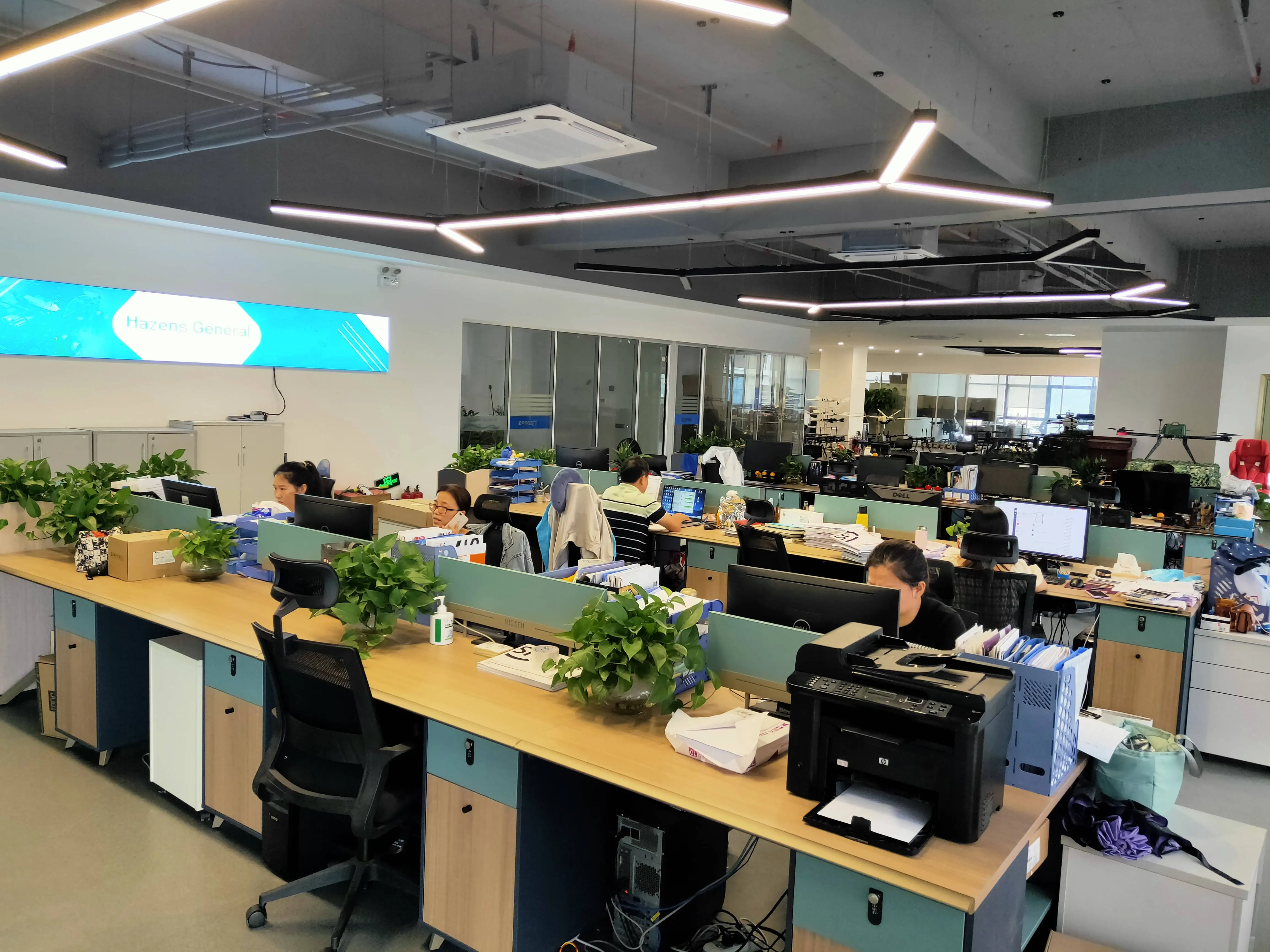

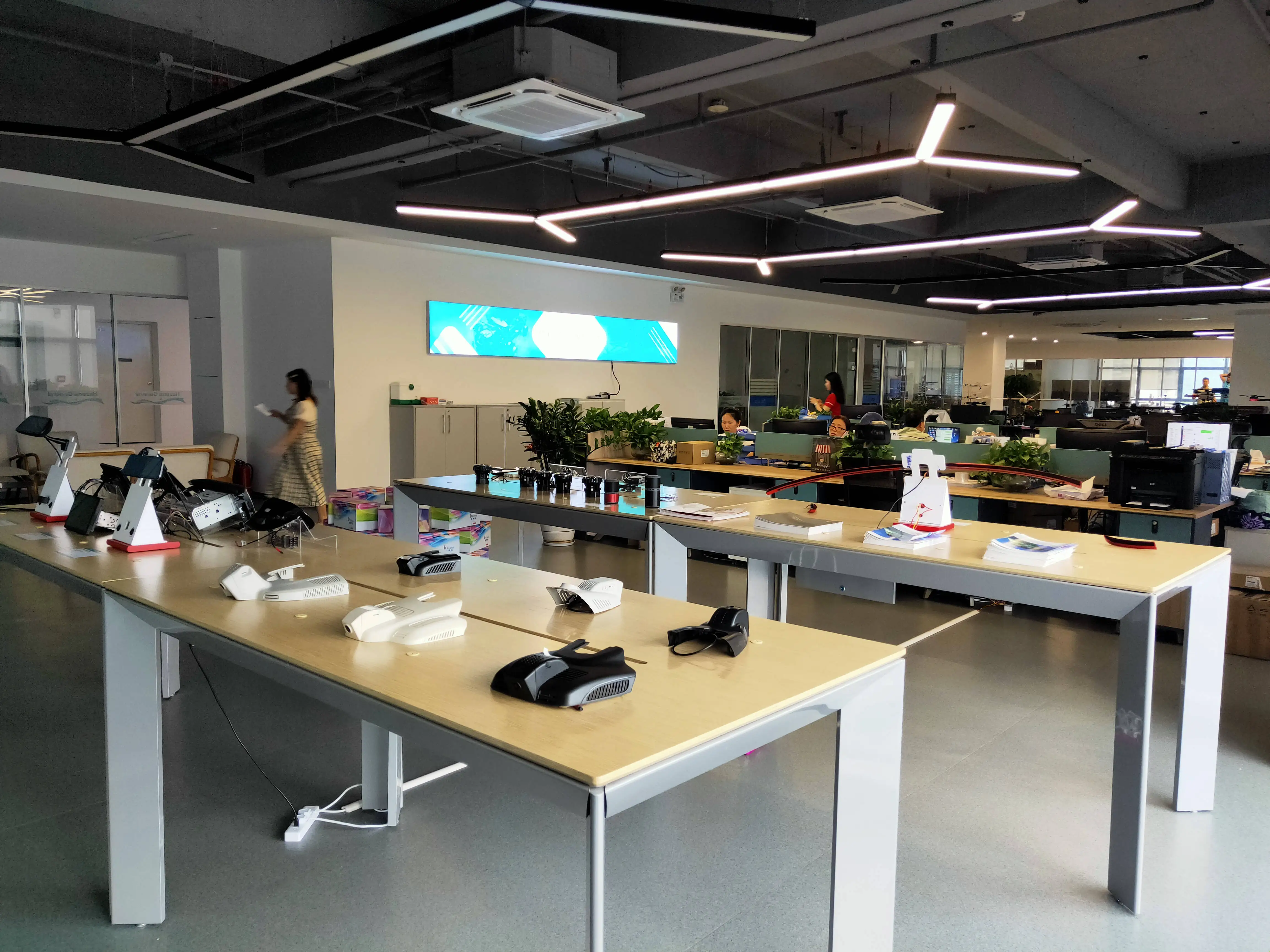

Company Profile
Shenzhen Qingzheng Electronic Information Technology Co., Ltd. is committed to the advancement and development of the UAV (Unmanned Aerial Vehicle ) industry and realizes technology empowerment in various sub-sectors. The main products are UAVs, smart robot dogs, photoelectric pods, Gimbal Drone, multispectral, hyperspectral, LIDAR, laser radar etc. However these products provide solutions for industrial customers, and reshape people's production as well as their lifestyle. Also, we work hand in hand with global drone partners to open up the era of unmanned aerial intelligence so that technological innovation will continue to bring a better future to mankind.
Exhibition
Our Team
FAQ
Q1. Provide free sample?
A:No, and you willalso pay for the freight cost.
Q2. What is your delivery time?
A:For stock products, we will arrange the delivery within 10-12 work days.
A:For stock products, we will arrange the delivery within 10-12 work days.
Q3. What service can you supply?
A:We have our brands products and OEM/ODM service.
A:We have our brands products and OEM/ODM service.
Q4. What kind of package do you offer?
A:Our products are packed with gift box
A:Our products are packed with gift box
Q5.Warranty time?
A:One year.
A:One year.
