Company Profile


Shandong Tonsen Equipment Co., Ltd. is an international comprehensive enterprise specializing in R&D,production,technical support and services for beer equipment and distillery equipment .Our company has 80 front-line production employees,10 production management staff,5 top Professional and Technical Personnel,the product includes large,medium and small brewery equipment,hotel/bars brewed beer equipment,teaching laboratory equipment,various types of wine equipment,and provide beer equipment accessories, auxiliary equipment,control equipment.
Shandong Tonsen Equipment Co.,LTD.supply the main and auxiliary materials of beer brewing,brewing technique training and otherservices. According to customers' different requirement,our engineers can design,produce and install special specifications of equipment and other products.Our company adhering to the principles of reputation foremost ,quality first,and focus oncustomers,to integrate wine culture and enterprise culture,we committed to creating a world leading brands "Tonsen" Beer。

1. TurnKey brewery Project with high-level technology.
2. Custom made for any size.
3. International standard stainless steel 304,316 and red copper material.
4. Seamless Welding&8 times Inner polishing.
5. Advanced produce equipment.
6. Leading manufacturer of craft brewing equipment in China.

PRODUCT FEATURES:
Our Fermentation tanks/tun available from 100L to 20000L and average 25% Head Space.
All tanks have a Dish top,
Cylinder body & 60/70° Cone Bottom.
Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
We can customize fabricate any tank to meet your brewery's space and height restrictions.

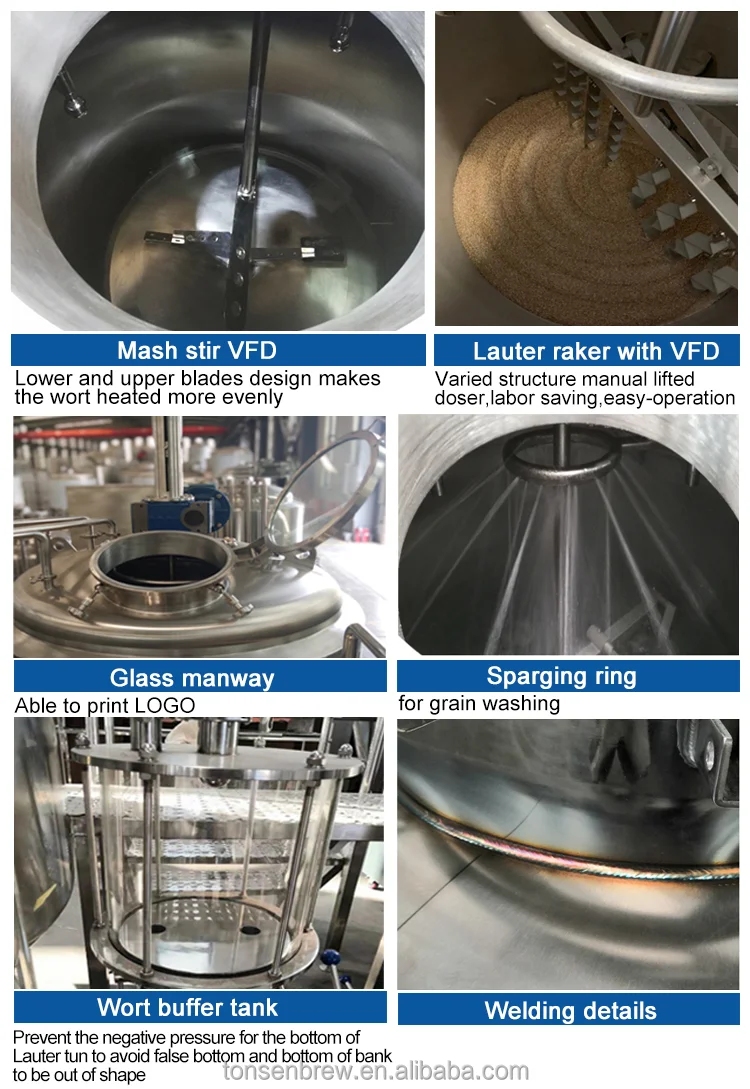

Brewhouse Specification

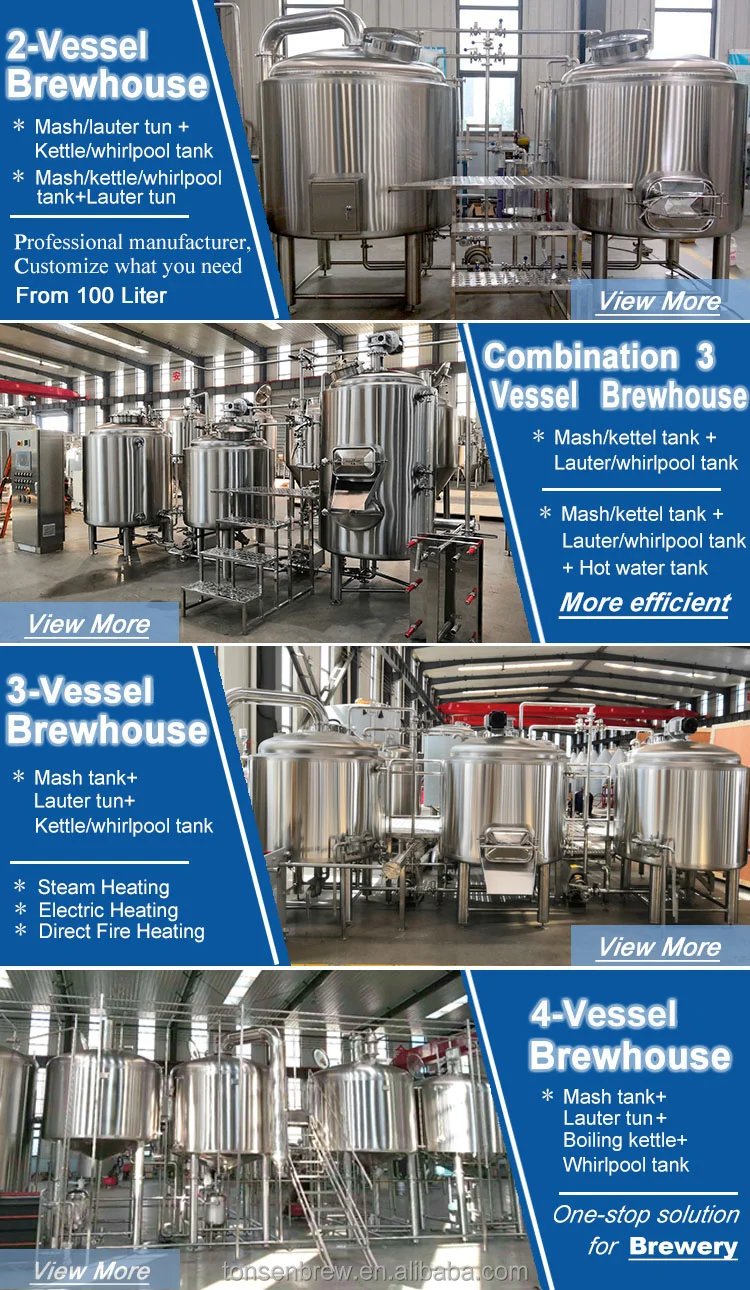

The brewery can be SUS304 or copper cladding in material, steam, electric or direct fire heating, two/three or four vessel brewhouse.

The system contains milling, brewhouse, fermenter, bright beer tank, control unit, Glycol cooling Unit and CIP Cleaning System, as well as kegging and Bottling system.

The mashing process and the wort filtration process are completed by Mash tun/ lauter tank; The boiling and whirlpool processes are completed by one tank.

This system usually brews two or three batches a day. According to different fermentation cycles of brewed beer, 6pcs double batches fermenters or 12pcs single batch fermentors can usually be configured.

The system also needs to be equipped with a complete automatic or manual control system, malt milling system, CIP system, cooling system, steam heating system, air system, etc.


item
value
Processing
Fermenting Equipment
Applicable Industries
Hotels, Food & Beverage Factory, Restaurant, Retail, Food & Beverage Shops
After Warranty Service
Video technical support, Spare parts
Local Service Location
Canada, Turkey, United Kingdom, United States, Italy, France, Philippines, Russia, Spain, Thailand, Australia, Argentina, South Korea, Romania, Ukraine
Showroom Location
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Spain, Thailand, South Korea, UAE, Algeria, Ukraine, Japan, Malaysia, Australia
Condition
New
Place of Origin
China
Brand Name
Tonsen
Dimension(L*W*H)
Customized
Weight
2000KG
Certification
ISO CE TUV
Warranty
5 years
Machinery Capacity
50L, 100L, 200L, 300L, 400L, 500L, 600L, 700L, 800L, 1000L, 1200L, 1500L, 1800L, 2000L, 2500L, 3000L, 3500L, 4000L, 5000L, 10000L, 20000L, 50000L
Machinery Test Report
Provided
Warranty of core components
5 years
Core Components
Motor, PLC
Key Selling Points
Automatic
Marketing Type
New Product 2020
Video outgoing-inspection
Provided
Material:SS304, SS316, Red Copper
Cooling Jacket: dimple Cooling Jackt
Thickness: Inside:3.0mm Outside:2mm
Polish: 2B, Mirror or Drawplates
Insulation material: Rock Wall
Type: Cylinder
Voltage: 380V 50(60)HZ
Heating Way Electrical or Steam or Fire Directly Heating
Power:8KW-65KW
Capacity: 100L-10000L










Our Advantage&feather


Our Advantage:
> With ISO TUV SGS, the product meets the GB/CE/PED/ASME standard
> Local service in EUROPE, AUSTRALIA ETC
> 5 Years Warranty for tanks
> 0 trade risk verified by more than 1100 breweries
> 20 Years Manufacture and Management Experience
> Installed More than 1100 breweries in 76 Countries
Our Feathers:
> Two/Three/Four vessels with hot water,first batch takes about 8 hours, and two batches of 14 hours are allowed;
> All certificated 304 stainless steel, easy to clean; Copper cladding for special environments such as bars;
> Steam heated, high thermal efficiency, gentle for wort; Electric or direct fire heating available;
> The wort cooled by tap water and -5 ºC ice water to cool in two stages, Single stage available;
> Mashing heating and fermentation cooling automatically controlled, and manual control switched at any time;
> Manual valve control, humanized operation, low equipment investment cost, high cost performance; PLC automatic control for upgrade;

2HL 5HL 6HL 8HL Micro Beer Brewing Brewery Equipment



Output/Brew
2HL
3HL
5HL
6HL
8HL
Brew/Week
2~6
2~6
2~6
2~6
2~6
Output/Week
4~12HL
6~18HL
 10~30HL
12~36HL
16~48HL
Heating Source
Electric/Steam/Fire directly heating



10HL 12HL 15HL 20HL 25HL 30HL 35HL Micro Beer Brewing Brewery Equipment


Output/Brew
10HL
12HL
15HL
20HL
25HL
30HL
35HL
Brews/Week
2~6
2~6
2~6
2~6
2~6
2~6
2~6
Output/Week
 60~ 120HL
72~
144HL
90~
180HL
120~
240HL
150~
300HL
180~
360HL
210~
420HL
Heating Source
Steam/Directly Fired
Area Request
>70M2
>80M2
>100M2
>120M2
 >140M2
>150M2
>180M2

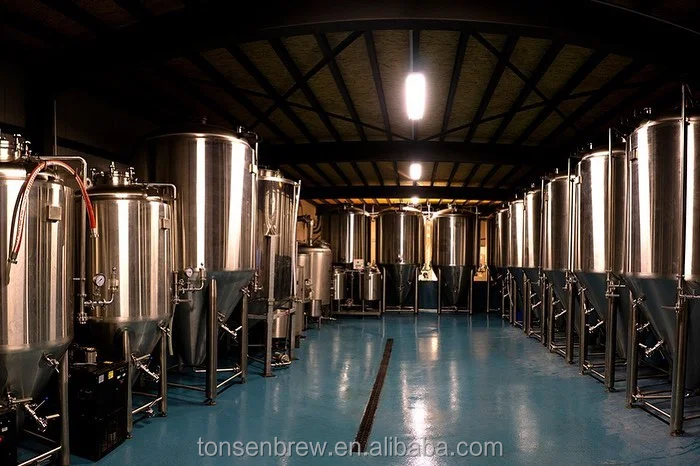

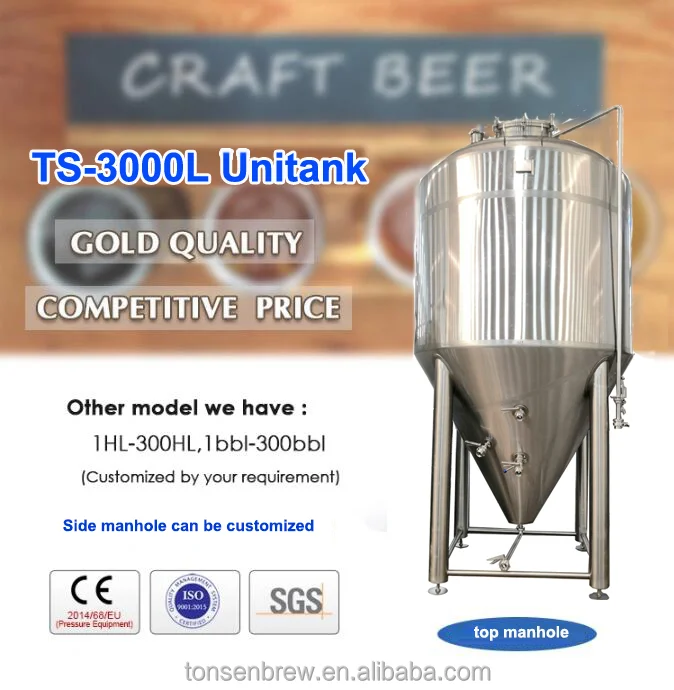

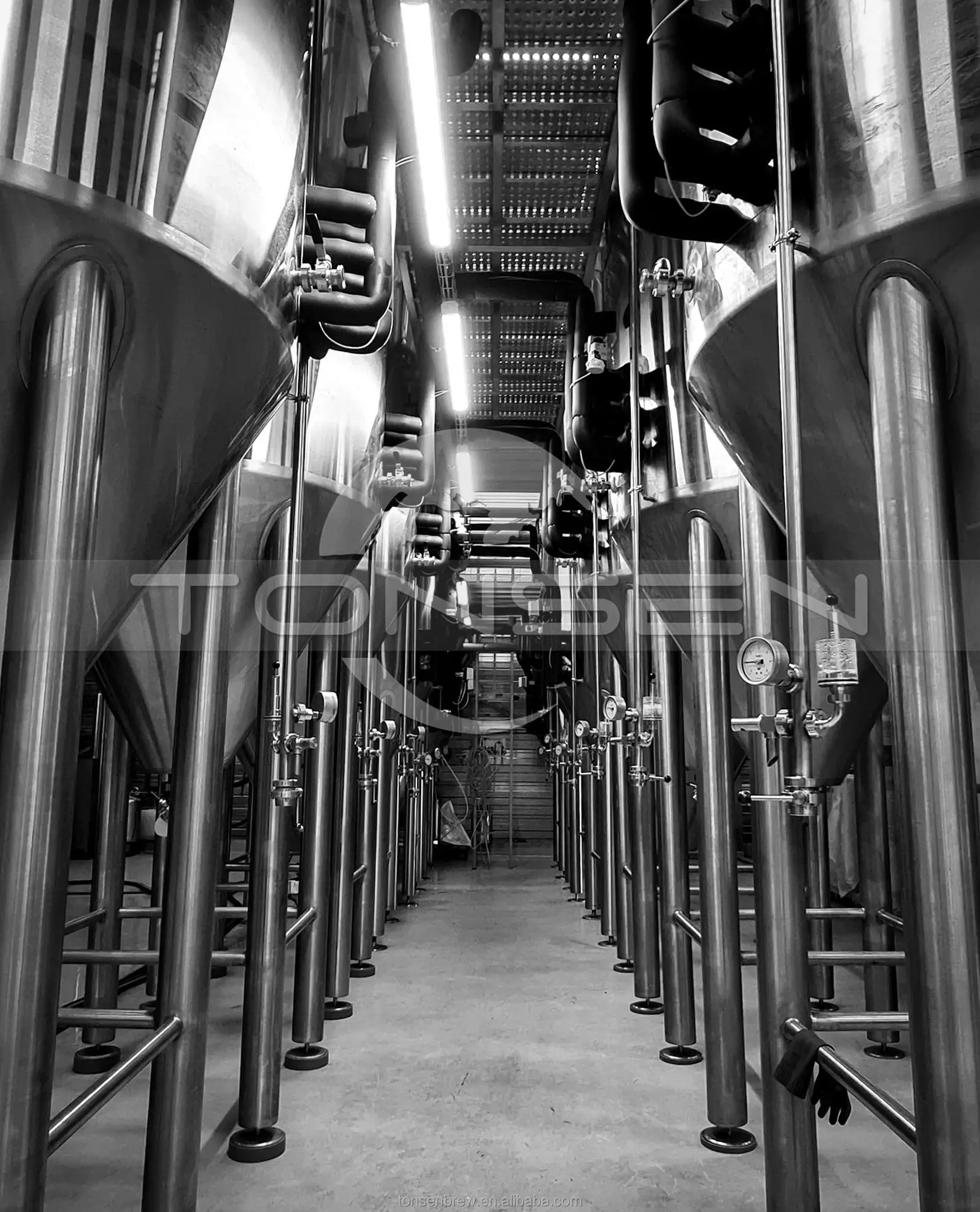

Beer Fermenter description


Fermentation systems is made up of Fermentation Tank and Bright Beer Tank quantities are based on customer's request. According to different fermenting request, structure of fermentation tank be be designed accordingly.Generally Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone section,columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, also help to precipitation and storage the yeast.

-Capacity: 100L-30000L, 1bbl-100bbl, +25% Head space
-Interior shell thickness 3-6mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
-Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way

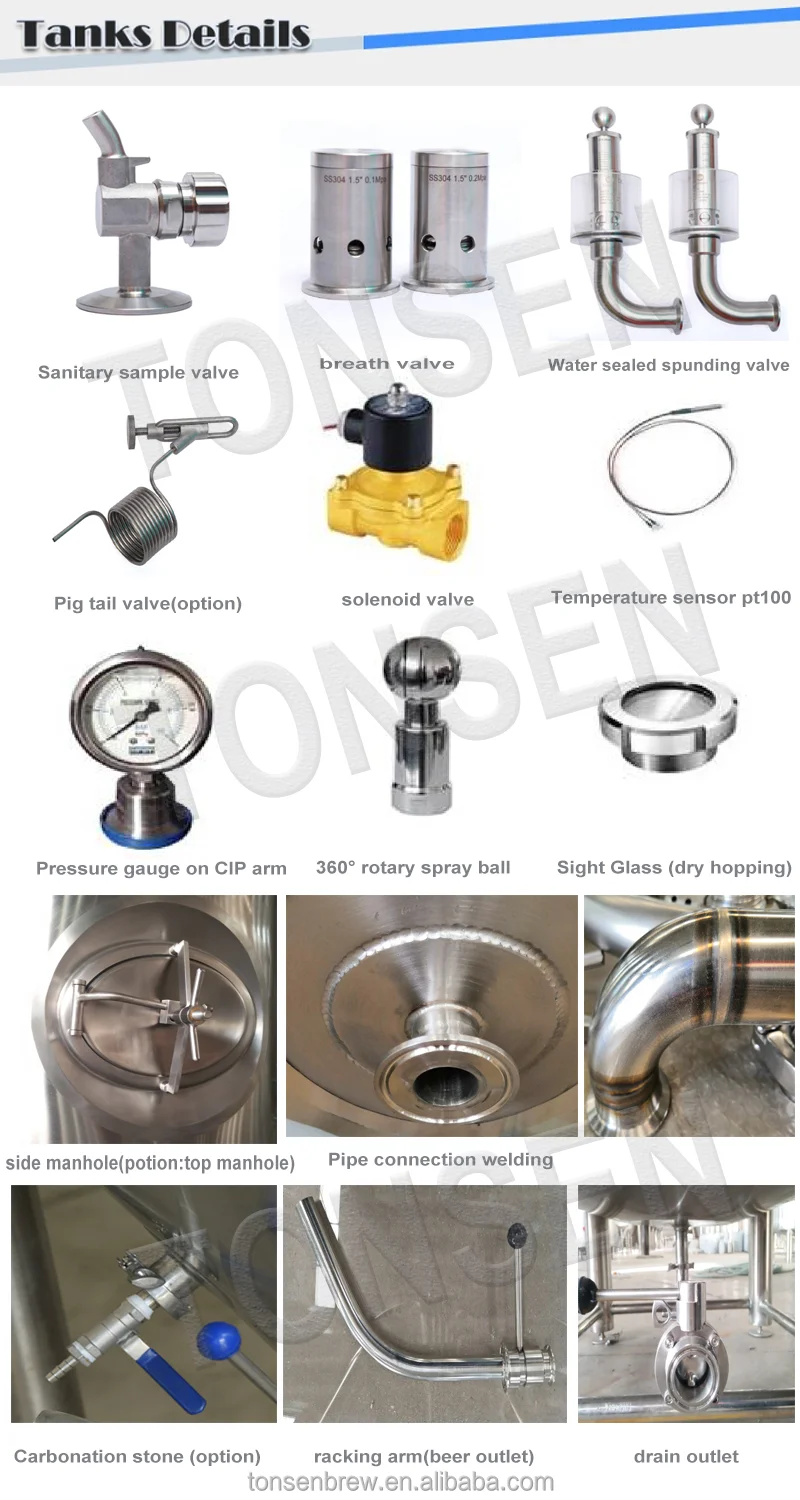

-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge-Adjustable tank leveling pads












Exhibition

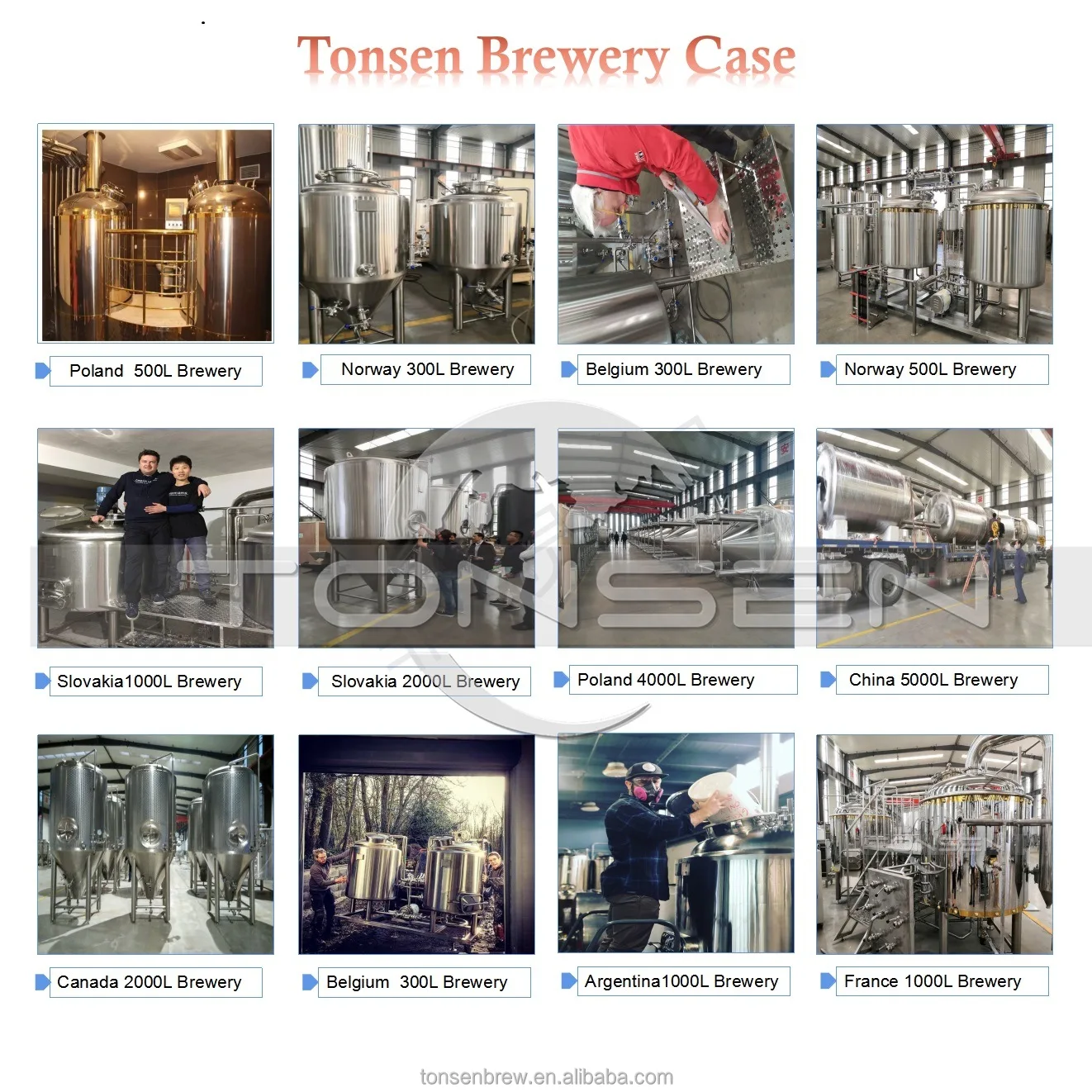

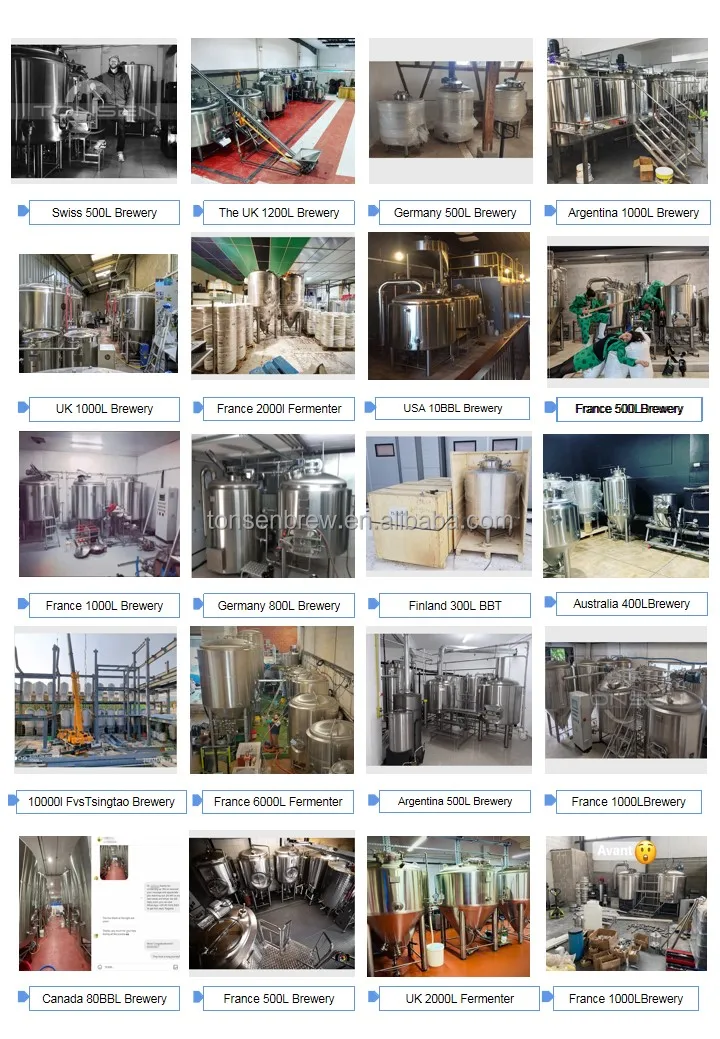

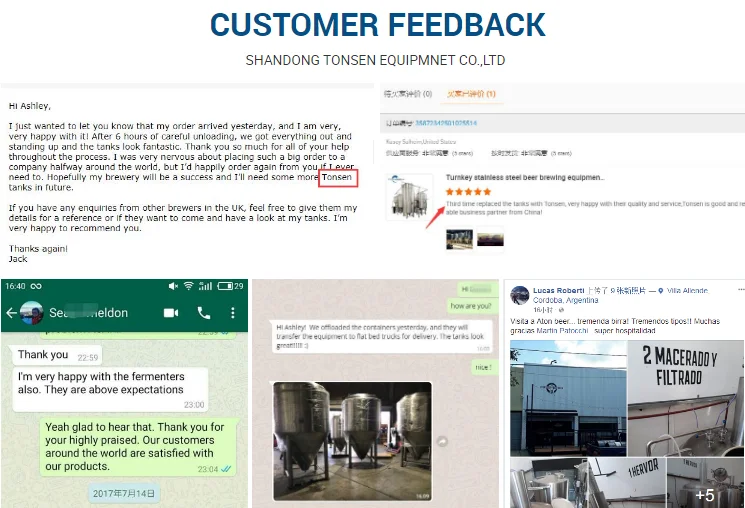

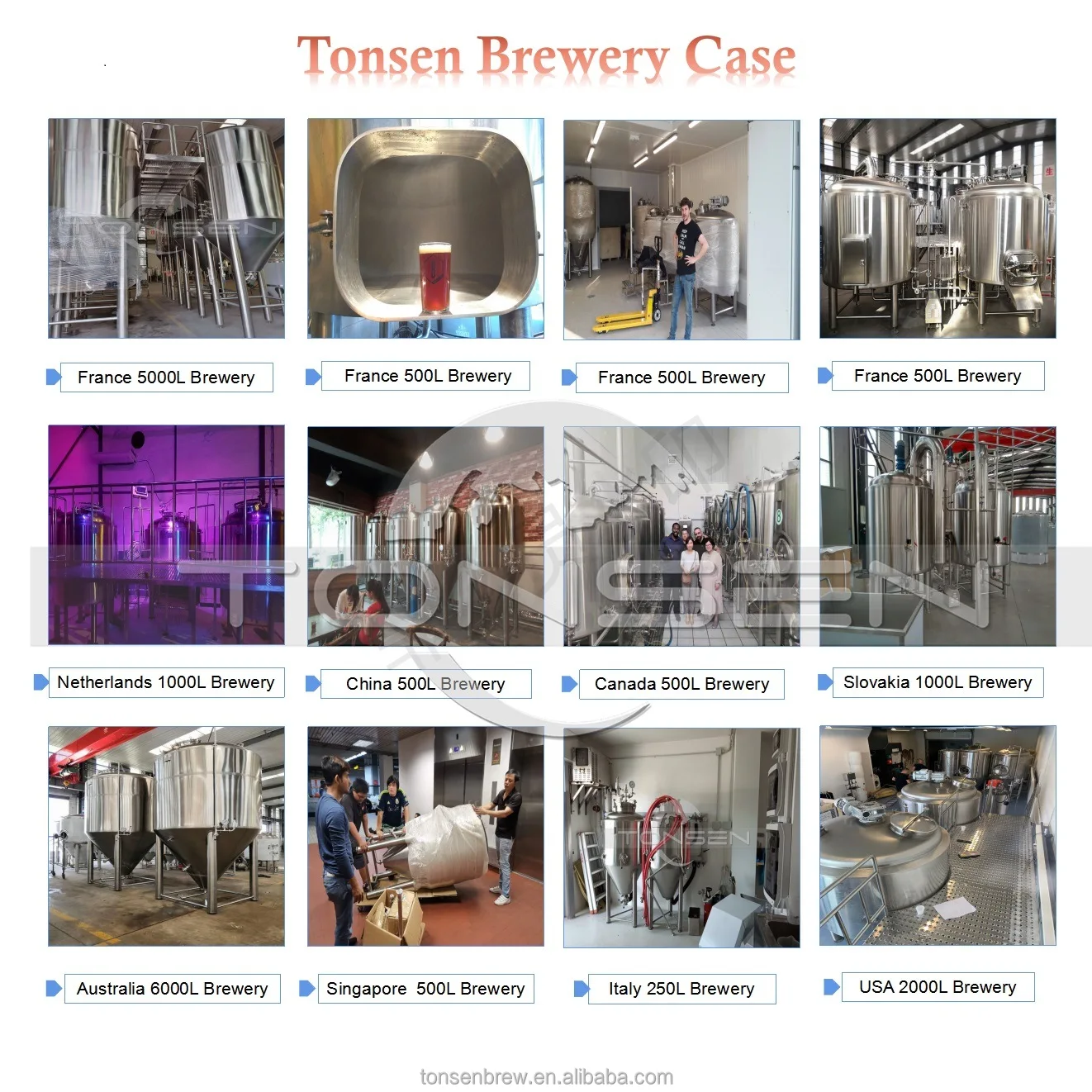

Customer Photos

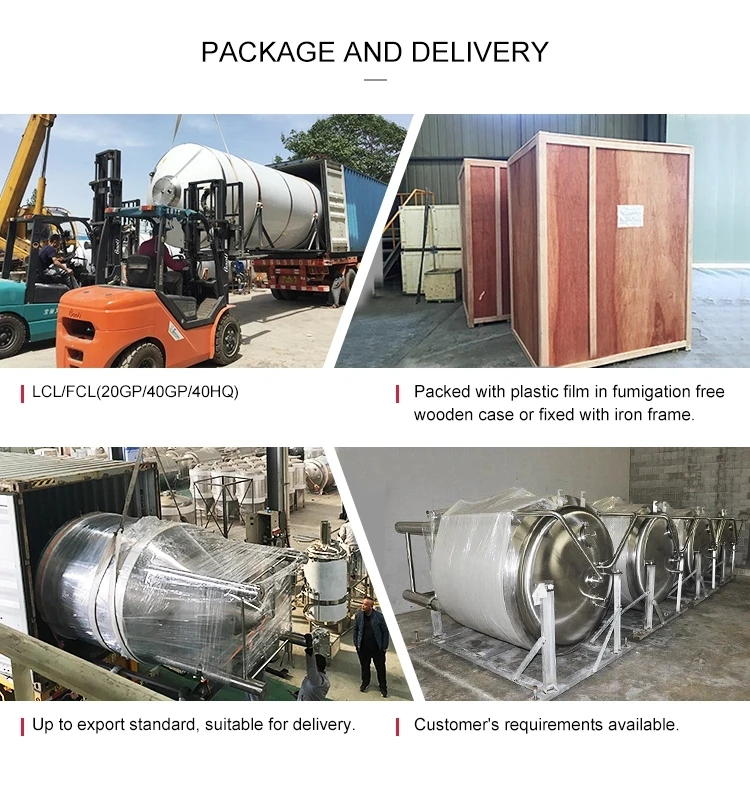

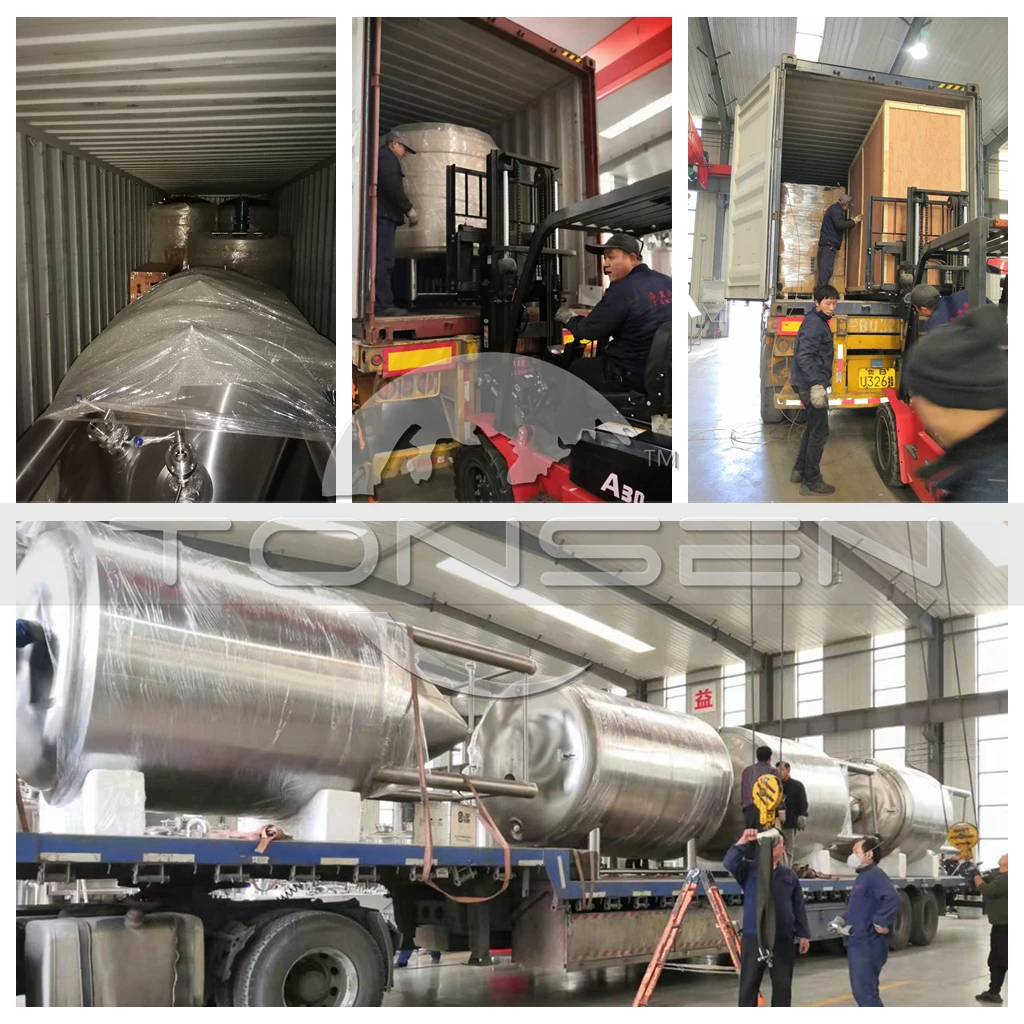

Packing & Delivery




1) All tanks will be packed with soft protection material and mounted on steel frame
2) All accessories and spare parts will be packed with soft protection material and then put into iron box
3) After loaded into containers, all equipment will be fixed to the containers.


FAQ


1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(30.00%),Western Europe(17.00%),North America(12.00%),Southern Europe(8.00%),Northern Europe(6.00%),Eastern Europe(5.00%),Oceania(5.00%),Central America(5.00%),South America(3.00%),Southeast Asia(3.00%),South Asia(3.00%),Eastern Asia(2.00%),Africa(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Brewery Equipment

4. why should you buy from us not from other suppliers?
Our CEO, technicists and production manager worked in this business over 10 years.

The welding employees worked in this business over 4 years and all get senior technical certificate.

We know beer brewing equipment and work hard for this buisness.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi
