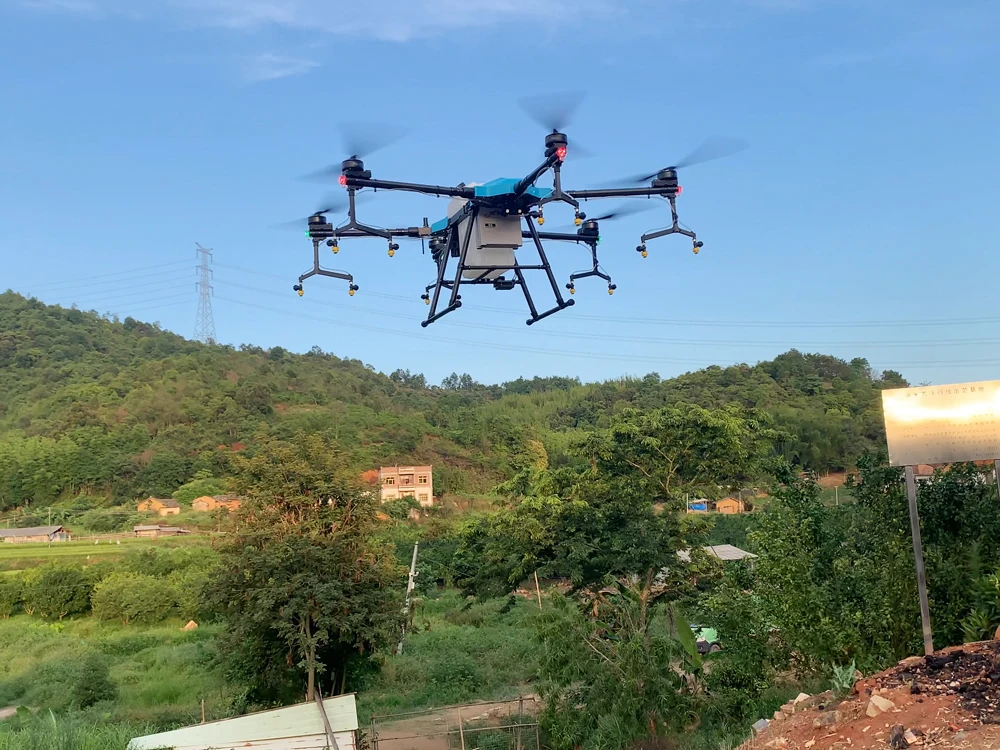

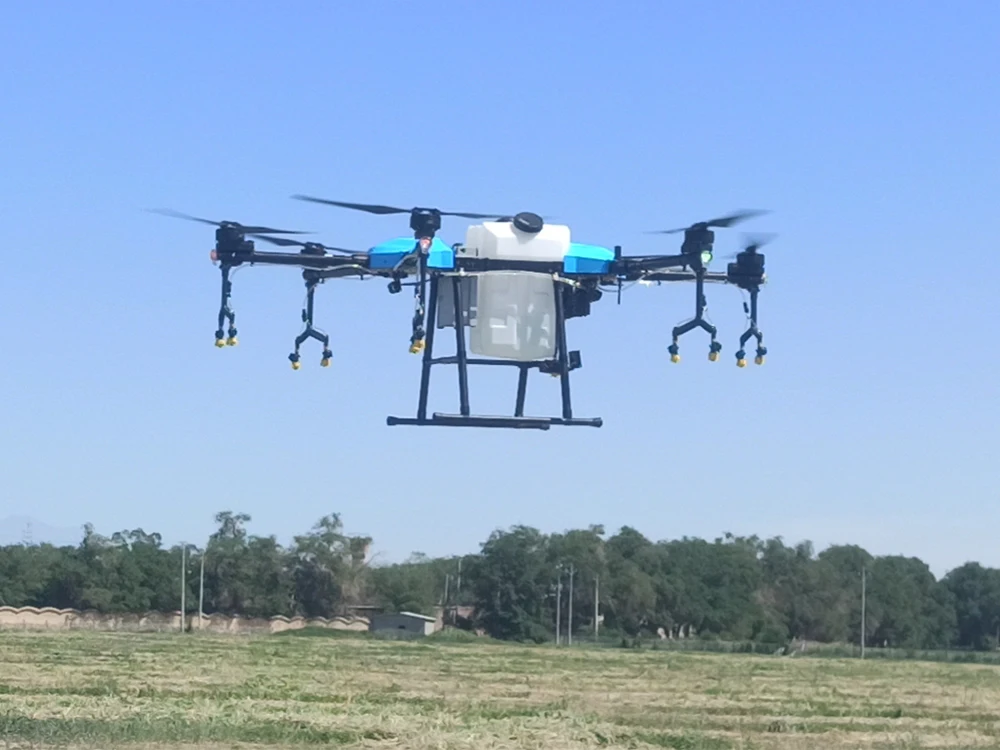

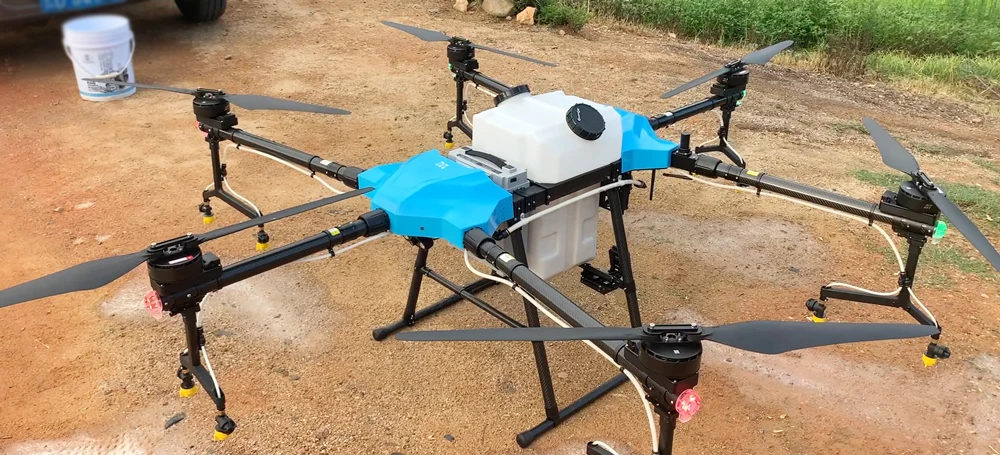

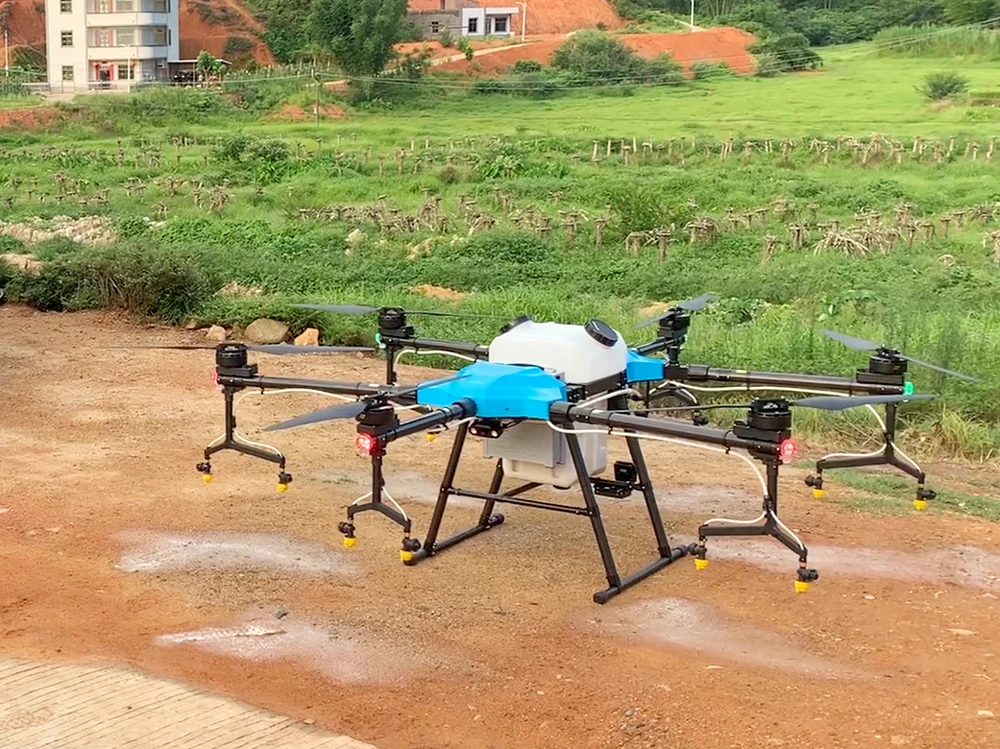

Сельскохозяйственный Дрон для распыления агрокультура 30 л резервуар кг грузоподъемность БПЛА сельскохозяйственный

Technical Parameters

Wheelbase

2000 mm

Product Size

2900×2900×780mm (arms unfolded, propellers unfolded)

2050×1610×780mm

(the arms are unfolded, the blades are folded)

1050×620×780mm (the arm is folded)

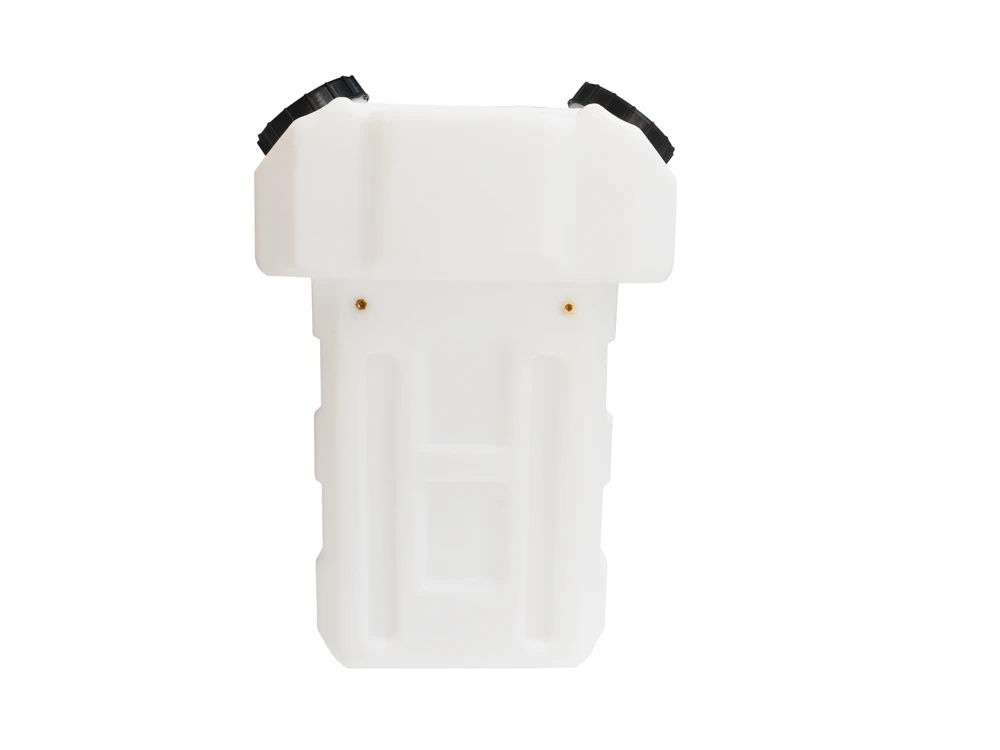

Spray system-Tank

Quantity

1 piece

Volume

Rated 30 liters, full load: 32 liters

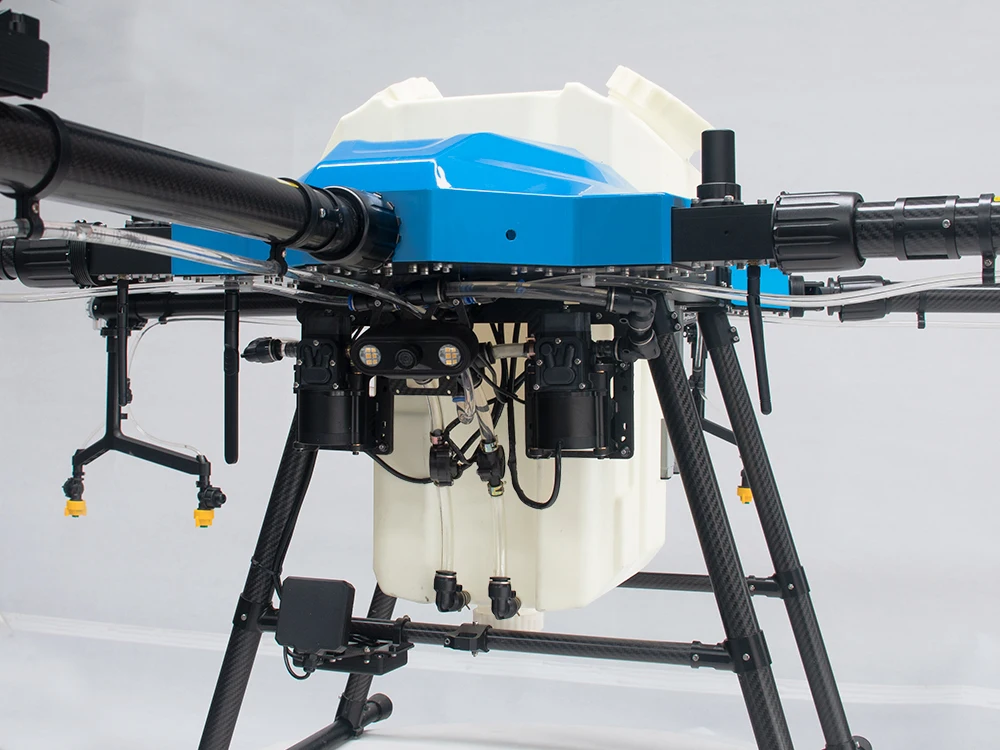

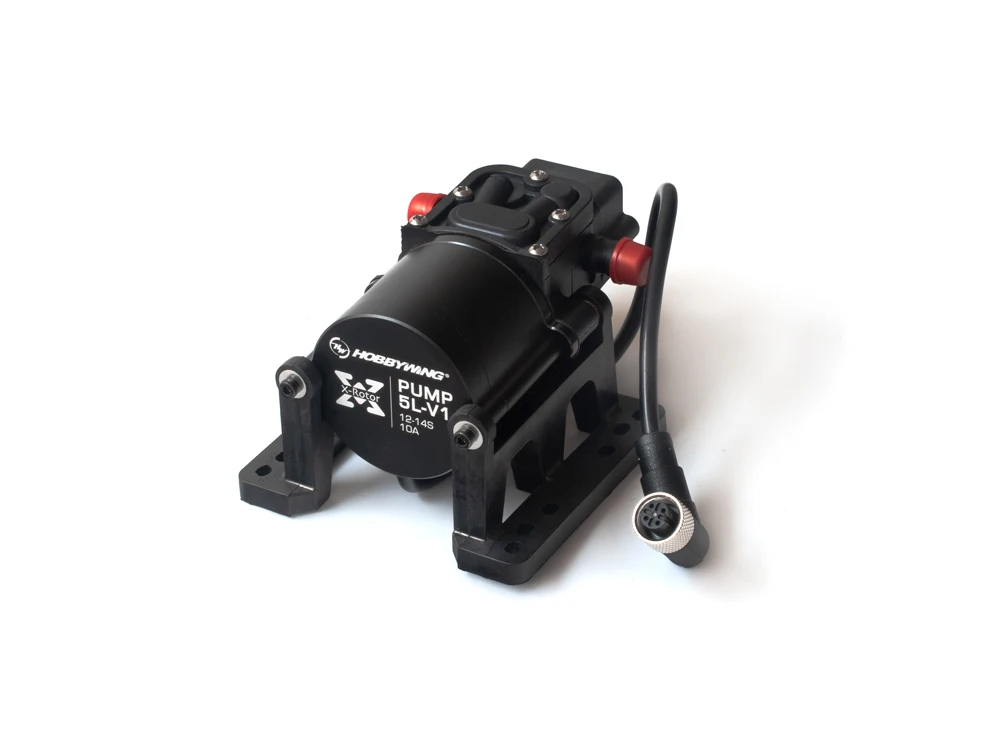

SprayingSystem-brushless water pump

Quantity

2

Work flow

5L/min*1

Operating Voltage

51.8-60.0V

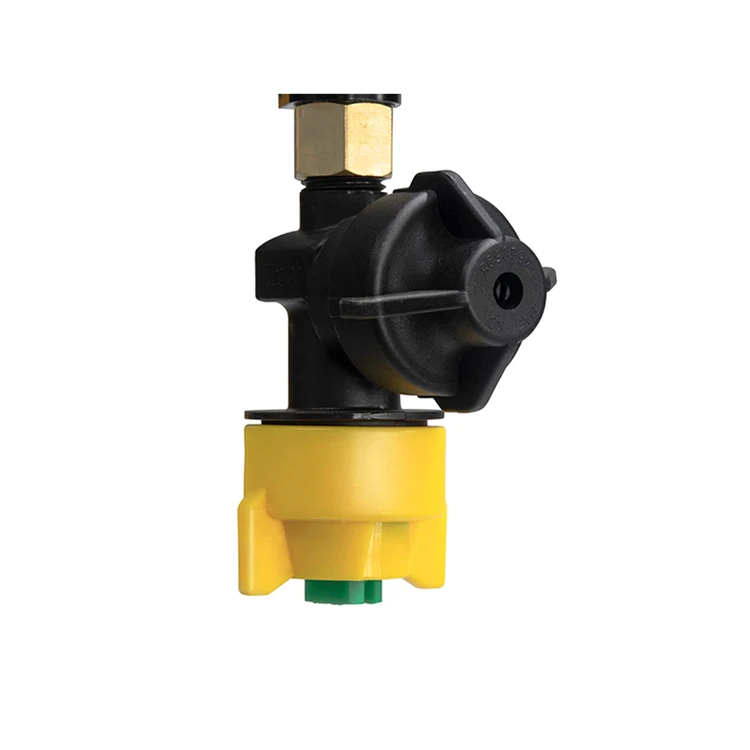

SprayingSystem-pressure nozzle

Quantity

12

Maximum spray flow

8L/min

Atomized particle size

SX110015VS: 170-265 μm

Maximum effective spray width

4M-9M (1.5-3.5M height from the crop)

Flight parameters

Total weight of the whole machine (without battery)

27.5kg

Standard take-off weight

37.8 kg

Maximum effective take-off weight

67.5 kg (horizontal)

Hover accuracy

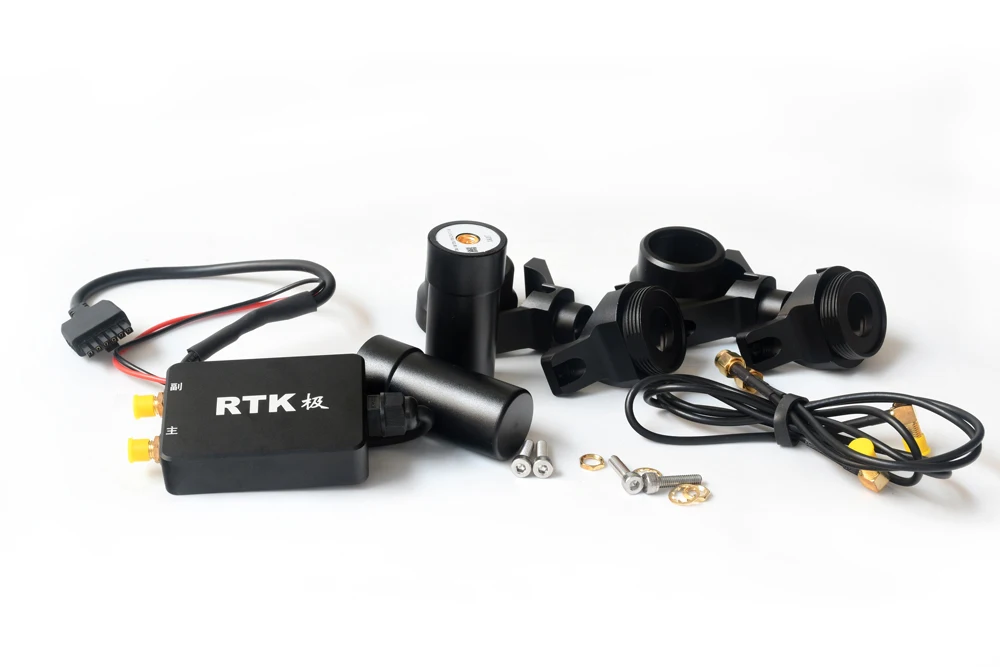

Enable J-RTK: Horizontal: ±10 cm, Vertical: ±10 cm

(Good GNSS signal)

J-RTK is not enabled: horizontal ±0.6m, vertical ±0.3m (radar module enabled: ±0.1m)

RTK / GNSS use frequency band

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5

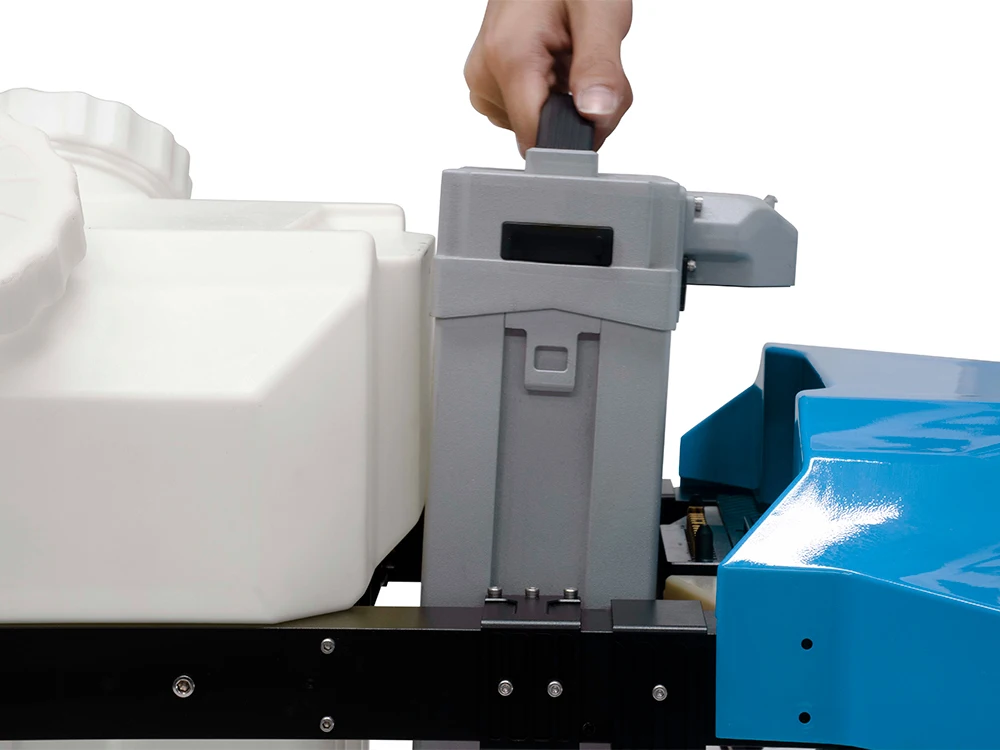

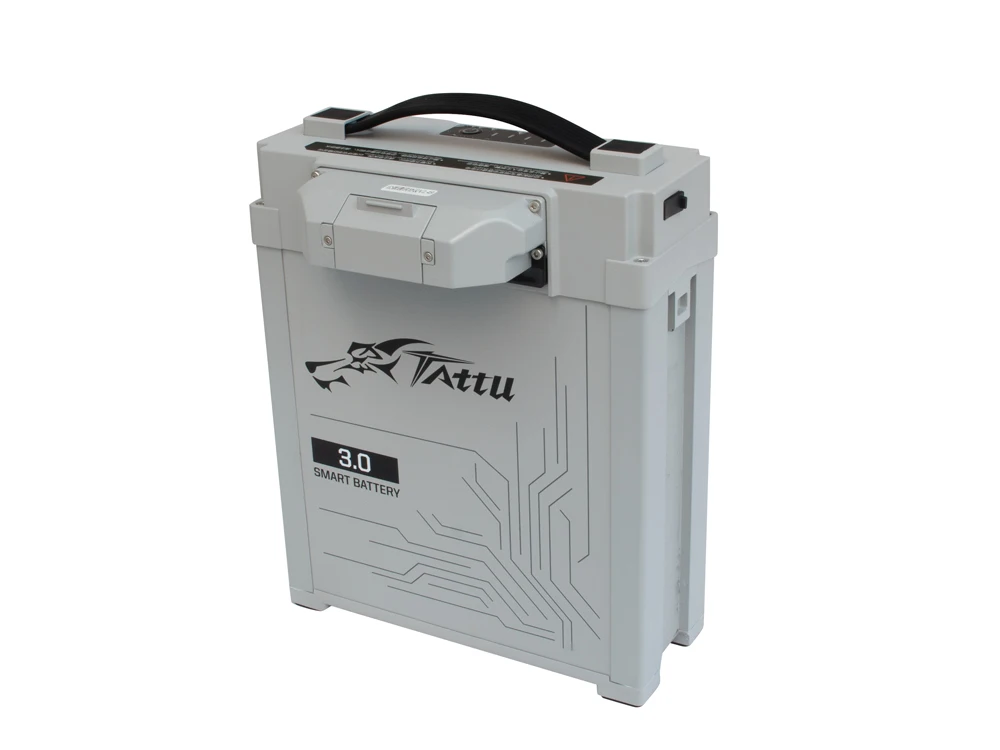

Battery capacity

14S (28000mAh 51.8V)

Flight duration

12000 W

Maximum pitch angle

15°

Maximum operating flight speed

7 m/s

Maximum flight speed

10m/s

Maximum tolerable wind speed

8 m/s

Maximum flight altitude

2000 m

Recommended working environment temperature

0°C - 40°C

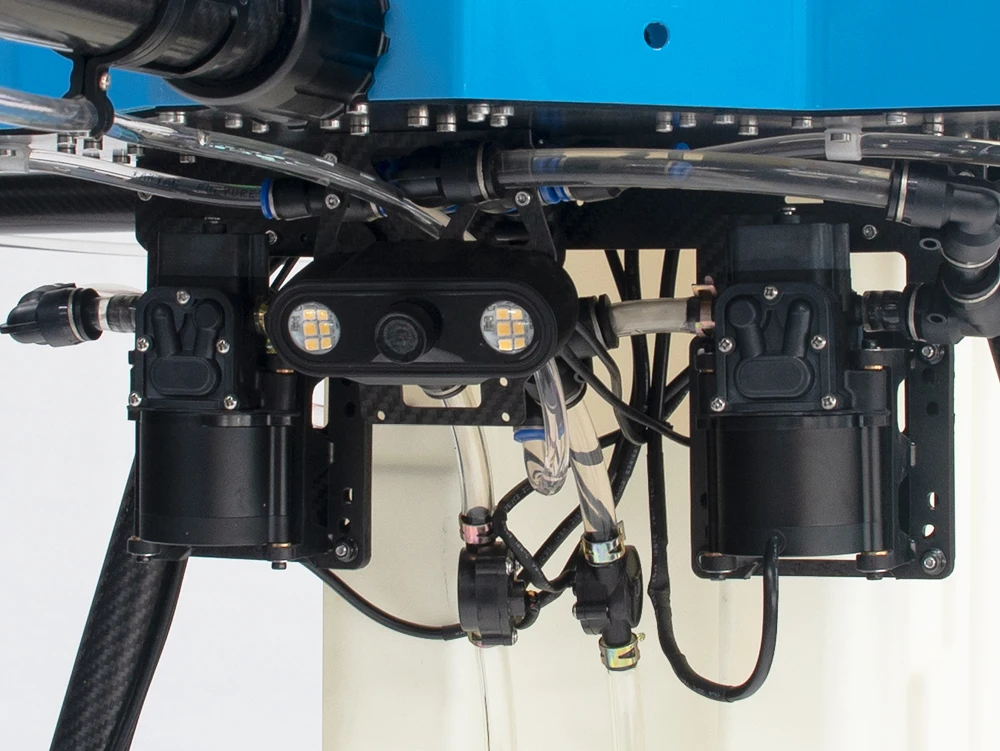

Front and rear dual cameras

Angle of View (FOV)

FOV120°

Resolution

1280×960 30fps

Front and rear double searchlight

Searchlight power

<8W

Luminous flux

1W/120-140 lm

Irradiation angle

120°

waterproof level

IP67
