Chinese supplier water well drilling machinery equipment crawler type water well drilling rig machine

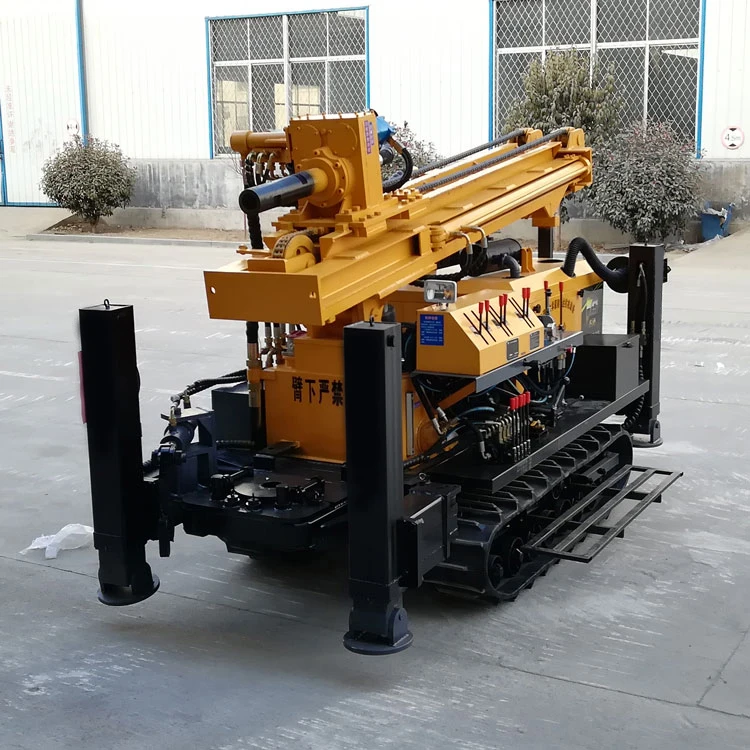

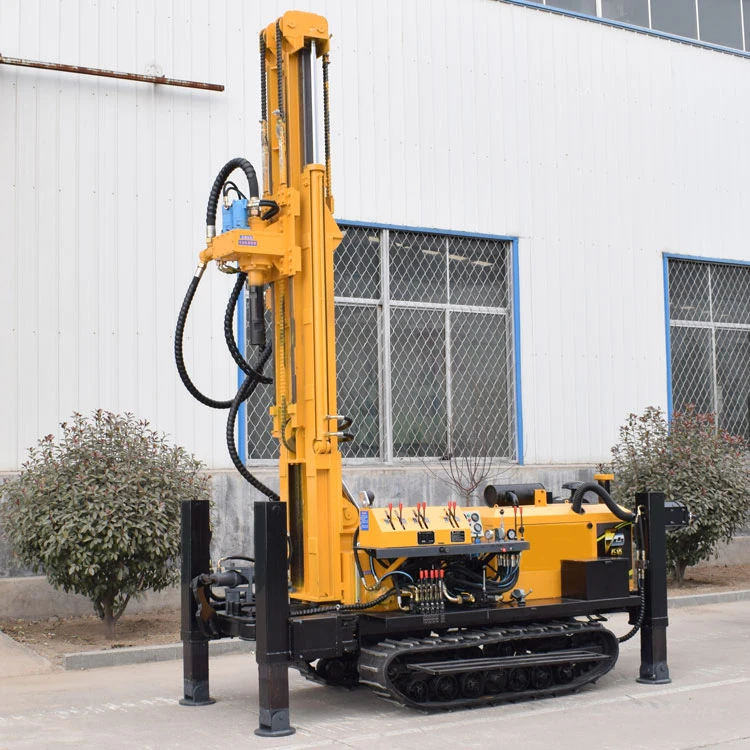

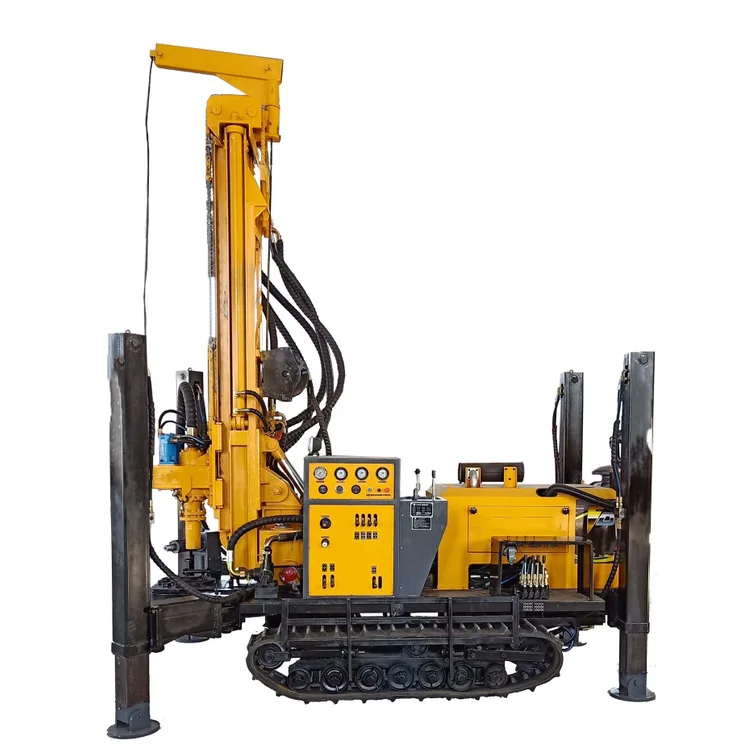

Product photo
Advantages of FY series water well drilling rig:
1. The engine uses a turbocharged engine;
2. Walking device: the walking motor is equipped with a gear box, which is durable and has a long life;
3. Hydraulic oil pump; parallel gearbox design with separate oil pump units, sufficient power supply and reasonable distribution, unique hydraulic system design, simple maintenance and low cost;
4. Power head device; gearbox is cast in one piece, dual motors provide power, large torque, durable, and low maintenance cost;
5. Drilling rig chassis; professional excavator chassis, durable, large load-bearing, wide chain plate, little damage to hard roads;
6. Lifting force; patented design composite boom, the boom is small in size, long stroke, double cylinder lifting, lifting tonnage is large;
7. The lifting boom of each drilling rig is equipped with a stopper to protect the safety of the oil cylinder and ensure the safety of work;
8. Each hydraulic oil pipe is covered with a protective jacket to make the service life of the oil pipe longer.
2. Walking device: the walking motor is equipped with a gear box, which is durable and has a long life;
3. Hydraulic oil pump; parallel gearbox design with separate oil pump units, sufficient power supply and reasonable distribution, unique hydraulic system design, simple maintenance and low cost;
4. Power head device; gearbox is cast in one piece, dual motors provide power, large torque, durable, and low maintenance cost;
5. Drilling rig chassis; professional excavator chassis, durable, large load-bearing, wide chain plate, little damage to hard roads;
6. Lifting force; patented design composite boom, the boom is small in size, long stroke, double cylinder lifting, lifting tonnage is large;
7. The lifting boom of each drilling rig is equipped with a stopper to protect the safety of the oil cylinder and ensure the safety of work;
8. Each hydraulic oil pipe is covered with a protective jacket to make the service life of the oil pipe longer.
Product Description
Model | FY-200 |
Weight | 5.5T |
Dimensions | 4000×1750×2450mm |
Drilling diameter | 140-305mm |
Drilling depth | 200m |
One-time advance length | 3400mm |
Walking speed | 2.5Km/h |
Climbing ability | 30Max |
Small ground clearance | 250mm |
Working pressure | 1.7-3.0Mpa |
Air consumption | 17-30m³/min |
Host power | 65Kw |
Rotation speed | 45-70rpm |
Rotating torque | 3500-4800N.m |
Model | FY300 |
The weight | 7T |
The hole diameter | 140-325mm |
Drilling depth | 300m |
One-time advance length | 3.3m |
Walking speed | 2.5km/h |
Climbing angles | 30 |
Equipped capacitor | 85kw |
Using air pressure | 1.7-3.0mpa |
Air consumption | 17-36m³/min |
Drill pipe diameter | 76mm 89mm 102mm |
Drill pipe length | 1.5m 2.0m 3.0m |
Rig lifting force | 18T |
Swing speed | 40-70rpm |
Swing torque | 5700-7500N.m |
Dimension | 4150*1950*2600mm |
Model | FY350 |
The weight | 9T |
The hole diameter | 140-325mm |
Drilling depth | 350m |
One-time advance length | 6.6m |
Walking speed | 2.5km/h |
Climbing angles | 30 |
Equipped capacitor | 92kw |
Using air pressure | 1.7-3.4mpa |
Air consumption | 17-36m³/min |
Drill pipe diameter | 89mm 102mm |
Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
Rig lifting force | 24T |
Swing speed | 55-115rpm |
Swing torque | 6200-8500N.m |
Dimension | 5900*2000*2850mm |
Model | FY400 |
The weight | 10T |
The hole diameter | 140-350mm |
Drilling depth | 400m |
One-time advance length | 6.6m |
Walking speed | 2.5km/h |
Climbing angles | 30 |
Equipped capacitor | 92kw |
Using air pressure | 1.7-3.5mpa |
Air consumption | 17-35m³/min |
Drill pipe diameter | 89mm 102mm 108mm |
Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
Rig lifting force | 25T |
Swing speed | 45-115 rpm |
Swing torque | 6500-9000N.m |
Dimension | 5900*2100*2850mm |
Model | FY500 |
The weight | 11.5T |
The hole diameter | 140-350mm |
Drilling depth | 500m |
One-time advance length | 6.6m |
Walking speed | 2.5km/h |
Climbing angles | 30 |
Equipped capacitor | 118kw |
Using air pressure | 1.7-3.5mpa |
Air consumption | 17-42m³/min |
Drill pipe diameter | 102mm108mm114mm |
Drill pipe length | 1.5m2.0m3.0m6.0m |
Rig lifting force | 26T |
Swing speed | 40-115rpm |
Swing torque | 7500-10000N.m |
Dimension | 6200*2200*2950mm |
Model | FY600 |
The weight | 12T |
The hole diameter | 140-350mm |
Drilling depth | 600m |
One-time advance length | 6.6m |
Walking speed | 2.5km/h |
Climbing angles | 30 |
Equipped capacitor | 132kw |
Using air pressure | 1.7-3.5mpa |
Air consumption | 17-42m³/min |
Drill pipe diameter | 102mm108mm114mm |
Drill pipe length | 1.5m2.0m3.0m6.0m |
Rig lifting force | 28T |
Swing speed | 40-115rpm |
Swing torque | 8500-11000N.m |
Dimension | 6200*2200*2950mm |
Application scenario
Recommend Products
Company Profile
Customer Photos
FAQ
Q1,Are you factory?
A:Yes, we are factory with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models.If larger machine, we suggest you choose by sea to ship.
Q3, Where are you? Can we go to China and visit your factory?
A:Yes, of course. We are in Henan, China. Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms),insurance policy (if CIF terms), also CO, FORM E if you need.
A:Yes, we are factory with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models.If larger machine, we suggest you choose by sea to ship.
Q3, Where are you? Can we go to China and visit your factory?
A:Yes, of course. We are in Henan, China. Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms),insurance policy (if CIF terms), also CO, FORM E if you need.
