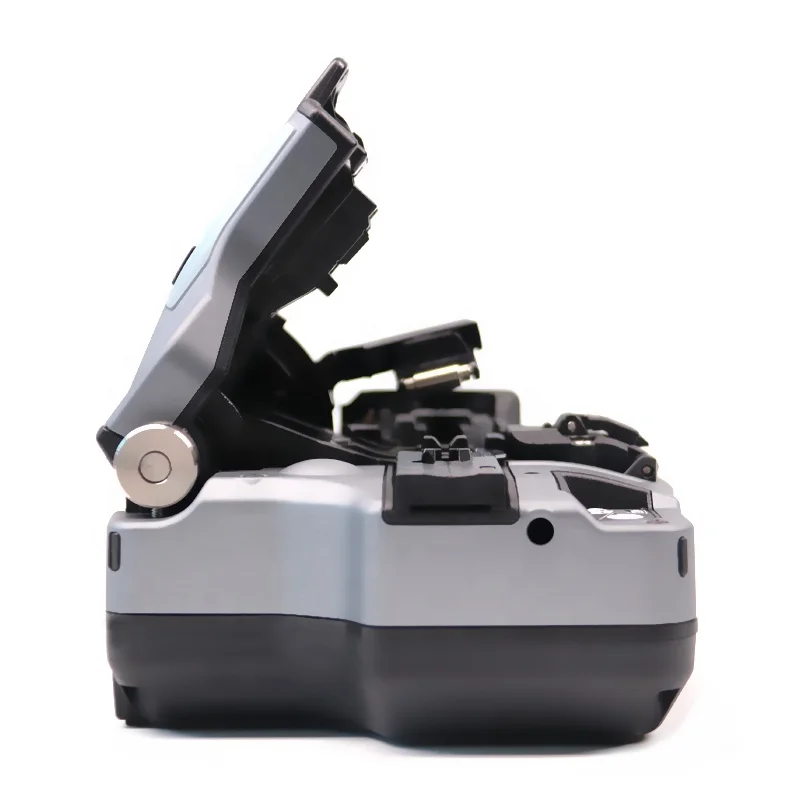

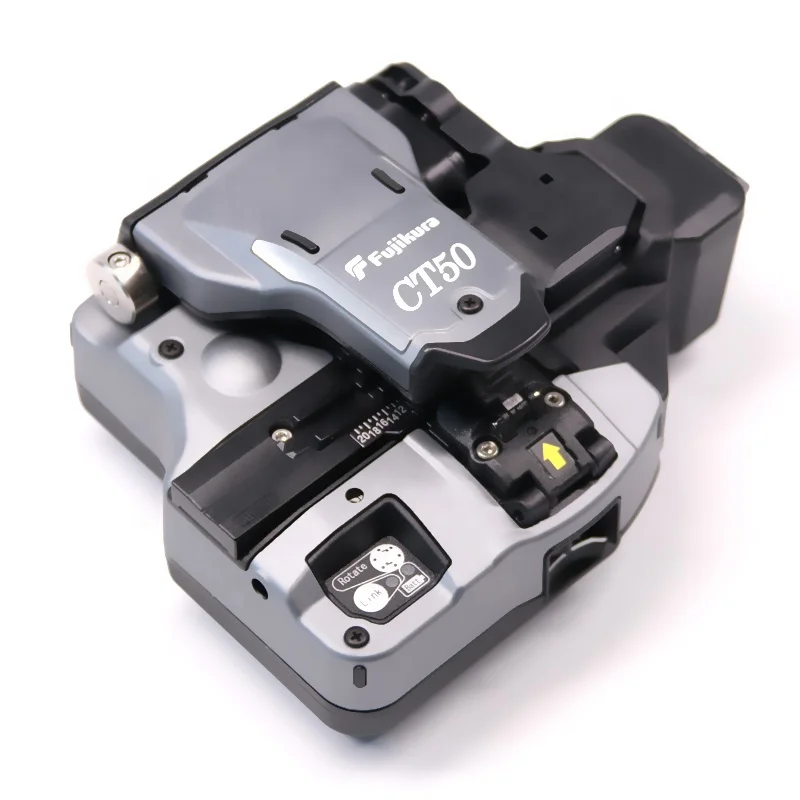

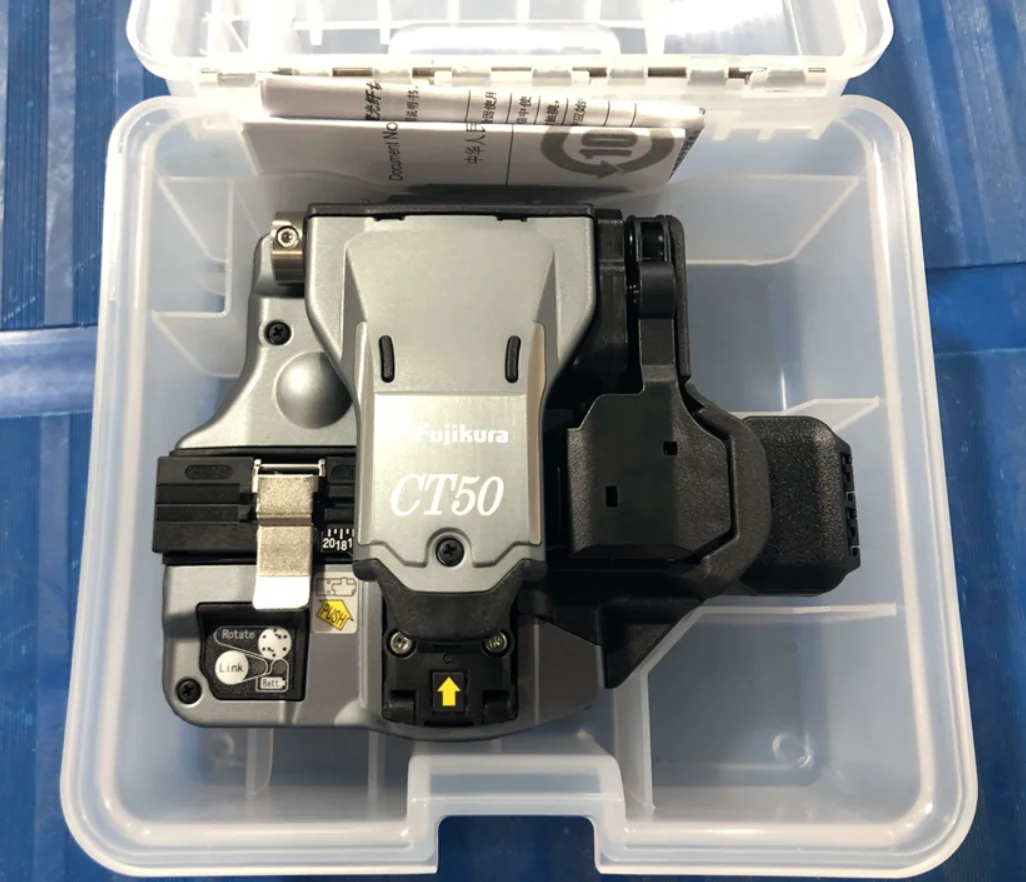

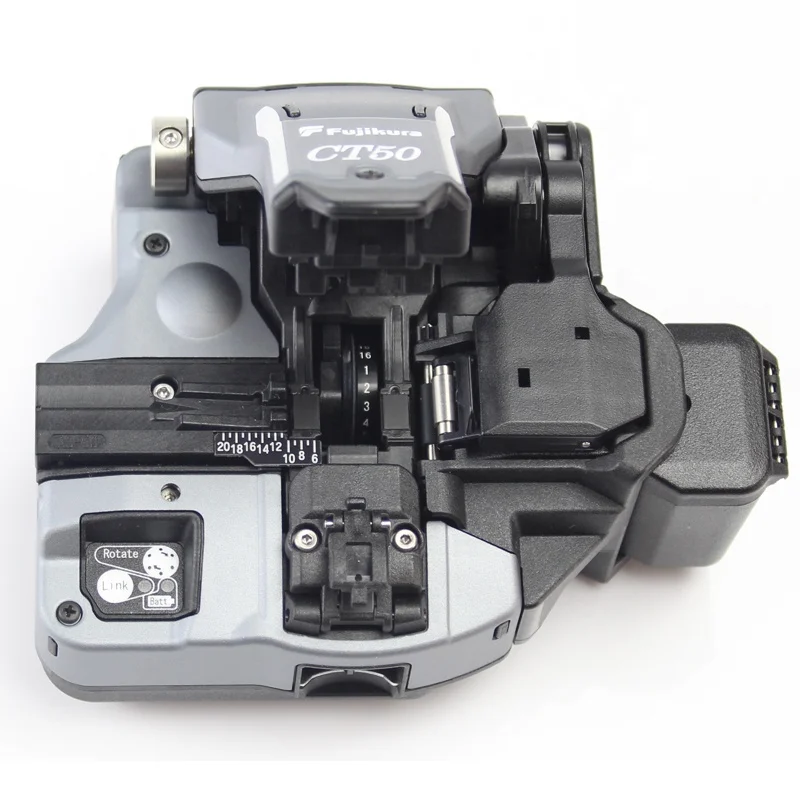

Высокая производительность CT-50 волоконно-оптический Кливер волоконный режущий инструмент по лучшей
- Категории: Other Telecommunications Products >>>
- Поставщик: Beijing,Mingyoujia,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Recommend Products
Products Description
Descriptions:
1.Applicable for up to 12-fiber cleaving
2.Automatic cleaving blade rotation via wireless communication
3.User replaceable fiber clamps and cleaving blade
4.Blade life up to 60,000 cleaves
5.Wide lever opening angle allows easy fiber placement
6.Single-action operation including fiber scrap collection
1.Applicable for up to 12-fiber cleaving
2.Automatic cleaving blade rotation via wireless communication
3.User replaceable fiber clamps and cleaving blade
4.Blade life up to 60,000 cleaves
5.Wide lever opening angle allows easy fiber placement
6.Single-action operation including fiber scrap collection
Features:
1.Cutting angle: Typical 0.5°
2.Fiber count:Up to 12
3.Fiber diameter: 125μm
4.Coating diameter: 160um to 900um 2 to 3mm cord&drop cable)
5.Dimensions: 120W × 95D × 58 H (mm)
6.Weight: 300g
7.Blade life: 60,000 fibers (1250 fibers×16 positions × 3 heights)
8.Wireless connectivity:Wireless technical standard:Bluetooth 4.1 LE*2
OS : Andoroid 5.0 or above, iOS 8.0 or above (iPhone6 above)
9.Operation condition:0 to 95% RH and 0 to 40°C (non-dew)
Storage condition:0 to 95% RH and -40 to 80°C (non-dew)
10.Resistance features*3:Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate)
Rain resistance: H=10mm/hr for 10min
1.Cutting angle: Typical 0.5°
2.Fiber count:Up to 12
3.Fiber diameter: 125μm
4.Coating diameter: 160um to 900um 2 to 3mm cord&drop cable)
5.Dimensions: 120W × 95D × 58 H (mm)
6.Weight: 300g
7.Blade life: 60,000 fibers (1250 fibers×16 positions × 3 heights)
8.Wireless connectivity:Wireless technical standard:Bluetooth 4.1 LE*2
OS : Andoroid 5.0 or above, iOS 8.0 or above (iPhone6 above)
9.Operation condition:0 to 95% RH and 0 to 40°C (non-dew)
Storage condition:0 to 95% RH and -40 to 80°C (non-dew)
10.Resistance features*3:Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate)
Rain resistance: H=10mm/hr for 10min
Application:
1.New High Precision Fiber Cleaver CT08/New Original Fiber Optic Cleaver
2.Used for Single Fiber Cleaving
3.Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
4.Prevents Double Scoring of the Fibers
5.Has Superior Blade Height and Rotational Adjustment
6.Available With Automatic Fiber Scrap Collection
1.New High Precision Fiber Cleaver CT08/New Original Fiber Optic Cleaver
2.Used for Single Fiber Cleaving
3.Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
4.Prevents Double Scoring of the Fibers
5.Has Superior Blade Height and Rotational Adjustment
6.Available With Automatic Fiber Scrap Collection
Model Number | CT50 |
Applicable Fiber | Conventional silica optical fiber |
Fiber Count | Single and up to 12 fiber ribbon |
Coating Diameter | 250 μm to 900 μm |
Cladding Diameter | 125 µm |
Cleave Length | 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders |
Cleave Angle Capability | Typically <0.5 |
Blade Lifetime | 60,000 fiber cleaves (5,000 12-fiber cleaves) |
Dimensions (W x D x H) | 120 mm x 95 mm x 58 mm |
Weight | 300 g (0.66 lbs) |

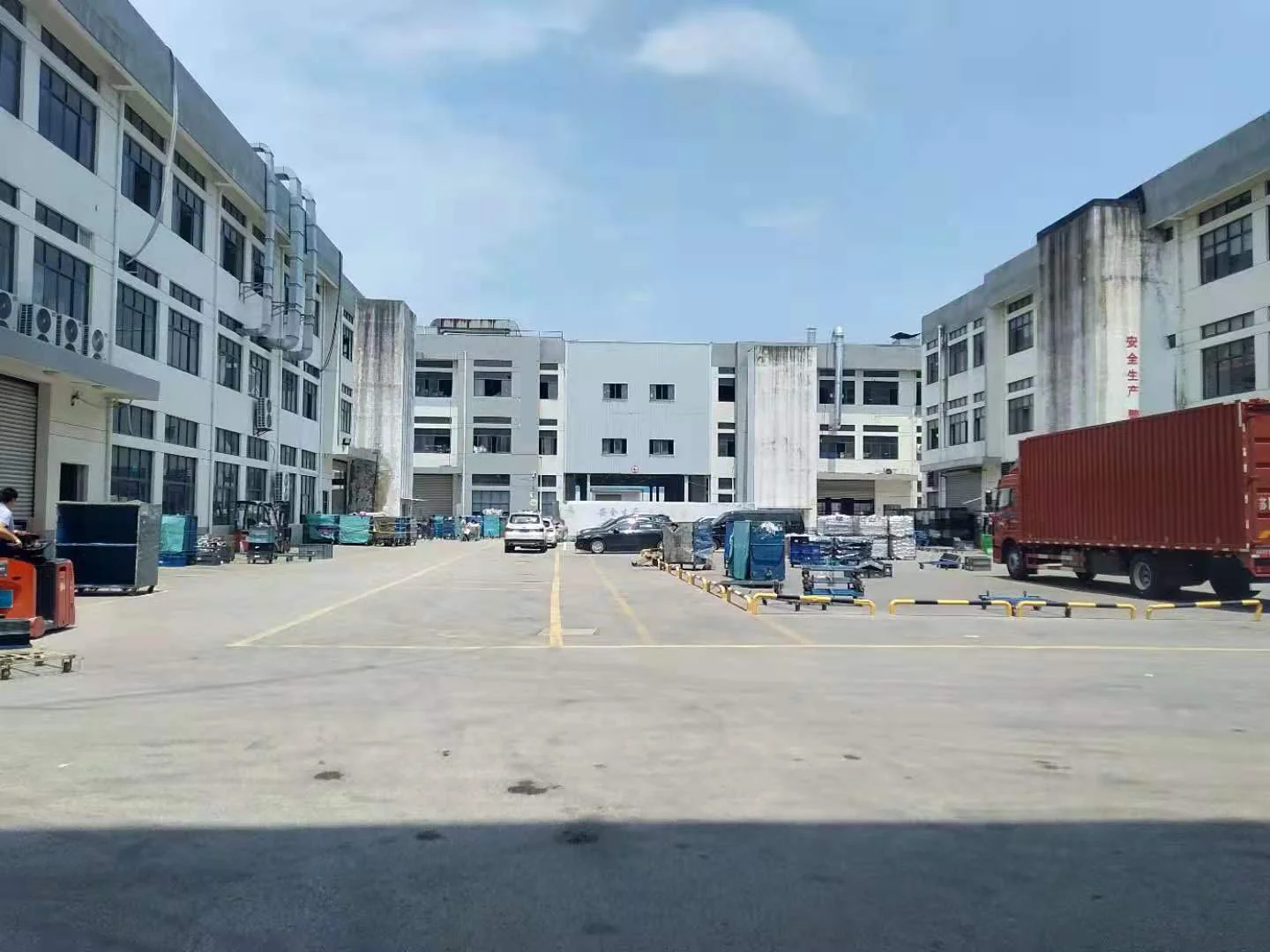

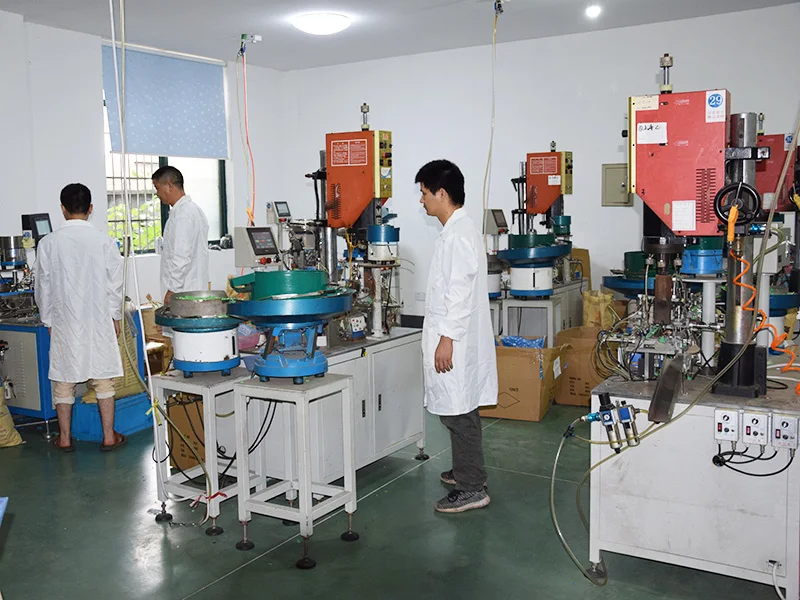

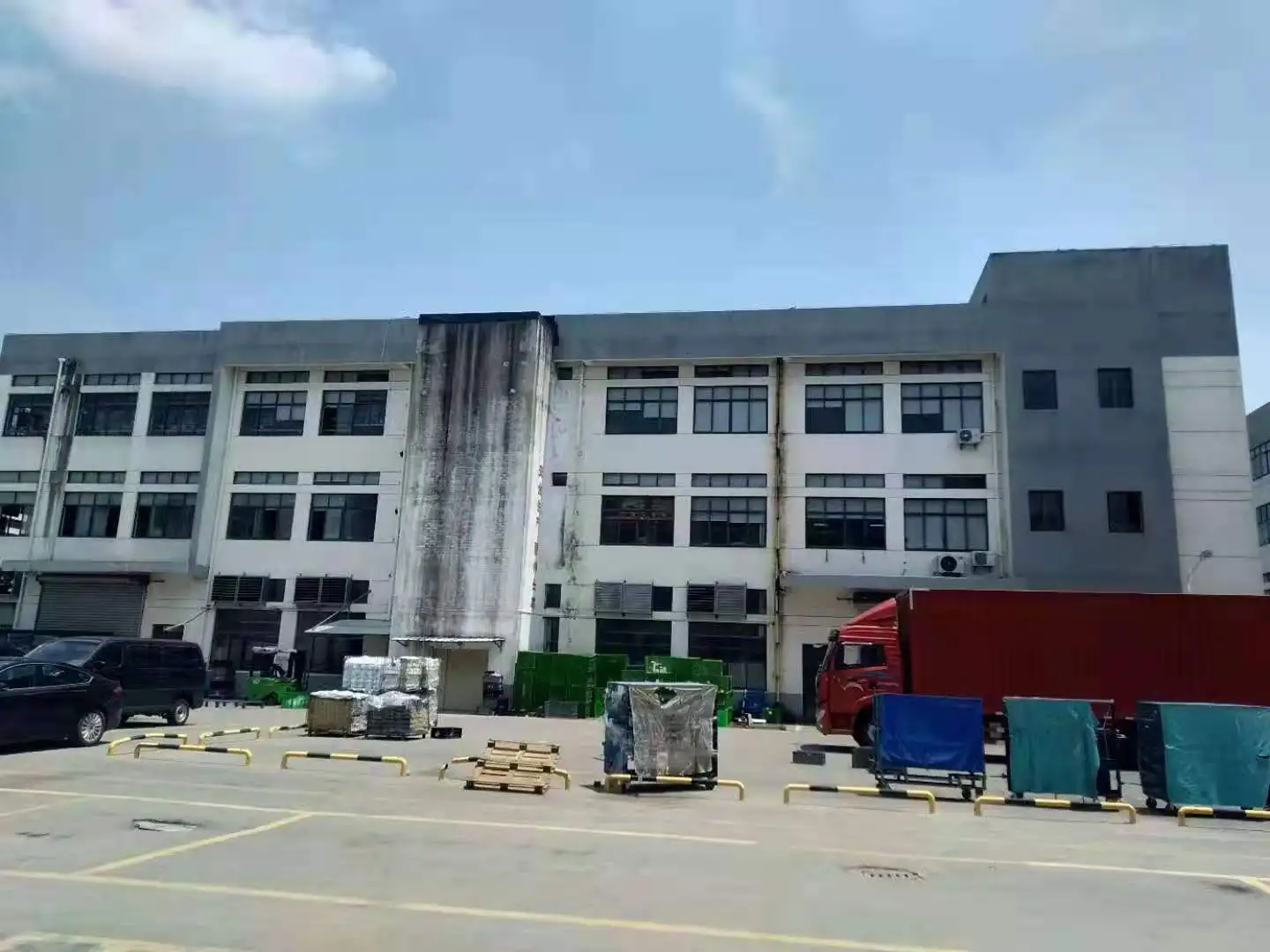

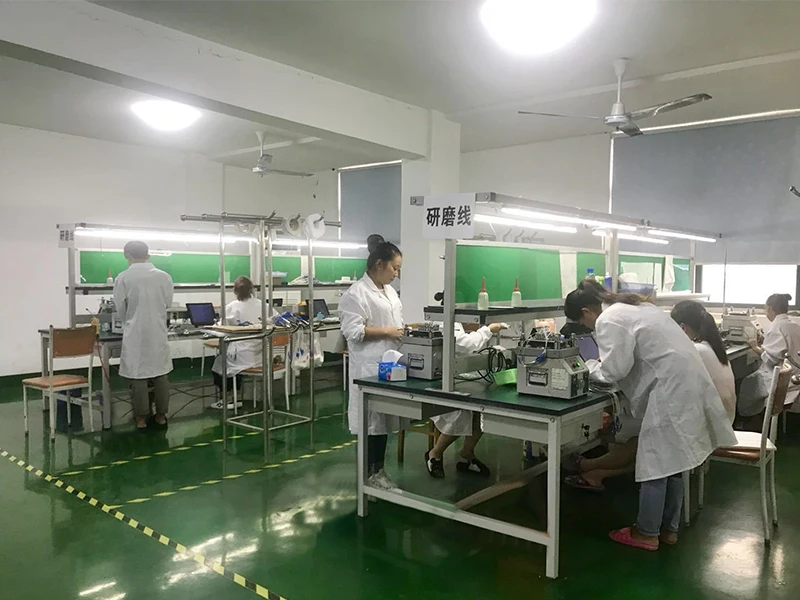

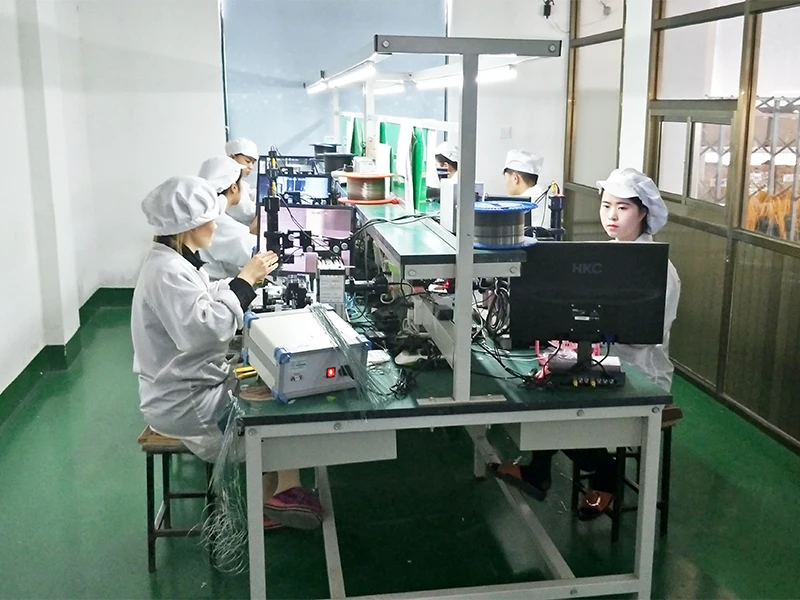

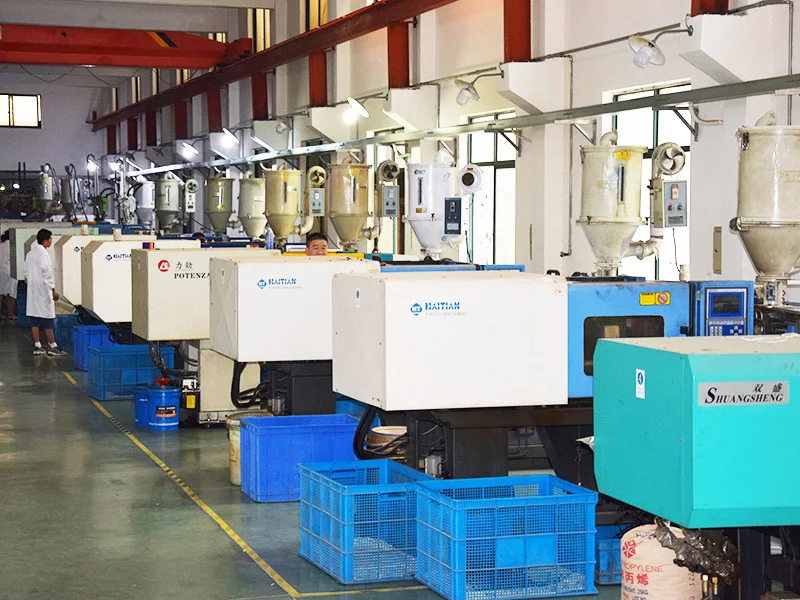

Company Profile
Beijing Mingyoujia International Trading Co.,Ltd, a modern company dedicated to the R&D, manufacture and sales of Fiber products.We specialize in this field for many years, with the strength of Media Converter,Fiber Optic Tools,Fiber Patch Cords,SFP,ONU,Switch etc.We have been engaged in this industry for many years. Our products are exported to home and abroad and have won many high praise from customers. We weclome customers,business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.

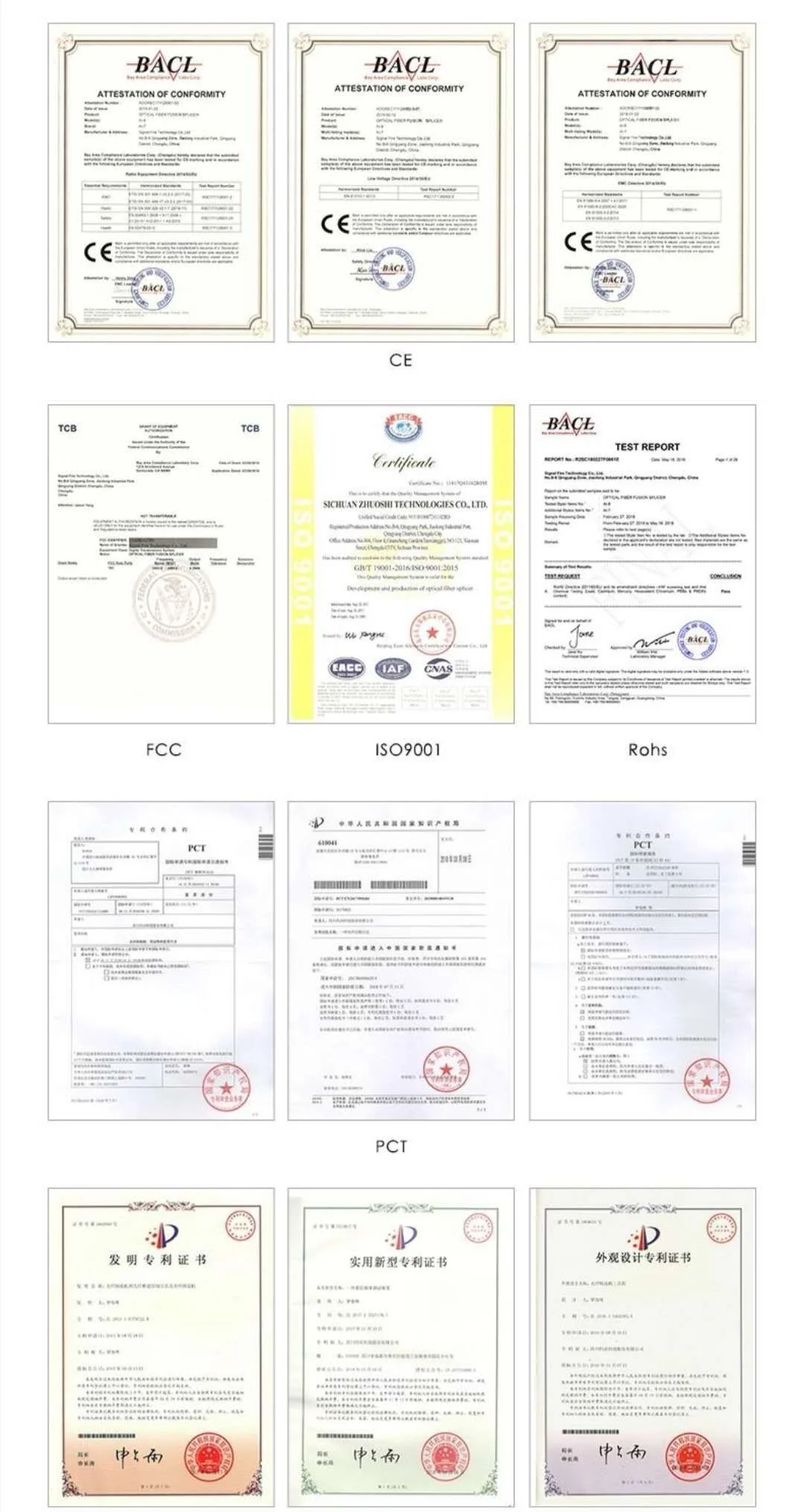

Certifications
Packing&Shiping
Shippment
-By sea
-By plane
-By International couriers, TNT, DHL, FEDEX, UPS, etc.

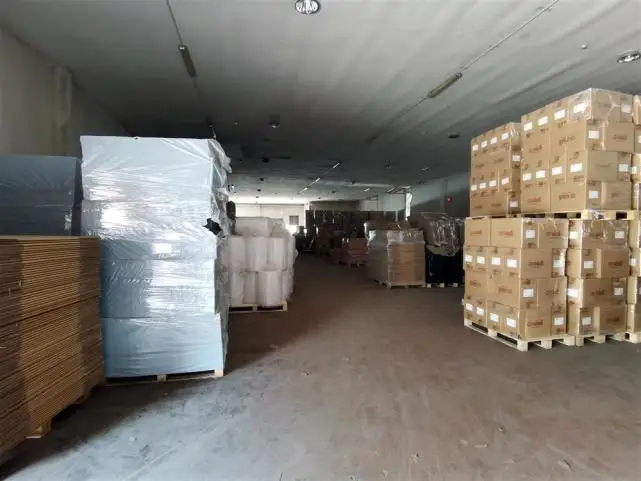

Standard Export carton
1.Inner Package: Neutral brown cartons.
2.Outer Package: Internationally standard package cartons with 5
layers and thinplastic film surround the cartons.
-By sea
-By plane
-By International couriers, TNT, DHL, FEDEX, UPS, etc.
Standard Export carton
1.Inner Package: Neutral brown cartons.
2.Outer Package: Internationally standard package cartons with 5
layers and thinplastic film surround the cartons.
Payment
FAQ
1.What is your payment method？
A:Alibaba Credit Insurance Order, T/T, L/C, Western Union and Paypal.2. Q:Do you provide free samples?
A:Yes,we can supply some free samples of low value , shipping cost can be negotiated.
3. Q:Can you supply OEM products under our brand?
A:Yes, we can accept OEM service with OEM package.
4. Q:What about delivery time?
A:The delivery of most product is 7-10days,some few product is 10-20days.
5.Q:What about shipping?
A：By sea、train、air and express delivery（UPS ,FEDEX,TNT,DHL,EMS）,and we also have special line to a lot of country,according to customer need.We also provide DDP AIR/SEA
