Product Description

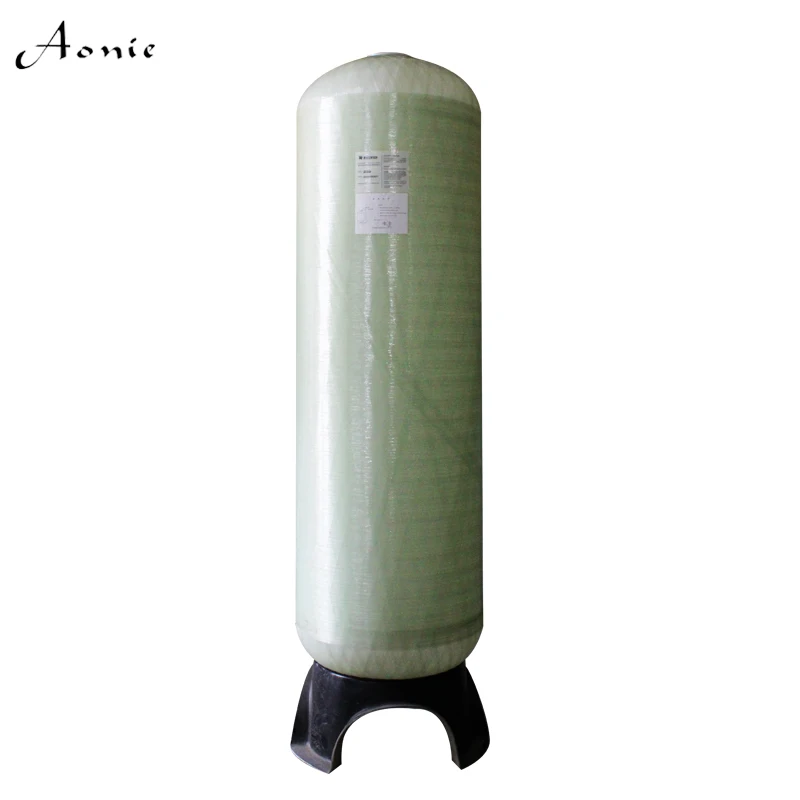

resin tank frp 1054 water softener system FRP tank fiberglass pressure vessel
FRP Tank for water treatment
FRP resin tank features: high temperature resistance, corrosion resistance, light weight, easy transportation
Φ150~1500, the upper opening, upper and lower openings, screw connection, flange connection and other forms can be matched with many brands of water treatment equipment.
Thick base design, stronger and tighter

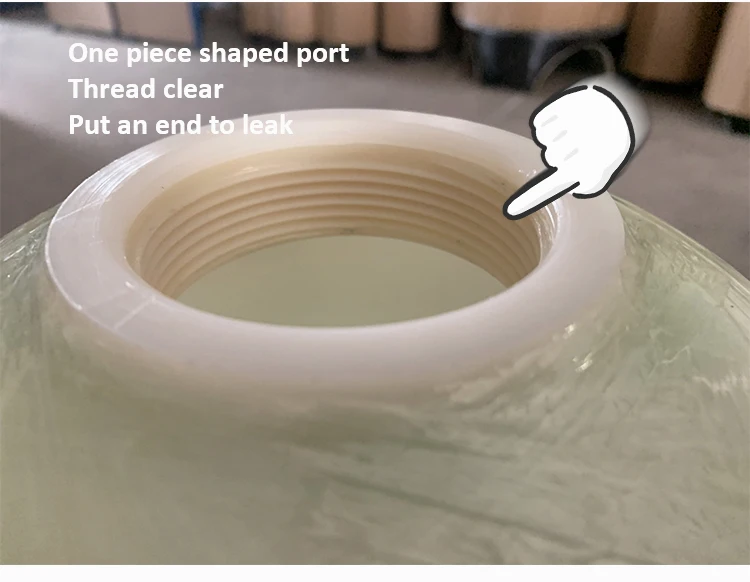

The mouth of the tank is integrated, white and no odor.
This tank use original raw materials, its appearance is bright and smooth.
Our company has nearly 20 years of water treatment experience. The products sold in this store are all products sold in offline stores for a long time. The quality has been tested by many years of practice.
resin tank frp water softener system FRP tank fiberglass pressure vessel

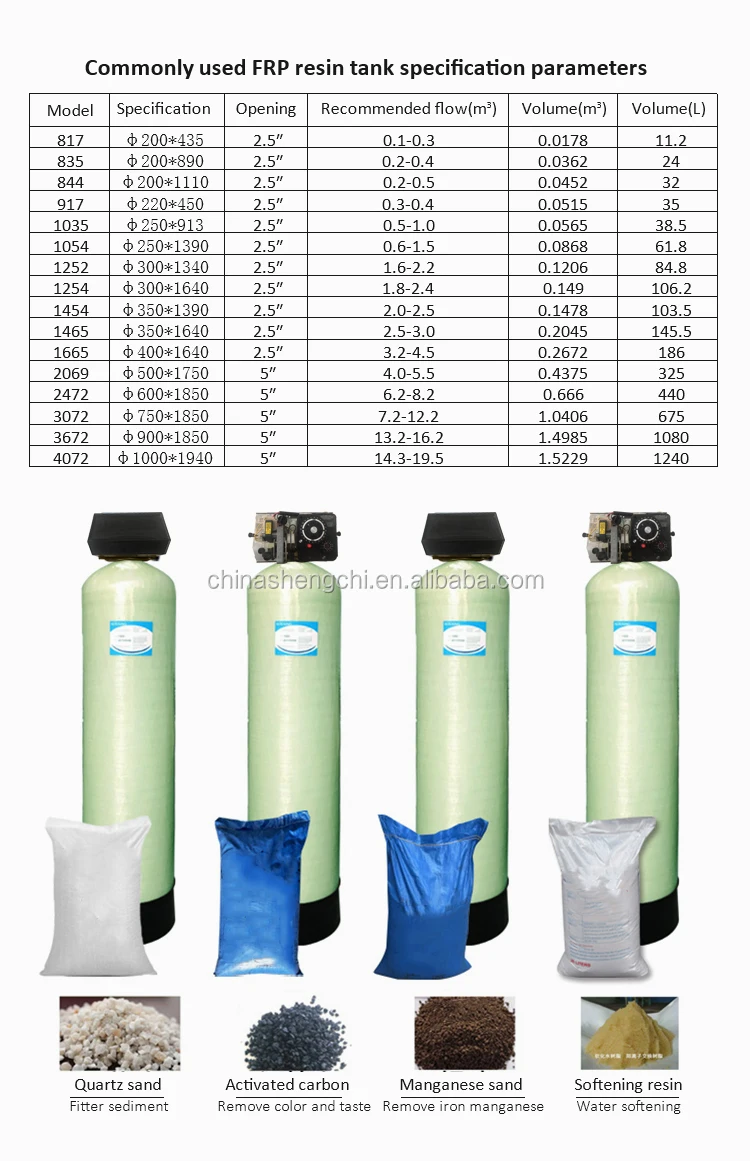

| FRP Tank Parameters | ||||||
| NO. | Specifications | Opening | flow | volume | ||
| inch | mm | Upper opening | Lower opening | |||
| 1 | 817 | Φ 200 × 450 | 2.5'' Thread | no | 0.1-0.3 | 11 |
| 2 | 835 | Φ 200 × 890 | 0.2-0.4 | 24 | ||
| 3 | 844 | Φ 200 × 1100 | 0.2-0.5 | 33 | ||
| 4 | 1035 | Φ 250 × 905 | 0.5-1.0 | 39 | ||
| 5 | 1044 | Φ 250 × 1130 | 0.7-1.2 | 50 | ||
| 6 | 1054 | Φ 250 × 1400 | 0.6-1.5 | 62 | ||
| 7 | 1065 | Φ 250 × 1650 | 1.5-2.1 | 80 | ||
| 8 | 1252 | Φ 300 × 1400 | 1.6-2.2 | 85 | ||
| 9 | 1265 | Φ 300 × 1650 | 1.8-2.4 | 106 | ||
| 10 | 1354 | Φ 325 × 1400 | 2.0-2.5 | 105 | ||
| 11 | 1465A | Φ 350 × 1650 | 2.5-3.0 | 146 | ||
| 12 | 1665A | Φ 400 × 1650 | 3.2-4.5 | 188 | ||
| 13 | 1465B | Φ 450 × 1650 | 4'' Thread | no | 2.5-3.0 | 146 |
| 14 | 1665B | Φ 450 × 1650 | 3.2-4.5 | 188 | ||
| 15 | 1865A | Φ 450 × 1650 | 3.5-5.0 | 238 | ||
| 16 | 1865B | Φ 450 × 1650 | 4'' Thread | 4'' Thread | 3.5-5.0 | 238 |
| 17 | 2069 | Φ 500 × 1750 | 4.0-5.5 | 325 | ||
| 18 | 2188 | Φ 525 × 2200 | 5.0-7.5 | 405 | ||
| 19 | 2465 | Φ 600 × 1900 | 6.2-8.2 | 440 | ||
| 20 | 2472 | Φ 600 × 2100 | 6.2-8.2 | 520 | ||
| 21 | 3065 | Φ 750 × 1900 | 7.2-12.2 | 675 | ||
| 22 | 3072 | Φ 750 × 2100 | 10.3-15.1 | 790 | ||
| 23 | 3665 | Φ 900 × 1900 | 13.2-16.2 | 858 | ||
| 24 | 3672 | Φ 900 × 2100 | 14.5-22 | 1000 | ||
| 25 | 3696 | Φ 900 × 2400 | 6'' Flange | 6'' Flange | 16-25.2 | 1100 |
| 26 | 4072A | Φ 1000 × 1850 | 4'' Thread | 4'' Thread | 16-24 | 1050 |
| 27 | 4072B | Φ 1000 × 1850 | 6'' Flange | 6'' Flange | 16-24 | 1050 |
| 28 | 4065 | Φ 1000 × 1900 | 18-28 | 1320 | ||
| 29 | 4079 | Φ 1000 × 2250 | 28-30 | 1400 | ||
| 30 | 4872 | Φ 1200 × 2350 | 28-30 | 1350 | ||
| 31 | 4890 | Φ 1200 × 2500 | 30-40 | 1685 | ||
| 32 | 6079 | Φ 1500 × 2500 | 40-55 | 2688 | ||
| 33 | 6386 | Φ 1600 × 2600 | 60-80 | 3218 | ||
| 34 | 8079 | Φ 2000 × 2600 | 80-100 | 6594 | ||
Relative products

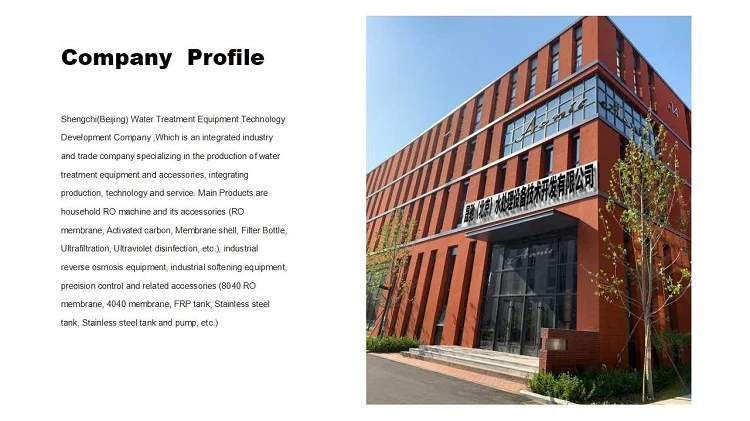

Company Information
| Company Name: | Shengchi(Beijing) Water Treatment Equipment Technology Development Company Ltd. |
|---|---|
| Operational Address: | B402, 1 Luhua Road, Daxing, Beijing, China |
| Website: | https://chinashengchi.en.alibaba.com |
| Website on alibaba.com: | chinashengchi.en.alibaba.com |
Certifications

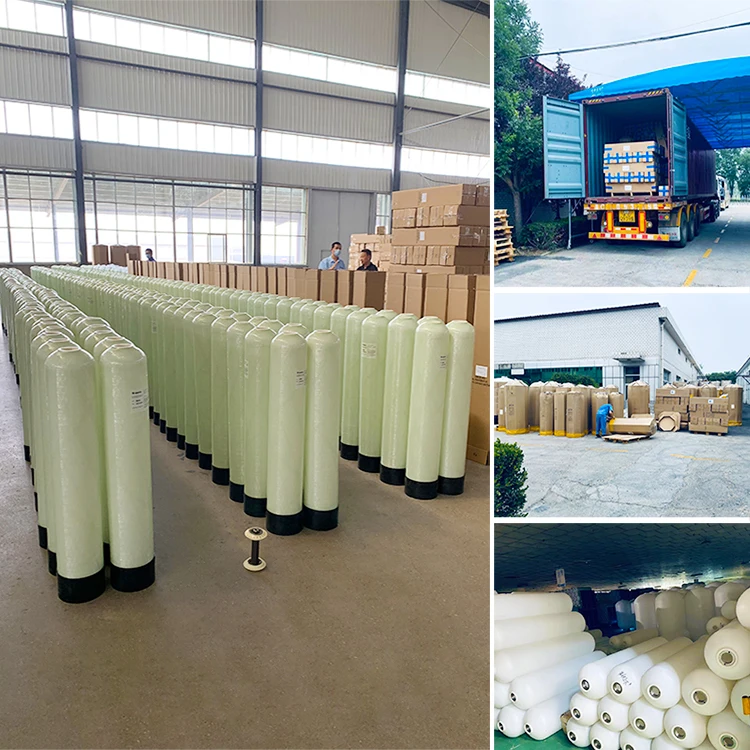

Packaging & Shipping
