Specification
INPUT PARAMETER | ||
Maximum Input Power | 460 W | |
Operating Voltage Range | 9 ~ 55 V | |
MPPT Operating Range | 13 ~ 50 V | |
Maximum Input Current | 15 A | Scalable | |
Over-current Protection | 16 A | |
Over-temperature Protection | 150 ℃ | |
OUTPUT PARAMETER | ||
Maximum Output Current | 15 A | |
Theoretical Maximum Output Voltage | 55 V | |
Output Voltage Limiting Threshold | 42 V | Adjustable | |
Total Maximum String Voltage | 1500 V | |
72 Type Module String@1500 V | 36 Modules | |
72 Type Module String@1100 V | 26 Modules | |
72 Type Module String@1000 V | 24 Modules | |
CONVERSION EFFICIENCY | ||
Peak Conversion Efficiency | 99.5% | |
Power Consumption@5 A | 0.9 W | |
Power Consumption@8 A | 1.4 W | |
Power Consumption@12 A | 2.9 W | |
Power Consumption@15 A | 3.8 W | |
SPECIFICATIONS | ||
Dimensions（L×W×H） | 105*105*20 mm | |
Weight | 500g | |
Cable | 4.0 mm² | |
Input Wire 20 cm*2PCS | ||
Output Wire 70 cm*2PCS | ||
Connector | MC4 (Compatible) | |
Operating Temperature | 40 ~ +60℃ | |
Range Protection Rating | IP65 | |
Standard Features | Optimization | Voltage Limiting | Anti-Hotspot | |
Products Description
Solar Optimizer
The application scenarios of the SP-1 solar optimizer are various types of solar power systems, which can collect the data (such as power, voltage, current, temperature) of solar modules in real time, and the data is summarized at the communication gateway and uploaded to the server. At the same time, the product has the function of actively and quickly shutting off the output of the corresponding solar module when necessary. In addition, Maximum Power Point Tracking (MPPT) optimizes the power output of solar modules in real time to increase power generation.Solar Communication Gateway

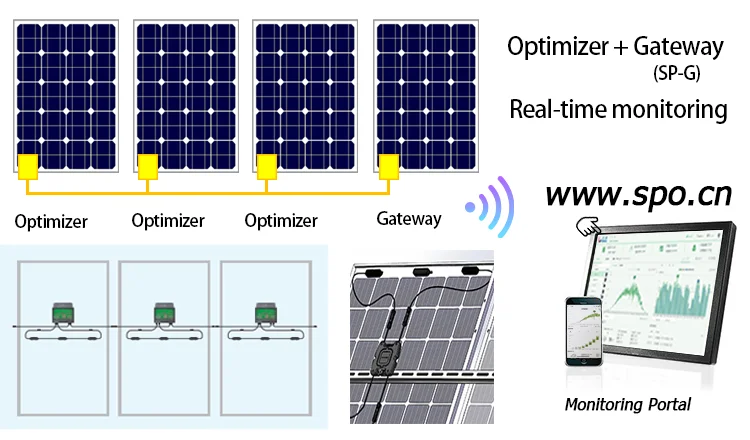

The solar wireless communication gateway communicates with the solar optimizer wirelessly, and can receive the data blocks collected by the solar optimizer and issue system configuration commands to the solar optimizer. At the same time, it communicates with the server continuously through 4G and Wifi,
uploading the collected data blocks and receiving the configuration commands issued by the server. In a
breakthrough, the gateway adopts a 1500V system withstand voltage and a fully sealed design, which can obtain electricity from the solar modules.
breakthrough, the gateway adopts a 1500V system withstand voltage and a fully sealed design, which can obtain electricity from the solar modules.
Note: The optimizer and gateway need to be used together,The monitoring and shutdown functions need to be implemented by the gateway. >>Click To Buy Communication Gateway<<
Real-Time Monitoring
Minute-level data monitoring, millisecond-level data response. Even if you are far away, you can grasp the power generation status of PV modules in real time through multiple channels such as web, APP, and small programs

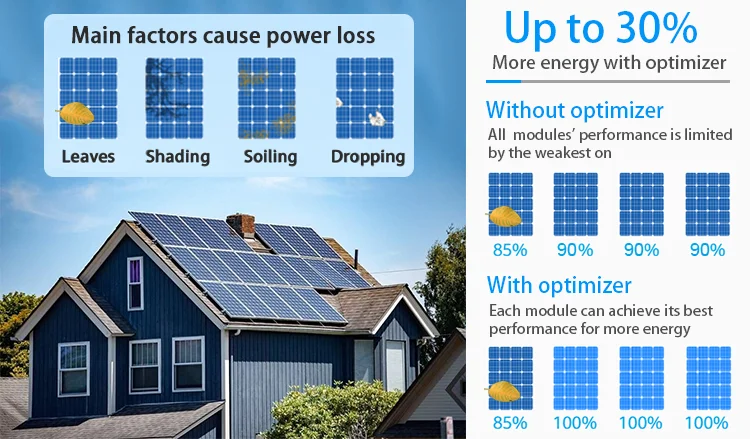

Optimization and Improvement
MPPT to ensure the maximum power output of solar modules. Recover the power loss of solar modules caused by factors such as shadow occlusion and different solar cell attenuation
Safe and Fast Shutdown
After the smart device detects a high- riskpower generation abnormality, it will
actively shut down the output of the solarmodule within milliseconds, giving priorityto the safety of personnel and systems.
actively shut down the output of the solarmodule within milliseconds, giving priorityto the safety of personnel and systems.
Low power consumption
The daily working power is less than 0.3W, and the impact on the power generation of solar modules is minimal
Long working years
Selected and reliable components, double standard test conditions, and strive to guarantee the same working life as solar modules

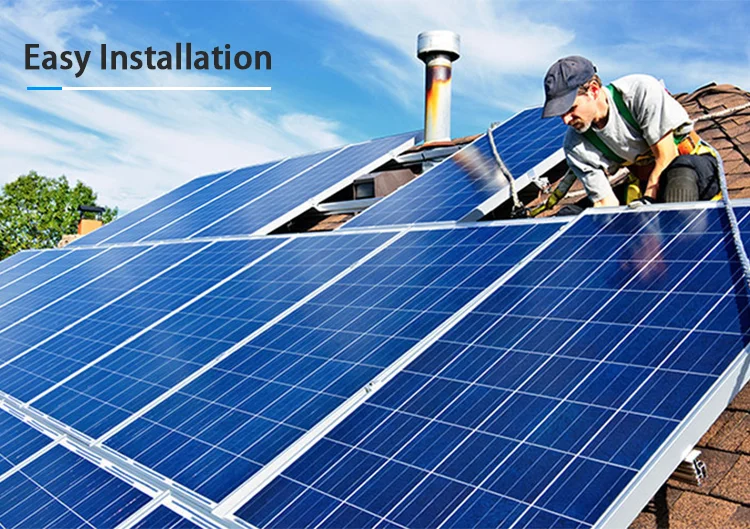

Easy Installation Process
The different appearance design of the input and output ends, the one-to-one matching of equipment and solar modules, and the use of MC4
compatible connectors greatly simplify
the installation process
the installation process
Certifications
Company Information
Exhibition
Packaging&Shipping
FAQ
1) Are you a factory or trading company?
We have our own factories.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) Is your monitoring system software free?
Yes, and we will save your power generation data more than 20 years if you need.
7) Can we get the original power data on our service?
Yes, we can send the original power data to your service.
We have our own factories.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) Is your monitoring system software free?
Yes, and we will save your power generation data more than 20 years if you need.
7) Can we get the original power data on our service?
Yes, we can send the original power data to your service.
