Product Description

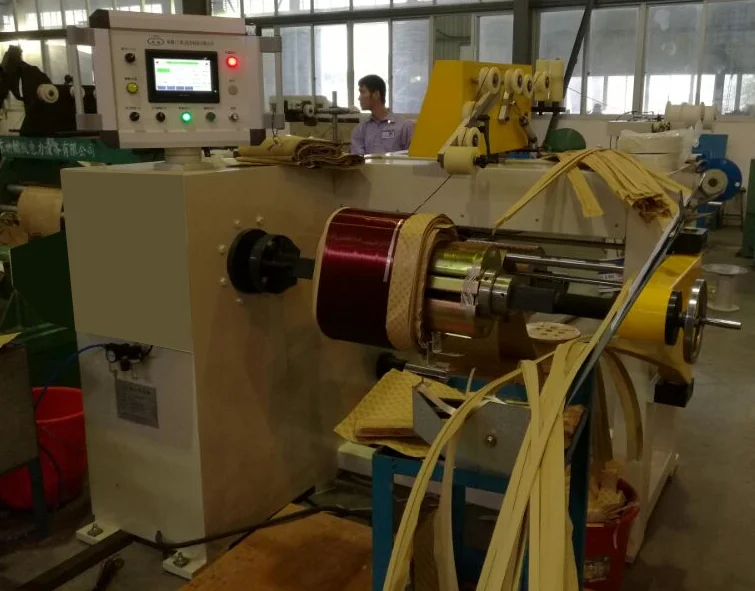

Automatic Programmable Copper Wire Winder Distribution Transformer Coil Winding Machine
Introduction
Automatic Programmable Copper Wire Winder Distribution Transformer Coil Winding Machine ZPX800, adopting automatic wire laying and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized transformers, reactors and other similar products. This kind of Automatic Wire Winding Machine is provided with main winding motor, automatic winding displacement unit, layer insulation unit, tension adjustable decoiler, pneumatic system, PLC based control system, and servo motors, etc. Automatic Wire Winding Machine for Transformer ZPX800 features high automation, full functions, and strong driving force, etc.
Main Components
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters
Typical standard specifications of ZPX800 are shown below, however these can be easily modified as requested.
Center Height: | 900mm |
Speed Regulation: | Variable frequency and stepless speed regulation |
Axial Height: | ≤850mm |
Coil OD.: | ≤800mm |
Max. Load: | 700kg |
Wire Size: | Flat wire: Max. 5*12mm; Dia. of round wire: 0.3-5.0mm |
Automatic Spread Pitch: | Min. step: 0.01mm |
Counting Mode: | 5-digit counting, turn number preset by segments, total turn number preset, reversible counting, and power off memory, etc. |
Max. Turns Preset Number: | 9999.9 |
Counting Turn Range: | 0 - 9999.9 |
Send Inquiry
Company Information
Main Products
|  |  |
 |  |  |
Packaging & Shipping
EXIBITION
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service?
A: We provide technical support online as well as overseas services provided by our skilled technicians.
A: We provide technical support online as well as overseas services provided by our skilled technicians.
4) Q: How does your factory control product quality?
A: Every machine has to be tested before loading.
5) Q:How can I trust you that machines pasted testing before shipping?
A: 1) We can record the testing video for your reference if you need, or;
2) You can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture these machines as requested.
