Product Description
Transit V348 Laminar Flow Negative Pressure Ambulance for Sale Euro 5
Specification
Basic Data | ||
Model | GPY5040XJHJ3 | |
Engine type | DURATORQ4D225H | |
Fuel type | Diesel | |
Displacement (ml) | 2198 | |
Emission standard | Euro VI | |
Curb weight (kg) | 2750 | |
GVW (kg) | 3700 | |
Wheelbase (mm) | 3750 | |
Working way of Engine | In-line 4 cylinder, water-cooled direct injection, inter-cooling, direct injection, compression ignition | |
The dimensions of the Vehicle (mm) | 5780×2000×2760mm (L x W x H) | |
Max power（Kw/rpm） | 100/3750 | |
The maximum torque Nm/rpm | 355/1500-2100 | |
Suspended system | Front: McPherson independent suspension Rear: Leaf spring non independent suspension | |
Braking System | Hydraulic double circuit disc brake | |
Transmission | MT: 6 forward gears,1 reverse gear | |
Top Speed(km/h) | 145 | |
The Capacity of Fuel Tank（L） | 80 | |
Seat | 3-9 | |

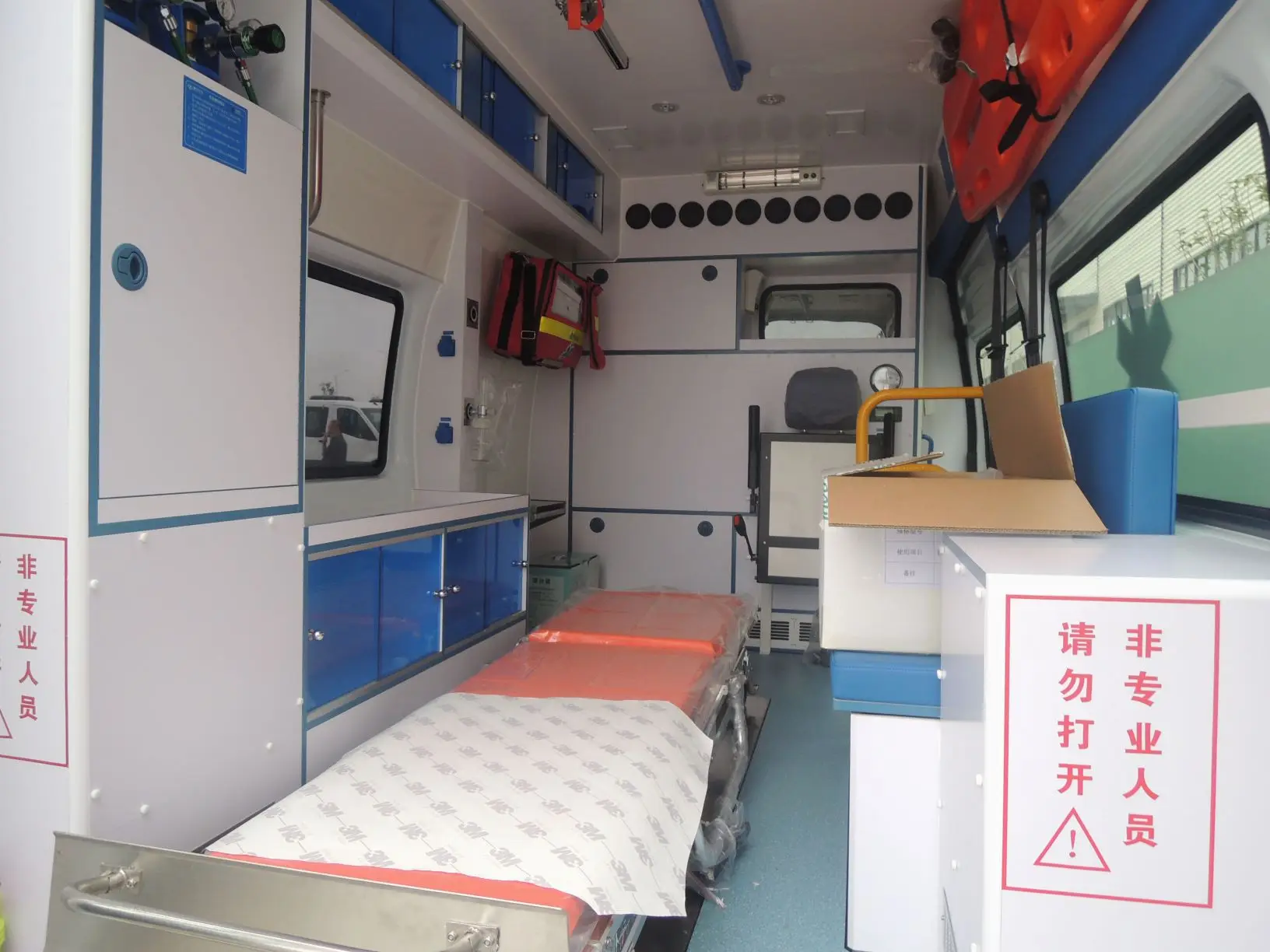

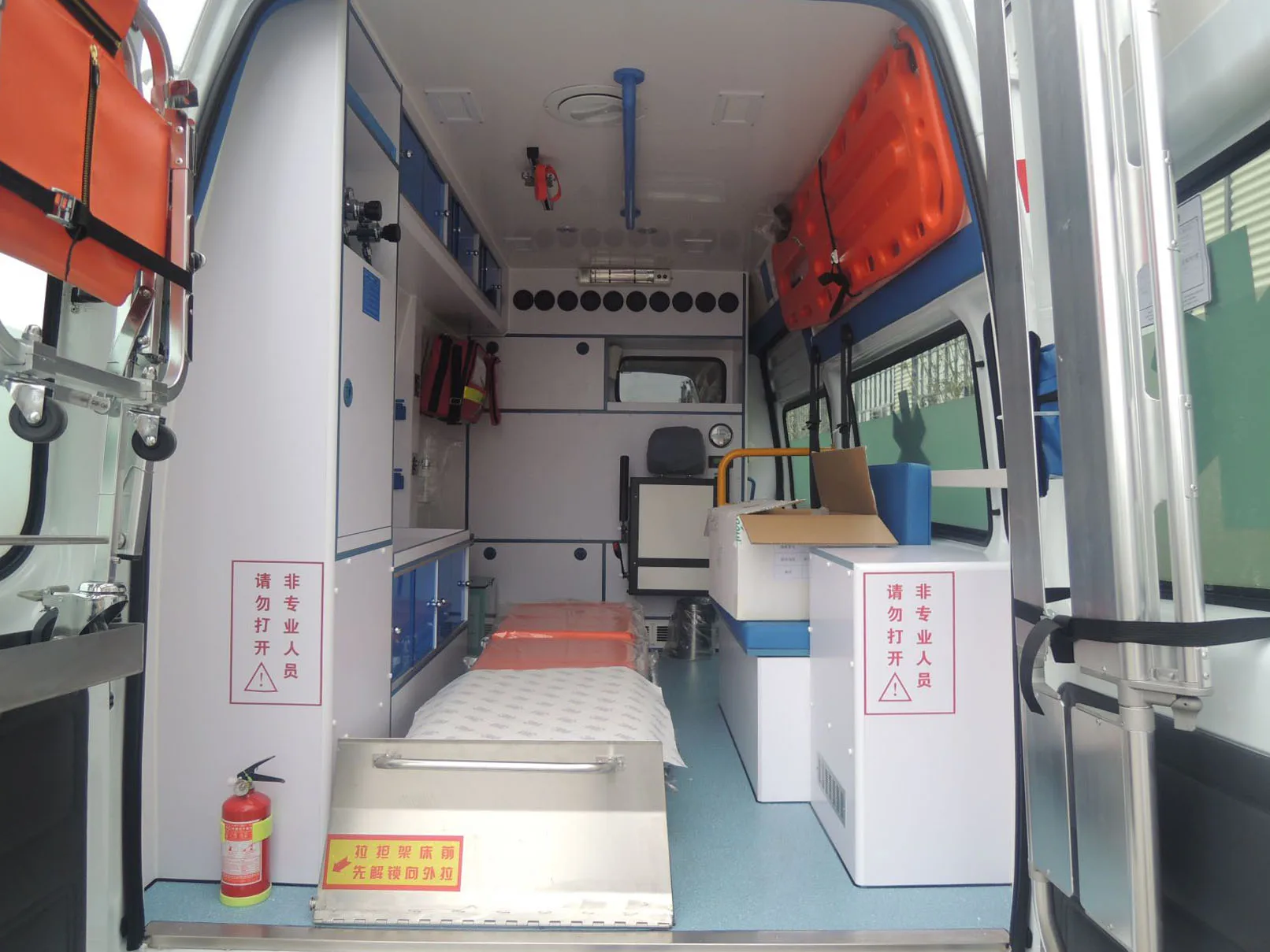

Medical compartment device | ||||
1. | Partition wall between driver cab and medical compartment, to separate front and the rear compartment. Partition wall with visible window. | 1 | ||
2. | The medical compartment is equipped with integrated air conditioner | 1 | ||
3. | Installation of Laminar Negative pressure filtration system. | 1 | ||
4. | Upper pedal on the middle door of the medical compartment | 1 | ||
5. | The middle door of medical compartment is equipped with all-round safety handrail | 1 | ||
6. | Three-seat-bench with 3-poit seat belt on the right side of medical compartment | 1 | ||
7. | Oxygen fixing commitment is installed at the left rear of medical compartment | 1 | ||
8. | 10L oxygen cylinder with reducer | 1 | ||
9. | Medical compartment is equipped with oxygen humidifier | 1 | ||
10. | Installation of onboard oxygen terminal (for ventilator and humidifier). | 1 | ||
11. | Top safety handrail of medical compartment | 1 | ||
12. | Two ways exhaust fan installed on the top of medical compartment | 1 | ||
13. | Installation of Infusion device | 1 | ||
14. | Inatallation of 8-door Medical cabinet | 1 | ||
15. | Installation of 1kg fire extinguisher and support frame. | 1 | ||
16. | Thermal insulation, sound insulation and thermal insulation layer of medical compartment | 1 | ||
17. | Waterproof, anti-skip , anti-static, anti-corrosive floor. | 2 | ||
18. | Collision soft pack installed in medical compartment | 1 | ||
19. | Front and back intercom system of medical compartment | 1 | ||
20. | Loading stretcher | 1 | ||
Pictures for reference only, subject to customer order specification
