Product Description
DOP40 is a compact touch probe produced by DongfangQidu. The probe transfers signalwith receiver by infrared optical light. DOP40 probe applys multi-threshold power control technology and reduce the power consumption significantly, so that the active life is over 1year with normal 3.6V/1200mA battery. DOP40 solves the signal interference issues completely with the dual-channel technology. DOP40 probe has excellent stability and repeatability by adopting the high rigidity carbide material and automatic reset technology. DOP40 probe is widely used in the 3C industry.
Specifications
Model | DOP40 | |
Repeatability(2σ) | <1um | |
Trigger direction | ±X,±Y,+Z | |
Trigger force | XY plane: 0.4-0.8N | Z: 5.8N |
Protective range | XY plane: +/-12.5° | Z: 6.35mm |
Signal transmission mode | Infrared optical | |
Operating range | Up to 5m | |
Trigger life | >10 million | |
Transmission angle | 360° transmission envelope | |
Transfer activation | Automatic change | |
Weight without shank(including batteries) | 280g | |
Battery model | 2 Lithium battery 14250 | |
Battery life | Stand by | >1080 days |
5% utilization | 540 days | |
Continuous work | 120 days | |
Sealing | IP 68 | |
Operating temperature | 0-60°C | |
Company Information
DongfangQidu Meatrology Co., Ltd. is a high-tech company with the integrity of R&D, production and sales. Our products include NC probe, NC tool setters, stylus series, on-line measurement software, and NC peripheral products. Our R&D and production facility is located in Dongguan City, Guangdong Province. More than 60% of employees graduated from colleges. The company's equipment includes 1K class clean rooms, ASM placement machines, CNC lathes, CNC machining centers, CNC milling and other high-end equipment DongFangQiDu adheres to the principle of quality first. Strict quality control process is carried out from material incoming to shipment. Quality control equipment includes aging furnace, electric shed, 2D measuring projector, photometer, waterproof tester, comprehensive operation test platform, repeatability tester and other test and measurement equipment Our dedicated team provided professional after-sale service and technical support at the first time Ethical, professional, and high quality are DongfangQidu’s business principles. To satisfy customer is our greatest priority.

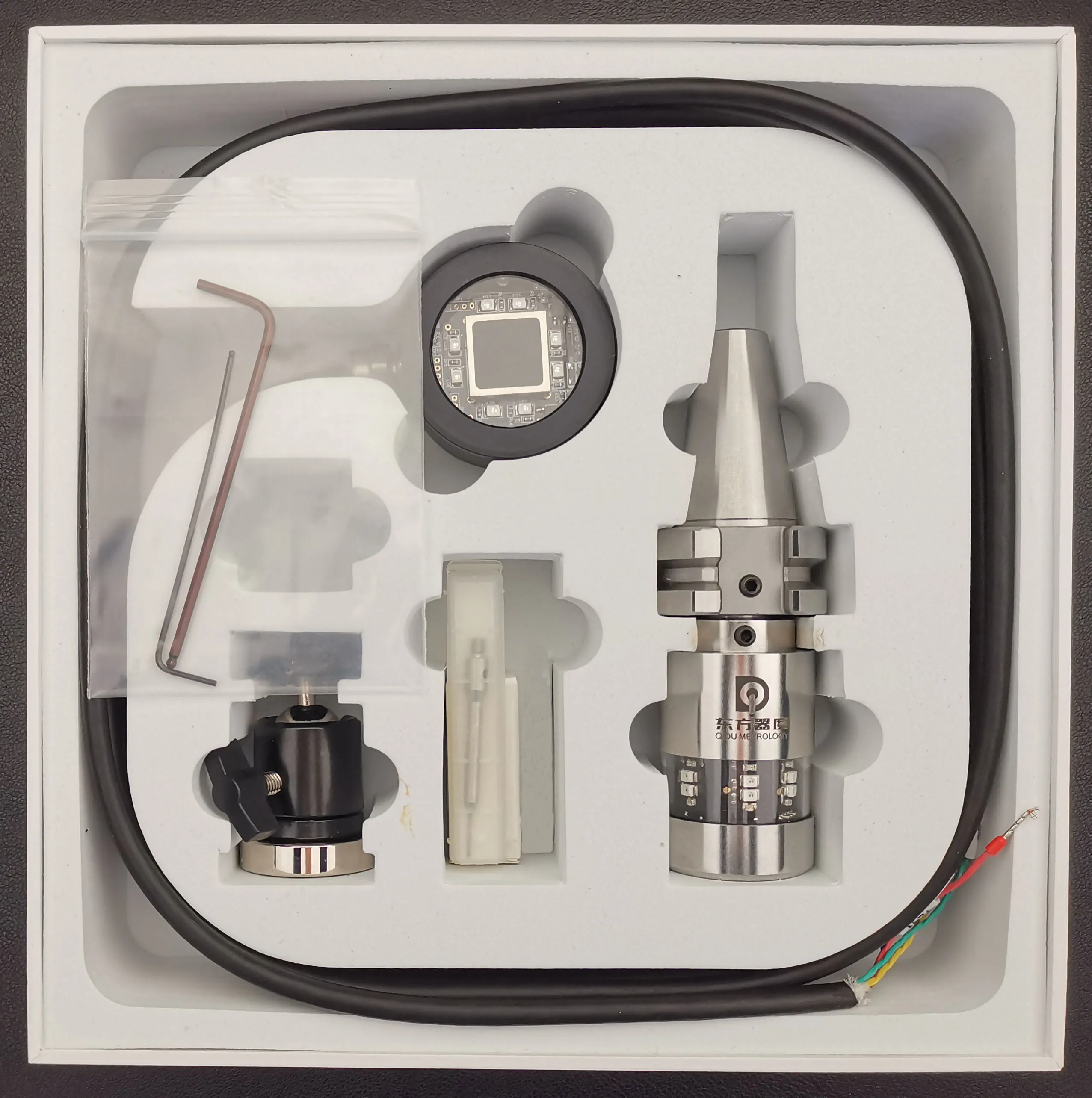

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Services
Our sales and engineering team offer professional and various services and solutions to our customers and distributors.
1. OEM Manufacturing: Product, Package...;
2. Sample order;
3. Your inquiry will be replied in 24 hours.
4. We offer tracking information until you receive the products;
5, We will answer any possible questions when you install and use our products.
FAQ
Q1:Are you a factory or trading company?
A: We are a factory located in Dongguan city, you are welcome to visit our factory anytime.
Q2: How to choose the appropriate model or specifications?
A:Based on your requirement and application, our professional sales and engineers will offer you a detailed suggestions regarding models and specifications.
Q3: Do you accept customized service?
A: Yes, we can provide not only standard products,but also customized service to meet various customer demands.
Q4: What is your warranty period?
A: Our standard product warranty period is one year. Our quality system guarantees the high precision, repeatability, stability and long-life of our products.
