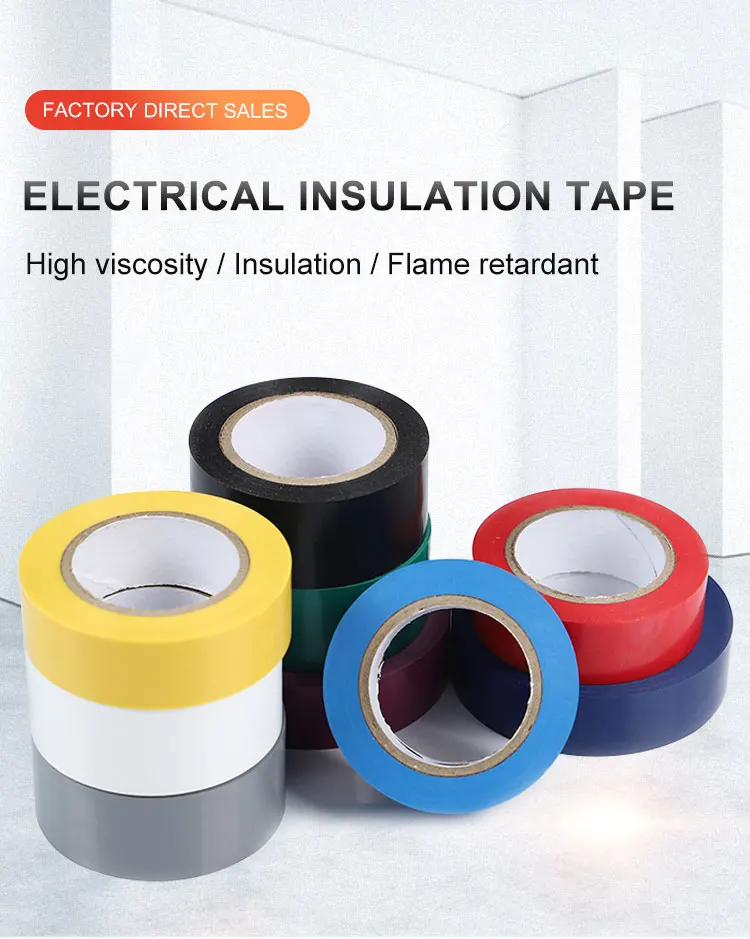

110mic 130mic 150mic 180mic PVC adhesive tape pvc electrical tape

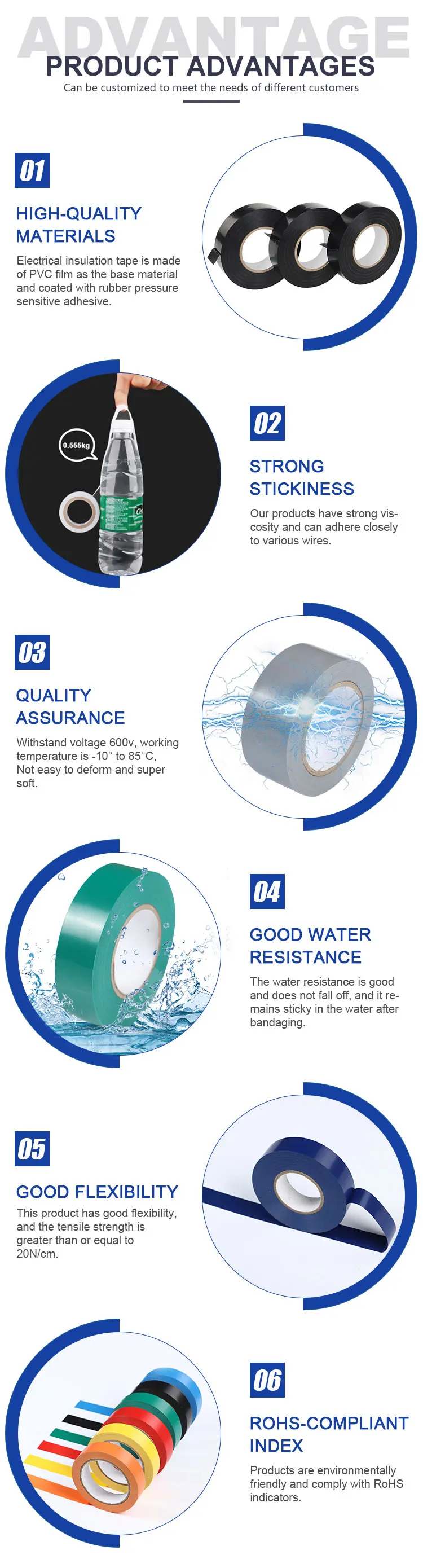

● Stretchy and conformable for wrapping wires
● Compatible with all standard of cable insulation
● Inhibits corrosion of electrical conductors
● High tensile and mechanical strengths
● In accordance with the requirements of the ROHS1 directive
● Compatible with all standard of cable insulation
● Inhibits corrosion of electrical conductors
● High tensile and mechanical strengths
● In accordance with the requirements of the ROHS1 directive
Product Paramenters
Specifications: YC130E | ||||||
Material: PVC film + pressure-sensitive rubber. | ||||||
Color: Black Red Blue Yellow White Green Brown Grey Violet Orange Yellow/Green | ||||||
PROPERTY | VAULE | UNIT | TEST METHOD | |||
Total thickness | 0.13 | mm | ASTM-D-1000 | |||
Tensile strength | 18 | N/cm | ASTM-D-1000 | |||
Elongation at break | 180 | % | ASTM-D-1000 | |||
Voltage resistance | 600 | V | UL510 | |||
Temperature resistance | -10 -- 80 | °C | ASTM-D-1000 | |||
Adhesion to steel | 1.5 | N/cm | ASTM-D-1000 | |||
Adhesion to backing | 1.3 | N/cm | ASTM-D-1000 | |||
Lead Content | ＜100 | ppm | US EPA3052 | |||
Note: Data in table represent average test results and are not to be used for specification purposes. The product user should make his/her own tests to determine the product's suitability for the intended use. | ||||||
Standard Size | ||||
Width | Length | Core | ||
19mm | 10m | 32mm | ||
19mm | 20m | 32mm | ||
19mm | 33m | 32mm | ||
19mm | 45m | 38mm | ||
Other sizes and cores are available. Contact us about details. | ||||
Code | Total thickness(mm) | Tensile strength(mm) | Elongation at break (%) | Adhesive to steel (N/cm) | Adhesive to backing (N/cm) | Voltage resistance(V) | Temperature resistance (°C) | |||||||||
YC100E | 0.10 | 13 | 160 | 1.5 | 1.3 | 600 | -10 --80 | |||||||||
YC120E | 0.12 | 16 | 180 | 1.5 | 1.3 | 600 | -10 --80 | |||||||||
YC150E | 0.15 | 22 | 180 | 1.5 | 1.3 | 600 | -10 --80 | |||||||||
YC160E | 0.16 | 23 | 180 | 1.5 | 1.3 | 600 | -10 --80 | |||||||||
YC180E | 0.18 | 26 | 200 | 1.5 | 1.3 | 600 | -10 --80 | |||||||||
YC200E | 0.20 | 28 | 200 | 1.5 | 1.3 | 600 | -10 --80 | |||||||||
Other thickness are available. Contact us about details. | ||||||||||||||||
Product Details

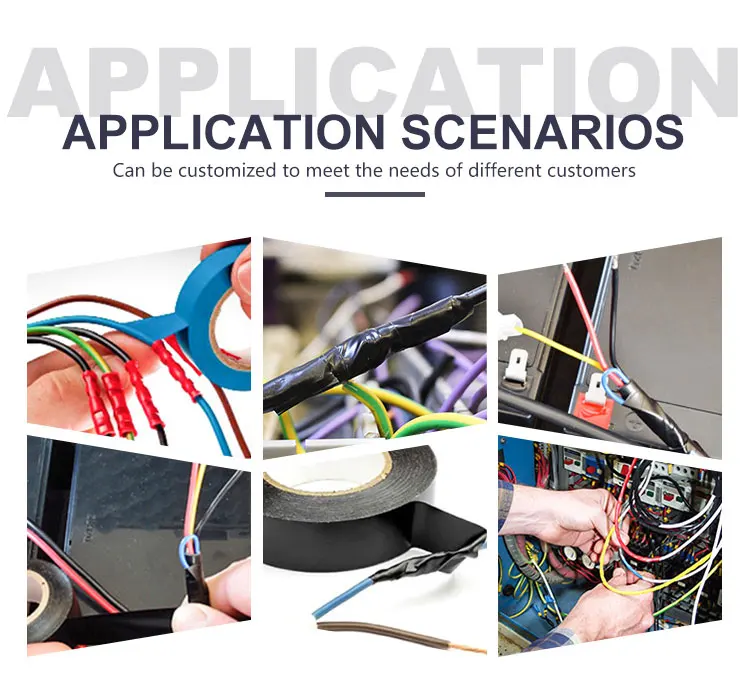

Application
Related Products
Company Profile

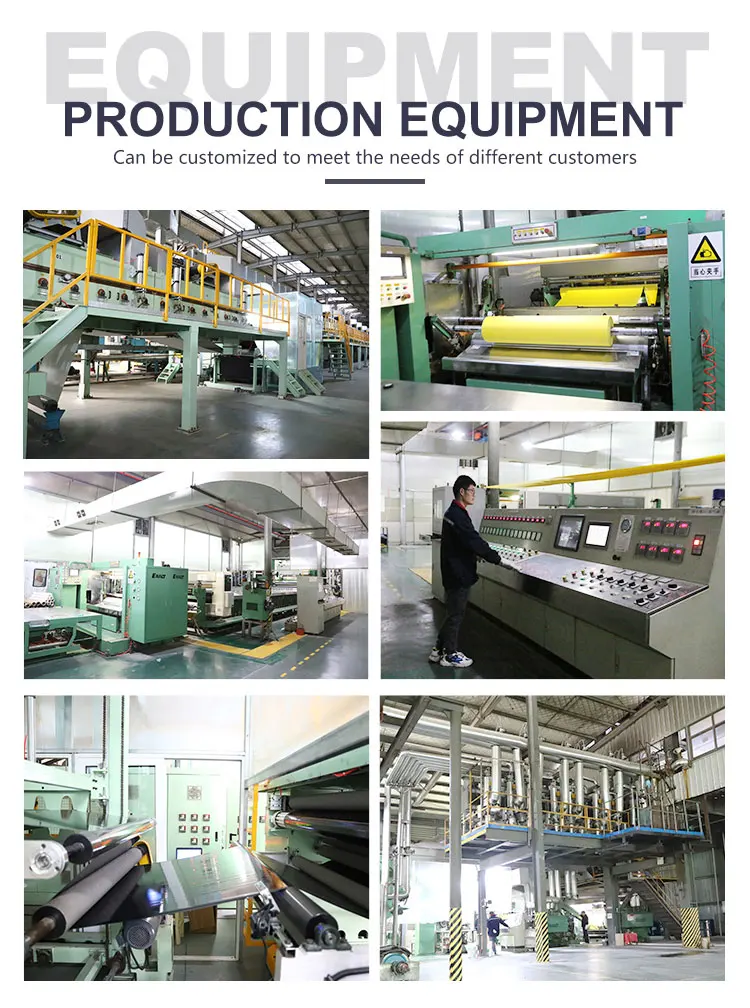

Manufacturing Technique
FAQ
Q: Can I get free sample?
A: Yes. Free sample can be provided. But if your size is not on our stock list, it may take more or less 7 days for production. And the freight is on your part, hope you can understand. Thank you.
Q: Do you accept customized order?
A: Yes. Any customized requirement including color, size, package and logo etc. are welcomed.
Q: What's your MOQ?
A: It depends. but small order is also acceptable for the purpose of long time cooperation.

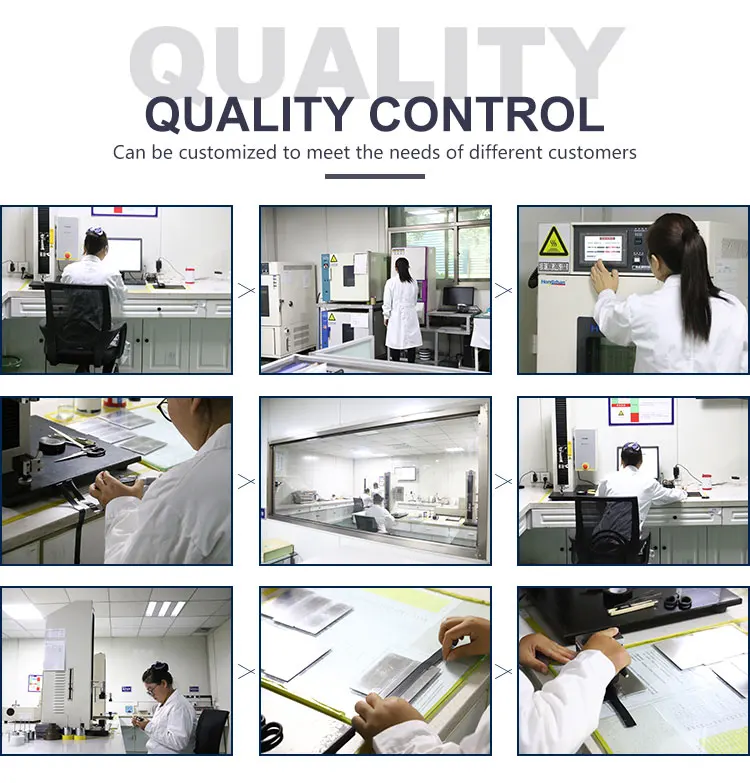

Q: How do you ensure the quality of your products?
A: Yes. Free sample can be provided. But if your size is not on our stock list, it may take more or less 7 days for production. And the freight is on your part, hope you can understand. Thank you.
Q: Do you accept customized order?
A: Yes. Any customized requirement including color, size, package and logo etc. are welcomed.
Q: What's your MOQ?
A: It depends. but small order is also acceptable for the purpose of long time cooperation.
Q: How do you ensure the quality of your products?
A: At Youcheng Tech. you receive products under guarantee of ISO9001, RoHS.
Q: What are your best lead-times?
A: Immediately shipments are available for stock adhesive tapes. Otherwise we need more or less 25 working days for production.
Q: How can you make sure that my money is safe with you?
A: As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payment will not be released to vendor until buyer confirms receipt and good material of delivery.
Q: What are your best lead-times?
A: Immediately shipments are available for stock adhesive tapes. Otherwise we need more or less 25 working days for production.
Q: How can you make sure that my money is safe with you?
A: As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payment will not be released to vendor until buyer confirms receipt and good material of delivery.
