Высококачественный резервуар для воды система насоса высокого давления Электрический пожарный комплекс подачи пожарные

1、 Product overview

Building fire water supply generally uses high water tank to make up for the lack of water supply pressure of water pipe network, but it is often disadvantageous that the water pressure required by fire hydrant is about 220kpa. It is not realistic to use the method of heightening water tank to meet the water pressure required by fire fighting, and the pressure stabilizing water supply equipment can meet the demand. The TR series fire water supply equipment produced by our company is based on code for design of water supply and drainage of buildings (GB 50015-2003), code for fire protection design of tall buildings (GB 50045-5), code for design of automatic sprinkler system (GB 50084-2001). The design basis is based on gb27898.3-2011 performance requirements and test methods for fixed fire water supply equipment Part 3: Water supply equipment with stable pressure for fire protection "is a standard fixed fire extinguishing device. The device is composed of pressure tank, pressure stabilizing pump, fire pump, electric control cabinet, instrument, valve, pipeline, equipment base, etc., which is suitable for temporary high-pressure fire water supply system.

2、 Characteristics of voltage stabilizing equipment

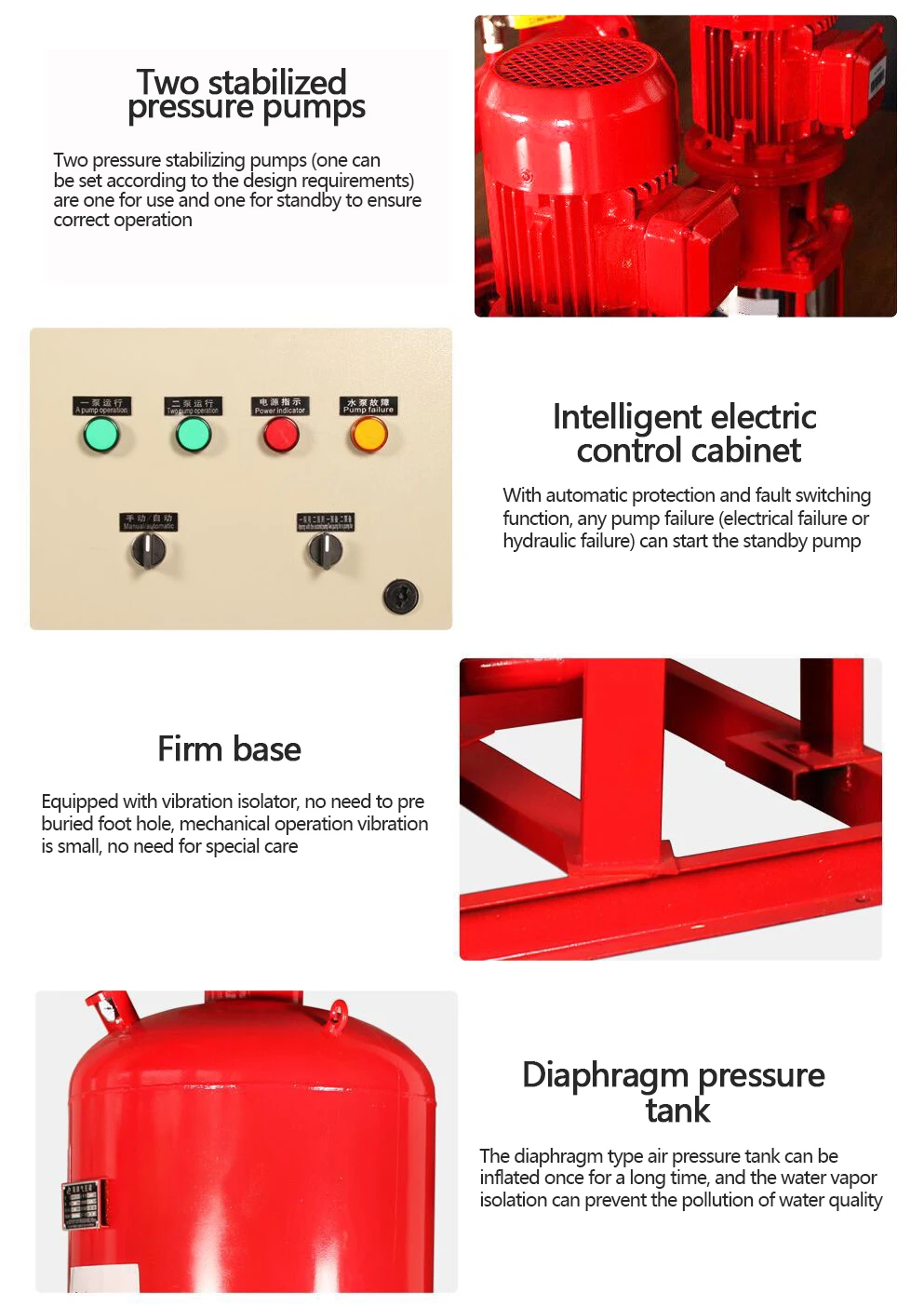

1. TR series products are equipped with capsule type diaphragm pressure tank, which has the characteristics of simple structure, high efficiency and long-term use after one-time inflation. The design, manufacture, pressure test, inspection and acceptance of the pressure tank of our company are in accordance with the provisions of GB 150-1998 "steel pressure vessels";
2. TR series products can be equipped with vertical single-stage fire pump or vertical multi-stage fire pump group. The vertical single-stage fire pump group has simple structure and low cost; the vertical multi-stage fire pump group runs stably and has high head. The vertical single-stage fire pump sets and vertical multi-stage fire-fighting pump sets produced by me have basically passed the type inspection of national fire-fighting equipment quality supervision and inspection center, and the quality conforms to the provisions of GB6245-2006 "fire pump"
3. TR series products have multi-function programming control, fire pump timing soft start inspection and other functions, can receive a variety of fire signals and can be connected with the fire center
