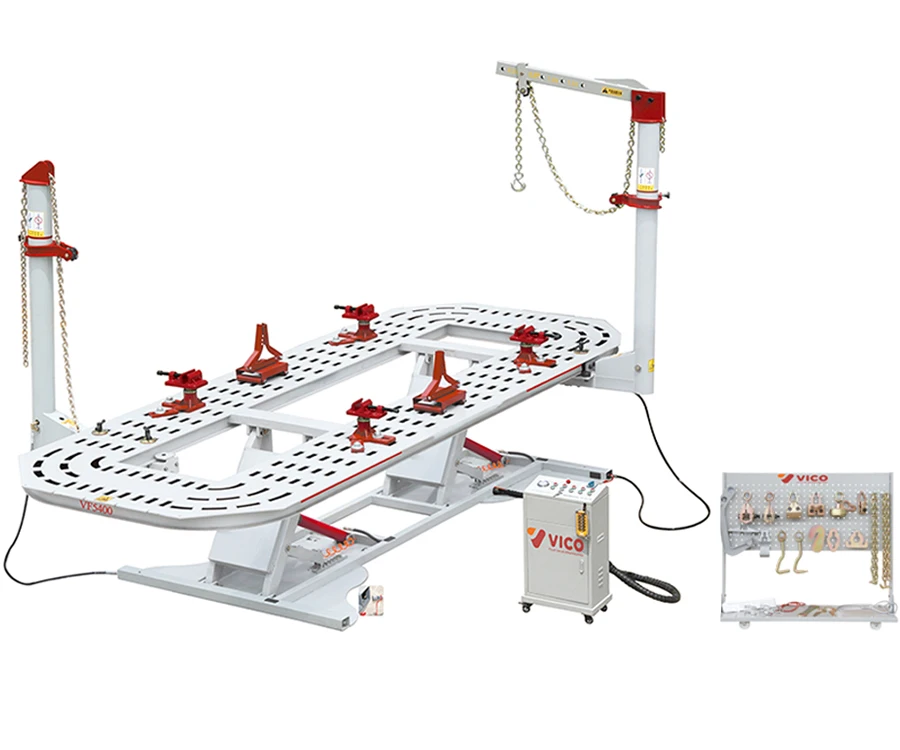

Product Name VF5400

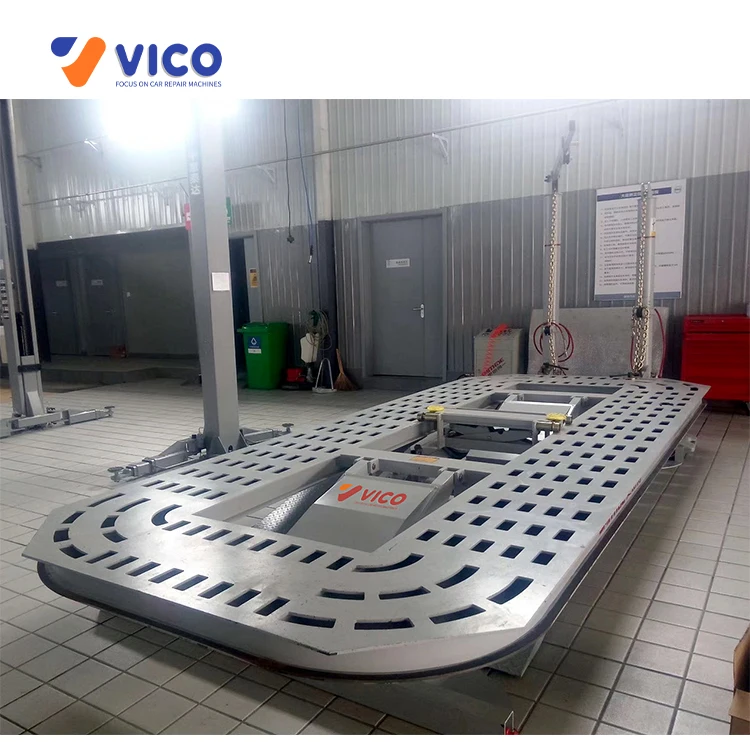

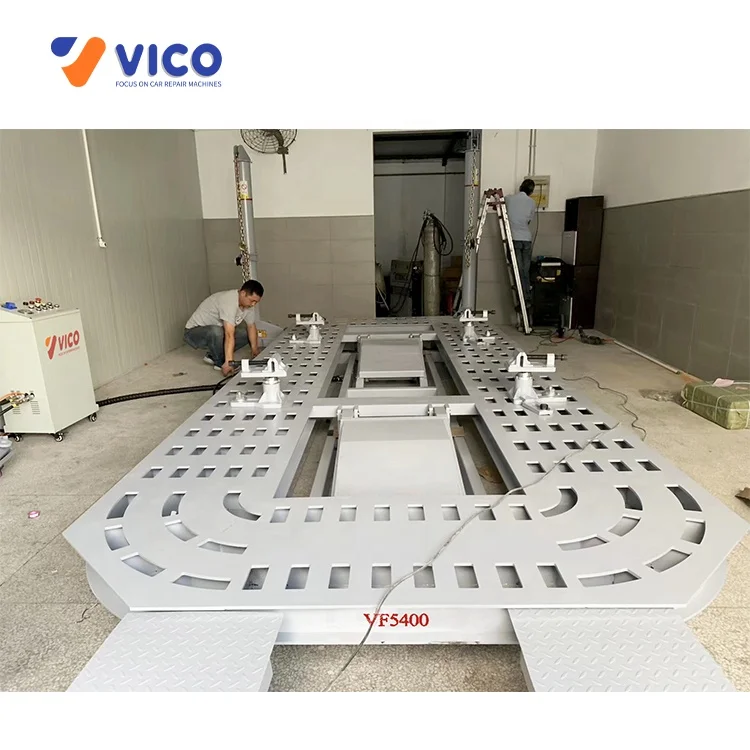

(1) Manganese plate entirety lifting platform, high strength reinforcement plate, lifting smoothly and operating safely.
(2) The platform is board with its panel formed by the large-scale Laser cutting machine. The notch is smooth with no heat deformation.
(3) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. Lifting frame has double security of hydraulic and mechanism. The lifting range is 320mm-1200mm in which can be adjusted.

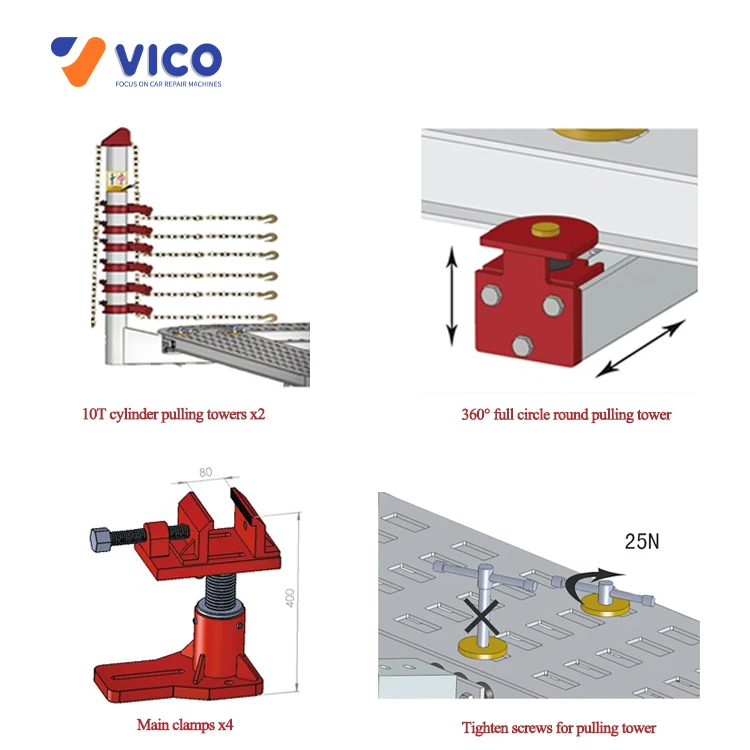

(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable.

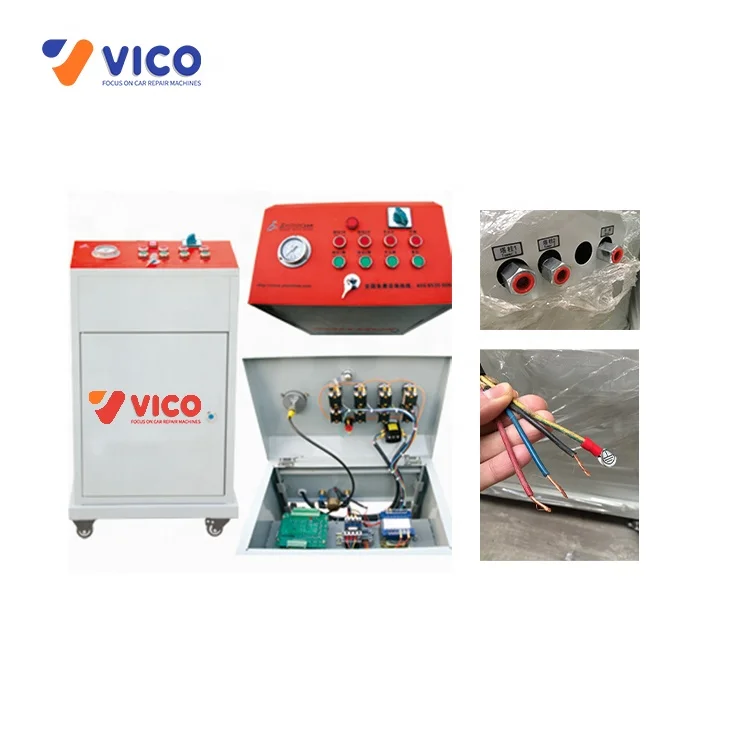

(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.
(2) The platform is board with its panel formed by the large-scale Laser cutting machine. The notch is smooth with no heat deformation.
(3) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. Lifting frame has double security of hydraulic and mechanism. The lifting range is 320mm-1200mm in which can be adjusted.
(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.

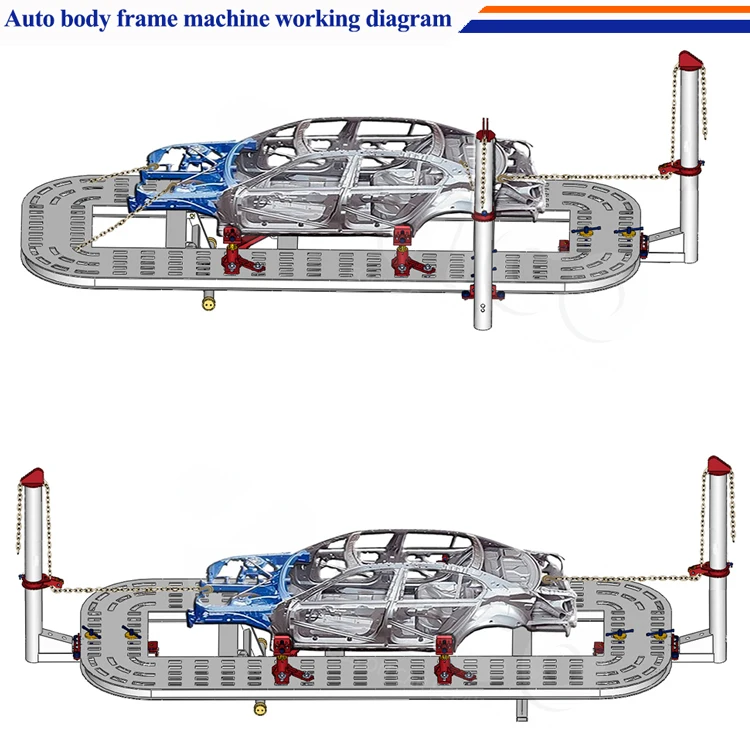

Car Frame Machine
Auto Body Dent Puller
Auto Body Frame Machine
SPECIFICATION | VF5400 |
Platform Length | 5600mm |
Platform width | 2200mm |
Platform height | 320mm~1200mm |
Post Max. tension | 98KN |
Pneumatic pressure range | 0.8Mpa |
Post working range | 360° full around |
Cylinder capacity | 10T |
Maximum lift capacity | 3500kgs |
Voltage | 3Ph/380v/415v/220v |
Weight | 2850kgs |
Packing size | 5600*2130*350mm+750*750*1000 2150*1360*750mm/6cbm |
We can offer New auto body shop equipment solutions
Vico have various of frame machine models, we can offer you custom design according to your special inquiry.
You can look through our website or contact our sales directly, we will reply you in 12 hours and free offer your solution design and help you choose right machine for your shop.
#VF5300
Electric control/Mid rise /Full lift
#VF5500
Electric control/Full lift/ Luxurious
#VF9000
Heavy truck/ Big long bench
#VF2100
Portable Quick Puller /Economic
#VF6000
Liner frame car bench and car lift
#VF7100
European design/Multifunctional
