Высокое качество низкое напряжение MSQ-40 400/5A 100/5A 600/5A CT трансформатор тока импульсный цена
- Категории: Transformers >>>
- Поставщик: Luoyang,Xinghe,Special,Transformer,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Why Choose Us
Product Show

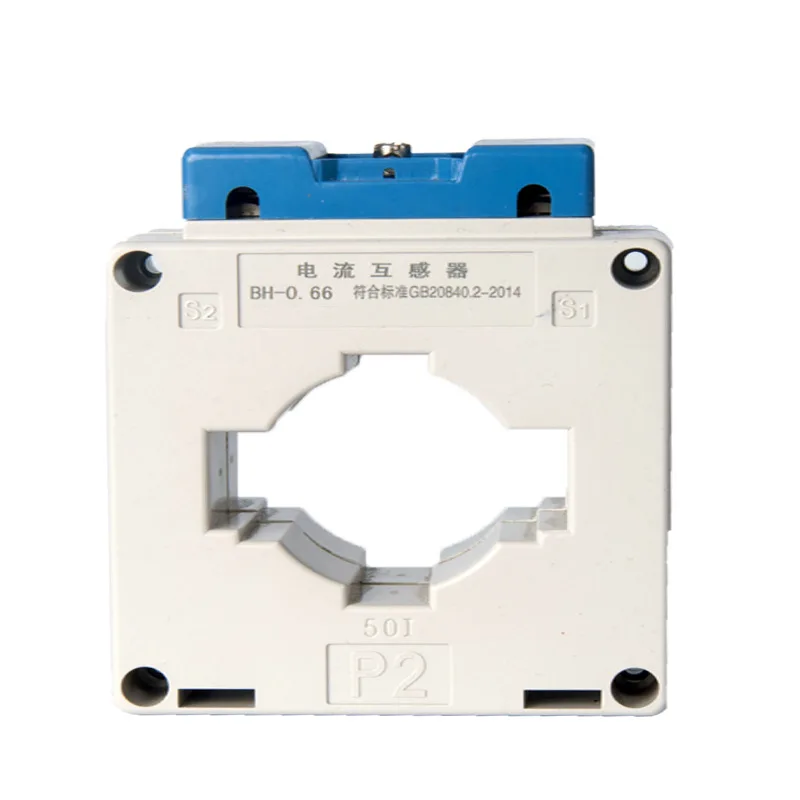

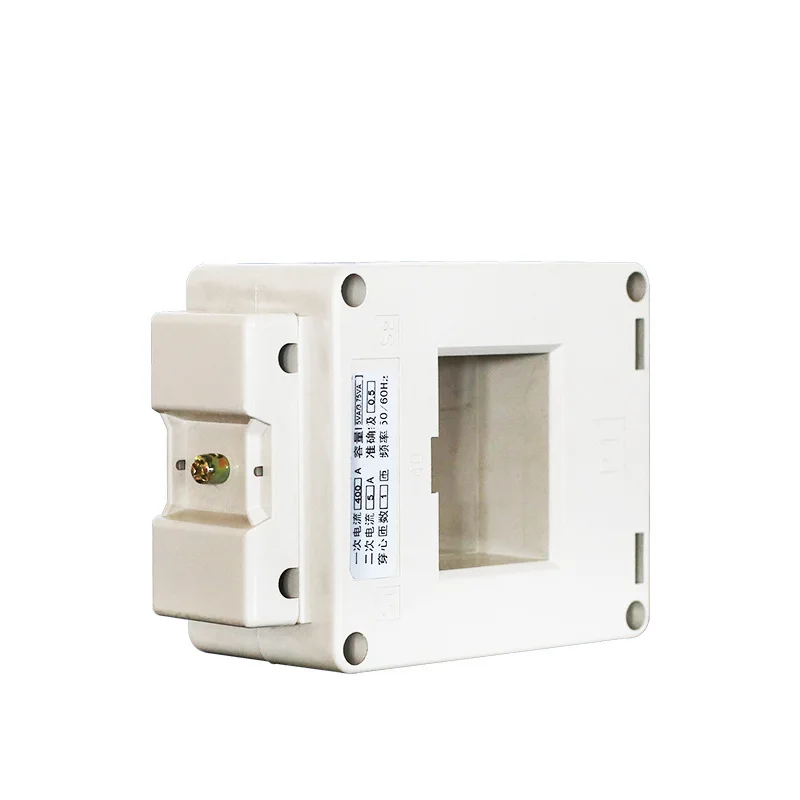

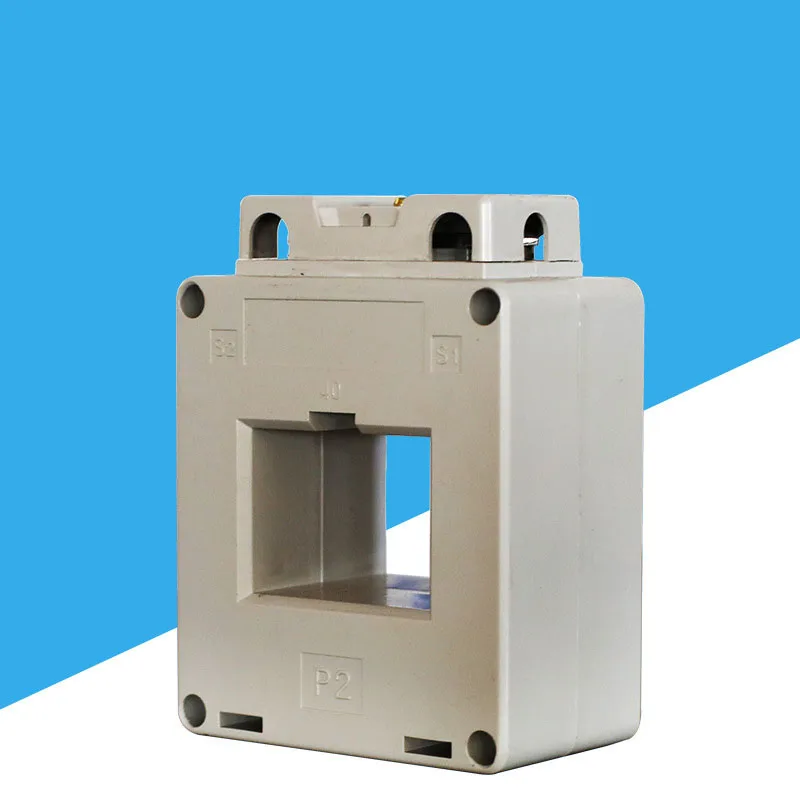

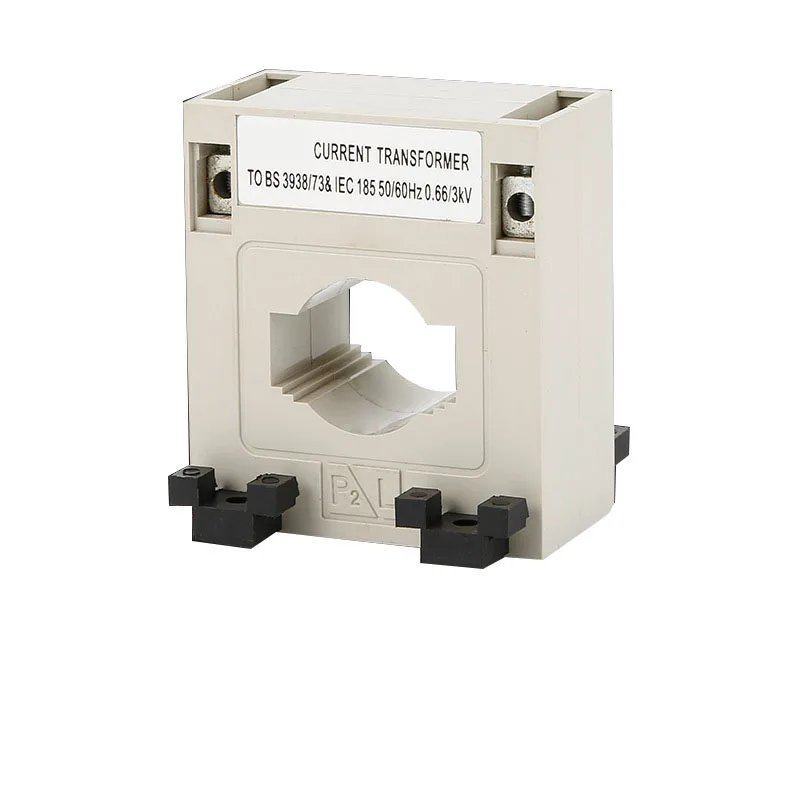

High quality low voltage MSQ-40 400/5A 100/5A 600/5A CT current transformer switching current transformer price ct
1.Material: ABS flame retardant enclosure,earth leakage protective cap,large iron core, pure red copper.
2. Three colors for protective cap are optional.
3.Primary winding adopts straight-through type,which ensures safety, convenient installment and easy operation.
4.Our product conforming to national standards BG1208-2006 and standards of International Electrotechnical commission IEC185.
5.Applications: 50HZ rated frequency, 0.66KV or below rated working voltage,primary current 50~5500A.
2. Three colors for protective cap are optional.
3.Primary winding adopts straight-through type,which ensures safety, convenient installment and easy operation.
4.Our product conforming to national standards BG1208-2006 and standards of International Electrotechnical commission IEC185.
5.Applications: 50HZ rated frequency, 0.66KV or below rated working voltage,primary current 50~5500A.
Product parameter list
Item/ model | Type I | Type II | Type III | Type M | Type S | |||||
Signal input and output | Primary current input | 15~3000A | 75~10000A | 150-5000A | 5~80A | 15~4000A | ||||
primary current output | 5A、1A | |||||||||
power supply | Rated voltage | ≤ AC0.66KV | ||||||||
Rated frequency | 50HZ 、60HZ | |||||||||
Power frequency withstand voltage | 3000V 1min 50Hz | |||||||||
Environment | Altitude | ≤3000m | ||||||||
Use environment | -30℃ ~ +60℃ （No direct rain or snow, no serious pollution and severe vibration） | |||||||||
Insulation class | E | |||||||||
Standard | Executive standard | GB1208-2006 | ||||||||
Products Description
Packaging&Shipping
Packaging: Wooden case or according to client's requirements
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.
Certifications
Hot Products
35kv oil immersed transformer
13.8kv single phase transformer
6.3kv oil immersed transformer
Xinghe Story
Luoyang XingHe electric appliance co., LTD., founded in 1991, the registered capital of 50.13 million yuan, is headquartered in one of China's four big ancient capital of luoyang, the business scope includes production and sales of high and low voltage electric power transformer, box-type substation, power electrical complete sets of equipment integrated installation, maintenance and testing of power facilities, power engineering construction, production and sales of cable, etc.
The factory covers an area of 92,000 square meters and employs nearly 500 people.Our products fully comply with the national and industry standards required by the MeetInternational IEC standards for key performance indicators, ensuring operational efficiency, safety, environmental protection and reliability of the products, favored by customers at home and abroad.
The factory covers an area of 92,000 square meters and employs nearly 500 people.Our products fully comply with the national and industry standards required by the MeetInternational IEC standards for key performance indicators, ensuring operational efficiency, safety, environmental protection and reliability of the products, favored by customers at home and abroad.
We have been adhering to the "quality first, service first" faith, actively engaged in industry field in cutting-edge technology bresearch and development, production of the products are sold to Kenya, India, uzbekistan, the Philippines, Malaysia and other countries and regions, won the new and old customers consistent high praise, and establish a long-term relations of cooperation.
Service & FAQ
1. | Pre sale service | ||||||
a. | Make technical solution. | ||||||
b. | Send quotation, technical data sheet and drawing. | ||||||
c. | Prepare power transmission plan, testing plan, and shipment plan. | ||||||
2. | In sale services | ||||||
a. | Supervise the manufacturing schedule totally in accordance with the plan. | ||||||
b. | Send photos to customer during every manufacturing process(hold point). | ||||||
c. | Iinform the customer one week before testing. | ||||||
3. | After sale service | ||||||
a. | Installation and commissioning. | ||||||
b. | Training the worker. | ||||||
c. | Squick response within 12 hours any time. | ||||||
d. | Provide 12 months gurantee period normally. | ||||||
Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.
Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It’s available. We are responsible for each set transformer’s testing.
Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.
Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It’s available. We are responsible for each set transformer’s testing.
Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry
