50Ton STC550C5 гидравлический передвижной кран с 5-ю секциями

Описание и отзывы

Характеристики

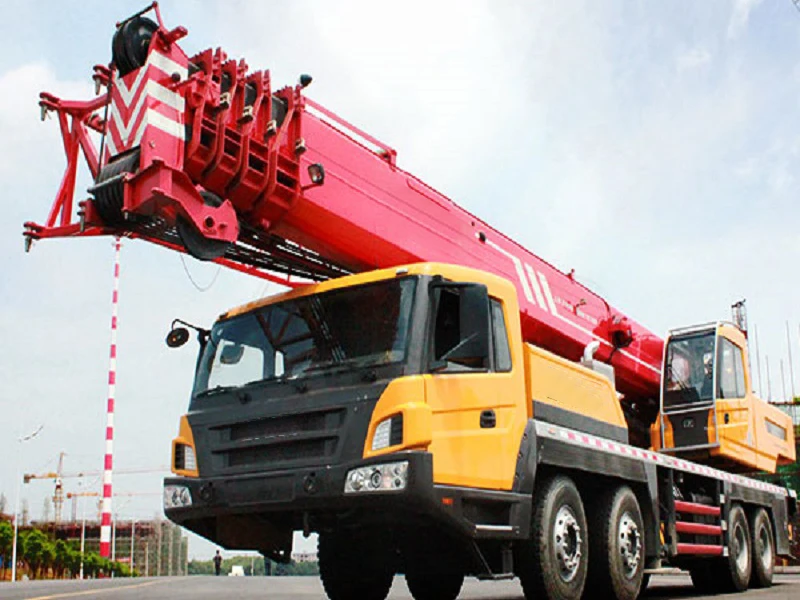

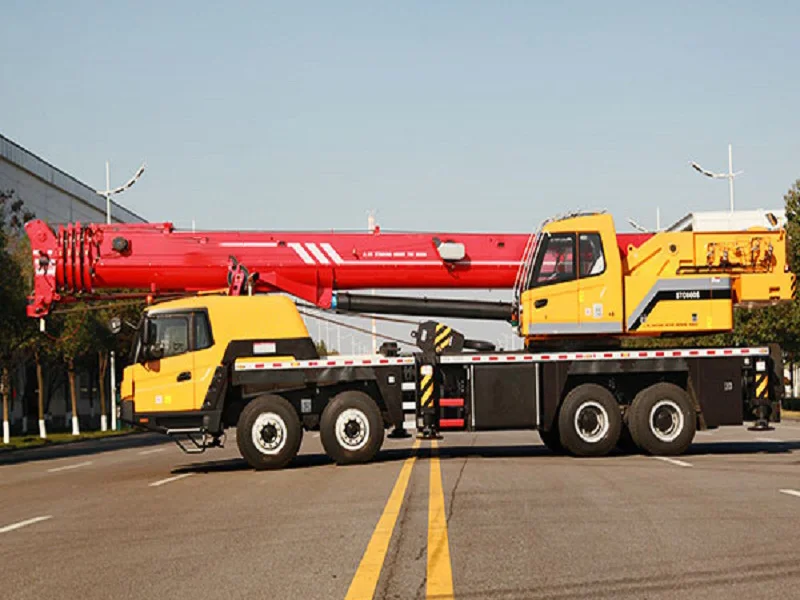

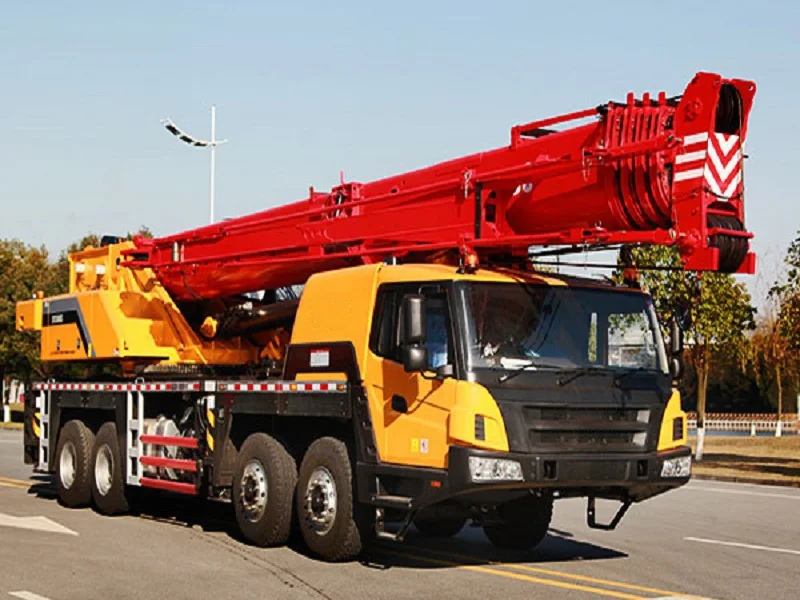

 Brand New STC550C5 Hydraulic Pick-Up Truck Crane 5 Section Booms for Sale

Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.

Engine has the multimode power output function, which reduces power consumption.

The use of tipping over early-warning technology provides high stability and safety of the overall operation.

Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.

Unique steering buffer design is adopted to ensure stable braking operation.

Type	Item		Parameter
Dimensions	Max.lifting capacity		55 t
	Overall length		14350mm
	Overall width		2800 mm
	Overall height		3820mm
	Axle distance	Axle-1,2	1450 mm
		Axle-2,3	4000mm
		Axle-3,4	1350mm
Weight	Overall weight		43870 kg
	Axle load	Axle load-1,2	16000kg
		Axle load-3,4	26000kg
	Rated power		276 kW/ 1900 rpm
	Rated torque		1425 N.m/ 1200 rpm
Travelling	Max.travelling speed		85 km/h
	Turning radius	Min.turning radius	12m
		Min. turning radius of boom head	14.5 m
	Wheel formula		8*4
	Min.ground clearance		295 mm
	Approach angle		18 °
	Departure angle		12 °
	Max.gradeability		40%
	Fule comsumption per 100km		≤ 45 L
Main Performance Data	Temperature range		– 20 ℃ ~ +45 ℃
