50A Battery Voltage Sensitive Relay
Feature:

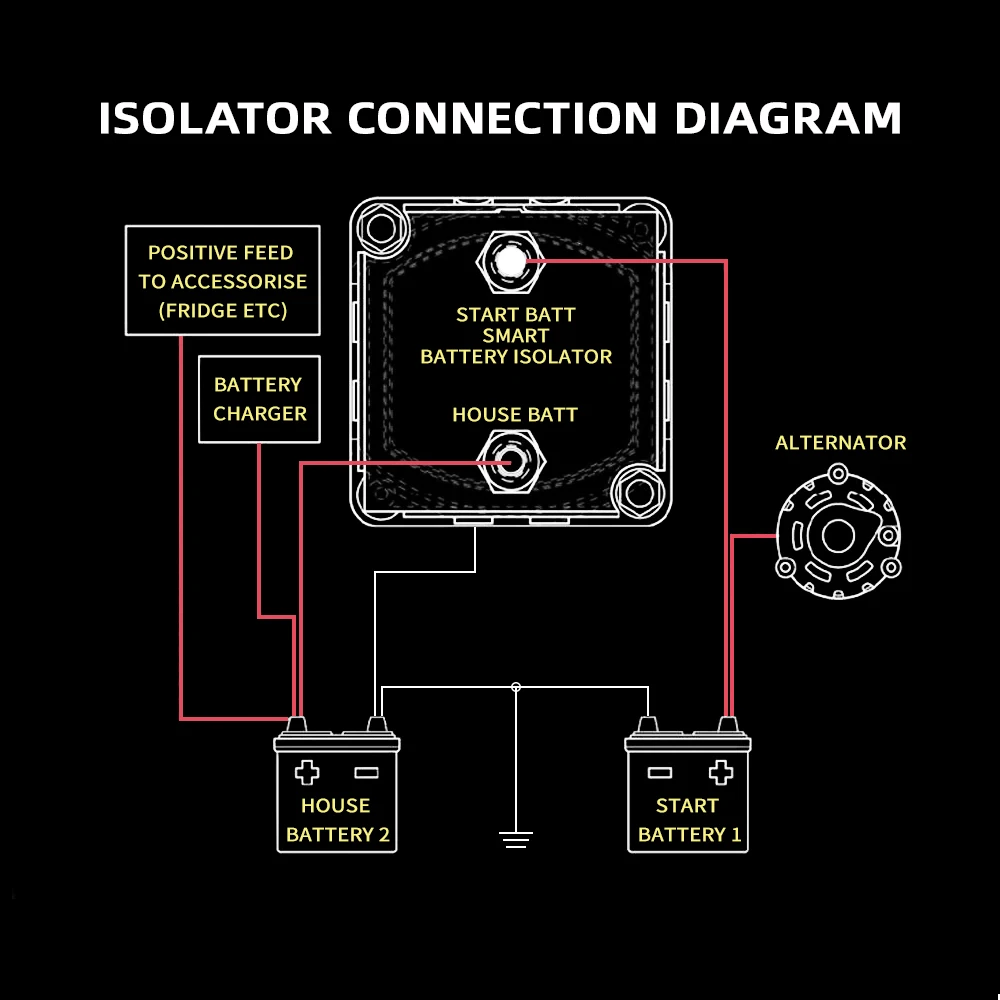

1. This dual battery isolator automatically combines two batteries when charging, and isolates two batteries when not charging.
2. Compared with the battery isolation diode (0.6V), the dual battery isolator has no voltage drop.
3. The surface or surface damage mounting option of the dual battery isolator provides flexibility during installation.
4. The storage mode of the dual battery isolator will achieve 0 power consumption when the engine is off.
5. This dual battery isolator has different power consumption rates in different modes.
Specification:
Item Type: Double Isolator
Material: Plastic
Rated Voltage: DC 12V
Combined/Open Circuit Voltage: DC 13.3V/12.8V
Continuous Rated Current: 125A
Interrogation Current Rating: 140A
Power Consumption: 10mA (standby)/330mA (pull-in)/0mA (storage mode)
IP | ip65 |
MOQ | 100PCS |
