Product Description

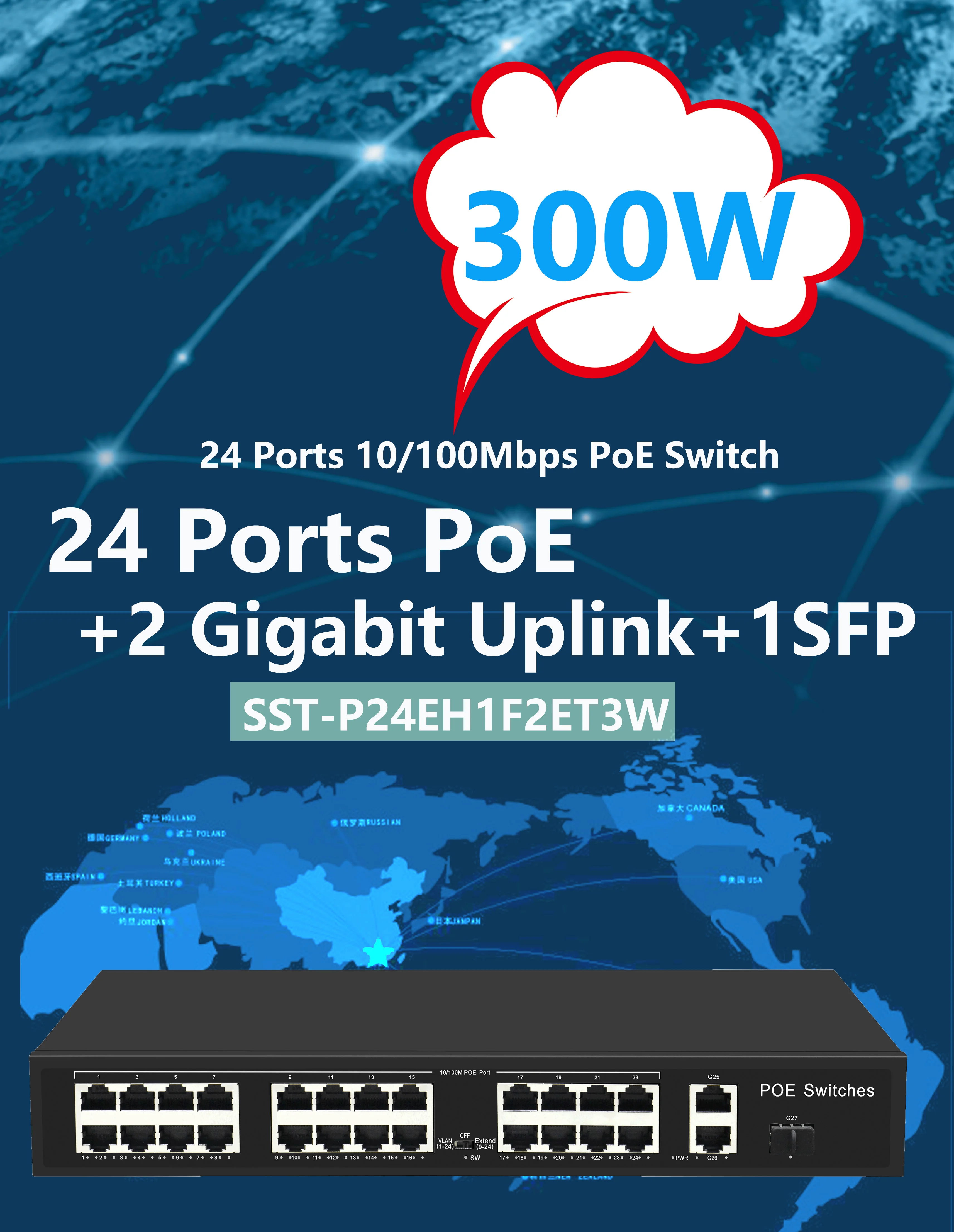

6 / 10 / 16 / 24 poe ports network switch 100Mpbs transmission poe switch.
SST-P24EH1F2ET3W device is an PoE Switch, it support 24*10/100M POE Ports + 2*Gigabit Uplink+ 1 SFP ports. These converters are classified as power source equipment (PSE), and when used in this way provide up to 15.4 watts IEEE802.3af & 30 watts to IEEE802.3at compliant powered devices (PD), eliminating the need for additional wiring. It support CE, FCC ROHS standard, adopt industry standard design, IP30 protection, rugged high-strength metal case, power supply input (DC48-55V), -20 to 55°C working temperature. The converters support IEEE802.3/IEEE802.3u/IEEE802.3x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your Ethernet network.


Feature
◆ IEEE802.3af/at power on up to 24 ports
◆ Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆ 24*10/100M POE Ports + 2*Gigabit Uplink+1 SFP ports
◆ Supports PoE power up to 15.4W/30W for each PoE port
◆ Supports PoE power up to 300W for all PoE ports
◆ Supports PoE IEEE 802.3af/at compliant PDs
◆ Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
◆ 16K entry MAC address table of the PoE Switch SST-P24EH1F2ET3W with auto-learning and auto-aging
◆ LED indicators for monitoring power, link, activity and speed


Application Environment
◆ Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., according to network operators.
◆ Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation,
education and other industries.
◆ Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
◆ Real-time monitoring: simultaneous transmission of real-time control signals, images and data.


Specification


Technical Parameters
Product Name
27 Ports POE Switch with 24*10/100M POE Ports + 2*Gigabit Uplink+1 SFP ports
Model
SST-P24EH1F2ET3W
Connector Type
24*10/100M POE Ports + 2*Gigabit Uplink+1 SFP port
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth
10.8Gbps (non-blocking)
Cache
4MB
MTBF
200,000 hours
Forwarding Mode
Store-And-Forward
Network Protocols
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;
IEEE 802.1af DTE Power via MDI; IEEE 802.3af/at
LED Display
System: power supply; Every Port: connecting, PoE working status
Power Supply
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports
1-24 ports support PoE;
1-8 ports support QOS,
9-16 ports support Extend 250mtrs,
1-24 ports support VLAN
Port Lightning Protection
General Mode 6KV, Differential Mode 2KV, ESD 15KV
PoE Port Power
15.4W/30W for each POE port,300W for total
PoE Standard
IEEE 802.3af/at
PoE Feature
All ports support MDI/MDIX
Working Environment
Operating Temperature:-20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C;
Operating Humidity: 10% ~ 95%, non-condensing
Certification
CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance
Cat.5 transmission distance: 100m , Optical:Depend on SFP
Warranty
3 years warranty


Details Images






Packing & Delivery




Company Profile






Shenzhen Sunsoont Technology Co, . Ltd. was established in Shenzhen, China, is a professional optical fiber network communications equipment production, R&D and sales in one of the manufacturers, our main products include POE switches, industrial Ethernet switches, fiber switches, fiber media converter, wireless network devices and other communication products.

As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and a sufficient inventory, to ensure the product reliability and rapid market response.

The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international demand, and providing cost-effective products and services!
