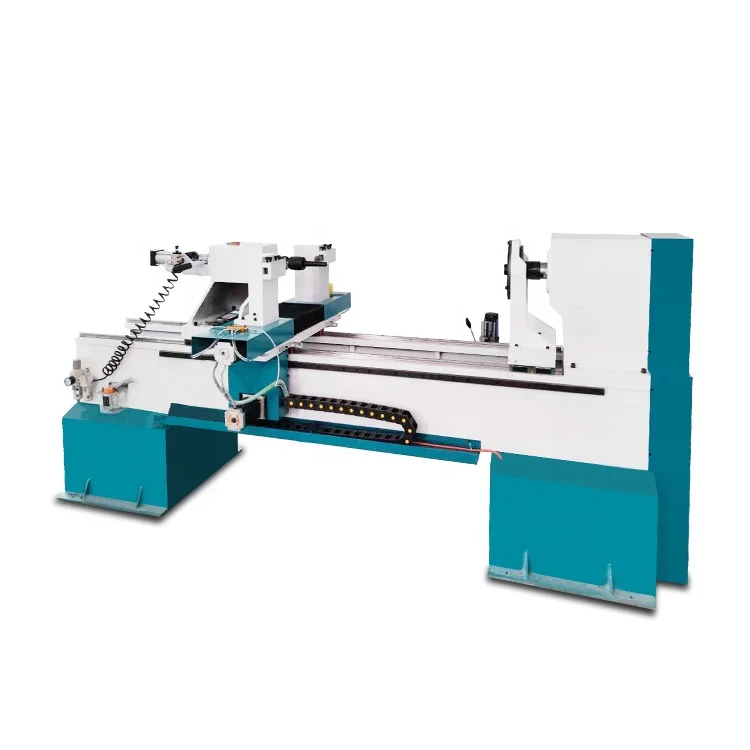

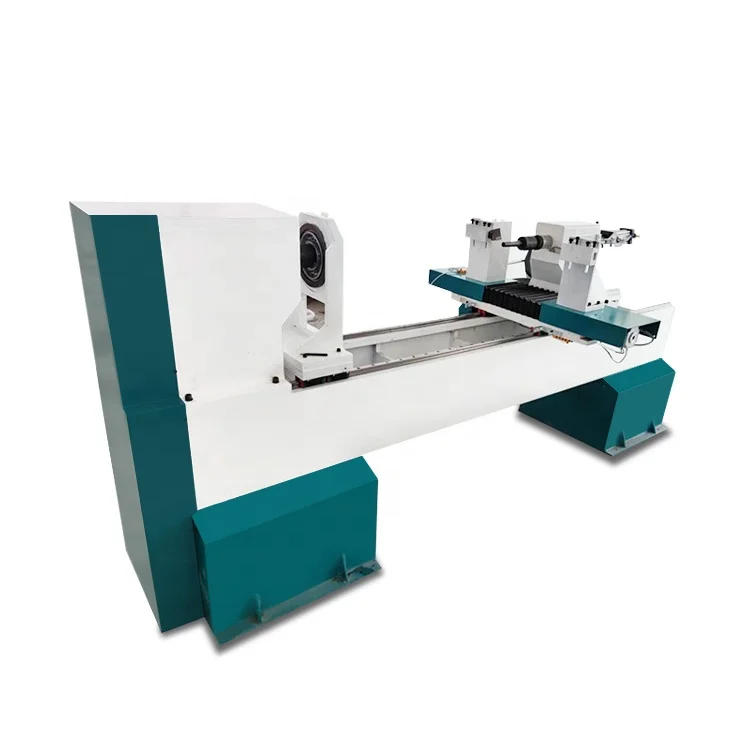

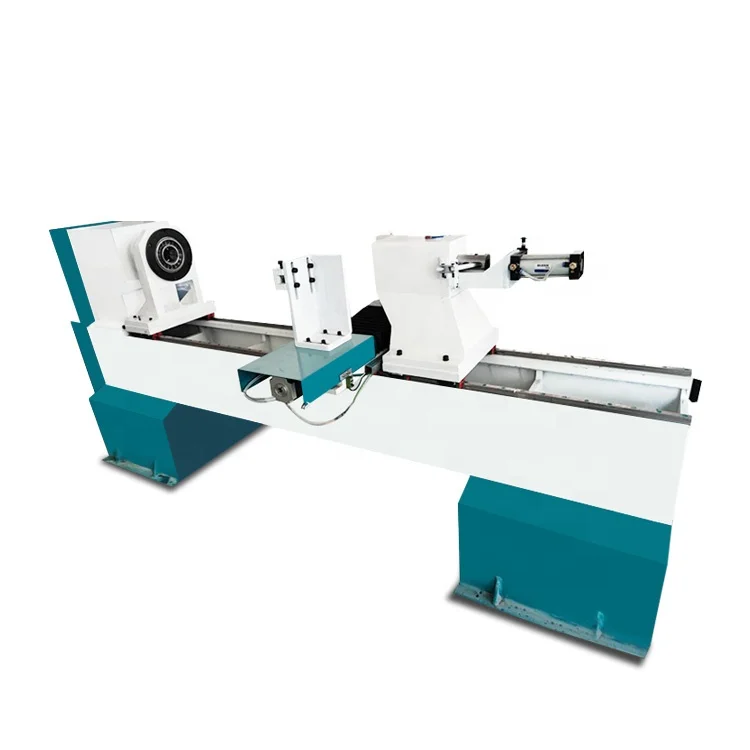

Токарный станок по дереву деревообрабатывающий бейсбольная бита токарный с
- Категории: Wood Lathe >>>
- Поставщик: Shandong,Honest,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
1.This type of lathe with universal support is engraved, grooved, and hemp-flower one-in-one.（The bed is 3 metres long)
2.According the requirement and characteristics of woodworking industry, CNC woodworking lathe combining CNC and other mechanical technology, could process the complex shape of the wood rotary products or semifinished wood products. such as cylindrical, conical, curved, spherical etc. It is especially suitablefor the mass production of small or mediumscale wood enterprises, set shape flexibly and changing processing style rapidly.
3.Wood lathe machine Mainly used for processing cylindrical handrails, railings, Roman column and other profiling process products. Manual profiling processing to speed,After the double frame, rough car can be fine hand, after grinding can be sanding. Is the best tool for cylindrical processing, can be processed custom semi-automatic.
2.According the requirement and characteristics of woodworking industry, CNC woodworking lathe combining CNC and other mechanical technology, could process the complex shape of the wood rotary products or semifinished wood products. such as cylindrical, conical, curved, spherical etc. It is especially suitablefor the mass production of small or mediumscale wood enterprises, set shape flexibly and changing processing style rapidly.
3.Wood lathe machine Mainly used for processing cylindrical handrails, railings, Roman column and other profiling process products. Manual profiling processing to speed,After the double frame, rough car can be fine hand, after grinding can be sanding. Is the best tool for cylindrical processing, can be processed custom semi-automatic.
High-efficiency, high-finish
1. single-axis double-blade numerical control woodworking lathe adopts double-blade wood, and the two cutters have a gap of 1 cm in the axial distance, and the processing efficiency is improved.
2.The turning proportion of each cutter can be freely adjusted according to the actual situation of the processing material, the jumping and the vibration of the processed workpiece can be reduced, and the wood finish can be increased. Digital control frequency conversion, energy saving, power saving, real-time speed regulation, multi-stage safety protection
1. single-axis double-blade numerical control woodworking lathe adopts double-blade wood, and the two cutters have a gap of 1 cm in the axial distance, and the processing efficiency is improved.
2.The turning proportion of each cutter can be freely adjusted according to the actual situation of the processing material, the jumping and the vibration of the processed workpiece can be reduced, and the wood finish can be increased. Digital control frequency conversion, energy saving, power saving, real-time speed regulation, multi-stage safety protection
Product Paramenters
Max.working dimensins | 20mm—300mm Note: it does not represent the machining diameter, but the machined diameter depends on many factors such as material and finished product shape. |
Max.length | 100mm—1500mm(1530) (Customizable 2m and 2.5m) |
Max.spindle | 0-3000r/min |
Air pressure | 0.6-0.8Mpa |
Incoming total power | 4.0KW |
Use power supply | Three-phase 380V AC power supply |
Bed net weight | 1600kg |
Packing dimensions of wooden cases | 3100mm*1280*1750mm (Wooden box packing) |
Gross packing weight of wooden box | 1800kg |
Use frequency | 50HZ |

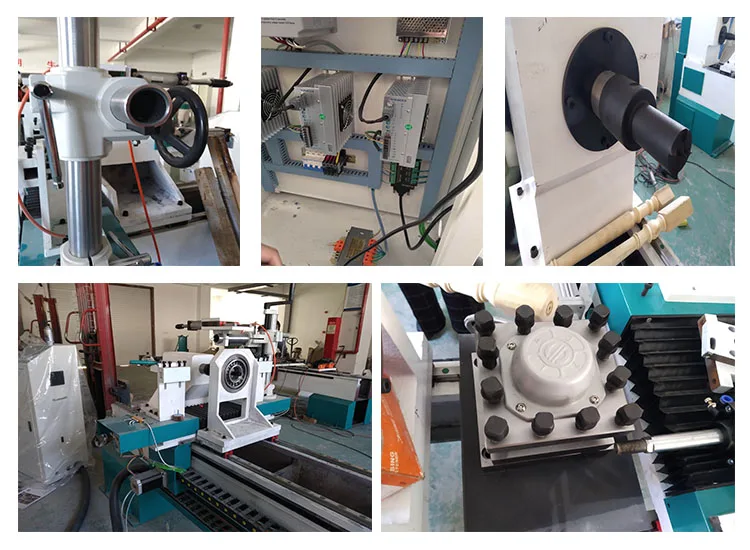

Details Images
Product features
1. it is computer nemerical controlled. PC free offered.When you receive the machine, you can run it directly. Software and system has been ready on the PC.
2. it is with more than 800 kinds of free designs which was loaded into drawing gallery.
3. easy control, special wood beads and 4 axis system.
4. best hard alloy wood lathe cutter in China market, can match with you soft wood cutter and hard wood cutter.
5. you can make any design from AutoCAD, .dxf file is supported.
6. imported square orbit and ballscrew transmission.
7. long lifespan, high precision.
8. processing precision: 0.01mm.
1. it is computer nemerical controlled. PC free offered.When you receive the machine, you can run it directly. Software and system has been ready on the PC.
2. it is with more than 800 kinds of free designs which was loaded into drawing gallery.
3. easy control, special wood beads and 4 axis system.
4. best hard alloy wood lathe cutter in China market, can match with you soft wood cutter and hard wood cutter.
5. you can make any design from AutoCAD, .dxf file is supported.
6. imported square orbit and ballscrew transmission.
7. long lifespan, high precision.
8. processing precision: 0.01mm.
Wood cnc turning lathe woodworking machine staircase column/vase making cnc lathe machine Functional features:
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so thelathe body is stabilized and will not be deformed forever.
2. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc. wood cnc
turning lathe
3. Fast processing speed
4. Control: The use of mature CNC controller, stable operation, simple installation and debugging. Adopt international standard NC language G code. Support a variety of software. Extension of technical functions.
5. Motion: High-precision stepper motor drive, to ensure the accuracy of processing size, using Taiwan guideway, combined with ball screw transmission, strong environmental adaptability, not afraid of dust. Ensure the accuracy of processing. Frequency conversion speed regulation, spindle automatic operation, high degree of processing automation.
6. Bed: Foundry moulding, stable structure, high frequency quenching grinding imported linear square rail, small vibration, can ensure high precision processing. Auxiliary part: Cast iron bed structure is stable, total weight 1 ton 6, small vibration! Thebed is sprayed with automobile paint without fading or discolouring.
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so thelathe body is stabilized and will not be deformed forever.
2. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc. wood cnc
turning lathe
3. Fast processing speed
4. Control: The use of mature CNC controller, stable operation, simple installation and debugging. Adopt international standard NC language G code. Support a variety of software. Extension of technical functions.
5. Motion: High-precision stepper motor drive, to ensure the accuracy of processing size, using Taiwan guideway, combined with ball screw transmission, strong environmental adaptability, not afraid of dust. Ensure the accuracy of processing. Frequency conversion speed regulation, spindle automatic operation, high degree of processing automation.
6. Bed: Foundry moulding, stable structure, high frequency quenching grinding imported linear square rail, small vibration, can ensure high precision processing. Auxiliary part: Cast iron bed structure is stable, total weight 1 ton 6, small vibration! Thebed is sprayed with automobile paint without fading or discolouring.
7. Ruizhi Tianhong DSP control handle, support U-disk data transmission, data line is long enough to facilitate tool alignment,but also conducive to processing while observing.

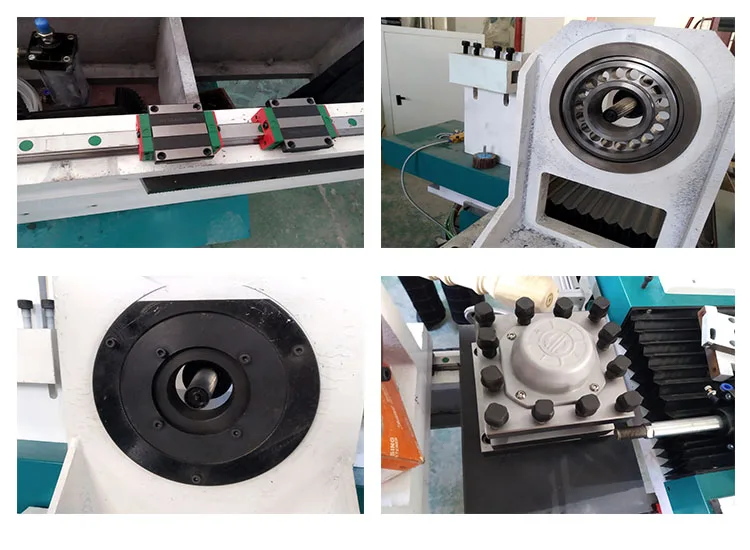

8. Taiwanese silver guide slider and Taiwanese TBI ball screw effectively ensure smooth and accurate operation.
9. Spraying automobile paint on the outside of the bed, without fading or discoloring
8. Taiwanese silver guide slider and Taiwanese TBI ball screw effectively ensure smooth and accurate operation.
9. Spraying automobile paint on the outside of the bed, without fading or discoloring

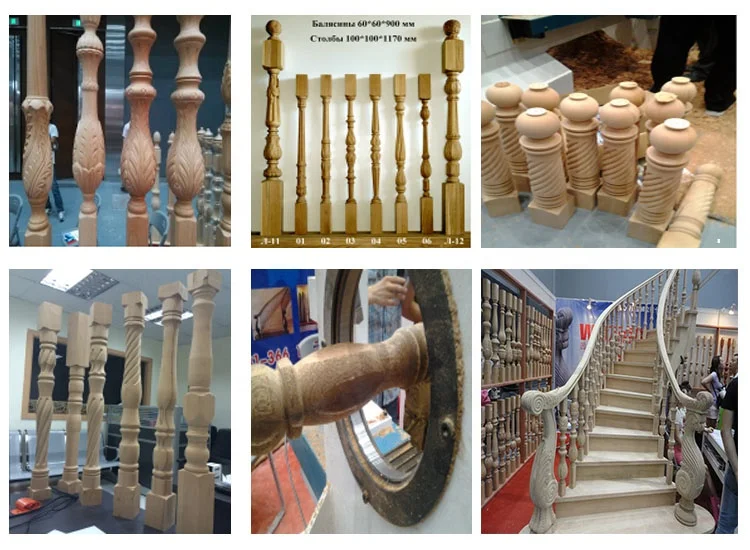

Application Example
Machinable range:
Stair posts, vases, tables, chairs and legs, European furniture Roman columns, wooden hangers and washbasins, cylindrical,conical, arc, spherical and other complex shapes of rotary wood products or wood semi-finished products, etc.
Stair posts, vases, tables, chairs and legs, European furniture Roman columns, wooden hangers and washbasins, cylindrical,conical, arc, spherical and other complex shapes of rotary wood products or wood semi-finished products, etc.
Suitable Materials and Industrial Applications
Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.
Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.
Packing & Delivery
Packaging
1. Clean and oil the wood cutting machine router
2. Put all the accessories on to the table or under the machine.
3. Pack the machine with protective films and fix machine.
4. Pack the machine by plywood box.
5. Container transport to the port.
Shipping
1. Shipped in 3-20 working days after payment.
2. We usually ship the machine by sea, also, landing and air transportation are also available.
1. Clean and oil the wood cutting machine router
2. Put all the accessories on to the table or under the machine.
3. Pack the machine with protective films and fix machine.
4. Pack the machine by plywood box.
5. Container transport to the port.
Shipping
1. Shipped in 3-20 working days after payment.
2. We usually ship the machine by sea, also, landing and air transportation are also available.

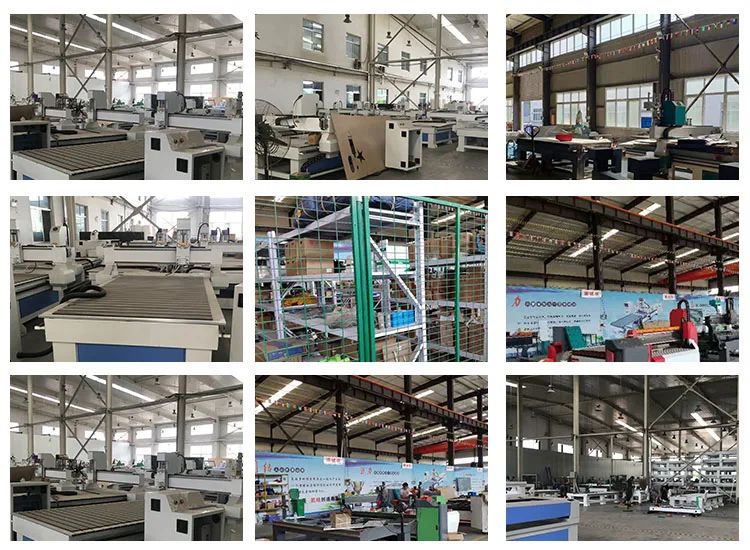

Company Profile
Shandong Honest Machinery Co., Ltd. was established in 2003, the main products: cnc engraving machine (woodworking engraving machine, stone engraving machine, metal engraving machine, glass engraving machine), laser engraving machine and computer engraving product series, etc. It is used in wood carving, stone carving handicraft manufacturing, interior decoration and other industries. The research and development of 15 years of engraving and cutting equipment has greatly guaranteed the quality of the products. Welcome new and old customers to visit our factory to discuss cooperation, we will also be absolutely good quality. The service and protection meet the needs of different levels of customers.
FAQ
1. I want to buy this machine. What do you suggest?
Please tell me: what materials do you process? What are the heights and lengths? You'd better show me your product pictures
2. How about your delivery time?
Usually 15 days after your deposit, we have the stardard model in stock. If you are in a hurry, we will arrange the delivery as soon as possible.
3.This is my first time to use this kind of machine. Is it easy to operate?
There is an English manual or guide on how to use the machine. If you have any questions, please contact us via email/skype/phone/tradelink online service.
4.What is the warranty period for the machine and accessories?
Warranty period: spindle motor half a year, other one year.
5. I'd like to see your machines. Where is your factory?
Our factory is located in jinan, shandong province. You can fly to jinan remote wall airport, we can meet you there.
Please tell me: what materials do you process? What are the heights and lengths? You'd better show me your product pictures
2. How about your delivery time?
Usually 15 days after your deposit, we have the stardard model in stock. If you are in a hurry, we will arrange the delivery as soon as possible.
3.This is my first time to use this kind of machine. Is it easy to operate?
There is an English manual or guide on how to use the machine. If you have any questions, please contact us via email/skype/phone/tradelink online service.
4.What is the warranty period for the machine and accessories?
Warranty period: spindle motor half a year, other one year.
5. I'd like to see your machines. Where is your factory?
Our factory is located in jinan, shandong province. You can fly to jinan remote wall airport, we can meet you there.
