high efficient good quality ball mill with best after service

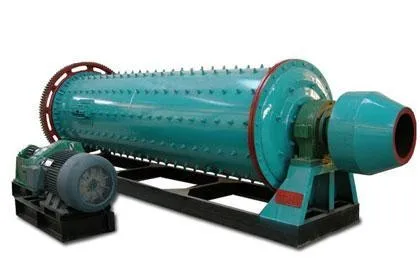

Ball grinding mill/small ball mill machine/high energy equipment ball mill machine
Product Description
Here goes ball mill working viedo :https://youtu.be/NaDcMpv3yPI
Ball mill is Yu Xiang's major product, professional technology support and all-around service can be offered to you, we also can made according to your special requirments. Welcome you visit our company to know more about us. |  |

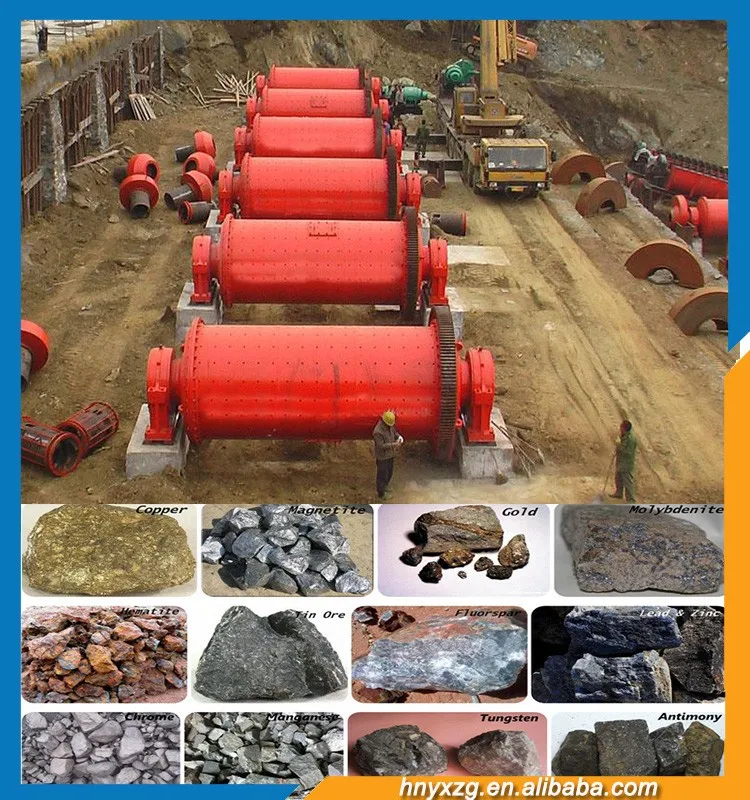

| Brief introduction | Ball mill is an efficient tool for grinding many materials into fine powder,mine, is widely used in building material, and chemical industry,can be divided into tabular type and flowing type according to differentexpelling mine ,There are two ways of grinding: the dry way and the wet way. |

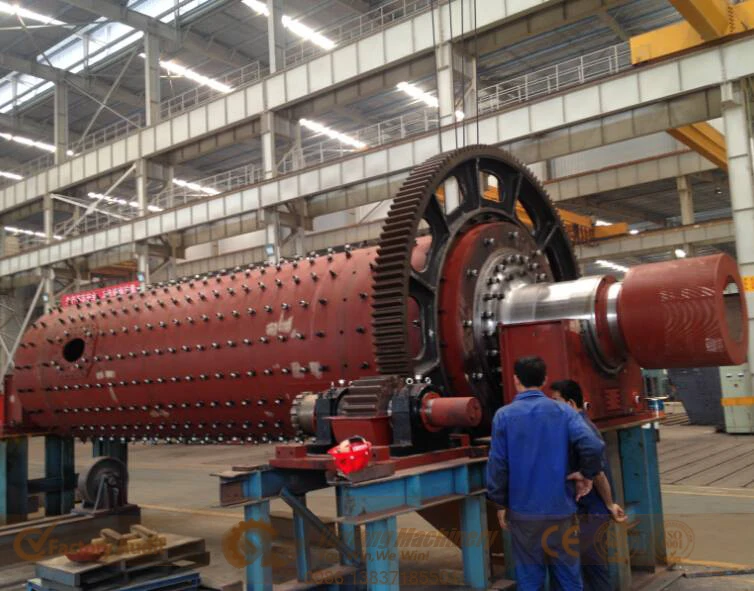

| The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished. |  |
| Model | Speed of bucket(r/min) | Ball load (t) | Feeding size(mm) | Size of outputting(mm) | Capacity(t/h) | Motor power(kw) | Weight(t) |
| 900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| 900*3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| 1200*2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 8.0 |
| 1200*4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 45 | 13.8 |
| 1500*3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
| 1500*4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
| 1830*3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
| 1830*6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| 2200*5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
| 2200*6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |

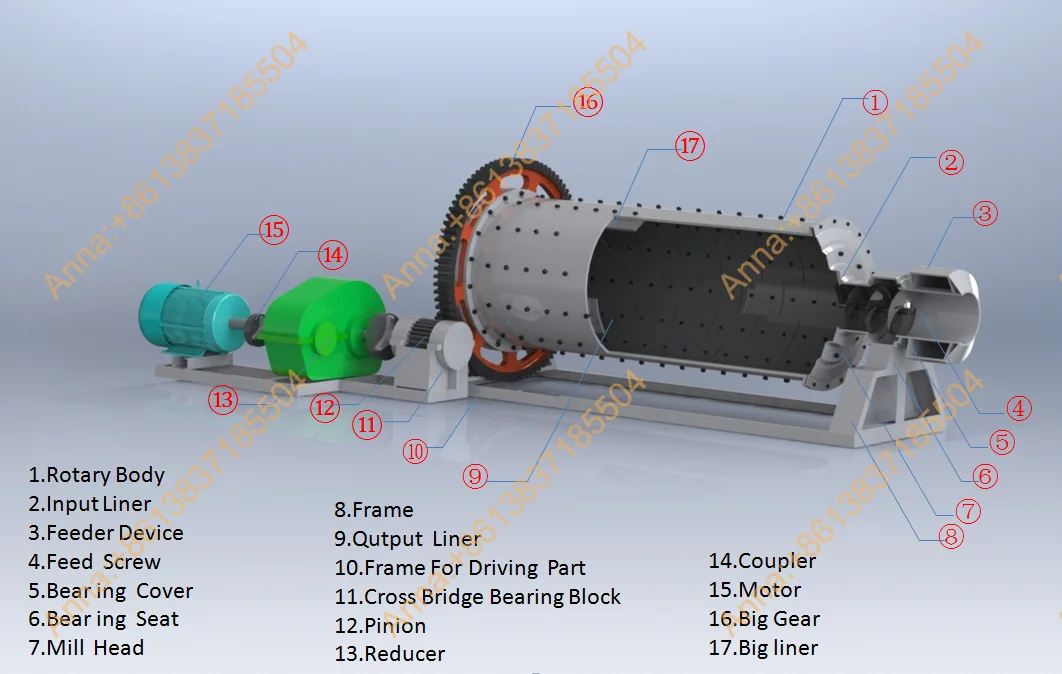

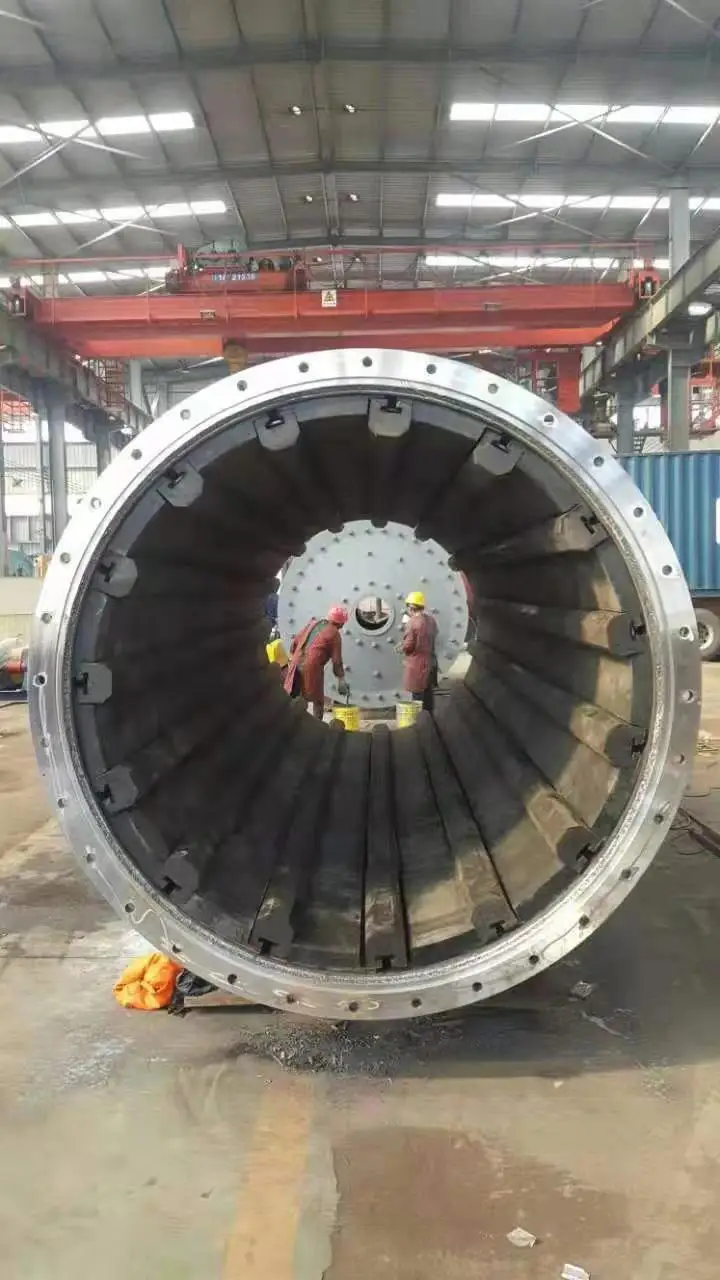

Machine structure
Working principle of ball mill

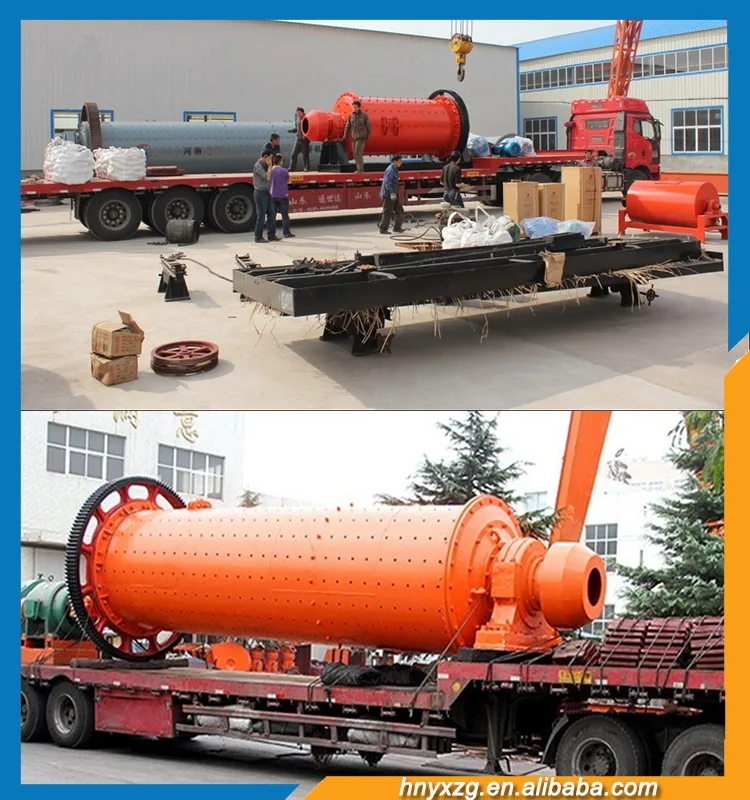

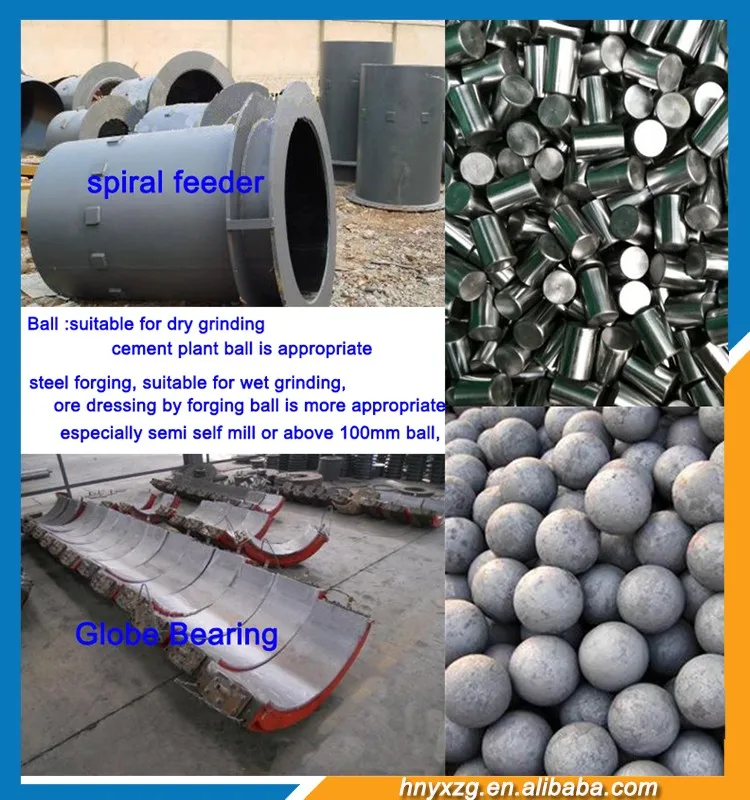

packing &delivery and spare parts of ball mill
related products
 | hammer crushers also called hammer mill,is suitable for crushing various hard and brittle materials. Weight:3.5t,0.8t Capacity:5-75t/h
|
Jaw Crusher is suitable for crushing big size lumps in large quantity, is configured for primary crushing of even the hardest rock. Weight:10.3t Capacity:50-60 t/h Max Feeding Size:850mm
|  |
 | wet pan mill mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. Capacity:0.8-1t Weight:5t
|
Our Services
Pre-sale services:
Act as a good adviser and assistant of clients
Select equipment model;
Design and manufacture products according to clients’ special requirement;
Services during the sale:
Respect clients;considering every aspect and details for our customers
Keep costumers informed about the shipping;
After-sale services:
We promise excellent after-sale service!
Assist client to prepare for the first construction scheme;
Install and debug the equipment;
main the first-line operators on site;
Take initiative to eliminate the troubles rapidly at site;
Provide maintenance for big items;

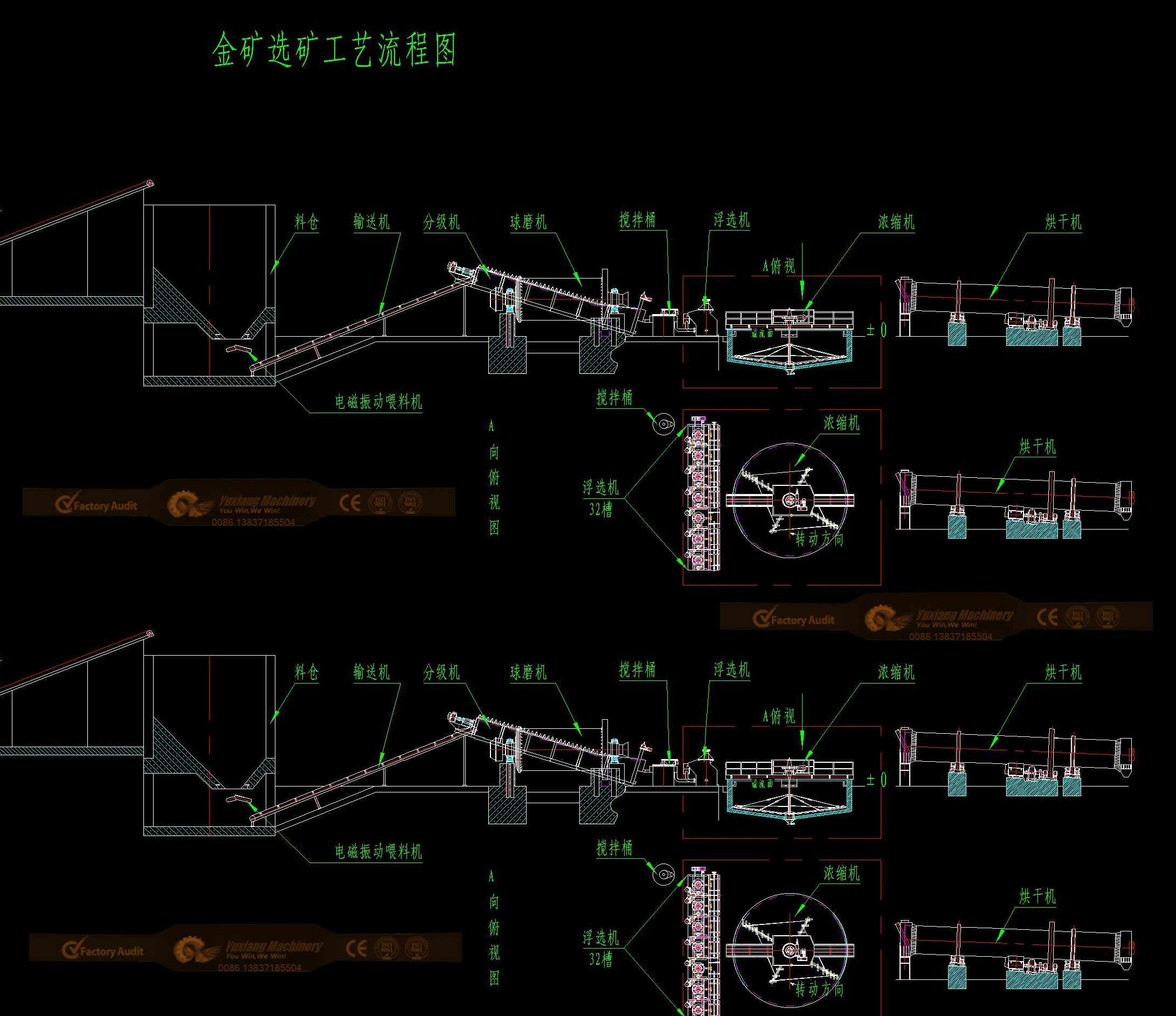

Our engineer can design the best production line based on customer's request:
Certifications

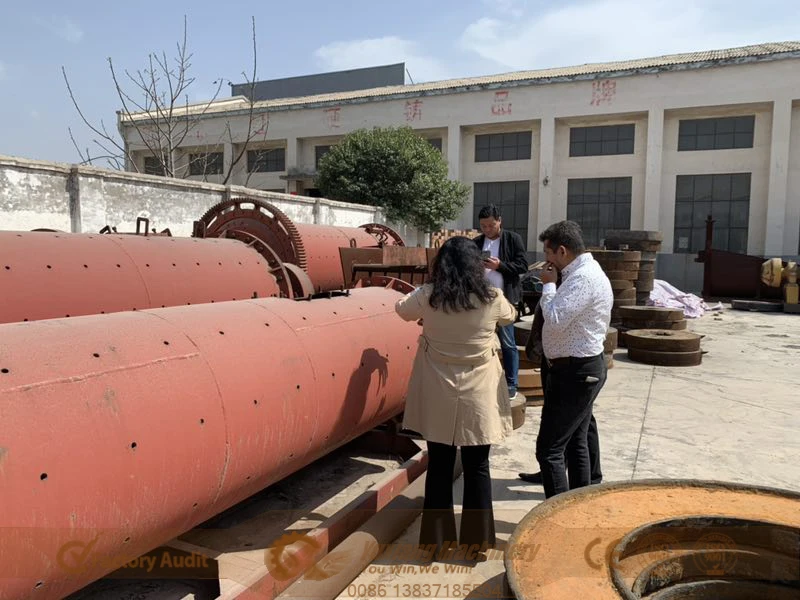

Company Information
GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
