Specification


1.Standard:IEC/ ISO CE Certification
2.Rated voltage: <3kV
3.Isolation transformer
4.Low loss & noise
5.Beautiful appearance, reliable quality,high efficiency
6.Easy to install


Product Description




Application
________________________________________________________________________________________________________________________
JBK3 series machine tool control transformer is a kind of new product by reference to sample of SIMENS Company,it accords with standards like VDE0550,IEC204-1,IEC439,GB5226,etc.It is suitable for AC circuit of 50~60Hz,output rated voltage less than 220V,input rated voltage less than 500V,worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.


Working Conditions


1.Ambient temperature: -5°C~+40°C;
2.Altitude for installing place should not exceed 2000m;
3.Relative humidity: <95%;
4.Environment exists without gas, steam, chemical deposition, dust or dirt that will affect transformer's insulation seriously, also explosive or corrosive medium is not allowed;
5.If any special working conditions that are not in line with the above stipulations, user shall negotiate with us.


Main Technical Characters


1.Input voltage: 220V,380V or be customized
2.Output voltage: 6V,12V,110V or be customized
3.Capacity range: 25VA-100KVA above
4.Efficiency: ≥95%
5.Insulation class: B or above as customized
6.Type of cooling system: natural air drying or with fans cooling for IP20
7.Waveform distortion: no additional waveform distortion
8.Function: indication of input voltage, output voltage and current
9.Protection: over-current protection
10.Winding conductor material: usually use copper, can use aluminum if you have special requirements
11. Can operate itself without anybody attending for a long term
12.Electric strength: no breakdown or flashover phenomenon under power frequency sine voltage of 2000V for 1min
13.Overload capability: for 1min under two times of rated current

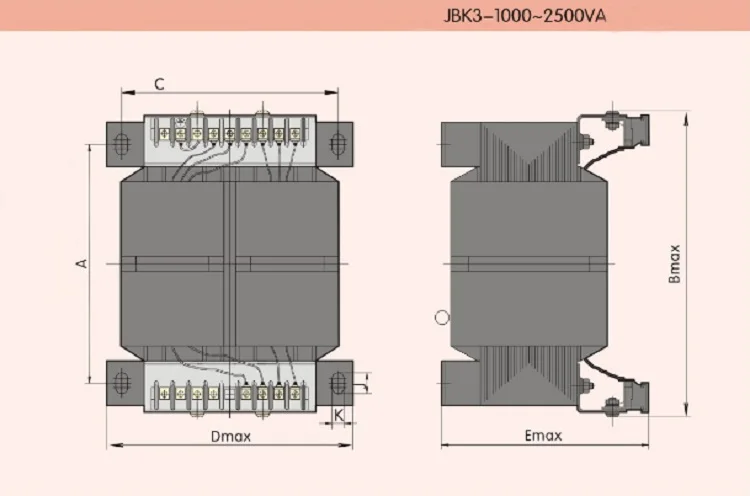

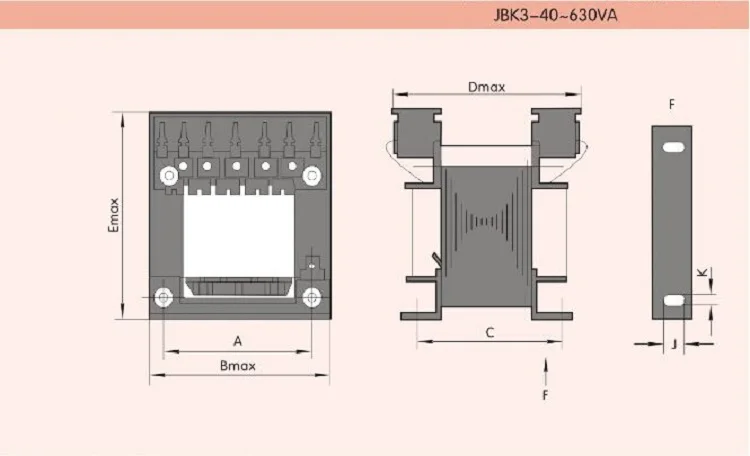

Overall dimension and installation dimension diagram






Outline and Installation dimension



Model

Rated capacity (VA)
Primary voltage (V)
Secondary voltage
(V)

Outline size (mm)
Hole distance for installation (mm)
Installation hole (mm)
Bmax
Dmax
Emax
A
C
KxJ
JBK3-40
40







220, 380V or be customized







6.3,12,24,36,110,127,220,380V or be customized
82
78
92
56
52
5x9
JBK3-63
63
82
78
92
56
52
5x9
JBK3-100
100
86
92
95
64
69.5
5x9
JBK3-160
160
98
97
105
84
71.5
6x11
JBK3-250
250
98
110
105
84
85
6x11
JBK3-300
300
122
109
125
90
88
6x11
JBK3-400
400
122
113
125
90
92
6x11
JBK3-500
500
122
126
125
90
105
6x11
JBK3-630
630
152
110
150
130
90
8x14
JBK3-800
800
152
125
150
130
105
8x14
JBK3-1000
1000
230
170
156
160
142
7x14
JBK3-1600
1600
258
185
168
180
155
7x14
JBK3-2500
2500
285
210
175
210
175
7x14


Attention

1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: For the small capacity, it will be in carton, for big capacity, we should use strong wooden case for protection.
4.The material of windings: 100% real copper wire.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.The month capacity: reach near 80000pcs/month(for small capacity) or near 7000pcs/month(for big capacity).
7.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
8.Warranty: in 13 months since BL date.
