Freeze Dryer MachineVacuum Lyophilizer For FoodMedicinesBiologicalFactory Price
Description of lyophilized freeze dryer:
Our vacuum freeze dryer is suitable for freeze drying experiment in laboratory, a small amount production, or pilot scale. This series is our patent products. This series of dryers have electric heating shelf. Freezing and drying process are finished in the same place. It changes traditional complicated operation and prevents the product from pollution.
Main features of lyophilized freeze dryer:
- With electric heating shelf and PID control standard, with programmable function
- 16 programs can be stored; each program can be set up 32 segments
- With organic glass observation window, the whole process is easy to see
- LCD displays sample temperature curve, condenser temp. curve, shelf temp
- Vacuum degree curve and compound curves.

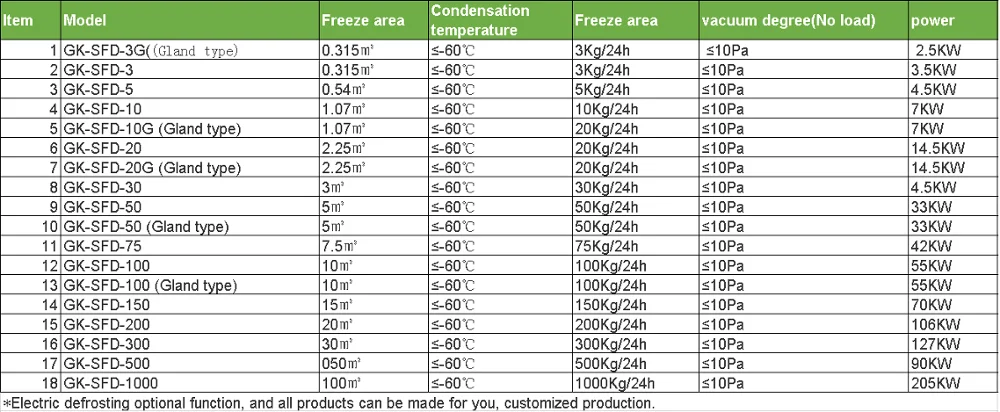

Main specification:
specification | unit | SFD-5 |
shelf area | m2 | 0.35 |
shelf temp.range | ℃ | -50℃~+70℃ |
input capacity | L | 4(material thickness 10mm) |
shelf number | layers | 4+1 |
shelf size | mm | 300×340 |
shelf spacing | mm | 50 |
ice condensing capacity | Kg/24H | 8 |
condensr temp.(no loading ) | ℃ | ≤-75℃ |
cooling method | - | air cooling |
defrosting | - | Natural defrosting |
final vacuum (no loading ) | Pa | ≤5pa |
installation rate | Kw | 4.5 |
hexternal dimension (L*W*H) | mm | 920×780×1350 |
total weight | KG | 400 |
If you have special request pls cilck here to get your latest price !
