Двухсторонняя режущая пила двухсторонняя для алюминиевого
- Категории: Commercial Machinery >>>
- Поставщик: Jinan,Tianchen,Smart,Machine,Co.,ltd.
Поделиться:
Описание и отзывы
Характеристики

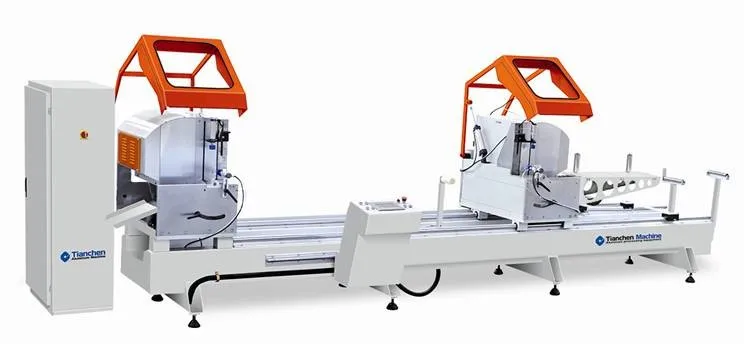

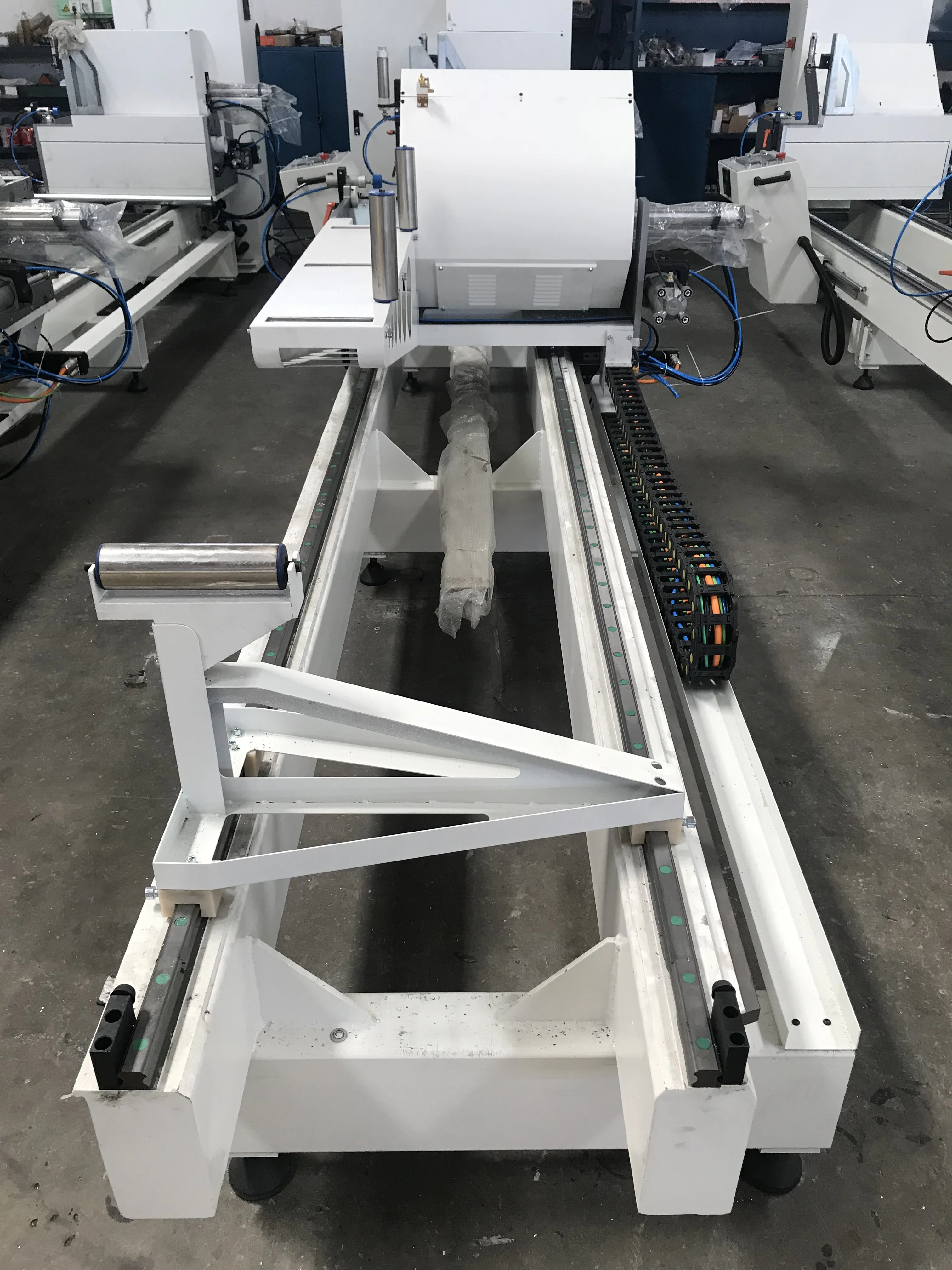

Two Head Cutting Saw Double Mitre Cutting Saw For Aluminum Profile
hot selling machine aluminium cutter machine cnc window double cutter saw for aluminum profiles
MACHINE FEATURES
◆ Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting
◆ Equipped with cooling devices, high precision cutting saw rotates stably and cutting surface smooth.
◆ The movable cutting head is driven by imported servo driver, adopts gear rack transmission, full close loop control, with high precision positioning.
◆ The movable cutting head adopts high precision linear guide rail pair, operating stable and reliable.
◆ The follow-up supporter is space saving
◆ Equipped with cooling devices, high precision cutting saw rotates stably and cutting surface smooth.
◆ The movable cutting head is driven by imported servo driver, adopts gear rack transmission, full close loop control, with high precision positioning.
◆ The movable cutting head adopts high precision linear guide rail pair, operating stable and reliable.
◆ The follow-up supporter is space saving
TECHNICAL PARAMETERS
Item | Specification |
Cutting Motor Power | 2*3.0kW 2800r/min |
Cutting Length | 450-5000mm |
Cutting Angle | 45°,90° |
Cutting Range(W*H) | 150*210mm in 90°; 150*150mm in 45° |
Cutting Speed: stepless speed regulation | 0~3m/min |
Blade Specification | φ500*φ30*4.4*3.8 |
Repeat Locating Length Tolerance | ±0.2mm |
Cutting Angle Tolerance | ±5′ |
Contour Dimention | 7700*1700*1900mm |
Weight | About 2500kgs |

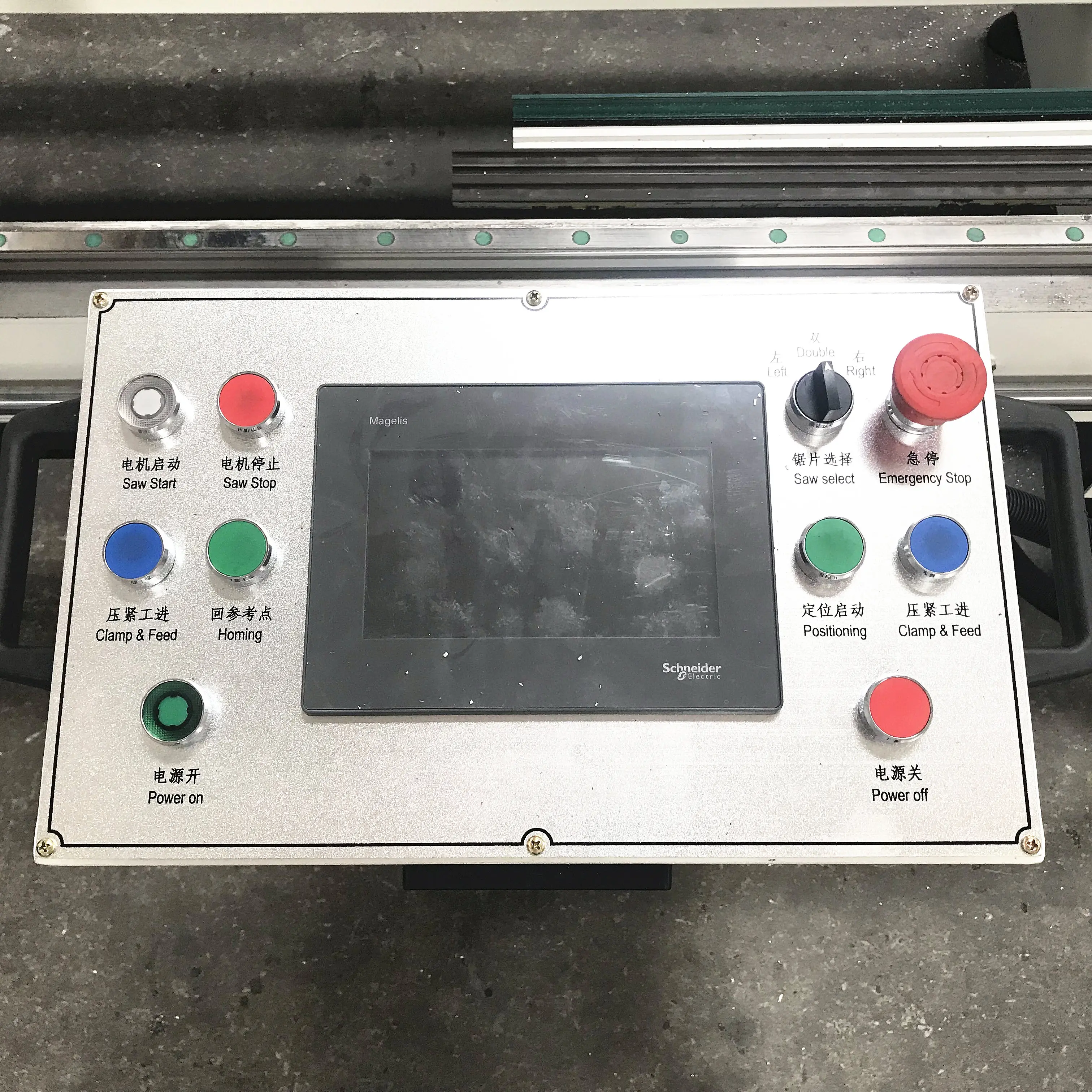

Control Panel

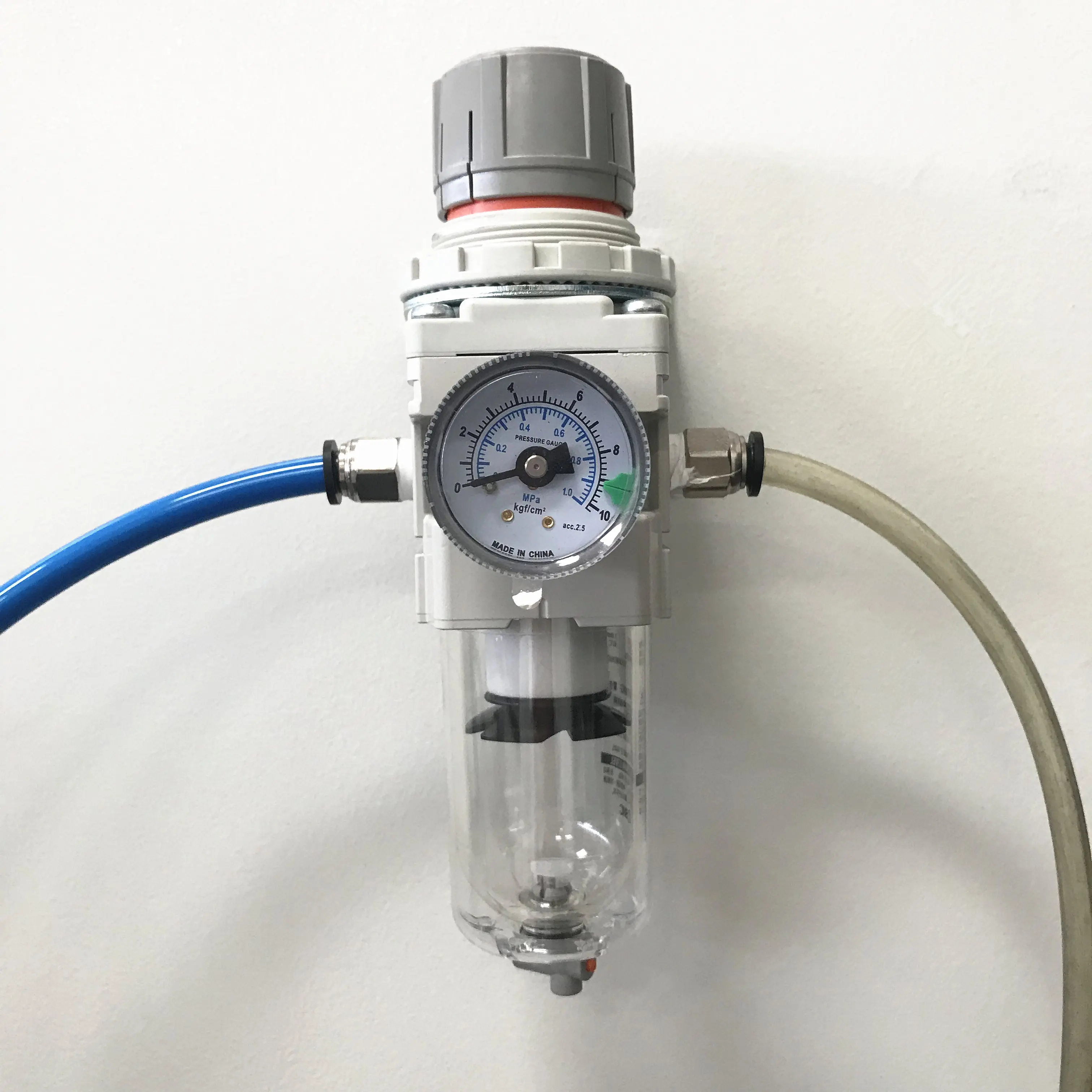

Pressure Gauge

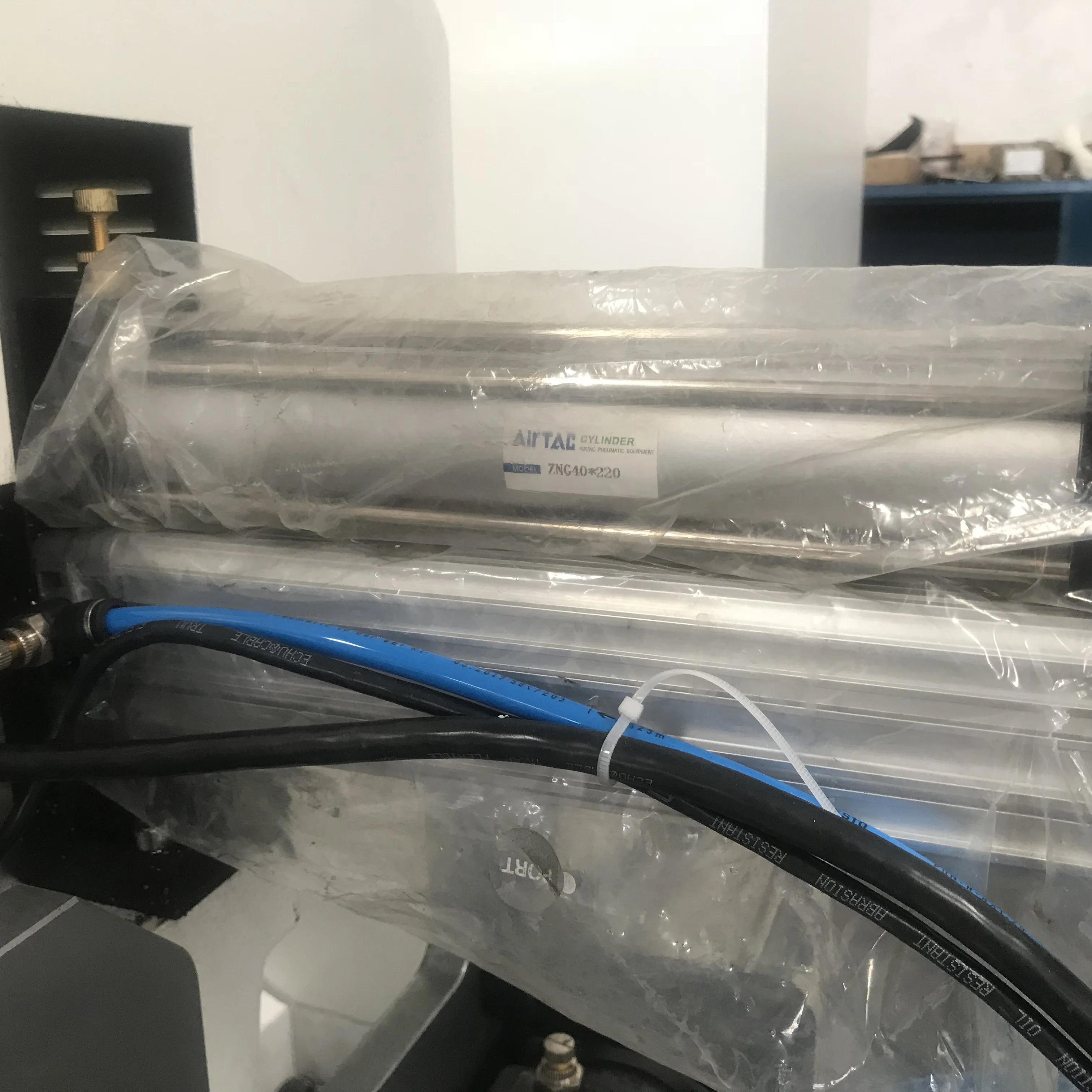

Air Cylinder
Square Guideway
Jinan Tianchen Aluminum Machine Corp., Ltd.’s clear focus on our ultimate goal – to secure and increase our customers’ productivity – has made us China market leader in the manufacture of machines for processing aluminium profiles – Mainly for aluminium window door façade making machines and large format aluminium structure processing machines.

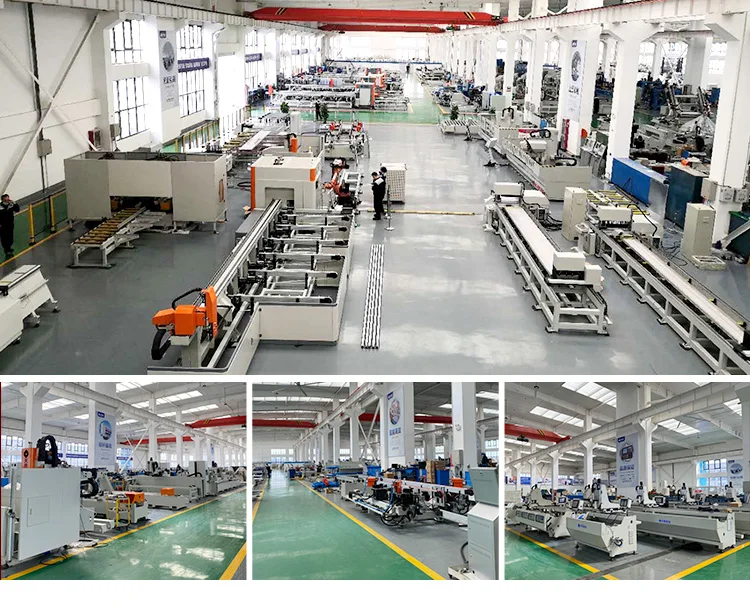

Strong R & D center with 20 engineers team, 23 years experience from year 1997, 240 staff, plant area about 200,000 sqm., very harsh control of heat treatment for machine’s main structure, 12 new machines developed annually. Tianchen machines' market share in China is around 65% and exported to over 40 countries globally. All top ranked window door façade makers in China are our company’s client.
Main products: Window Door Façade making machines and Industrial aluminium structure manufacturing machines.
One measure of the outstanding quality of our products is their longevity: many TIANCHEN machines have been in service for more than 16 years! And many old clients are continually placing repeated orders which verify our machines’ good quality and performance.
The company drafted China national standards of processing center machine with Standard No. GB/T28390-2012.
Tianchen Aluminum Machine company is the global strategical partner of Siemens company.
Strong R & D center with 20 engineers team, 23 years experience from year 1997, 240 staff, plant area about 200,000 sqm., very harsh control of heat treatment for machine’s main structure, 12 new machines developed annually. Tianchen machines' market share in China is around 65% and exported to over 40 countries globally. All top ranked window door façade makers in China are our company’s client.
Main products: Window Door Façade making machines and Industrial aluminium structure manufacturing machines.
One measure of the outstanding quality of our products is their longevity: many TIANCHEN machines have been in service for more than 16 years! And many old clients are continually placing repeated orders which verify our machines’ good quality and performance.
The company drafted China national standards of processing center machine with Standard No. GB/T28390-2012.
Tianchen Aluminum Machine company is the global strategical partner of Siemens company.
more >>
Q : When can you arrange shipment?
A : We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
Q : What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can assign our engineers to repair your machines
Q : Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine’s installation, commissioning, and operation training.
A : We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
Q : What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can assign our engineers to repair your machines
Q : Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine’s installation, commissioning, and operation training.
All of our engineers have passport.
Q : Which machine model shall I choose when I purchase from you?
We have both high-end machines and normal machines. Please inform us your estimated production capacity (how many windows you plan to produce per year) and your budget plan, we will recommend our machine models best for your request.
Q : If I make Aluminum window and door, how many basic machines shall I have?
Q : Which machine model shall I choose when I purchase from you?
We have both high-end machines and normal machines. Please inform us your estimated production capacity (how many windows you plan to produce per year) and your budget plan, we will recommend our machine models best for your request.
Q : If I make Aluminum window and door, how many basic machines shall I have?
