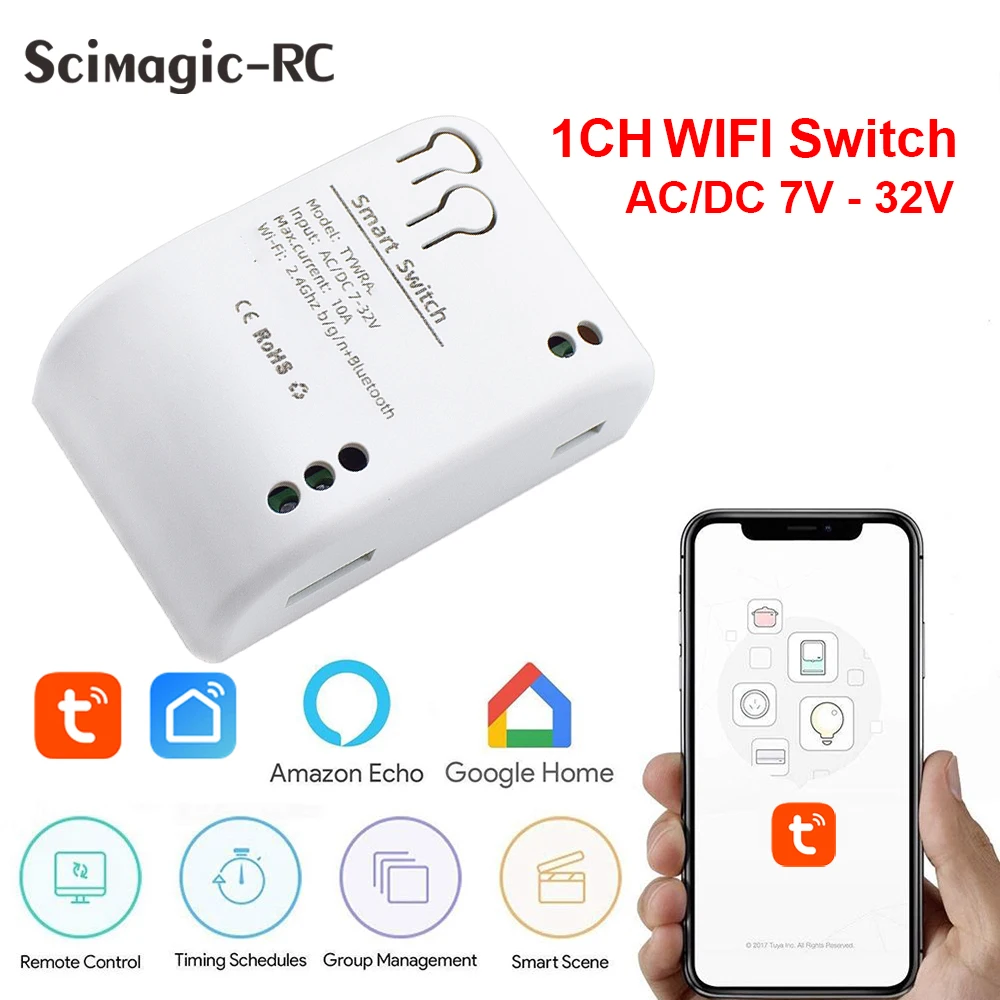

Автоматический выключатель Tuya для умного дома переключатель с поддержкой Google Home Alexa голосового управления и таймера 5 в постоянного тока
- Категории: Remote Control >>>
- Поставщик: Shenzhen,Scimagic,Development,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Tips
Specification
item | value |
Brand Name | Scimagic |
Model Number | SMG-1CH +WiFi |
Color | Other |
Place of Origin | China |
Material | ABS, metal |
Code | Learning Code |
Button | 1 Buttons |
Function | LED indicator light, Automatic, Light, Wireless Control, Smart, 2.4g Wireless, Rf Remote Control, Wifi Control，Universal switch |
Usage | Home Automation |
Product Description
Features:
Input voltage : DC/AC 7-32V , Micro USB 5V input.
Max current : 220W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Size : 1CH 69*41*20mm,2CH 10*35*20mm,4CH 78*74*20mm.
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
Max current : 220W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Size : 1CH 69*41*20mm,2CH 10*35*20mm,4CH 78*74*20mm.
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets，Garage Door and so on
Remote control Electric curtain \\ Water pump \\ Fan \\ Lamp \\ LED light \\ bulb \\ ventilation device \\ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children
Remote control Electric curtain \\ Water pump \\ Fan \\ Lamp \\ LED light \\ bulb \\ ventilation device \\ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children
Note
The relays is passive output(dry contact), No matter how many power you supply in the input, the output don't have any voltage,you also need to supply power in output.
The power supply in the input just can make PCB board work.if you do not supply power in output, the connectted device can't work.
Use for
1.Remotely give a pluse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pluse signal to turn on/off Garage Door,Door Access
3.Remotely give a pluse signal to control DC Motor,AC Motor to Forward and Reverse
2.Remotely give a pluse signal to turn on/off Garage Door,Door Access
3.Remotely give a pluse signal to control DC Motor,AC Motor to Forward and Reverse

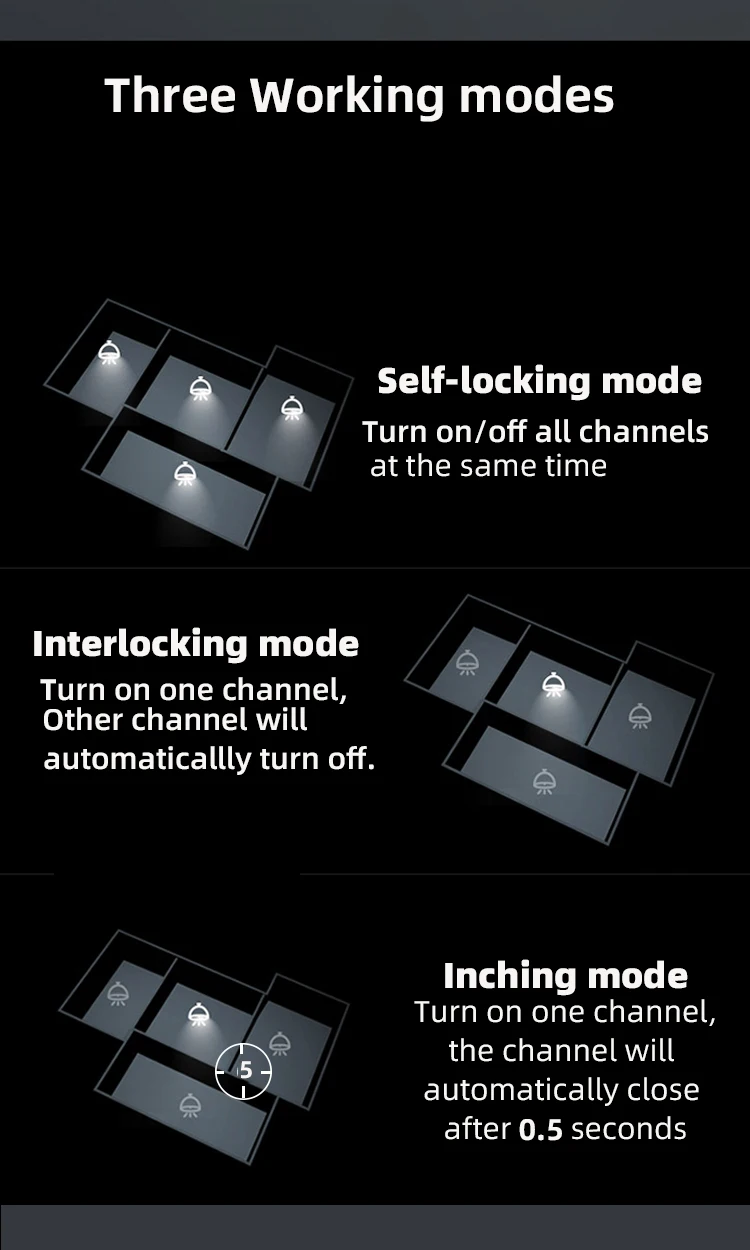

3 Working Modes
1.Self-locking : each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
2.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
2.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
3.Inching mode : Switch on one
channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
If you need to change the mode,you need to press the mode button
channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
If you need to change the mode,you need to press the mode button
How to Change the Inching Time
If you need to change the inching time.you need to press the mode button to enter into self-locking mode or interlocking mode,so you can change the inching time on the APP and the inching time only available in the self-locking or interlocking mode)
The time range is 2-3600 seconds.
Features:
【Two Input Ports】
You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board work.
【Dry Contact/Passive Output】
No matter the power you supply in the input, the output don't have any voltage
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.
【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.
You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board work.
【Dry Contact/Passive Output】
No matter the power you supply in the input, the output don't have any voltage
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.
【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.
Different Ways to Control the WIFI Module
【APP Remote Control】
You can control the connectted home appliance in Tuya or smart life APP anywhere and anytime.Such as light, electric kettle,
electric rice cooker, electric curtain, etc.
【RF433 Control】
The WIFI Module support RF433 Frequency,and you can control the WIFI module by RF433mhz remote controller.
【2.4Ghz WIFI Control】
When you at home,You could control the module in your smart phone by 2.4Ghz WIFI
【Mobile Network Control】
When you go outside,you could control the device in your smart phone by 2G/3G/4G Mobile Network.
(Note:The router need to online and the WIFI module need to keep a close distance with the router)
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn on/off the connectted home appliances
【Share Control】
One device can control by Multiple phones,you can share the wifi module with your family.
【Group Control】
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then you can turn
on/off all smart device at the same time.
You can control the connectted home appliance in Tuya or smart life APP anywhere and anytime.Such as light, electric kettle,
electric rice cooker, electric curtain, etc.
【RF433 Control】
The WIFI Module support RF433 Frequency,and you can control the WIFI module by RF433mhz remote controller.
【2.4Ghz WIFI Control】
When you at home,You could control the module in your smart phone by 2.4Ghz WIFI
【Mobile Network Control】
When you go outside,you could control the device in your smart phone by 2G/3G/4G Mobile Network.
(Note:The router need to online and the WIFI module need to keep a close distance with the router)
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn on/off the connectted home appliances
【Share Control】
One device can control by Multiple phones,you can share the wifi module with your family.
【Group Control】
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then you can turn
on/off all smart device at the same time.
APP Remote Control
*You can remote turn on/off household appliances and set timing schedules to turn on/off the household appliances via app Tuya/Smart life anywhere anytime.
*such as lights, celectric curtains ,electric curtains fans. so you can enjoy an high-tech life.
*such as lights, celectric curtains ,electric curtains fans. so you can enjoy an high-tech life.
Timer/time schedule
Via app,you can set time schedules to automatic turn on/off the household appliances , such as lights, celectric curtains
,electric curtains fans. so you can enjoy an high-tech life.
,electric curtains fans. so you can enjoy an high-tech life.
Share multiple mobile accounts
Can share family, friends, etc.
