160hp 220hp Road Motor Grader on Sale Road machinery
Contact Way
Salesman: Aki Xu
WhatsApp: +86 18075151249
Sinomada Heavy Industry (Changsha) Co., Ltd.
Product Description
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Parameter
Item | GR165 | ||
Basic parameters | Engine model | 6BTA5.9-C180-Ⅱ | |
Rated power/speed | 130kW/2200rpm | ||
Overall dimension (standard) | 8900*2625*3470mm | ||
Total weight (standard) | 15000kg | ||
Tire specification | 17.5-25 | ||
Ground clearance (front axle) | 430mm | ||
Tread | 2156mm | ||
Space of front and rear axles | 6219 mm | ||
Performance parameters | Forward velocity | 5,8,11,19,23,38km/h | |
Reverse speed | 5,11,23km/h | ||
Tractive effort f=0.75 | 77kN | ||
Maximum gradeability | 25% | ||
Tire inflation pressure | 260kPa | ||
Working system pressure | 16MPa | ||
Transmission pressure | 1.3—1.8Mpa | ||
Working parameters | Maximum steering angle of front wheel | ±50° | |
Maximum slant angle of front wheel | ±17° | ||
Maximum oscillating angle of front axle | ±15° | ||
Maximum oscillating angle of equilibrium box | ±15° | ||
Maximum steering angle of frame | ±27° | ||
Minimum turning radius | 7.3m | ||
Scrape knife | Maximum lift height | 450mm | |
Maximum cutting depth | 500mm | ||
Maximum tilt angle | 90° | ||
Cutting angle | 28°—70° | ||
Angle of revolution | 360° | ||
Length & chord height | 3660*610mm | ||
Oil filling amount | Coolant | 50L | |
Fuel tank | 280L | ||
Engine | 24L | ||
Transmission | 38L | ||

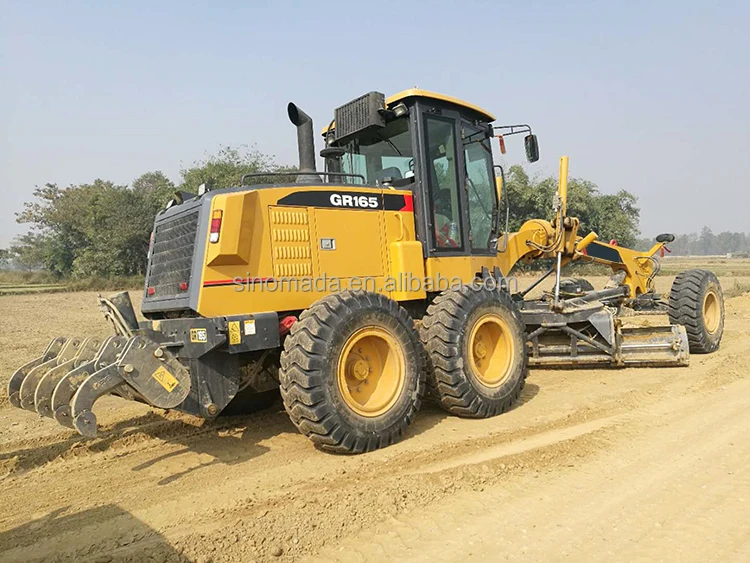

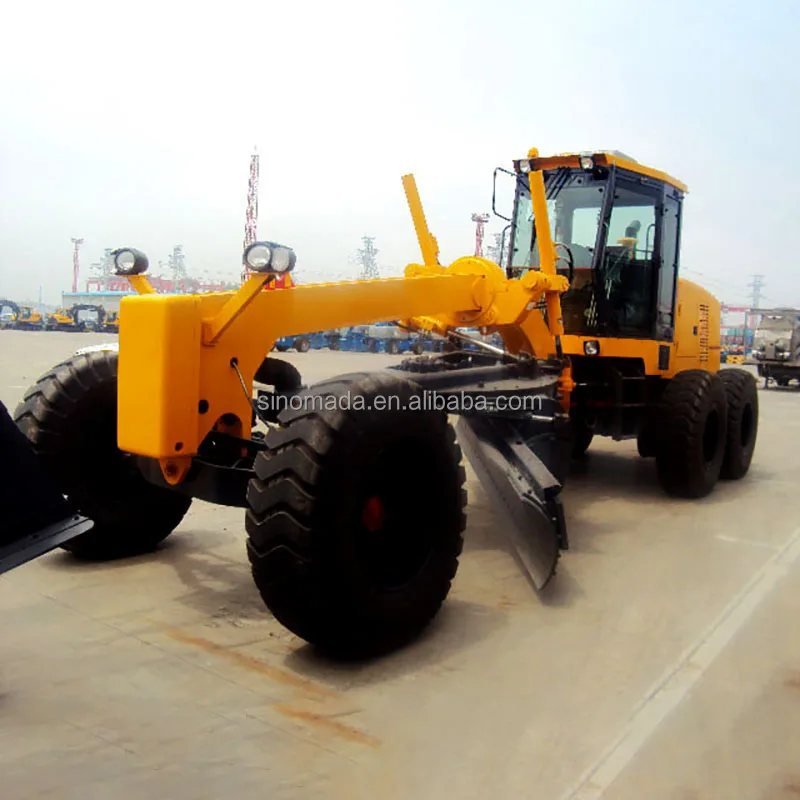

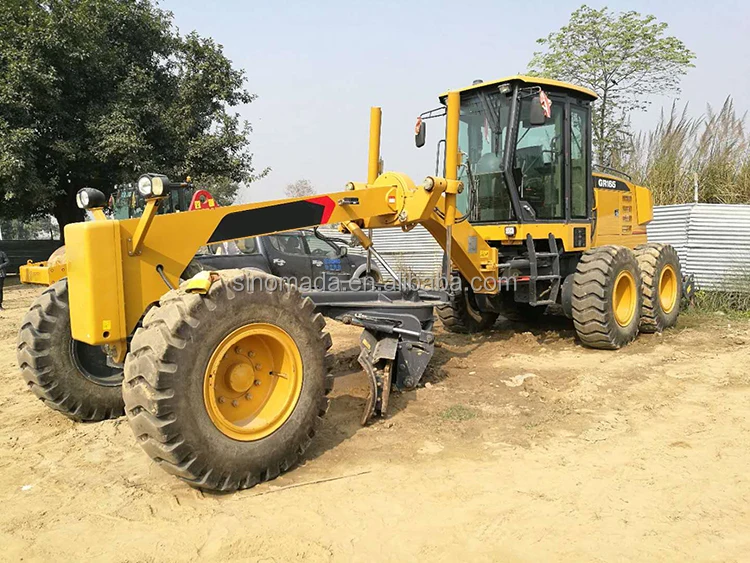

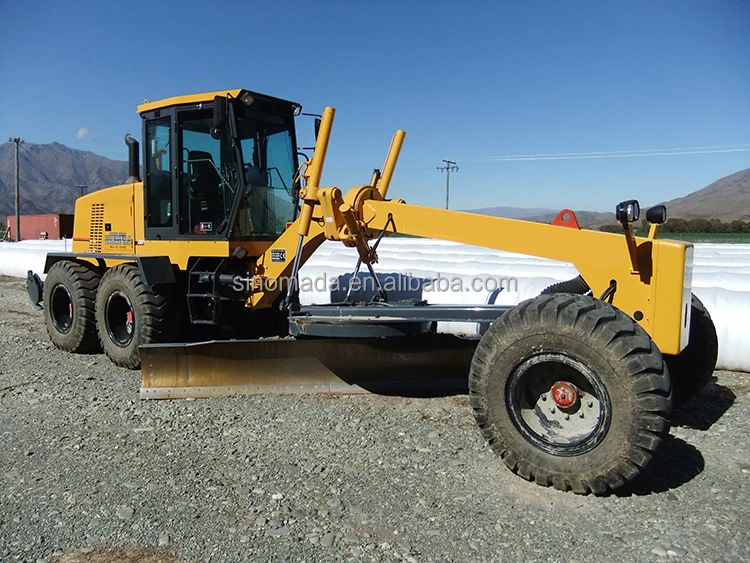

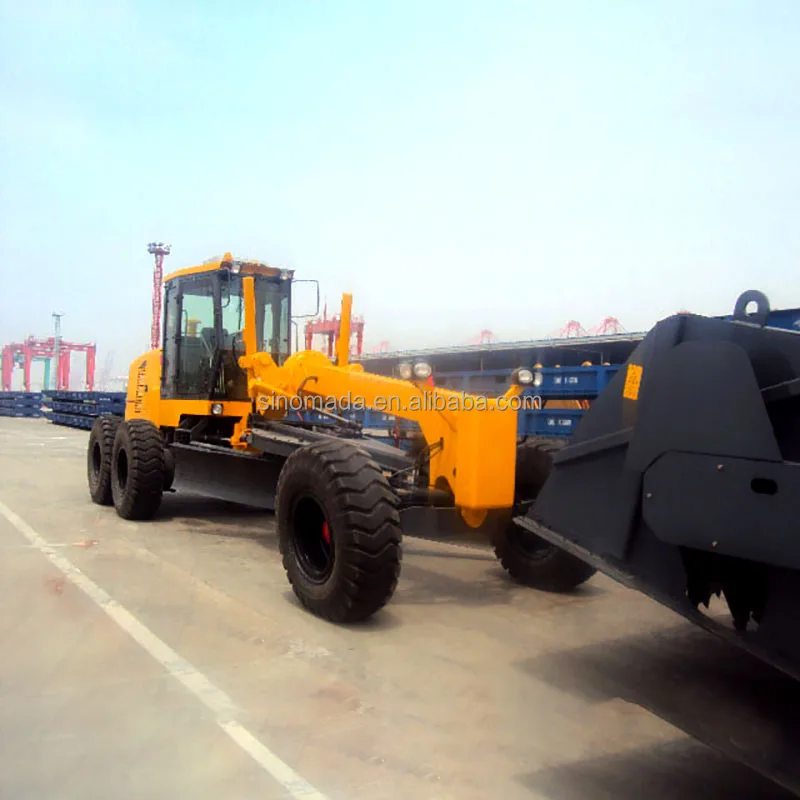

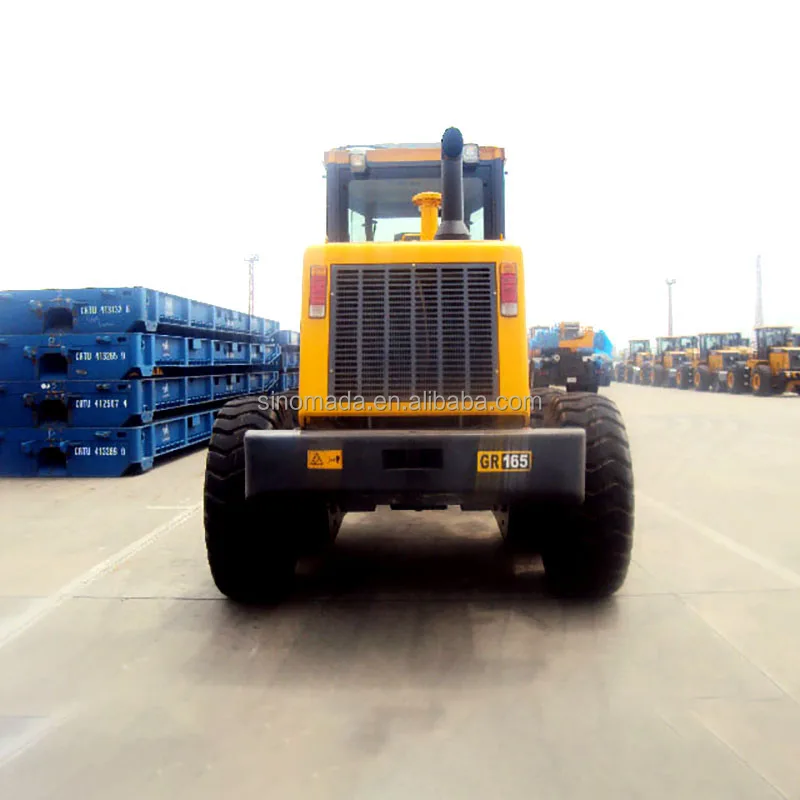

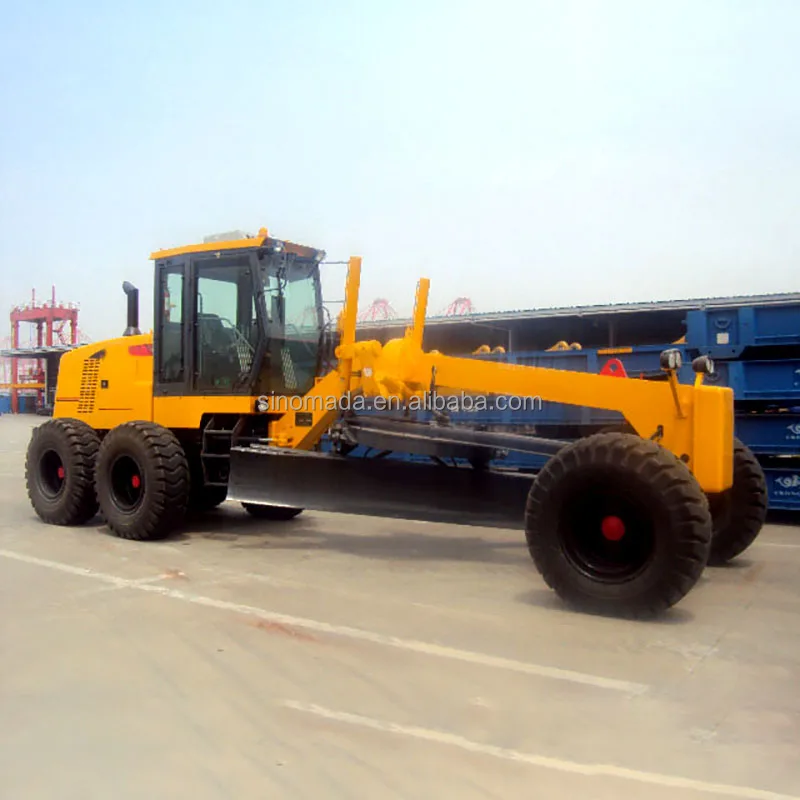

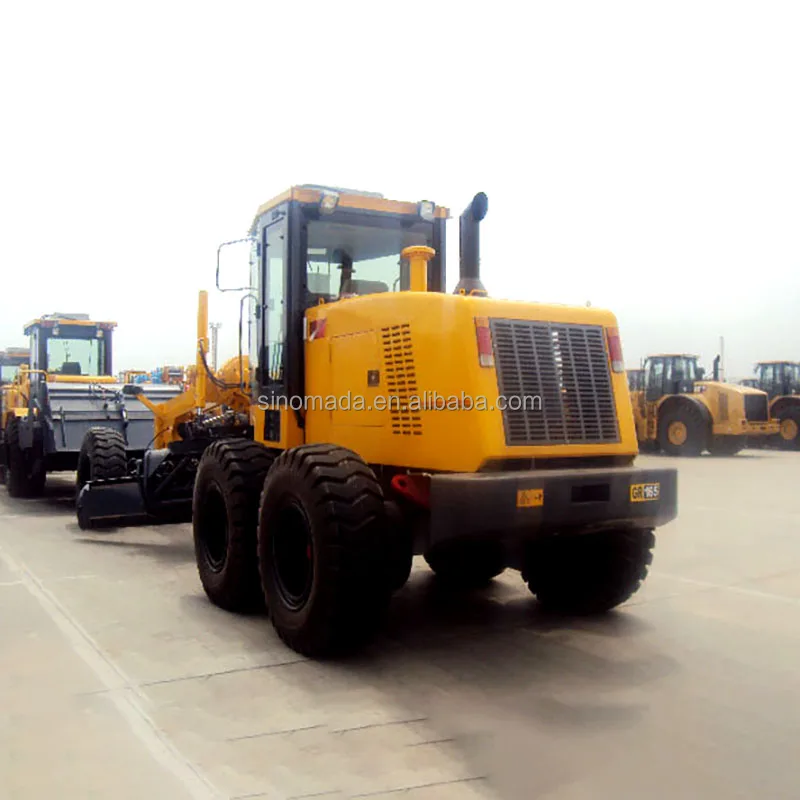

Photos for reference
