Product Description




Specification


Technical Features:
  Intelligent constant temperature water and oil tank are widely used in chemical, petroleum, medical, biological, physical chemistry, metering control, electronic instrument processing and other fields, and are widely used as basic experimental instruments in colleges and universities, research institutes and enterprises.
main feature:
1.Digital resolution: 0.01 ° C
2.Temperature fluctuation : ±0.05 °C
3.Temperature uniformity: ± 0.05 ° C
4.Equipped with large screen high-brightness LCD screen

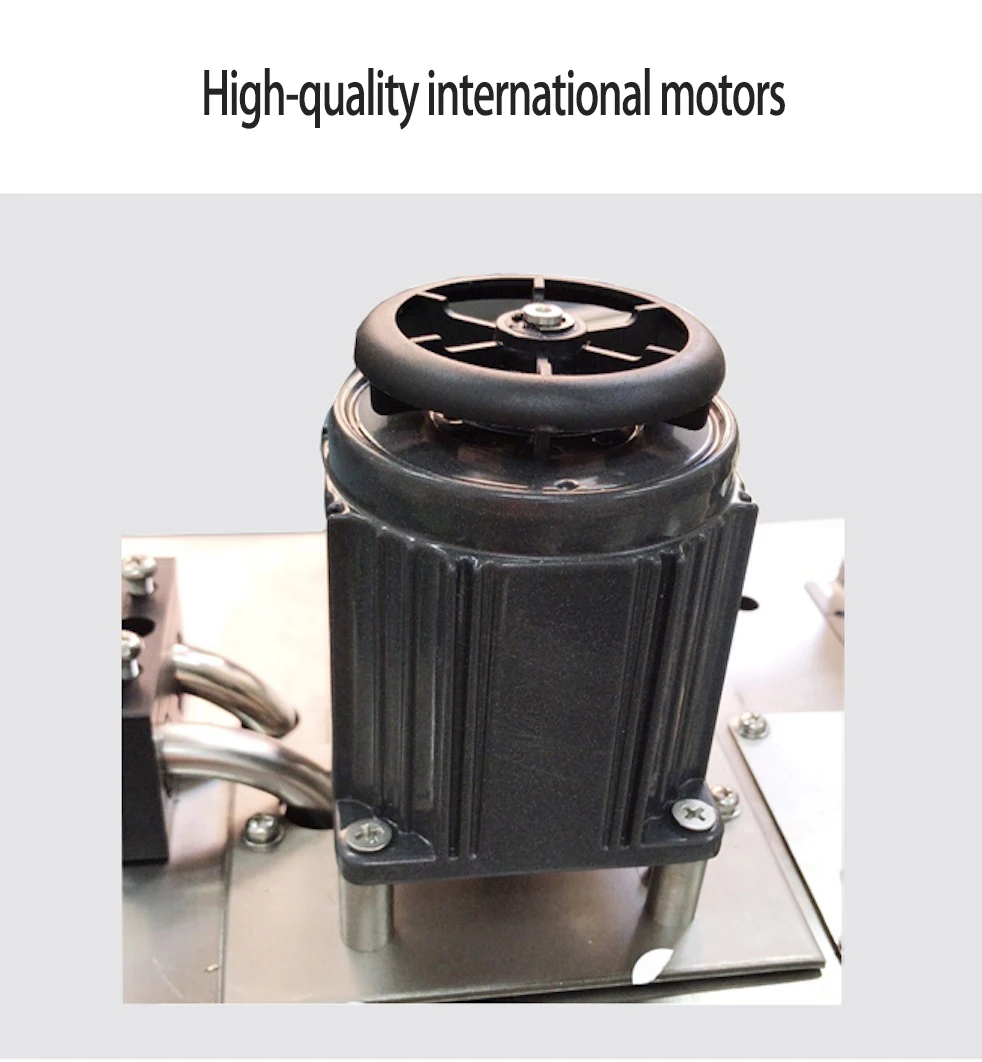

5.The non-heat centrifugal circulating pump is used to prevent the traditional water pump from affecting the temperature field of the tank due to its own heat production
6. inner liner and countertop are made of high quality S304 brushed panel stainless steel.
7.Safety protection device:
1. With power failure protection
2. With upper and lower limit temperature alarm setting function
3. Low water level protection and alarm function
4. Temperature out of control protection and alarm function

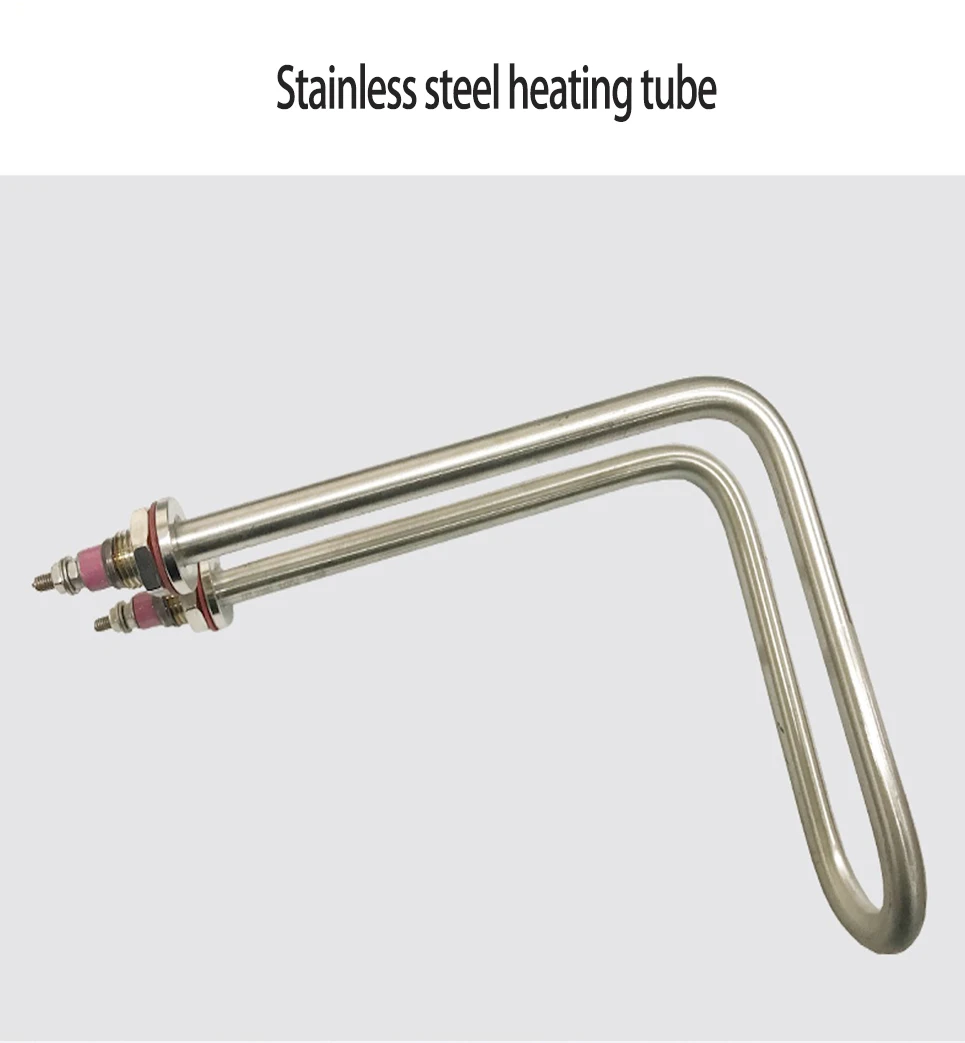

5. The heating pipe has low water level anti-dry burning and explosion-proof function.



NO
Working temperature range（℃）
Temperature stability（℃）
Inner groove size（mm）
(L*W*H)
capacity
（L)
Cyclic mode
Work slot opening (mm2)

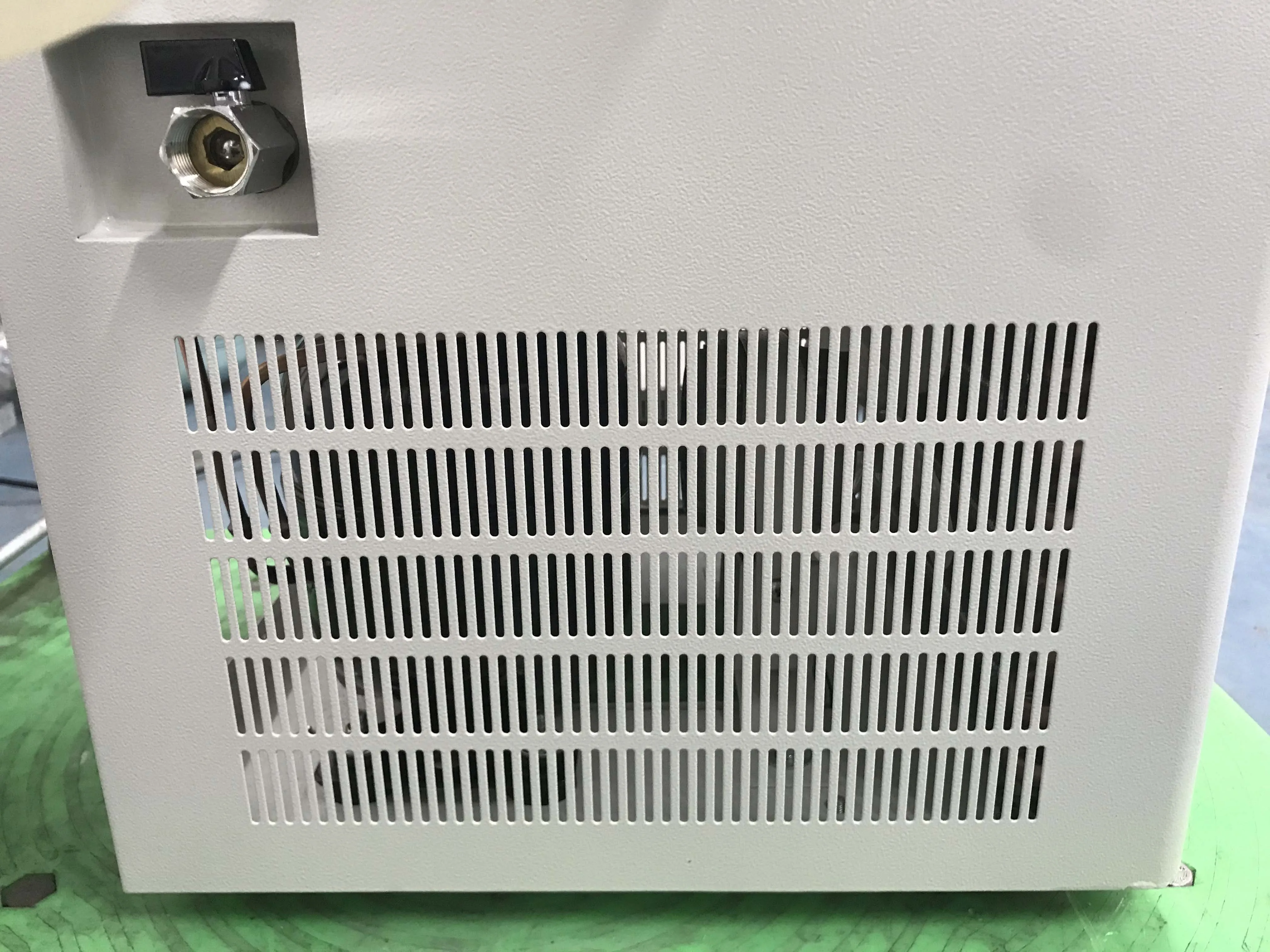

drain
SC-5
RT+5~100
±0.05
275×190×120
5
External 6L/min
180×140
with
SC-5A
RT+5~200
±0.05
275×190×120
5
Inner loop
180×140
with
SC-5D
RT+5~300
±0.05
275×190×120
5
Inner loop
180×140
with
SC-10
RT+5~100
±0.05
275×195×180
10
External 6L/min
180×140
with
SC-10A
RT+5~200
±0.05
275×195×180
10
Inner loop
180×140
with
SC-10D
RT+5~300
±0.05
275×195×180
10
Inner loop
180×140
with
SC-15
RT+5~100
±0.05
300×250×200
15
External 6L/min
235×160
with
SC-15A
RT+5~200
±0.05
300×250×200
15
Inner loop
235×160
with
SC-15D
RT+5~300
±0.05
300×250×200
15
Inner loop
235×160
with
SC-20
RT+5~100
±0.05
300×250×270
20
External 6L/min
235×160
with
SC-20A
RT+5~200
±0.05
300×250×270
20
Inner loop
235×160
with
SC-20D
RT+5~300
±0.05
300×250×270
20
Inner loop
235×160
with
SC-25
RT+5~100
±0.05
300×250×335
25
External 6L/min
235×160
with
SC-25A
RT+5~200
±0.05
300×250×335
25
Inner loop
235×160
with
SC-25D
RT+5~300
±0.05
300×250×335
25
Inner loop
235×160
with
SC-30
RT+5~100
±0.05
440×325×210
30
External 6L/min
310×280
with
SC-30A
RT+5~200
±0.05
440×325×210
30
Inner loop
310×280
with
SC-30D
RT+5~300
±0.05
440×325×210
30
Inner loop
310×280
with
SC-40
RT+5~100
±0.05
500×340×240
40
External 6L/min
350×300
with
SC-40A
RT+5~200
±0.05
500×340×240
40
Inner loop
350×300
with
SC-40D
RT+5~300
±0.05
500×340×240
40
Inner loop
350×300
with
SC-50
RT+5~100
±0.05
500×340×300
50
External 6L/min
350×300
with
SC-50A
RT+5~200
±0.05
500×340×300
50
Inner loop
350×300
with
SC-50D
RT+5~300
±0.05
500×340×300
50
Inner loop
350×300
with
SC-100
RT+5~100
±0.05
625×400×400
100
External 6L/min
480×380
with
SC-100A
RT+5~200
±0.05
625×400×400
100
Inner loop
480×380
with
SC-100D
RT+5~300
±0.05
625×400×400
100
Inner loop
480×380
with

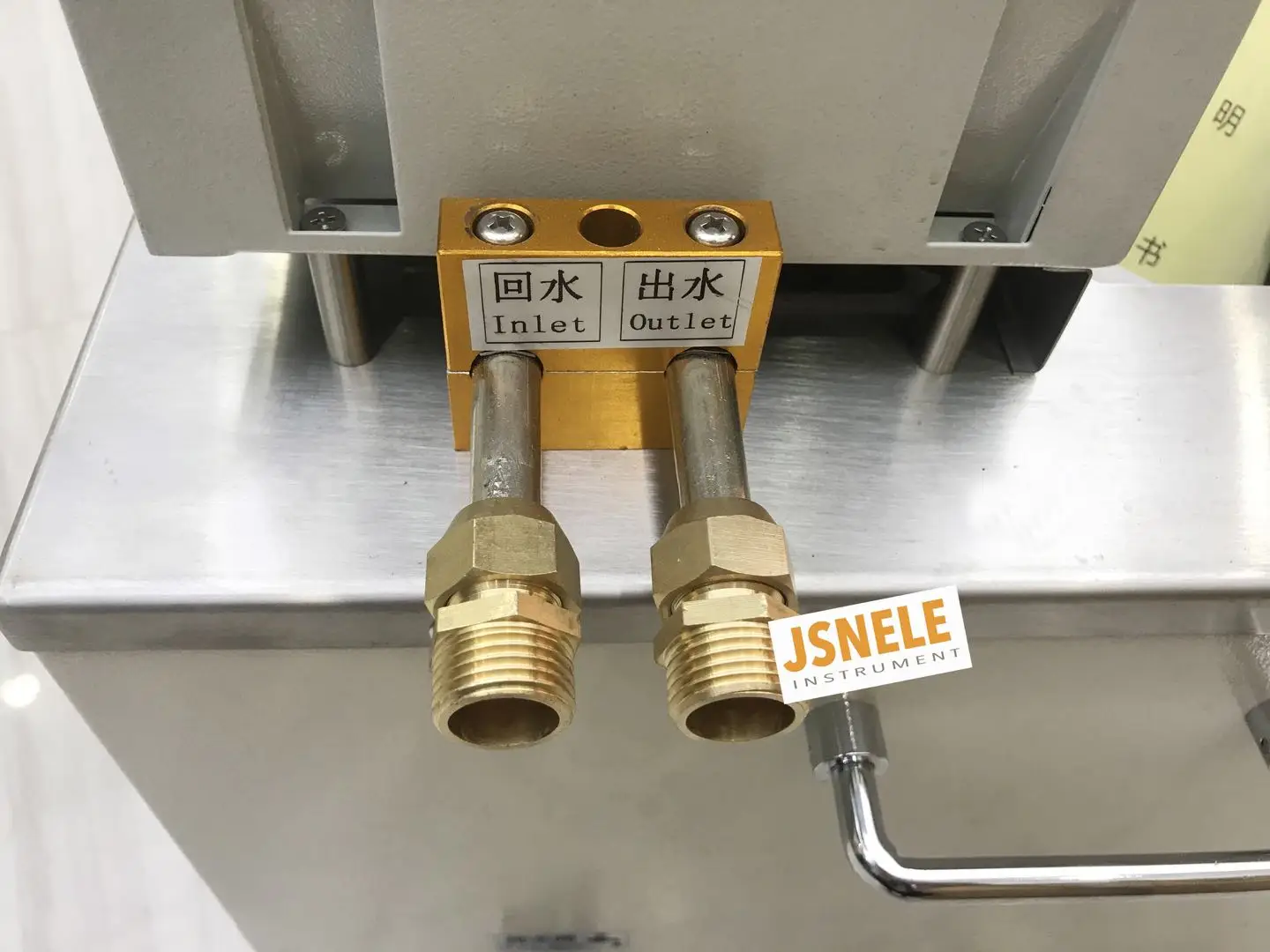

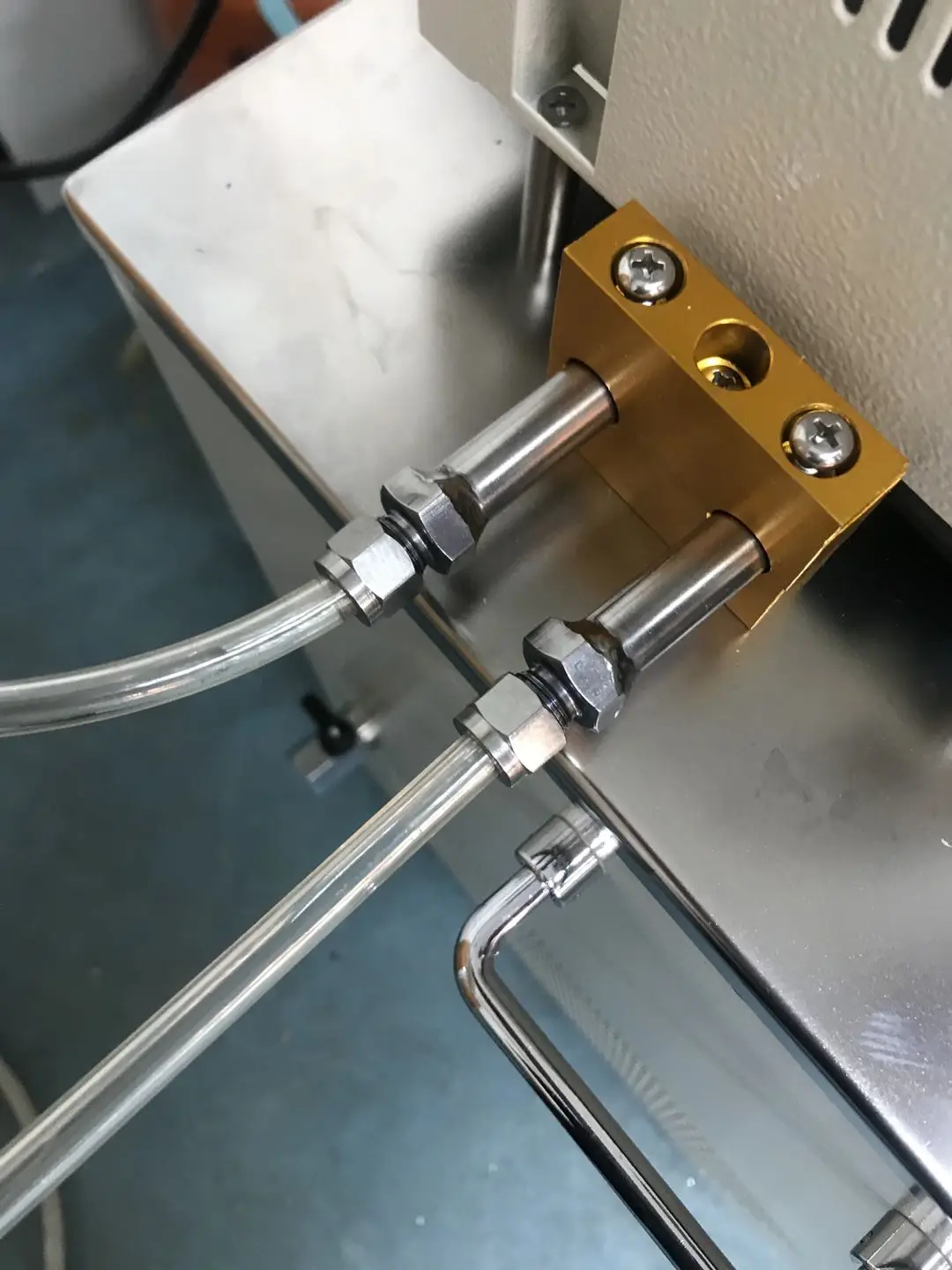

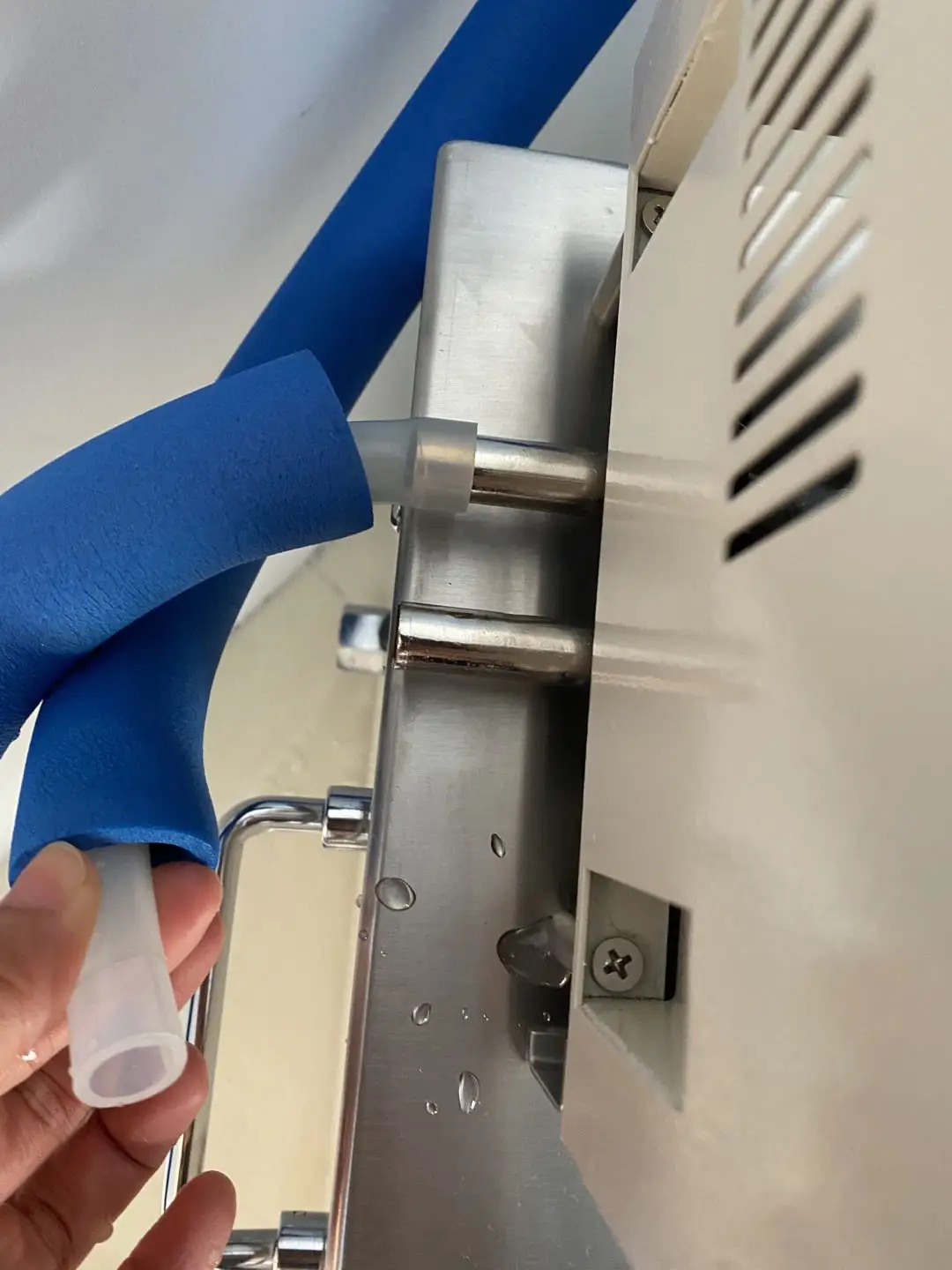

Interface can be customized accoring to requirments
interface 1/4,1/6 ,screw thread are in common use

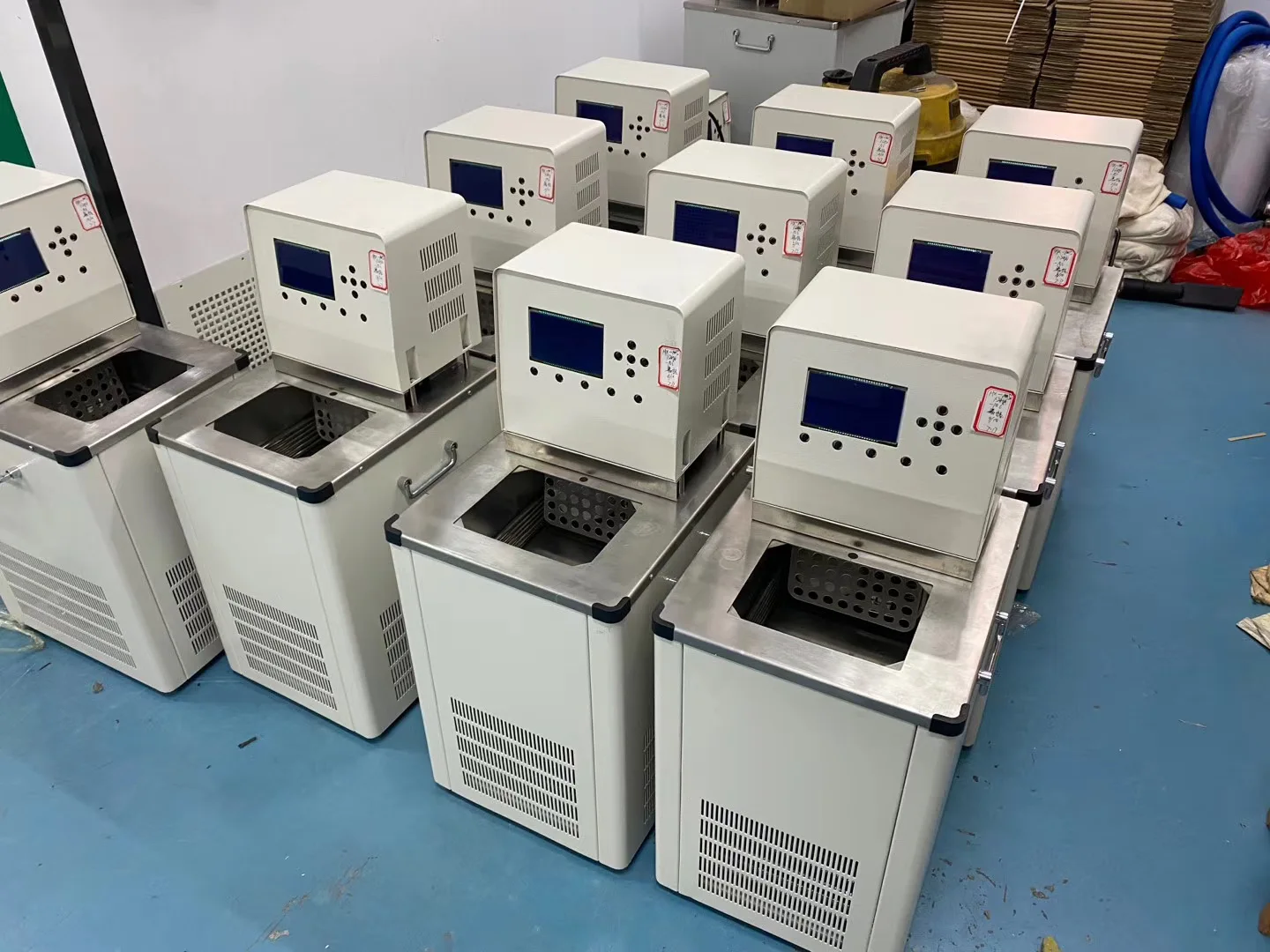

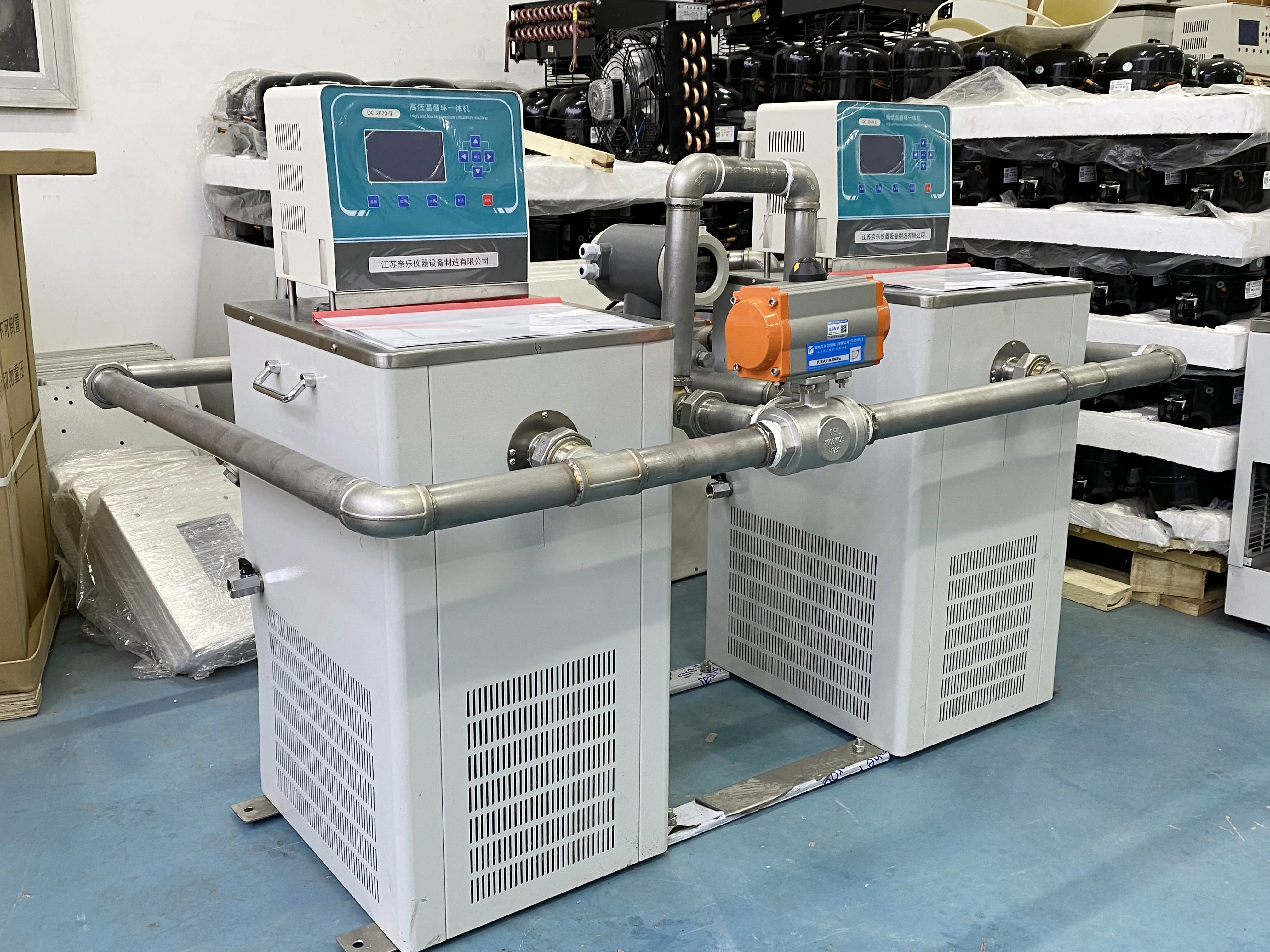

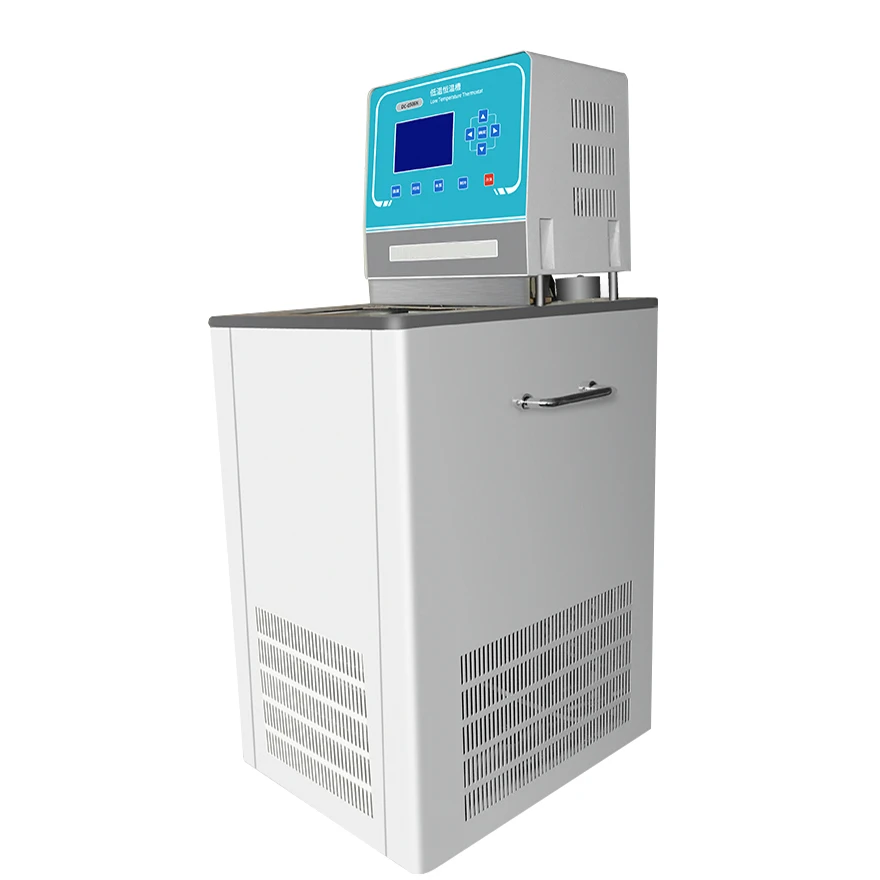

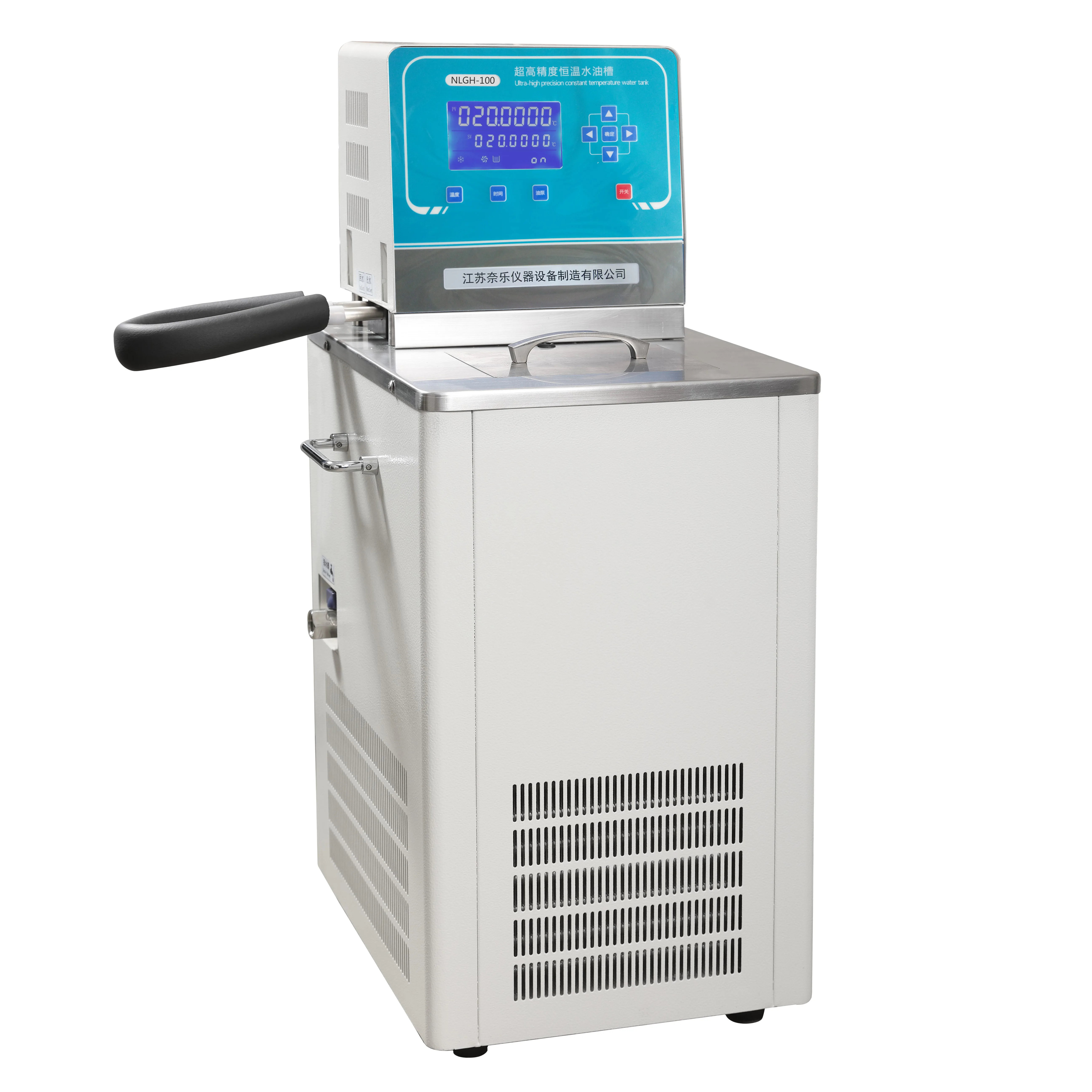

SC series water&oil thermostatic bath show

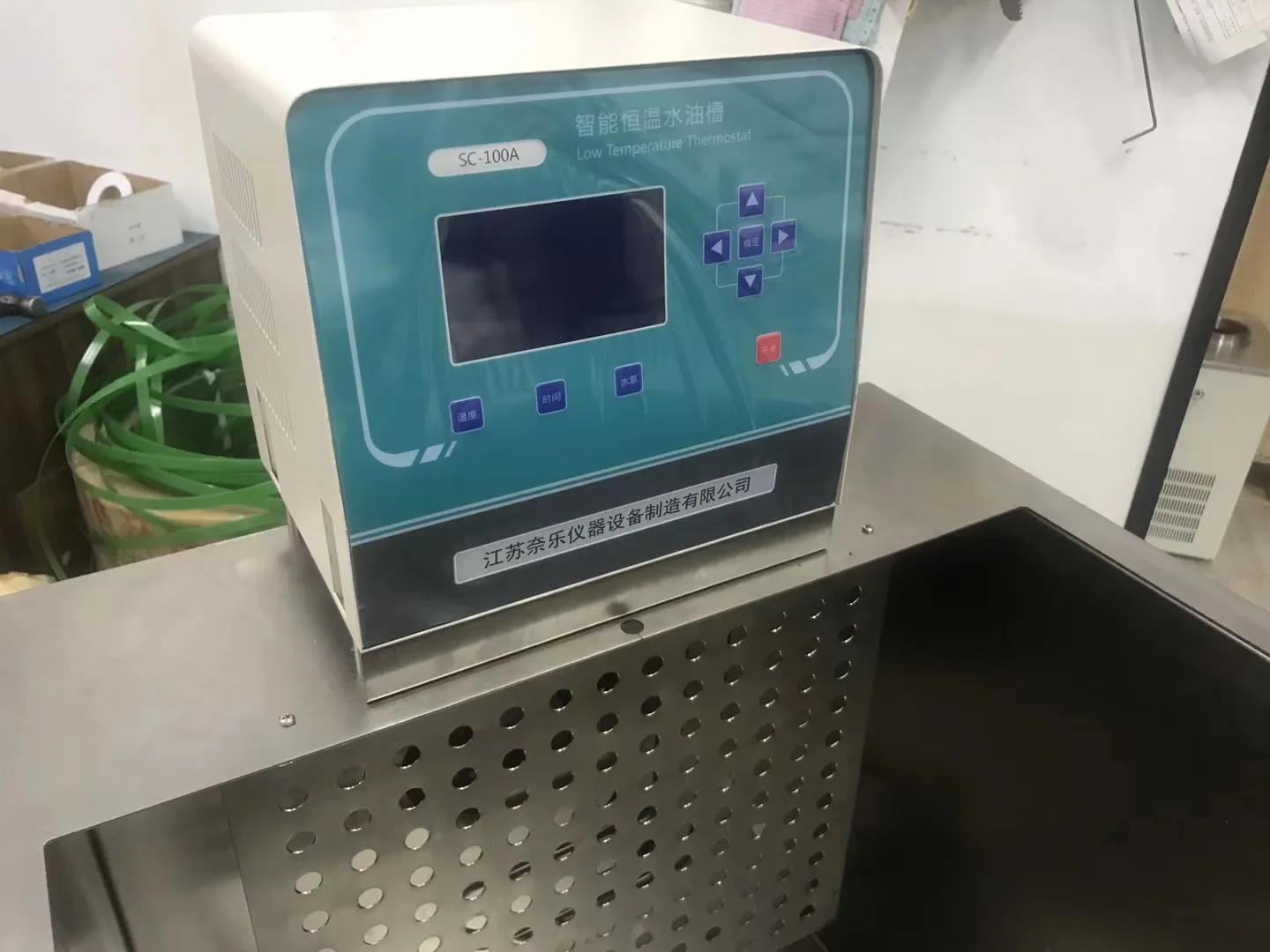

1.Equipped with large screen high-brightness LCD screen
2.The non-heat centrifugal circulating pump is used to prevent the traditional water pump from affecting the temperature field of the tank due to its own heat production

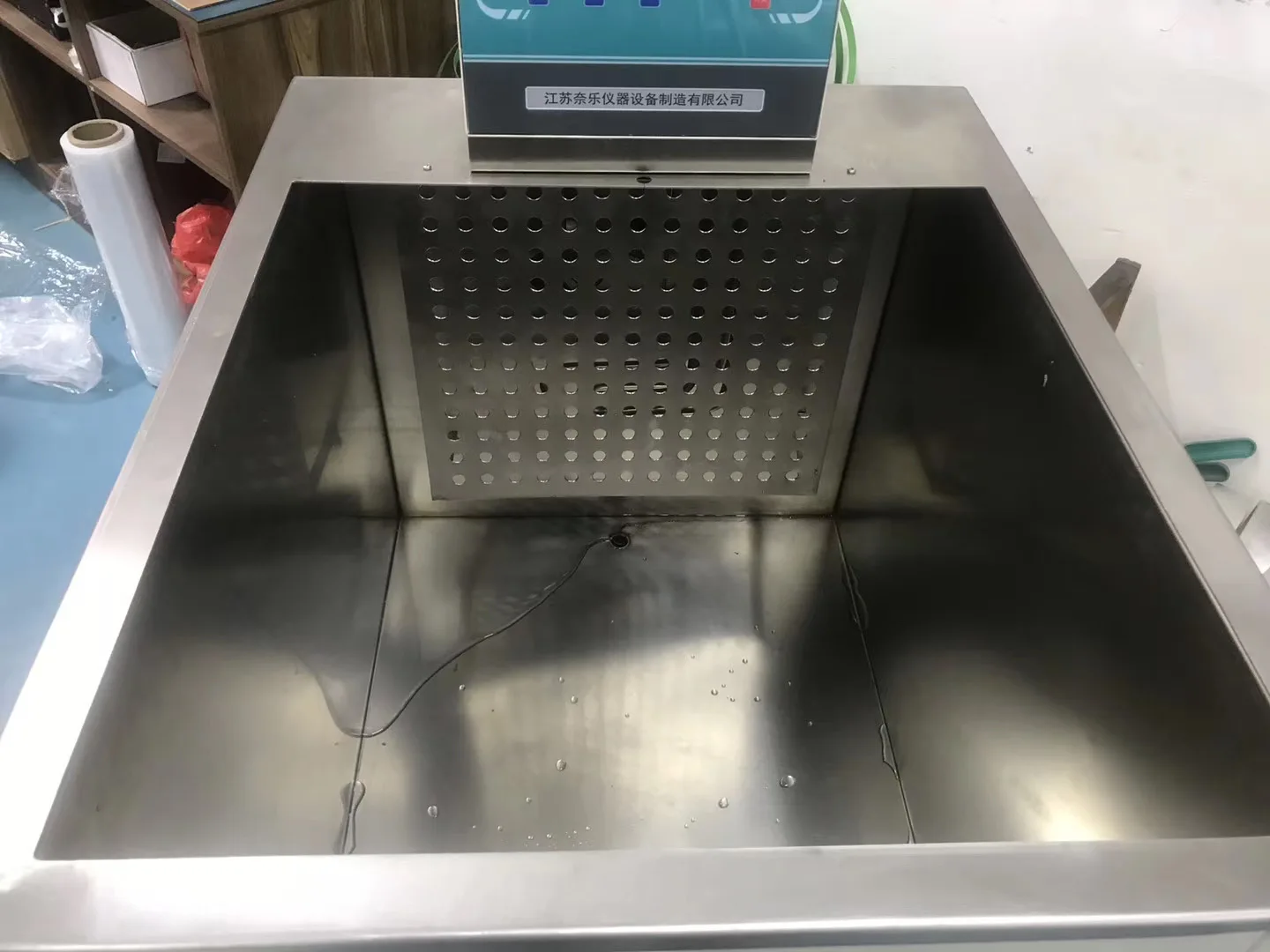

3. inner liner and countertop are made of high quality S304 brushed panel stainless steel.

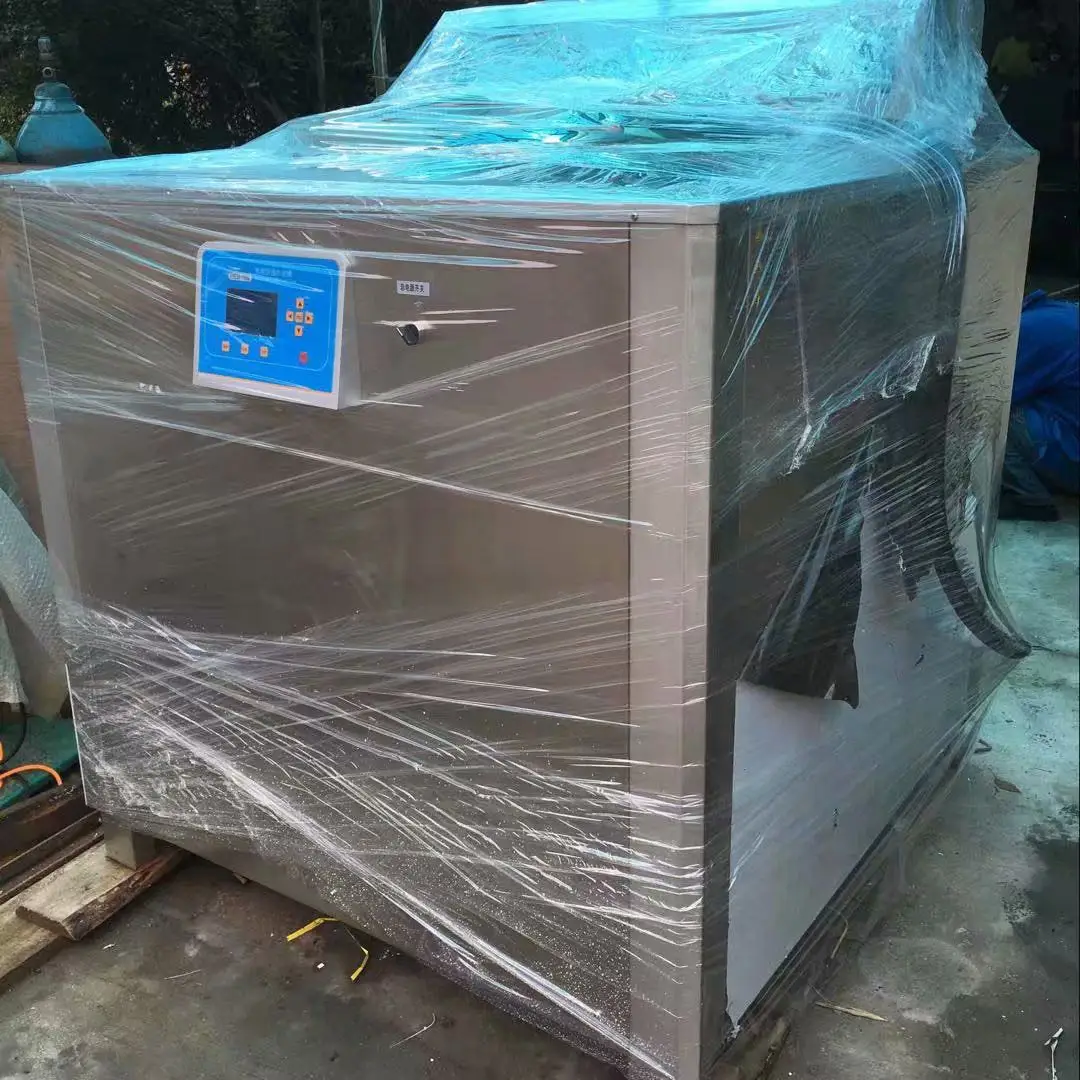

Packing & Delivery




honeycomb paperboard carton or wooden box

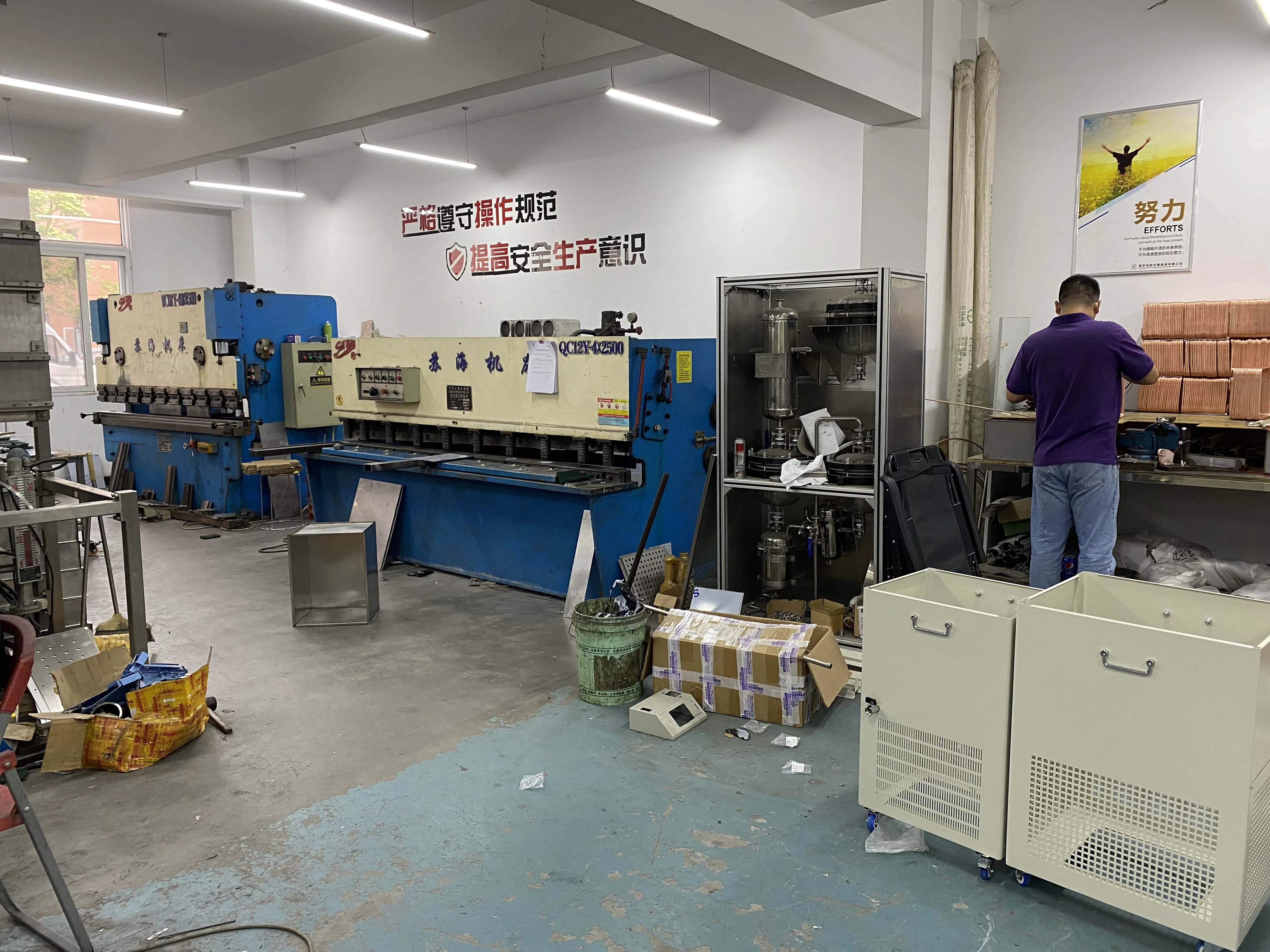

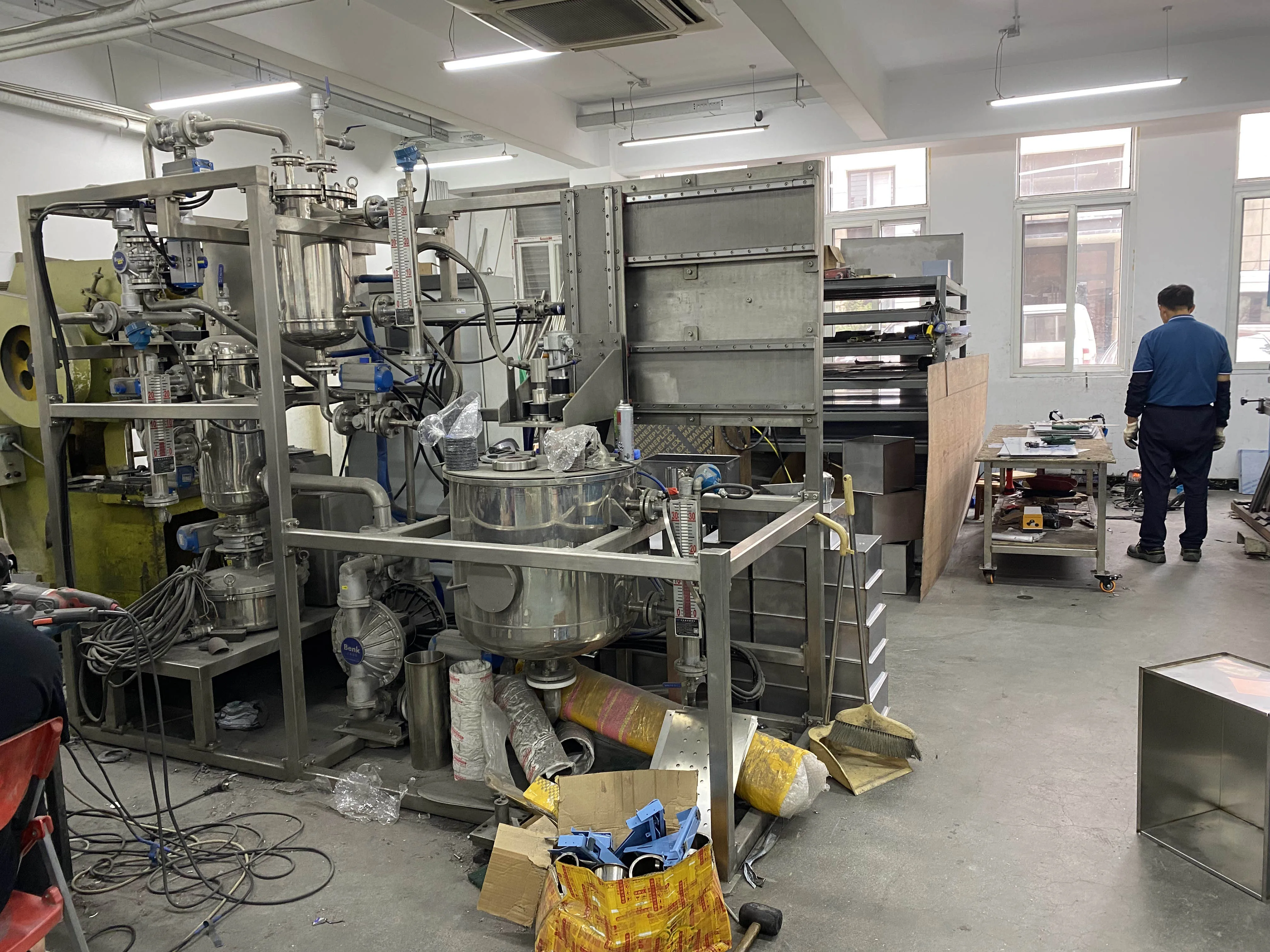

Company Profile








Jiangsu NELE Instrument Equipment Manufacturing Co., Ltd. is an innovative enterprise composed of high-level talents, full of innovation, and dedicated to the production and sales of laboratory equipment such as constant temperature baths, microwave digestion equipment, magnetic stirring reactors, and ultrasonic crushing. The company is inspiring to become a solution to laboratory solutions, providing high-tech products for organic chemistry synthesis, medicinal chemistry, food science, molecular biology, analytical chemistry, petrochemicals, materials science, etc.
