Надежное качество трехфазный двигатель с протоколом Modbus мягкий стартер 30 кВт в

Brand

STA

Product Name

Squirrel cage asynchronous Motor Soft starter

Power Supply

Urban power,self-provided substation,dieel generating sets

power

7.5KW-600KW

Voltage

AC380V/AC660V/AC1140V 50Hz

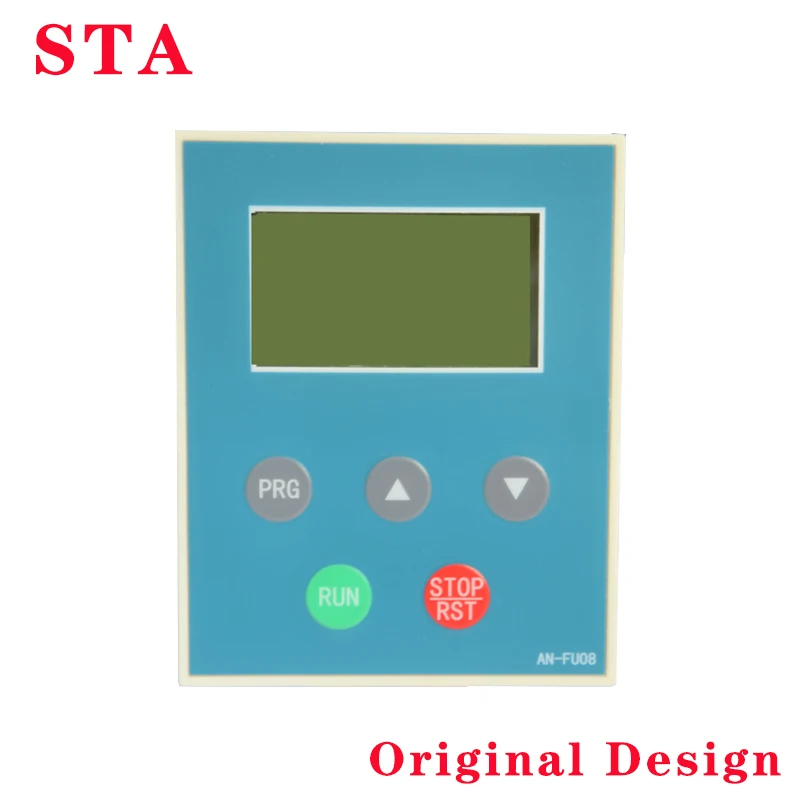

Display

Digital /LCD

Phase

Three Phase

Soft start time:

1~120S

Soft stop time:

1~15S

Rated operational current

15~1200A

Start frequency

Less than 20times per hour

Cooling

naturalair-cooling or fan air cooling

IP

20

Environment

if the altitude is above 2000m,user should select the higher power equipment

Environment

Temperature:

-25℃ TO+40℃

Relative humidity

≤95%

Indoor install

non-condensing,no inflammable,explosive gases,no conducive dust

Vibration is less than

0.5G

Stop

free stop and soft stop

Starting modes

 Current limiting starter, Voltage ramp start , Kick start +current-limiting start, kick start +voltage ramp start . Current ramp start . Voltage current-limiting double closed –loop start.

Protect content

Over current , Overload , Open phase, instantaneous stop and other fault protection .with the flow, over loading, lack phase, instantaneous stop, and other malfunction protection.

Install

 Wall mounted

Overload protection:

IEC60947-4-2standard
