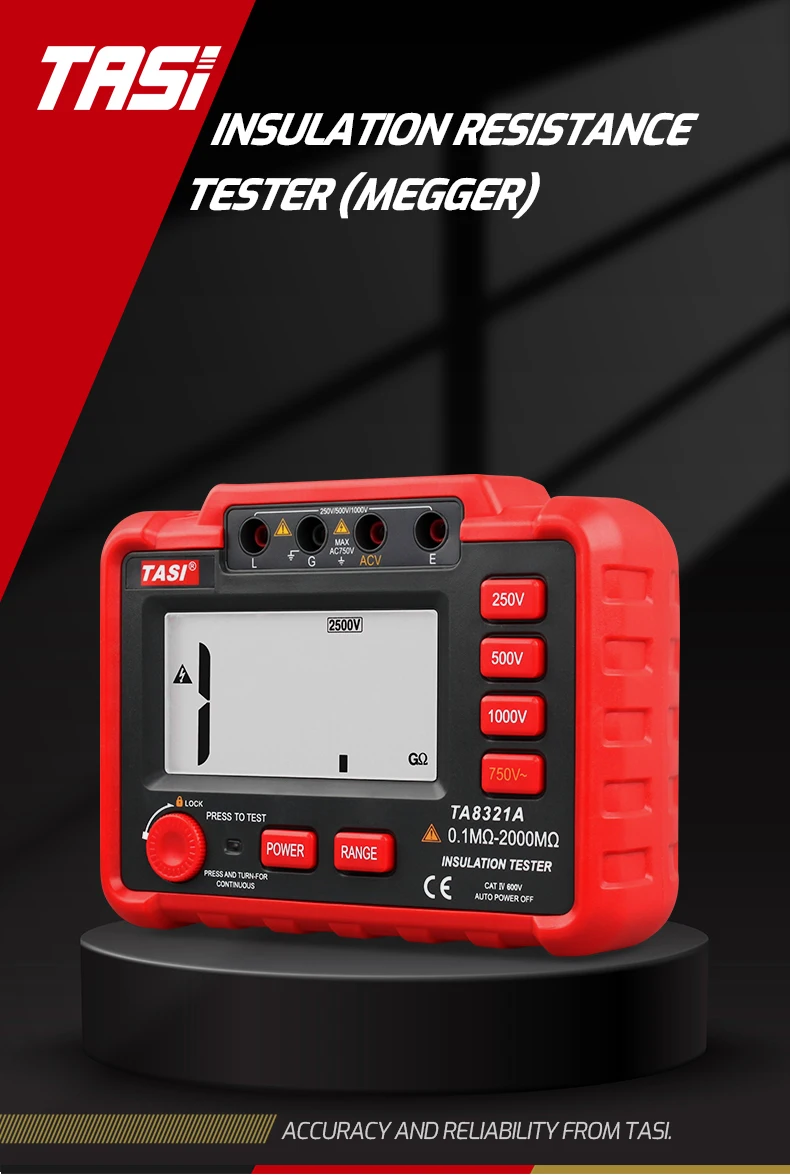

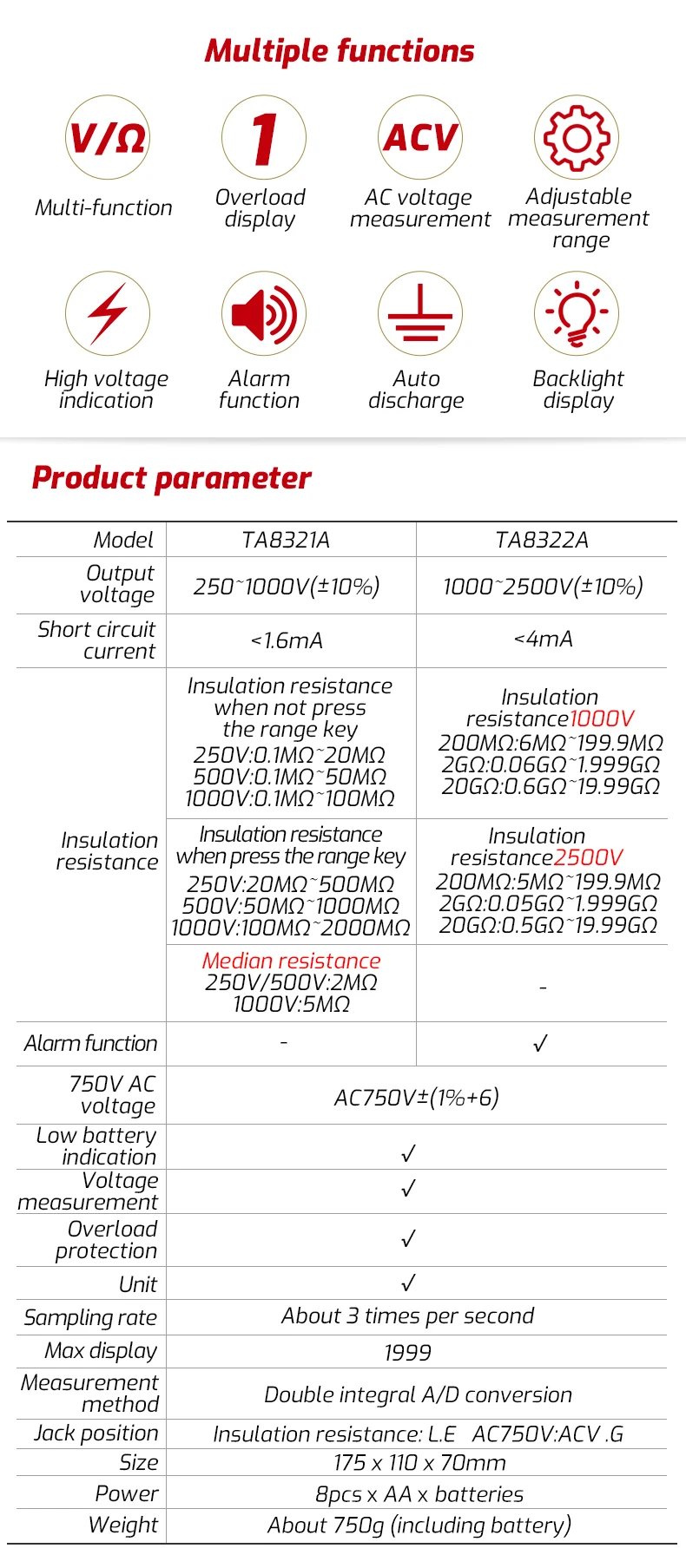

Model | TA8321A | TA8322A |
Parameter | Output voltage: 250V/500V/1000V | Output voltage: 1000V/2500V |
Short-circuit current<1.6mA | Short-circuit current<4mA | |
Insulation resistance when not press the range key | Insulation resistance 1000V | |
250V:0.1MΩ~20MΩ | 200MΩ:6MΩ~199.9MΩ | |
500V:0.1MΩ~50MΩ | 2GΩ:0.06GΩ~1.999GΩ | |
1000V:0.1MΩ~100MΩ | 20GΩ:0.6GΩ~19.99GΩ | |
Insulation resistance when press the range key | Insulation resistance 2500V | |
250V:20MΩ~500MΩ | 200MΩ:5MΩ~199.9MΩ | |
500V:50MΩ~1000MΩ | 2GΩ:0.05GΩ~1.999GΩ | |
1000V:100MΩ~2000MΩ | 20GΩ:0.5GΩ~19.99GΩ | |
Medium resistance | - | |
250V/500V:2MΩ | ||
1000V:5MΩ | ||

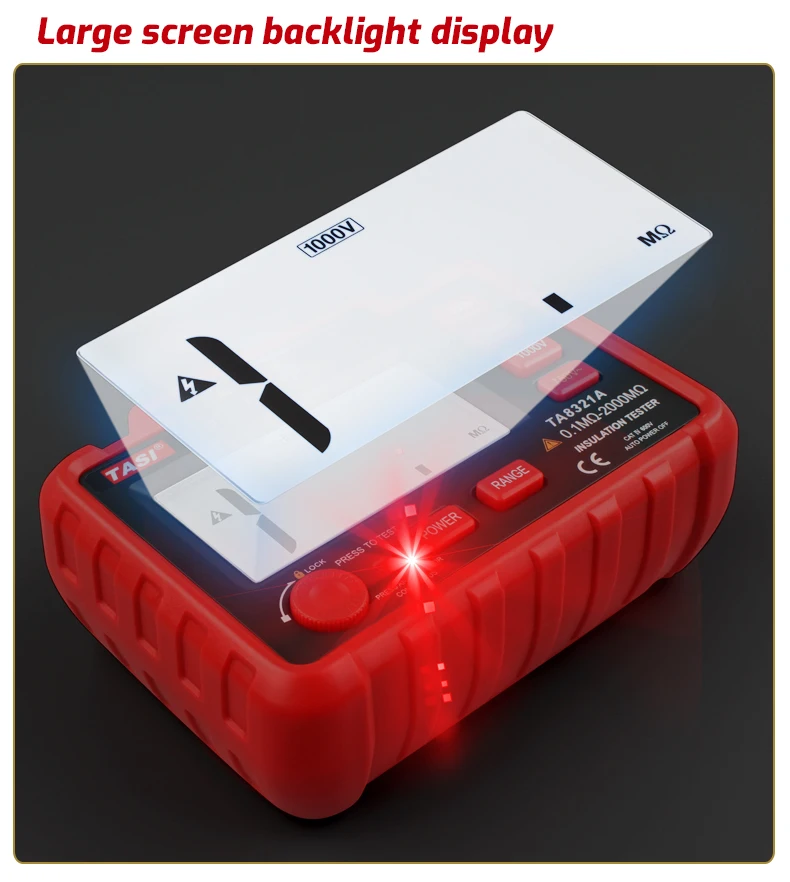

Display | 90×48mm LCD display,max counts“1999” | |
Measurement method | Double integral A/D conversion | |
Power consumption | Open circuit test<300mw | |

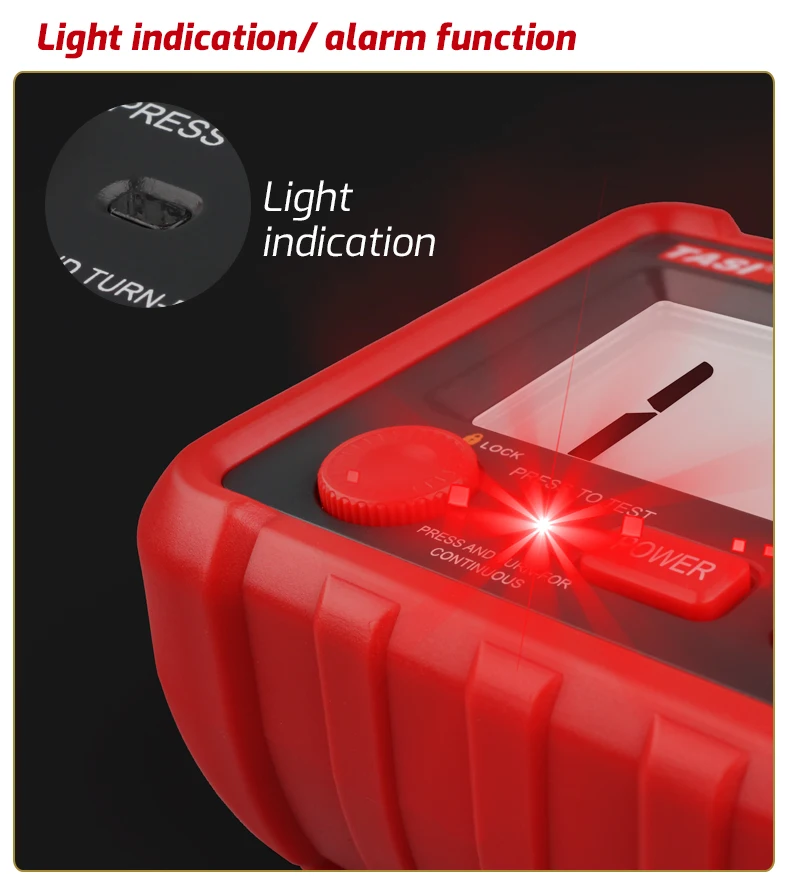

Alarm | When the measured resistance is less than the lower limit, the meter will automatically alarm when the reading is invalid( only TA8322A) | |
Low battery indication | Under-voltage indication when the voltage is insufficient | |
Auto shutdown | √ | |

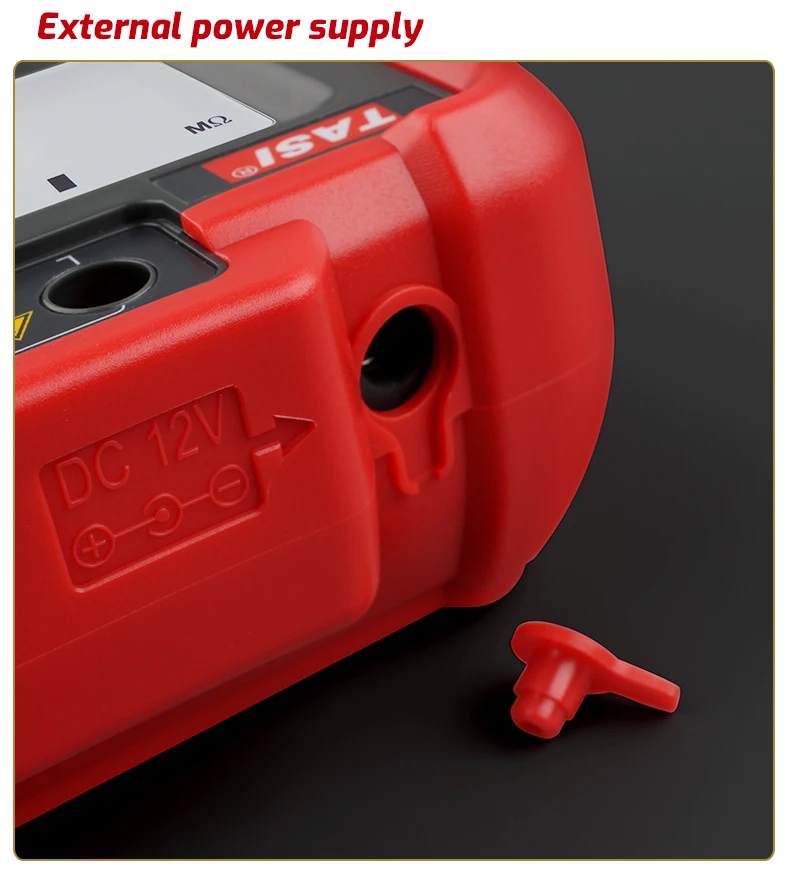

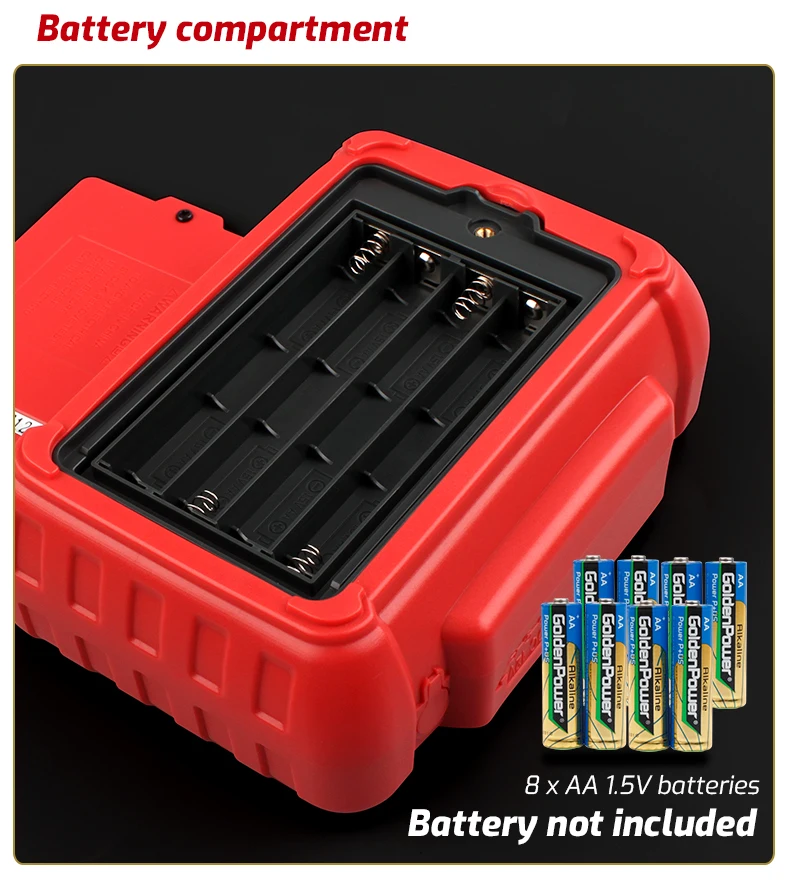

Power | 8pcs*AA batteries (able to connect with power adapter) | |
Working temperature | 0 ℃ ~50 ℃ | |
Working humidity | 10~95%RH Non-condensing | |
Storage temperature | -20 ℃ ~ 60 ℃(not including the battery) | |

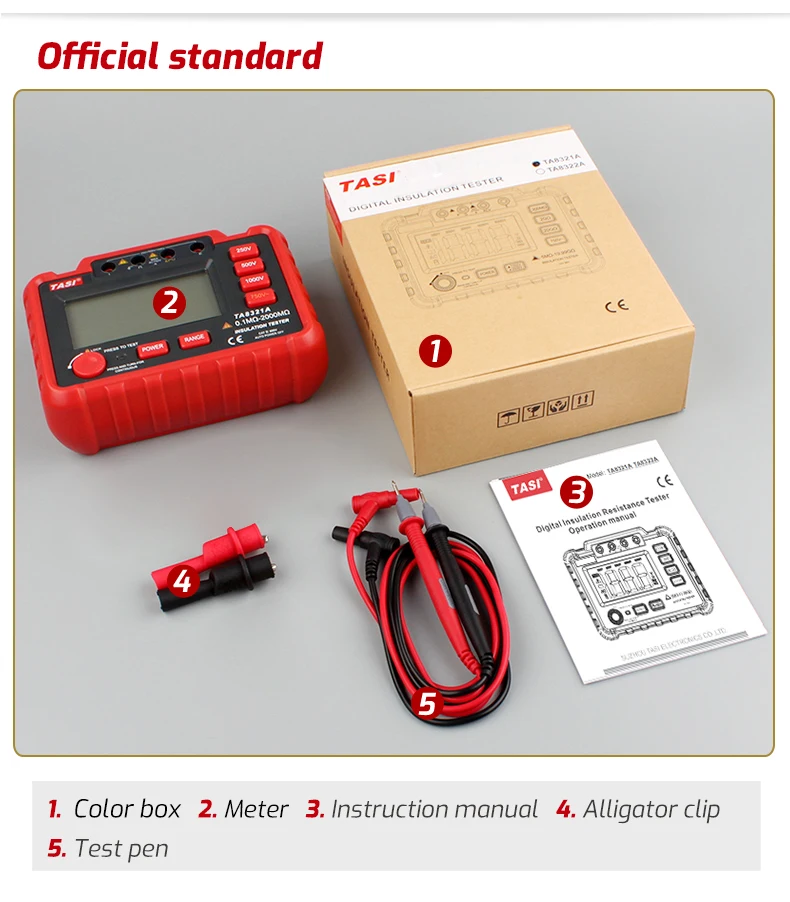

Standard accesories | Instruction manual, test probe, alligator clip | |

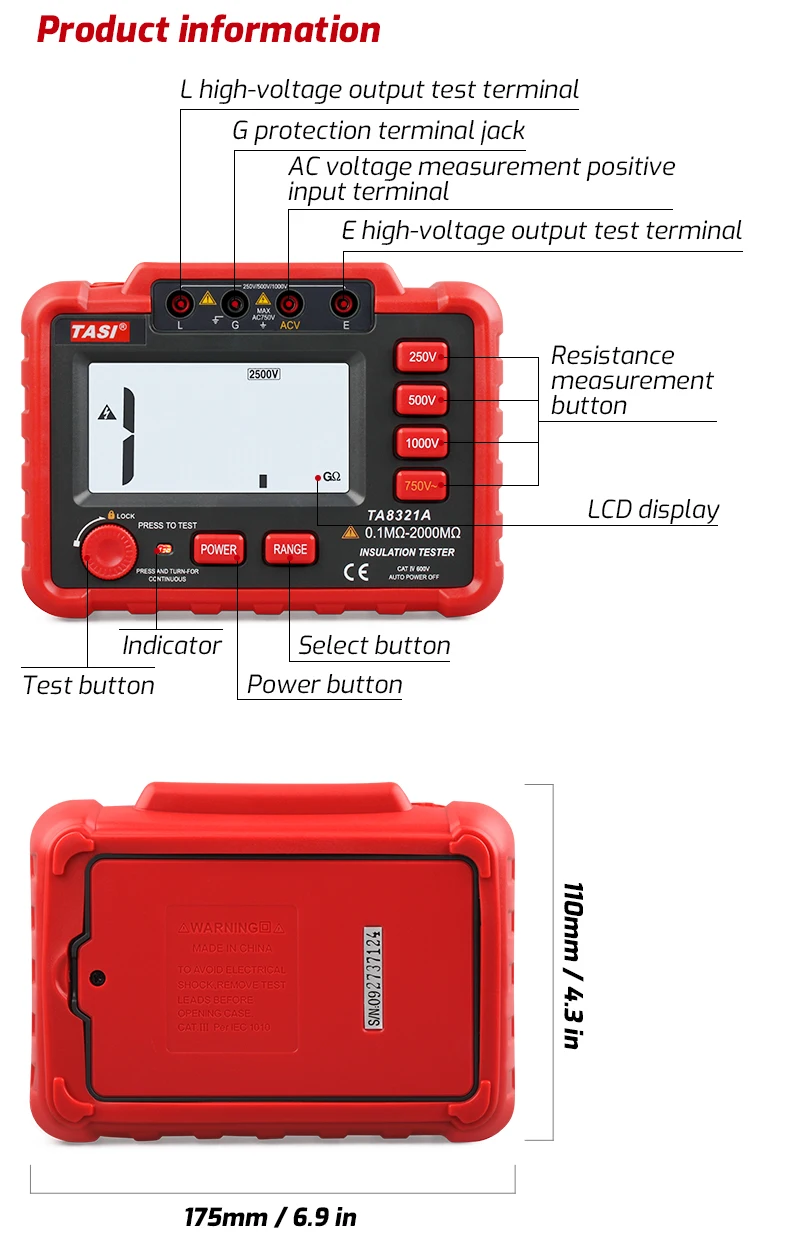

Product size | 175x110x70mm | |
Package | Color box | |
Product net weight | About 750g( including batteries) | |
Size/unit package | 210x171x71mm | |
Weight/unit package | 0.926kg | 1.036kg |
Master carton size | 42.5x37x36cm | |
Quantity/master carton | 20pcs | |
Weight/master carton | 19.5kg | 21.7kg |
Quantity: 20PCS per carton box;
Carton box size: 42.5 *37*36cm;
Net weight: 18.5KGS;
Gross weight: 19.5KGS.
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
1. Q: Is your company accept customization?
A: We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
2. Q: What’s the delivery time after an order placed?
A: It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 20-45
days of production according to the quantity of your order.
3. Q: What’s the MOQ?
A: Regular products only 1 standard carton. but no limit for sample order!
4. Q: What’s the warranty of the product?
A: We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts
or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
5. Q: What Shipping way Customer can choose?
A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order q'ty!
6. Q: How to place an order?
a: send us an inquiry.
b: confirm your wanted products
c: confirm the price, freight and other details
d: complete the payment
e: we start production and arrange the shipment
f: you got your products
