Product Description

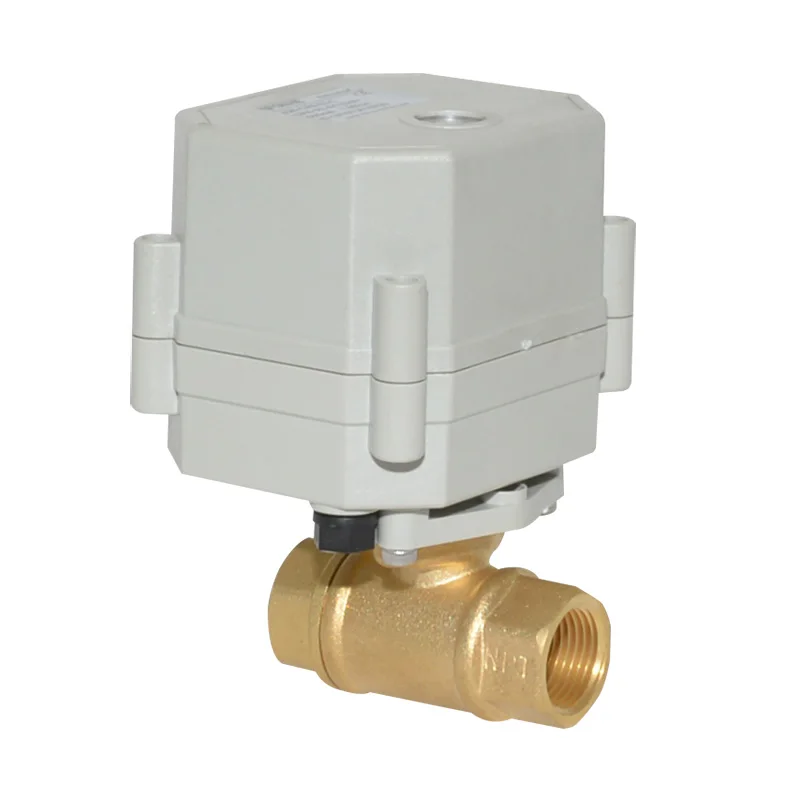

3/8" DC12V /DC24vsmall motorized Electric water control electronic shut-off valves
| Size | NPT, BSP 3/8'' |
| Material | Brass |
| Fields of applications | Water |
| Maximum working pressure | 1.0MPa |
| Rated Voltage | DC12V or DC24V or DC5V |
| Packaging | Standard export package or Customized |
| Payment | L/C,D/P,T/T |
| Delivery | Ningbo Port,3-20 days after payment |
Technical Parameters:
New electric motorized valve
Valve size ------------------- 3/8”
Valve Body material ------- Brass
Actuator material ---------- Engineering Plastics
Sealing material ------------ EPDM & PTFE
Rated voltage -------------- DC12V
Wiring control methods ------- CR5-01
Working current ----------- ≤500MA
Life time ------------------- 70,000 times
Protection class ----------- IP67
Open/close time --------- ≤5 S
Actuator rotation ---------- 90°
Max. torque force --------- 2Nm
Cable Length -------------- 0.5m, 1.5m (Optional)
Manual override ---------- No
Indicator ------------------Yes
Maximum working pressure --------- 1.0MPa
Circulation medium ------------------- Fluid, Air
Environment temperature ---------- 15℃~50℃
Liquid temperature ------------------ 2℃~90℃
Detailed information

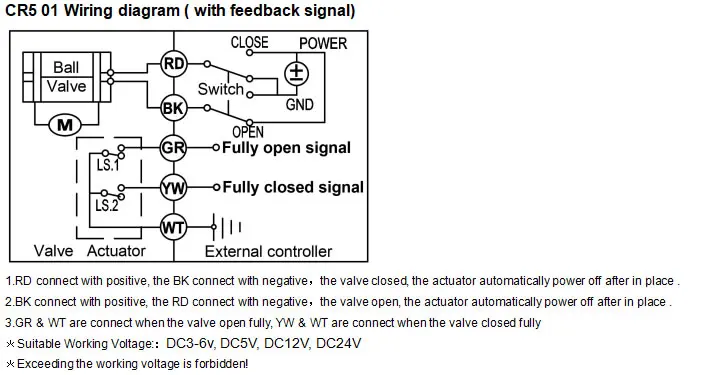

Wiring Diagram
Application
Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length 0.5m or 1.5m?
Packaging & Shipping
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Company Information
FAQ
Q:what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
