Product Description

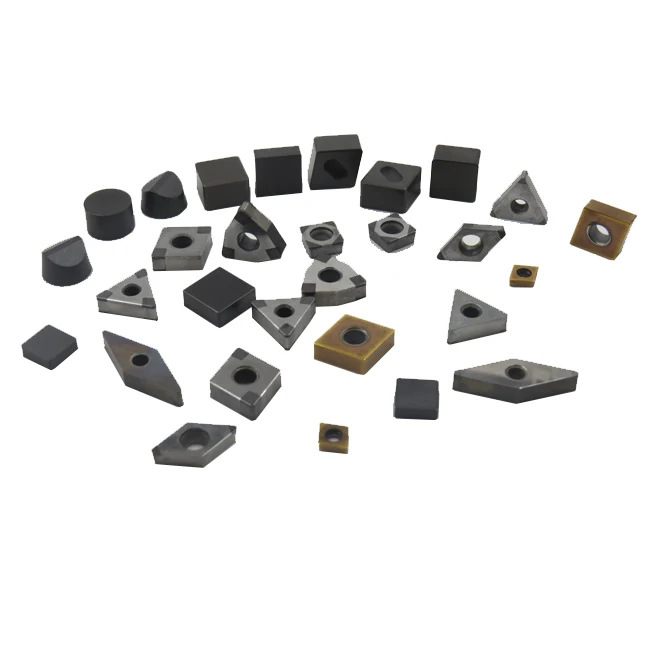

High Quality PCD CBN Turning Tool Inserts RNMN1204 CNC Diamond Insert
PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.
Application in automotive industry:
·Brake disc
`Engine block
`Brake drum
`Gear
`Cylinder liner
`Universal joint
`Crank Shaft
`Flywheel
`Pulley
`Bearing

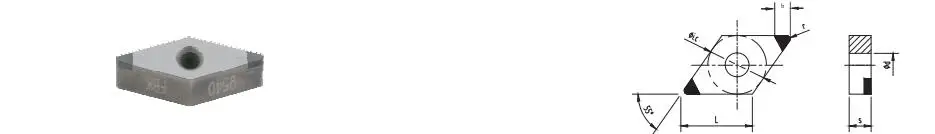

| Model | Dimension(mm) | Standard cutting edge | ||||||
| ISO | L | Φ i.c | s | Φ d | r | A | B | |
| DNGA110404-2S | 11 | 9.525 | 4.76 | 3.81 | 0.4 | 2.5 | 3.3 | T01020 T02020 S01020 S02020 |
| DNGA110408-2S | 11 | 9.525 | 4.76 | 3.81 | 0.8 | 2.1 | 2.9 | |
| DNGA150404-2S | 15 | 12.7 | 4.76 | 5.16 | 0.4 | 2.5 | 3.3 | |
| DNGA150408-2S | 15 | 12.7 | 4.76 | 5.16 | 0.8 | 2.1 | 2.9 | |
| DNGA150412-2S | 15 | 12.7 | 4.76 | 5.16 | 1.2 | 1.8 | 2.5 | |
