Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300
Самый популярный VMC! BT30 Высокоточный 5-осевой мини-станок с ЧПУ vmc
- Категории: Machine Centre >>>
- Поставщик: Shanghai,Sumore,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Twenty years of experience in industry and trade integration.
The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>

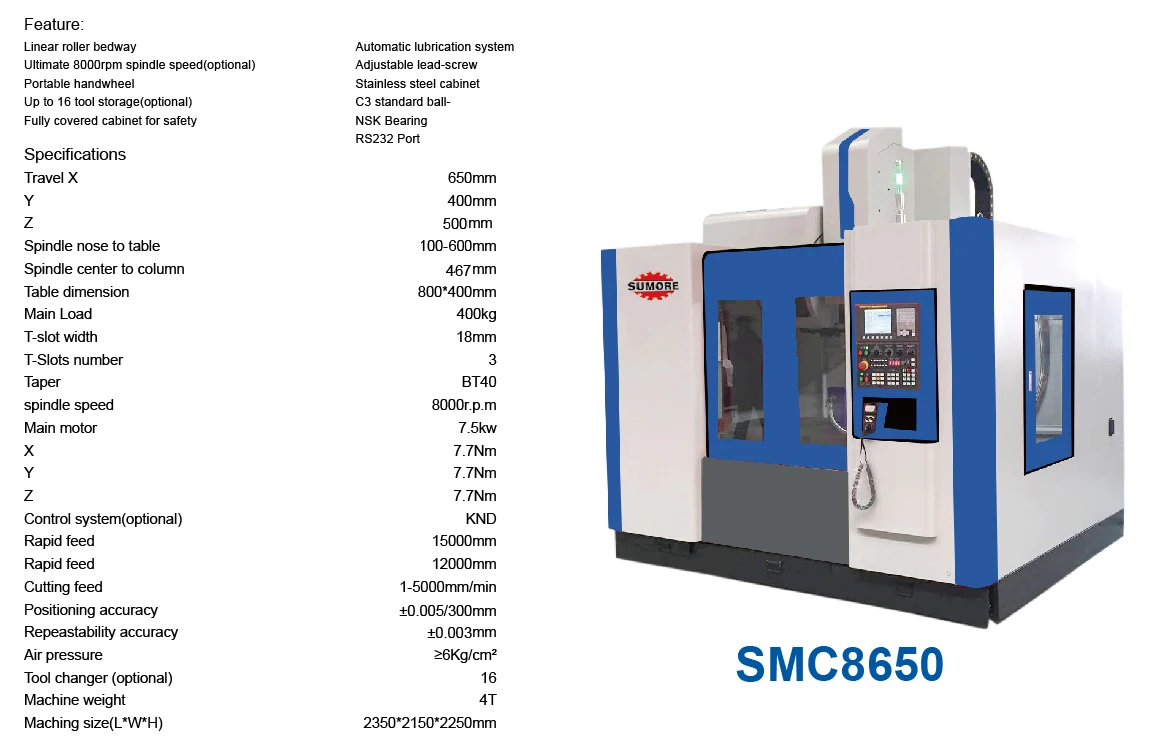

Most popular Hot VMC!!! BT30 high precision 5th axis mini cnc machine center vmc SMC8650
Specification
specifications | SMC8650 |
Travel X | 650mm |
Travel Y | 400mm |
Travel Z | 500mm |
Spindle nose to table | 100-600mm |
Spindle center to column | 476mm |
Table dimension | 800*400mm |
Max .load | 500kgs |
T-slot | 3x18x125mm |
Taper | BT40 |
Spindle speed) | 8000rpm or customized |
Main motor | 7.5kw |
X Y Z Rapid feed | 32m/min |
Cutting speed | 1-10m/min |
Positioning accuracy | ±0.005/300mm |
Repeatability accuracy | ±0.003/300mm |
Air pressure | ≥6 kg/cm² |
Tool changer | 16 atc or customized |
N.W./G.W. | 3.3/3.5T |
Packing size | 2500*2250*2250mm |
Product Description
Quick Detail:
Processing material: aluminum, copper, metal, wood, plastic, etc
Worktable size: 900x360mm
X/Y/Z travel: 650/400/500mm
Control system: GSK, SIEMENS, FANUC or customized
Tool changer: 16pcs or customized
Description:
SMC8650 cnc vertical machining center belongs to one of our most economic cnc machining center for heavy duty field. The motor power is 5.5 kw even more, Spindle taper is BT40 or customized. It can load 500kgs work piece. It is quite new condition not used cnc machine center. This vmc machine is made in China. The main features are as below:
1. The struction of the precision being connected with automatic lubrication device.
2. Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.
3. The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure
4. Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in
calories and could do milling, drilling, reaming, boring, reaming and tapping
5. All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining
accuracy.
6. Taiwan spindle/ball screw/ bearing is available.
7. X/Y/Z linear guide way is available.
8. Ultimate 10000rpm spindle speed is available
9. Portable hand wheel
10. OEM or ODM is available.
11. Customized color and voltage or LOGO.
12. China top one quality and good after sale service.
Processing material: aluminum, copper, metal, wood, plastic, etc
Worktable size: 900x360mm
X/Y/Z travel: 650/400/500mm
Control system: GSK, SIEMENS, FANUC or customized
Tool changer: 16pcs or customized
Description:
SMC8650 cnc vertical machining center belongs to one of our most economic cnc machining center for heavy duty field. The motor power is 5.5 kw even more, Spindle taper is BT40 or customized. It can load 500kgs work piece. It is quite new condition not used cnc machine center. This vmc machine is made in China. The main features are as below:
1. The struction of the precision being connected with automatic lubrication device.
2. Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.
3. The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure
4. Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in
calories and could do milling, drilling, reaming, boring, reaming and tapping
5. All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining
accuracy.
6. Taiwan spindle/ball screw/ bearing is available.
7. X/Y/Z linear guide way is available.
8. Ultimate 10000rpm spindle speed is available
9. Portable hand wheel
10. OEM or ODM is available.
11. Customized color and voltage or LOGO.
12. China top one quality and good after sale service.

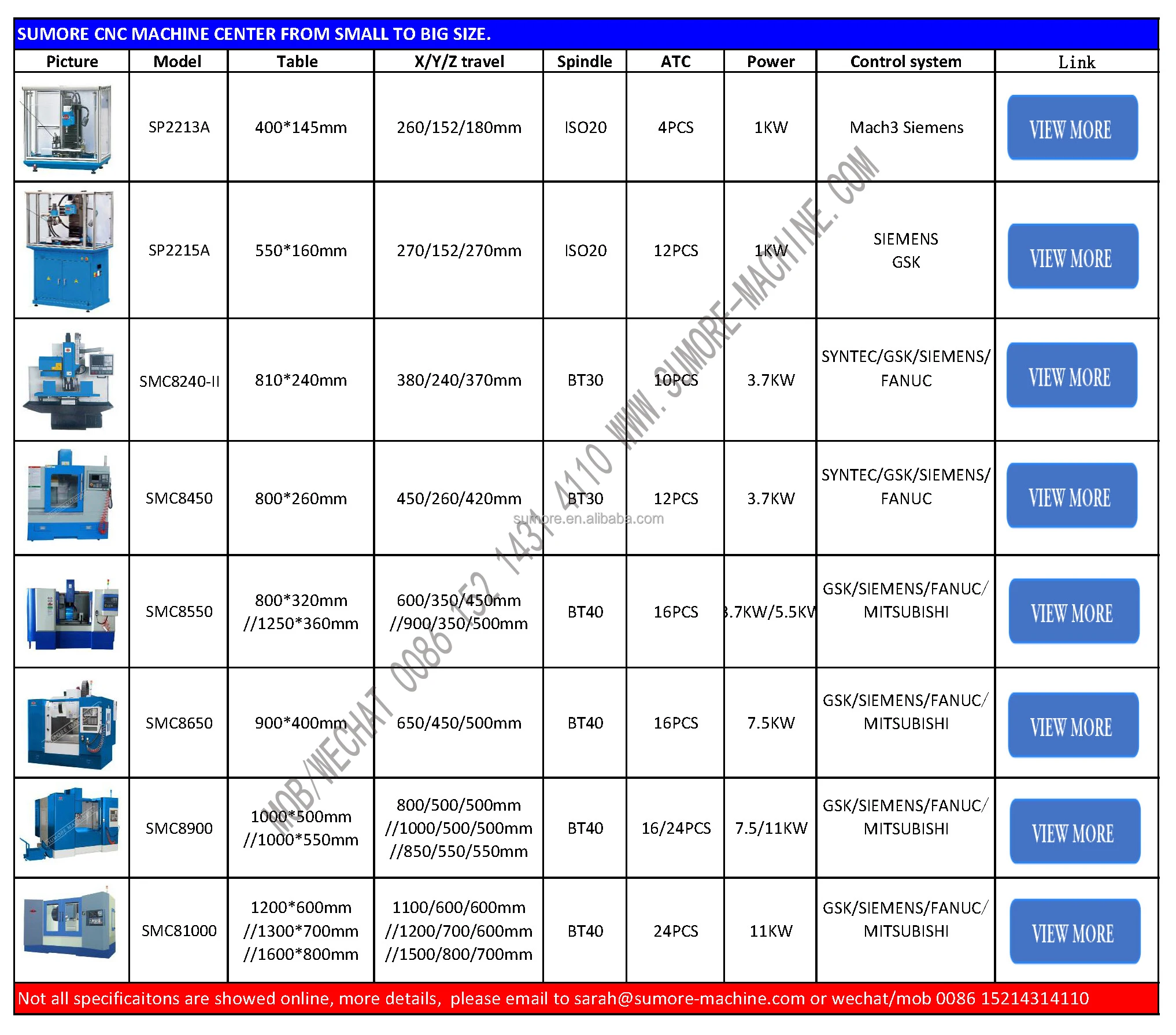

More machining center
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
