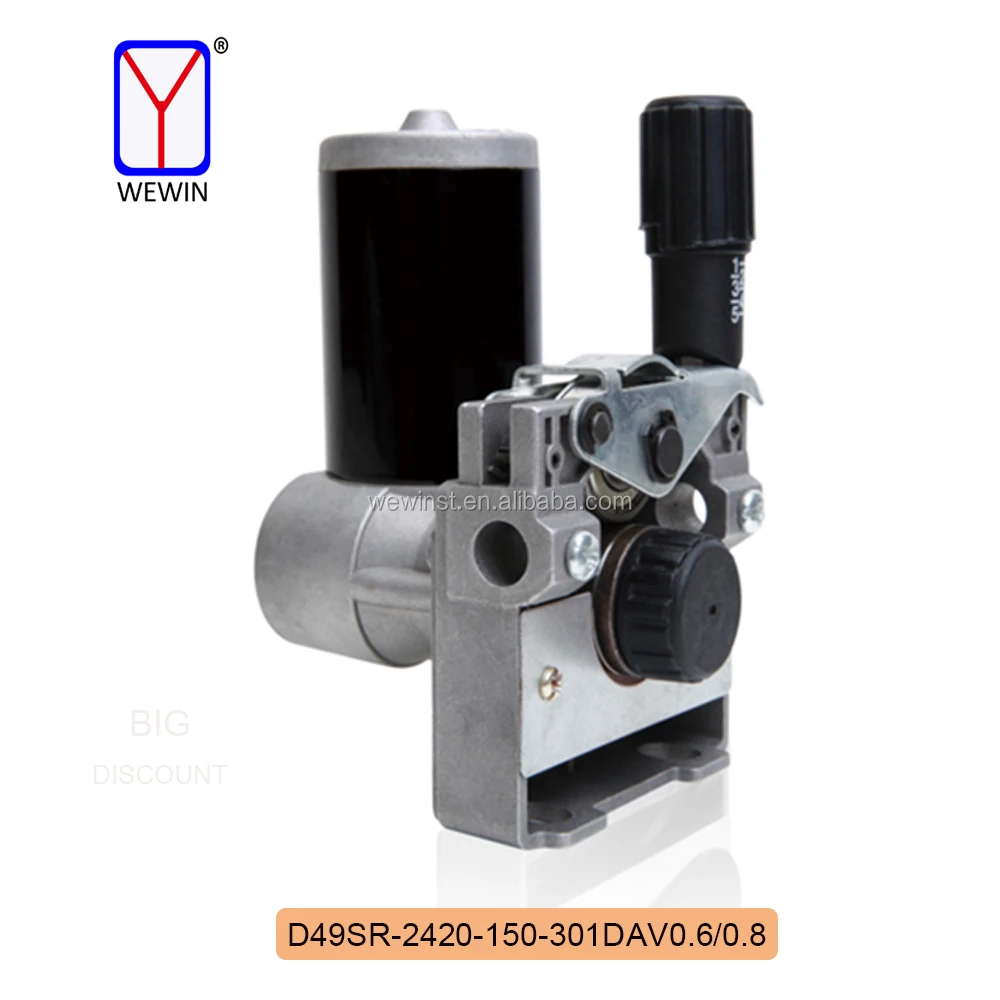

Автоматическая проволочная кормушка для MIG MAG сварочный проволочный фидерный двигатель литой каркас

Описание и отзывы

Характеристики





































Product code introduction



How to distinguish the type of feed frame?



For example: P402D-AV0.8/1.0

P     means plastic feed frame, casting feed frame without “P”.

402 is the code for wire feed frame. We have 20 301 401 402 404 501 504 P504      series.

D     is the position of handle (looked from the positive direction),“D”is the righ handle,            “E”is the left handle.

A     is the diameter of roll, Unit:mm. “A”means the roll diameter is φ30,“B”means the             roll diameter is φ40.

V     is the type of roll,we have V, U, K, three type. “V”fit to steel wire,“U”fit to fluxcore             wire and “K”fit to aluminium wire.

0.8/1.0 is the trough dimension of roll, unit:mm,the figure same as the welding machine              diameter.We can change it for you.



The feed-roll dimension can change it for your welding wire size. Our Standard feed-roll size: 0.6/0.8,0.8/0.9,0.8/1.0,1.0/1.2, 1.2/1.6,1.6/2.0,2.0/2.4.

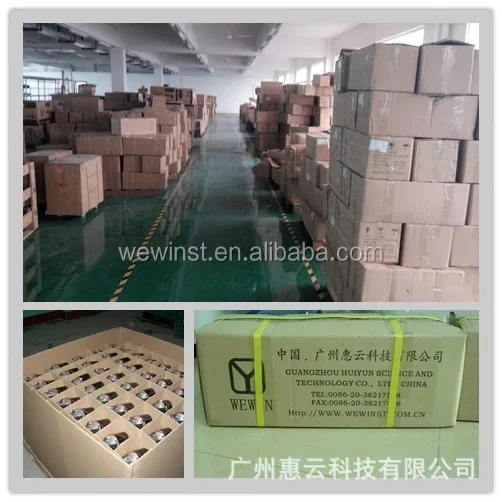

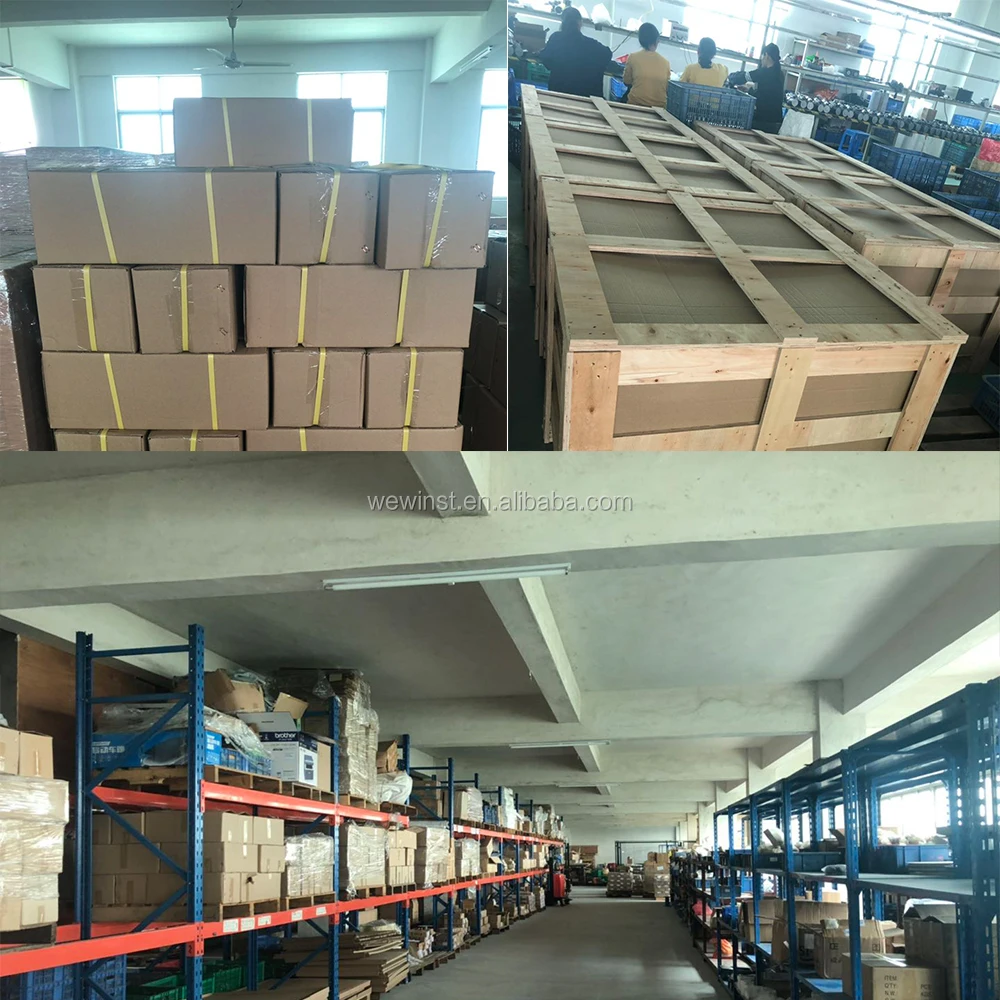

Packaging

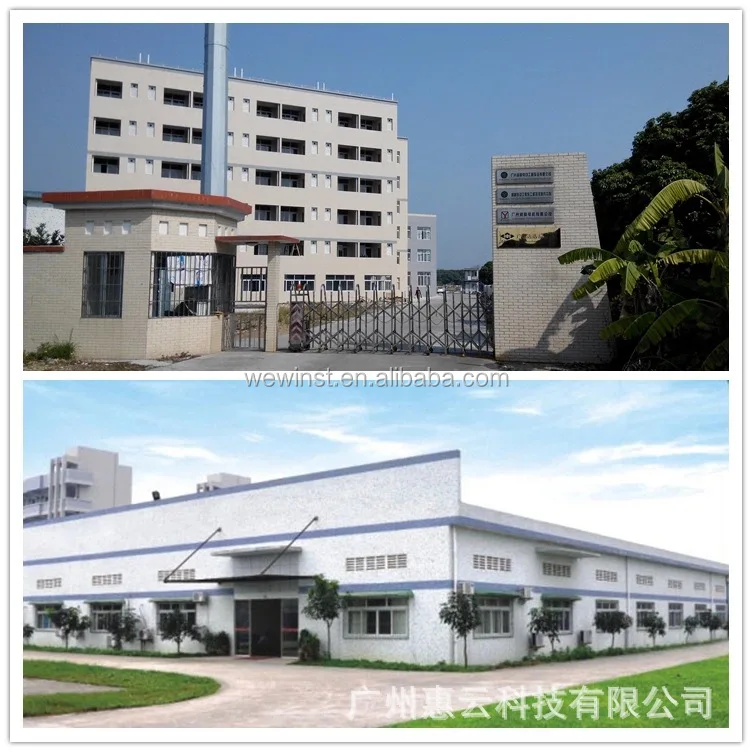

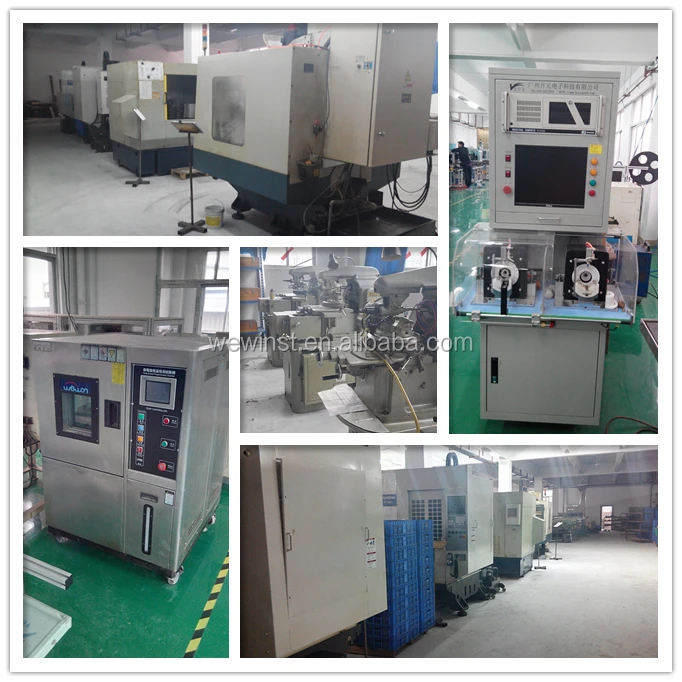

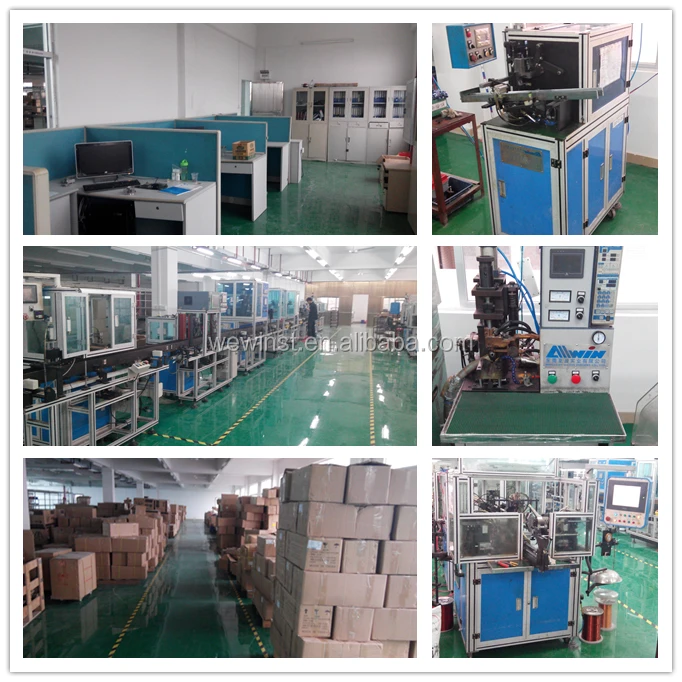

 Production line



The 19th Beijing ESSEN Welding and Cutting Fair



Shipping



Certificate
