Product Description

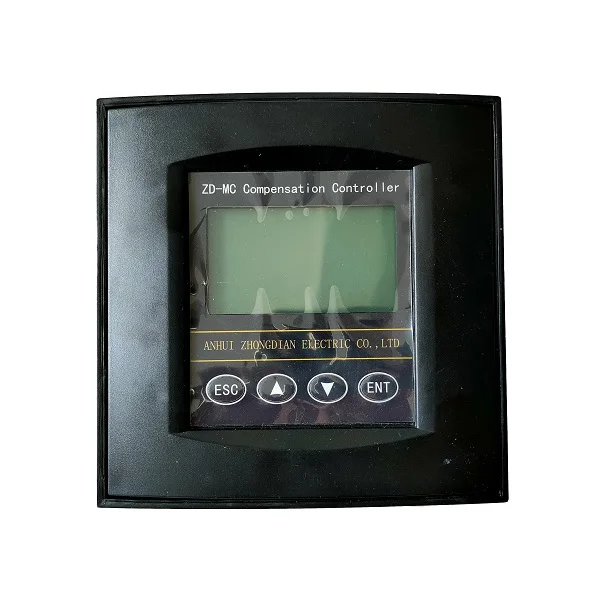

ZD-MC Series Intelligent Reactive Power Compensation Controller

ZD-MC series reactive power compensation controller is suitable for AC 220V(usually), 50HZ/60HZ low-voltage distribution system. It can control kinds of switching mode( thyristor switch, compound switch and contactor switch).
ZD-MC have 2 compensation mode, 3 phase compensation mode and single phase compensation mode.
Also this controller is adopted to GB-T9663-2013 standard.



ZDDQ Factory


ANHUI ZHONGDIAN ELECTRIC CO., LTD.
ZDDQ established in 2001. ZDDQ Technology Park locates in Bengbu City of Anhui Province. We're a professional and leading manufacturer, focus on advanced power quality improvement and power factor correction. APF, SVG, APFC are our main products. ZDDQ has a leading independent R&D team and quality supervision system, and maintain long-term cooperative relations with China University of Science and Technology, Zhejiang University and a number of well-known institutions.



We insists on customers’ demand as the guide, with the technology innovation as the drive, through 20 years technology accumulation, has already owned a series of power quality products including:
◆Low voltage Active Power Filter APF
◆Low voltage Static Var Generator SVG
◆Medium voltage STATCOM
◆Low voltage Capacitor Banks
◆Medium voltage Capacitor Banks
Which are widely used in many countries and industries such as power grid, hospital, sewage plant, railway, subway, airport, seaport, oil and chemical industry, metallurgy, coal mine, tele-communication and high buildings.
Our products has been installed in Australia, EU, Asia, South America and Africa.


Basic Features


Monitor
With LCD display, it can monitor the parameters of the power grid in real time, display the setting parameters and work state.


Settings
This controller can set the control parameter. And parameters will be saved automatically and will not be lost as power goes off.


Reactive Compensation
Support manual switching and automatic switching two operation mode;
The intelligent switching mode, each capacitor can be settled free;
The compensation mode: Hybrid compensation.


Protection
The self checking and reset the watchdog function;
The over-voltage and under-voltage protection function;
The harmonic voltage and current protection function;
The small current protection function;
The low power factor protection function.


Communication (optional)
The communication interface is 485 standard interface and communication protocol accord to MODBUS Industrial Protocol.


Technical Data


Rated voltage
AC 220V
Rated frequency
50/60Hz
Power
6W
Interface
RS485
Sampling voltage
220V±20%
Sensitivity
20mA



Precision
Voltage
0.5 level
Current
0.5 level
power factor
0.5 level
active power
1.0 level
reactive power
1.0 level
frequncy
0.1 level
Size
144*144*100mm


Specificaiton


 Recommendation sheet of common capacity step by step for whole cabinet.



compensation capacity(Kvar)
capacity step solution
compensation capacity(Kvar)
capacity step solution
120
5+10+15+30*3
270
10+20+40*6
130
5+10+15+30*2+40
280
10+20+30*7+40
140
5+10+15+30+40*2
290
10+20+30*6+40*2
150
5+10+15+40*3
300
10+20+30*5+40*3
160
5+10+15+30*3+40
310
10+20+30*4+40*4
170
10+20+30+40*2
320
10+20+30*3+40*5
180
10+20+30+40*3
330
10+20+30*2+40*6
190
10+20+40*4
340
10+20+30+40*7
200
10+20*2+30*5
350
10+20+40*8
210
10+20+30*6
360
20*2+40*8
220
10+20+30*5+40
370
20+30+40*8
230
10+20+30*4+40*2
380
20+40*9
240
10+20+30*3+40*3
390
30+40*9
250
10+20+30*2+40*4
400
40*10
260
10+20+30+40*5
NA
NA


Certifications






Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training install the machine, training use the machine.

* Engineers available to service machinery overseas.

* Online after-sales reception at any time



Application Field


* Steel Rolling mills
* Chemical industry
* Cement plant
* Solar plant
* Textile
* Hospitals / Hotels
* Building segment
* Automobile industry etc
* Utility Networks
