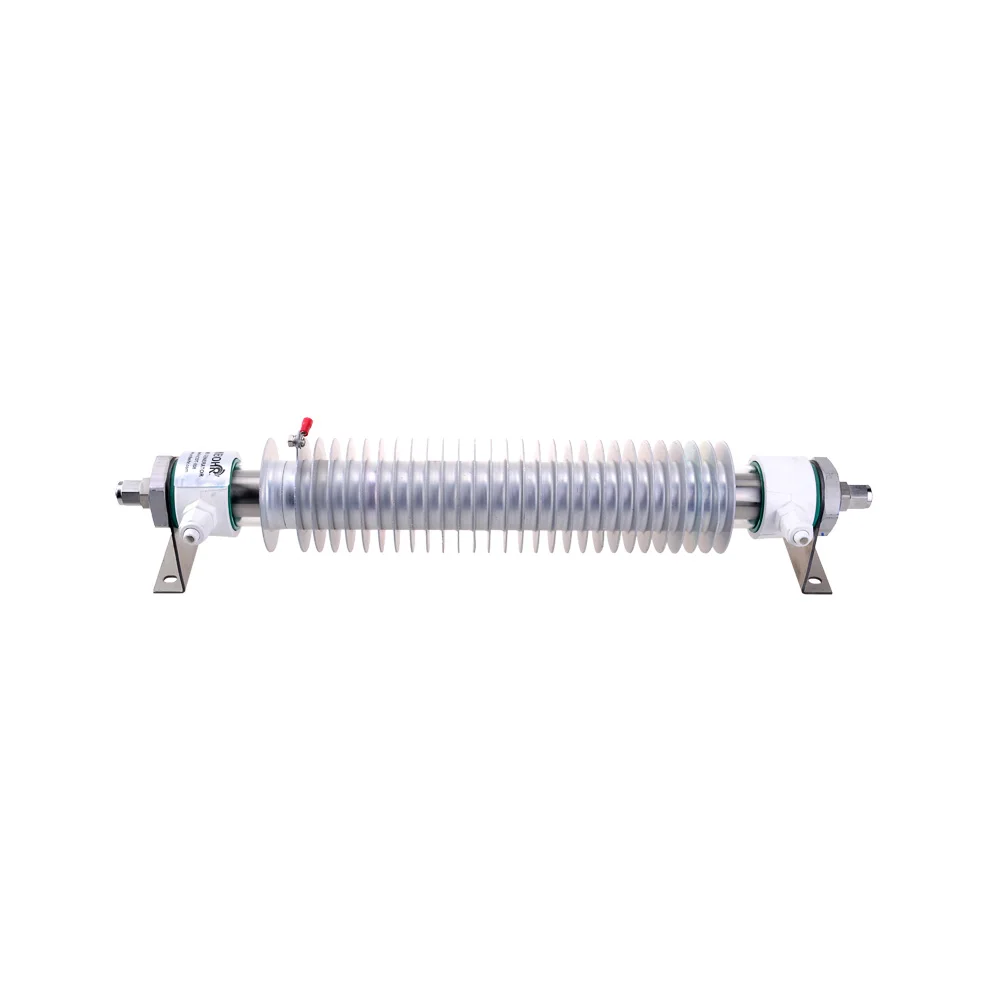

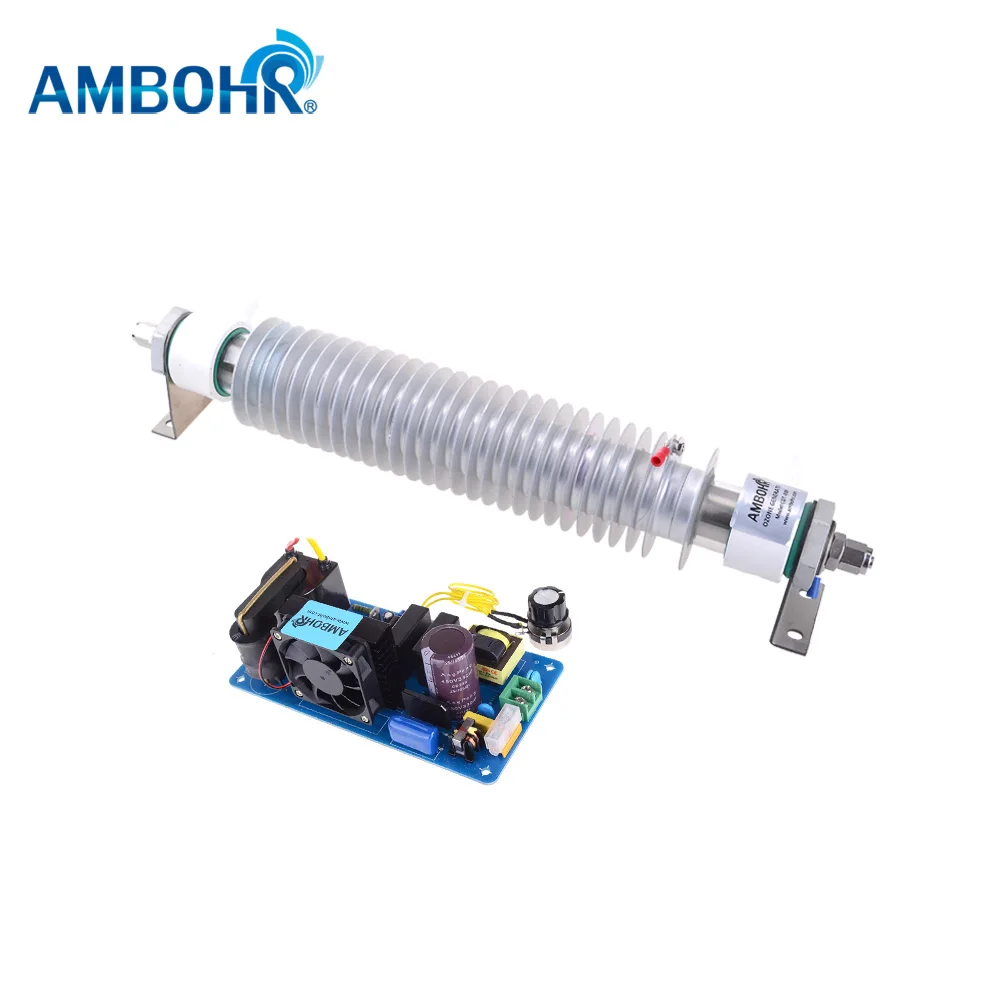

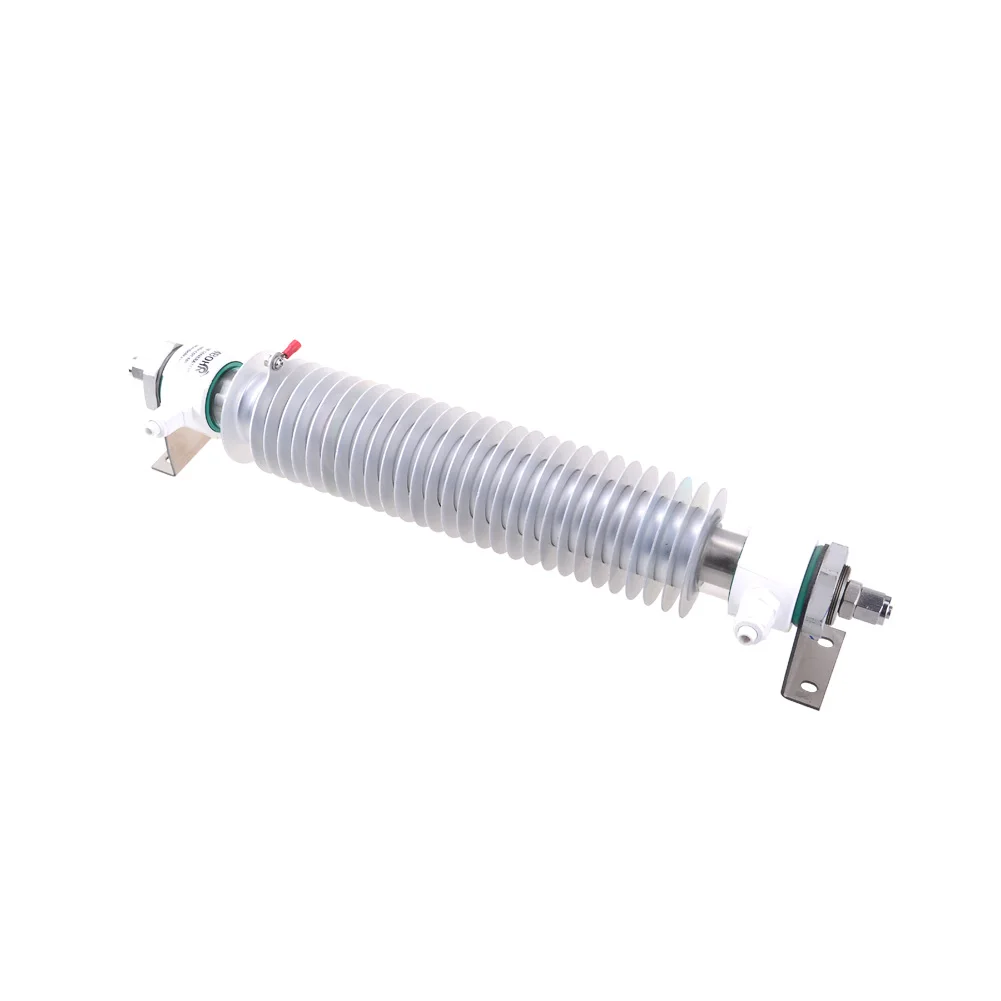

AMBOHR CDT-W20 G-series Ozone Generator Module
Corona Discharge, Water Cooling
These compact ozone generators were created specifically to withstand the demanding environment of the any machine.
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
Model: | CDT-W20 |
Ozone Output: | 5-10 g/hr@30Lpm Air; 15-25g/hr@5Lpm oxygen |
Generating Method: | Corona Discharge, Water Cooling |
Cooling Fan: | 1-2m3/min |
Electrical: | 110-120VAC, 220-240VAC, 50/60Hz, 150W |
Power Cable: | 30cm in length (customization) |
Cooling Water Outlet/Inlet Dia | 4-7mm |
Case: | Plastic+ Quartz tube |
Ozone Control: | 50-100% Variable |
Accessories: | Hose +Air stone（Optional） |
Dimension(LxWxH): | 15.6”*1.97”*3.03”(395*50*77 mm); 7.9”*3.9”*2.8”(200*100*70 mm) |
Installation Dimension(LxW): | 15.0”*1.2”(380 *30 mm)7.2”*3.3”(182*85 mm) |
Weight: | 3.97lb (1.8kg) |
Product Description
The CDT-G series of AMBOHR ozone generator cells with ceramic discharge body have good cooling condition, they can provide stable and efficient ozone output, easy to install, operate and maintain.
OVERVIEW
● Produces powerful oxidant.
● Disinfects water & air by killing viruses and biological contaminants.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption.
● Designed & tested specially for Water and Air.
● Small and compact unit.
● CE, & CQC certified.
● Disinfects water & air by killing viruses and biological contaminants.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption.
● Designed & tested specially for Water and Air.
● Small and compact unit.
● CE, & CQC certified.
OUTSTANDING TECHNICAL PROPERTIES
● Long working life
● Good cooling condition
● Stable& efficient output
● Low noise
● External dry air or O2 source
● The core module of mini ozone generator.
● Extra thick inlet/outlet barb to prevent breakage
● Low noise
● External dry air or O2 source
● The core module of mini ozone generator.
● Extra thick inlet/outlet barb to prevent breakage
WHY AMBOHR OZONE GENERATORS ARE SUPERIOR
● Powerful ozone generators are designed for any machine.
● longevity.
● Thick, built-in mounting tabs for easy installations.
● Compact and smaller footprint.
● Cool operation with low heat generation.
● Super low production & field failure rates.
● longevity.
● Thick, built-in mounting tabs for easy installations.
● Compact and smaller footprint.
● Cool operation with low heat generation.
● Super low production & field failure rates.
Product Application
HEALTH IS OUR COMMON NEED
AMBOHR ozone generator - your best health assistant! Every one of us needs clean water, pure air and non-toxic food, because only in this way can we live healthily and happily.
AMBOHR ozone generator cell is small in size and easy to install, suitable for many devices. Mini air purification and disinfection equipment: medical equipment, incubator, air curtain, air condition, exhaust duct, workshop, hospital. Mini water treatment equipment: swimming pool, landscape pool, waste yard...
