NSK 11309 саморегулирующийся шаровой подшипник 1310K + H310 Размер подшипника
- Категории: Self-aligning Ball Bearings >>>
- Поставщик: Shandong,Sparta,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
NSK 11309 Self Aligning Ball Bearing 1310K+H310 bearing size 45x100x60mm
Bearings details
1.The Specificcation of Self-aligning Ball Bearing:
1.High precision self-aligning ball bearing 2.ISO standard bearing 3.High quality and copmetitive price 4.Many famous brand can be available 5.Low noise and long life.
2.The Introduction of Self-aligning Ball Bearing:
1.The self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. 2.The bearings are inherently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. 3.The series of the self-aligning ball bearings include 1200,1300,2200,2300 and so on. 4.The bearings are also available with a cylindrical bore or, in certain size ranges, with a tapered bore 5.This type bearing have the lowest friction of all rolling bearings,motor ball bearing.
3.The Advantsges of Self-aligning Ball Bearings:
1:Long-life with high quality 2:Low-noise with strict controlling the quality of bearings 3:High-load by the advanced high-technical design 4:Competitive price, which has the most valuable 5:OEM service offered, to meet the customers' requirements.
4:Suffix Definitions of Self-aligning Ball Bearings:
C3: radial clearance than ordinary clearance K: 1/12 taper tapered bore K30: 1/30 taper tapered bore M: Ball guided machined brass cage 2RS: with both ends of closures TV: ball guide glass fiber reinforced polyamide (nylon) solid cage
5:The Applications of Self-aligning Ball Bearings:
Self-Aligning ball bearings to withstand heavy load and impact load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, sugar and other industries, and general machinery.
C3: radial clearance than ordinary clearance K: 1/12 taper tapered bore K30: 1/30 taper tapered bore M: Ball guided machined brass cage 2RS: with both ends of closures TV: ball guide glass fiber reinforced polyamide (nylon) solid cage
5:The Applications of Self-aligning Ball Bearings:
Self-Aligning ball bearings to withstand heavy load and impact load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, sugar and other industries, and general machinery.
| NSK 11309 Self Aligning Ball Bearing 1310K+H310 bearing size 45x100x60mm | |||
 | Model | 1310K+H310 | |

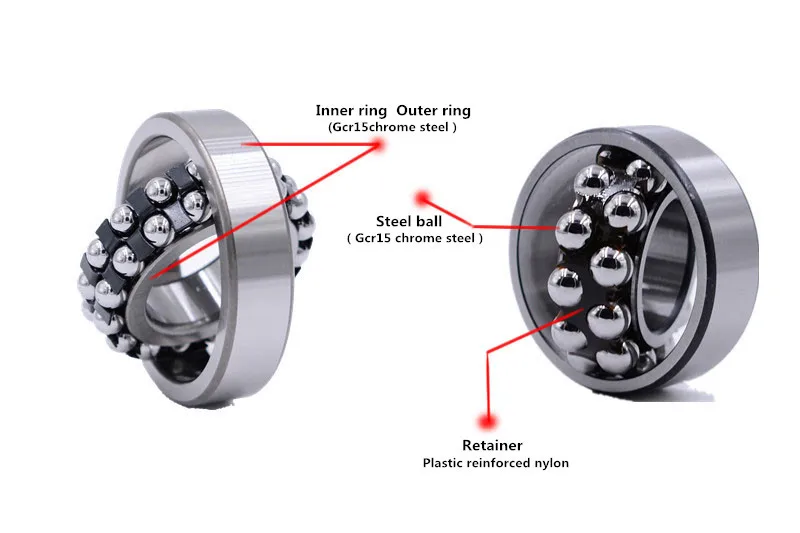

| Material | Gcr15 chome steel | ||
| Cage | Brass ,Steel,Nylon | ||
| Seal Type | Open | ||
| Quality | ISO9001 2000 Standard;CE | ||
| Port | Qingdao,Shanghai,Beijing,Tianjin,Guangzhou,Shenzhen | ||
| Package | Standard exported package or according to our customers' requirement | ||
| Delivery Time | within 3 days after confirm, it will be 3~7 days if the goods are not in stock , The specific time need refer to the quantity | ||

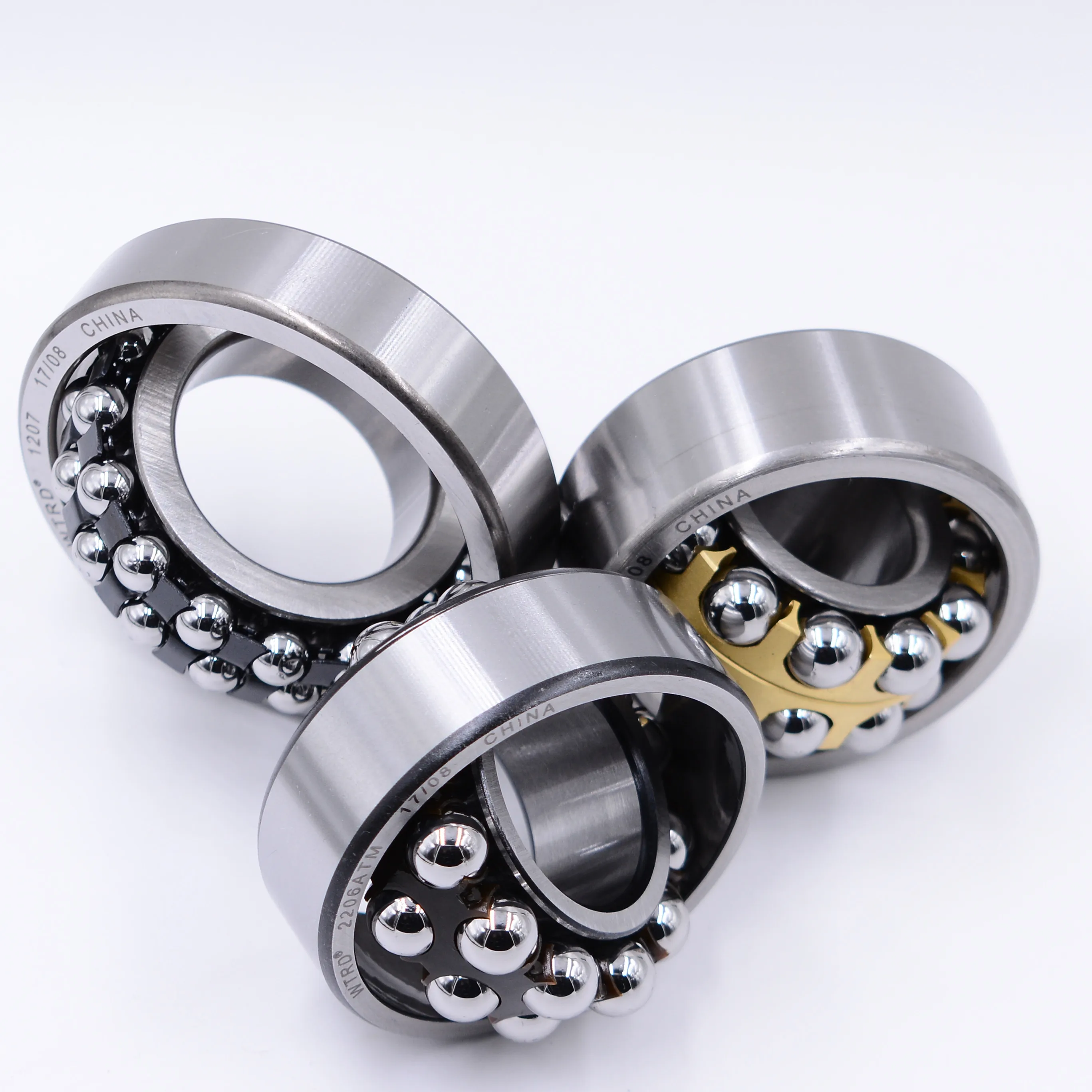

photo of Spherical Self-aligning Ball Bearings
Other related models
| Modle number | d(mm) | D(mm) | B(mm) |
| 11204 | 20 | 47 | 40 |
| 11205 | 25 | 52 | 15 |
| 11206 | 30 | 62 | 48 |
| 11207 | 35 | 72 | 17 |
| 11208 | 40 | 80 | 18 |
| 11209 | 45 | 85 | 19 |
| 2312M | 60 | 130 | 46 |
| 2313M | 65 | 140 | 48 |
| 2314M | 70 | 150 | 51 |
| 2315M | 75 | 160 | 55 |
| 2316M | 80 | 170 | 58 |
| 2317M | 85 | 180 | 60 |
| 2318M | 90 | 190 | 64 |
| 2319M | 95 | 200 | 67 |
| 2320M | 100 | 215 | 73 |
Company details
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:Do you offer free samples?
A: Yes we offer free small samples to distributors and wholesalers, pls note,if your bearings are bigger,we will send you same materials/same brands as for sample.however customers should bear freight.
We DO NOT offer free samples to end users.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance.
Q:How long is the lead time?
A: Normally lead time is about 3-7days,if it is customized order ,the lead time will be reconfirmed, about 10-15days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
