22 л 6 оси максимальной допускаемой нагрузки сельскохозяйственный Дрон опрыскиватель сельскохозяйственные химические распыления

Описание и отзывы

Характеристики

Product Description



Agricultural drones are one of the fastest growing markets in the commercial drone industry today. And UAVs are quickly becoming an indispensable tool to help you become more efficient in this field and make more informed crop management decisions.



-22A is a 22-liter load, 6-axis drone designed for precision variable rate applications of liquid pesticides, fertilizers and herbicides, bringing new efficiency and manageability to agriculture.

Product parameter

-22A technical parameters
Wheelbase		1850mm
Scale up		1920mm * 1650mm * 530mm
Folded size		1000mm * 520mm
Container capacity		22L
Power weight		6.3KG
Unloaded drone		19KG
Fully loaded drone		50KG
Spray distance test
Pump type	nozzle	test		Spray range
Brushless Motor	Silicone lengthened single nozzle 1.5 cm	Height 3m,speed 5-6m/s		8m
		Height 2.5m,speed 5-6 m/s		7m
		Height 2m,speed 5-6 m/s		6.5m
Battery life
No load		44.4v 20-25 minutes
Fully loaded		44.4v 9-10minutes
Configuration
power supply		Haoying X9
Flight control		K + +
Spraying system		High pressure spray
Maximum pressure of pump		1mPa
Spray flow		1.5-3kg/min (maximum 4 kg/min)
effectiveness		1000-2000m2/min

Details

Features

1. Android mobile phone ground station, easy to use

2. PC ground station, voice broadcast

3.Support route planning, fully autonomous flight route, support AB point operation

4.Support one-button take-off and landing without manual intervention, 100% safe

5.Continue spraying at the breaking point, no medicine/low power, it returns

6.Dose detection can be set to automatically record the breakpoint and return to the breakpoint

7.Battery detection, can automatically record breakpoints when the battery is low

8.Microwave fixed altitude radar, fixed altitude stable flight, support ground type flight

9.Fence function, log storage function, road lock function, no-fly zone function'

10.Vibration protection, lost star protection, drug shutdown protection

11.Motor sequence detection function, direction detection function

12.Double pump mode

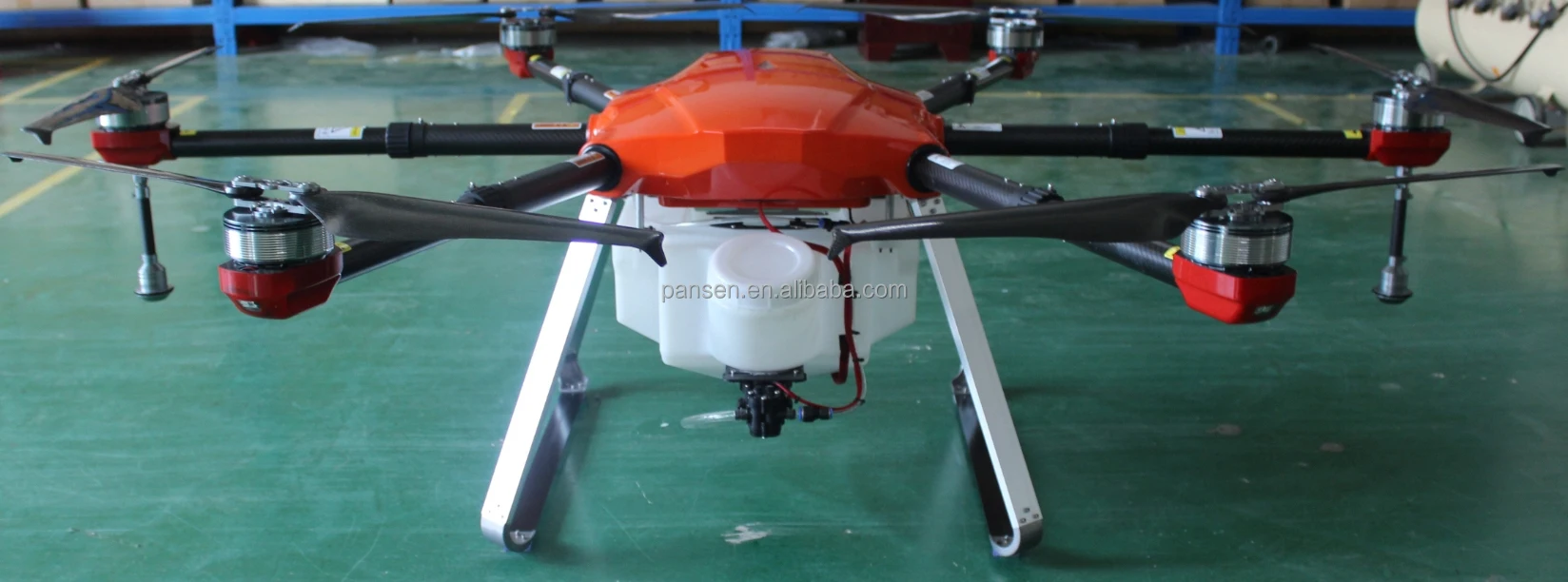

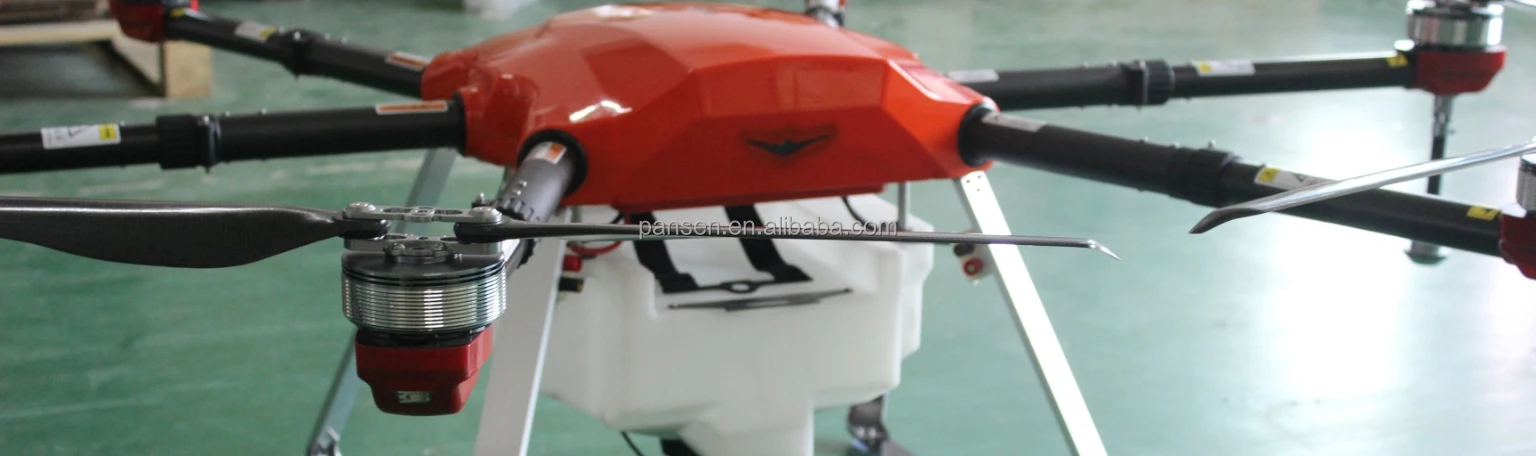

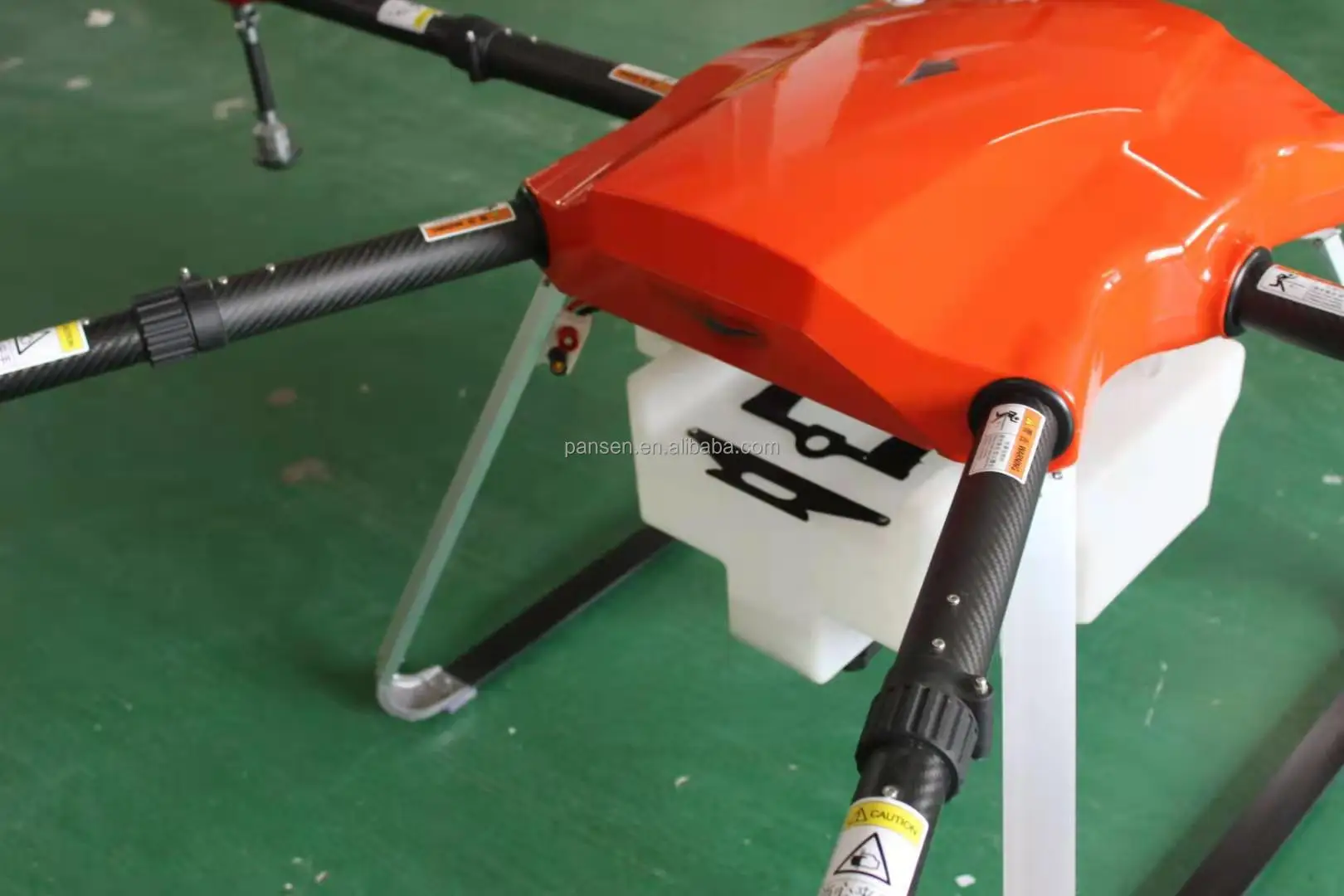

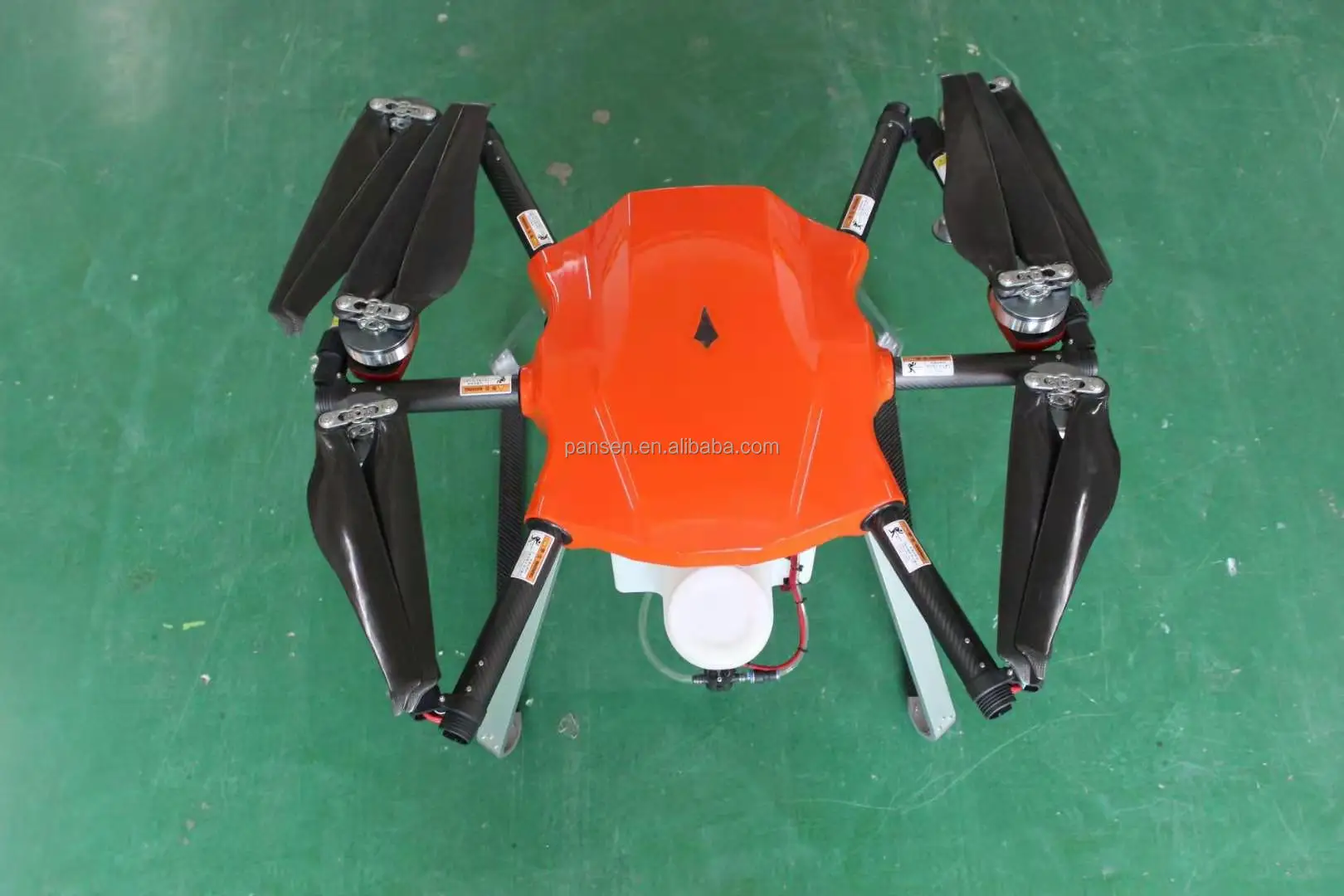

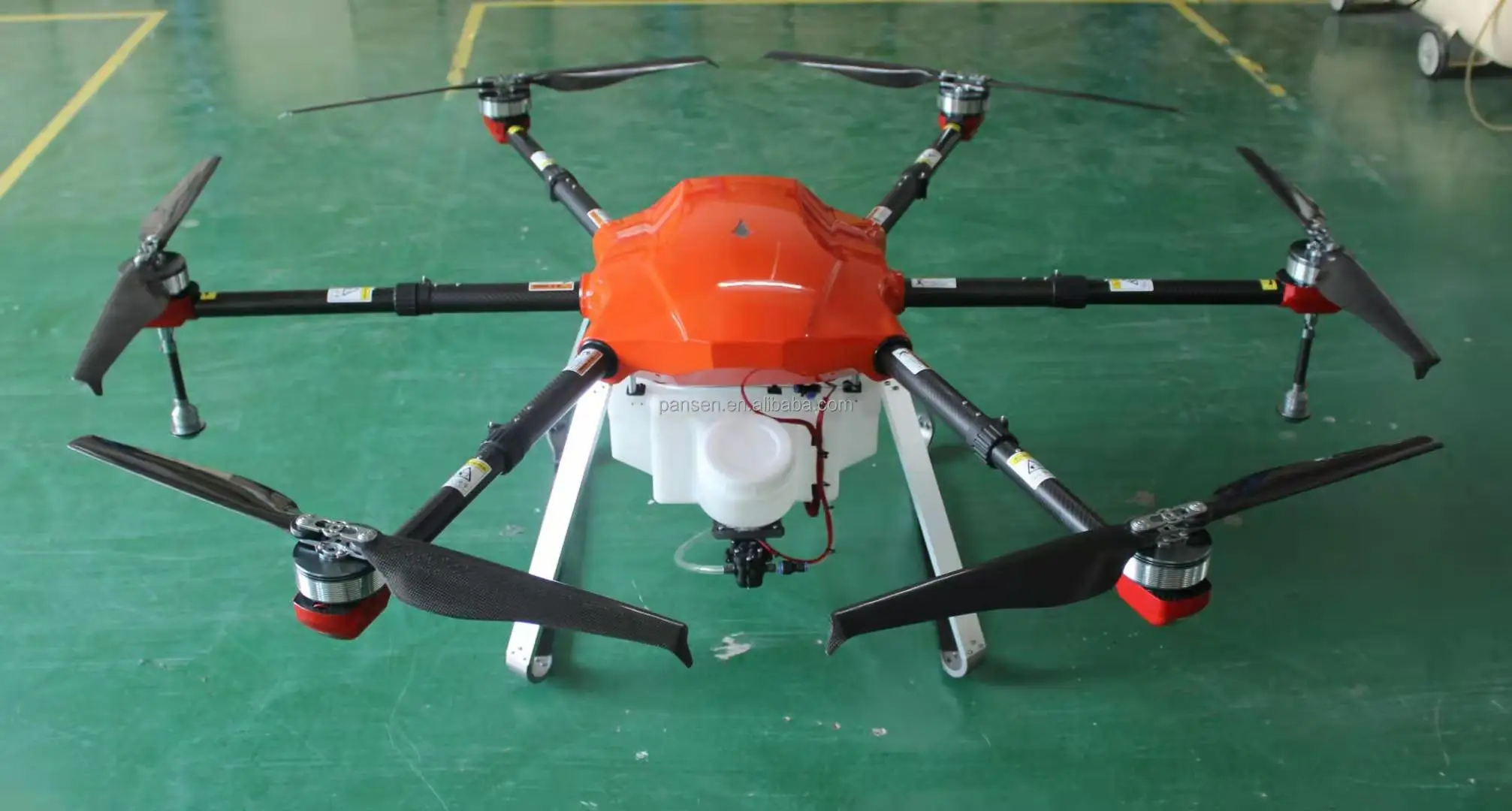

Show pictures
