Product Description
DJI 3.2 Highly productive basic Double Jersey
Product Feature
1.High performance:Openwidth speed factor up to 850（25rpm at 34”).
2.Self-made Take-down system.
3.Patterned double jersey frame system ,Higher fabric quality.
4.Three shafts transmission system.
5.Single adjusting key per feeder.
Product Advantages
1.Single adjusting key per feeder.
2.Three axis linkage transmission system, improve the reliability and durability of the transmission system, enhance the
stability of the machine and high speed dynamic accuracy of the machine.
3.The yard guide ring can be adjusted as a whole, and the yard guide can be adjusted separately.
4.The unique big tripod structure ensures the absolute engagement of the gears, and keeps the equipment stable and efficient.
5.Unique yarn feeding aluminum disc anti-slip setting, avoid parallel lines.
6.Independent patented take-down system.
7.Large pattern range with up to 4 needles tracks in cylinder cam and a wide gauge fabric.
8.Different frame types available for different production requirement.
2.Self-made Take-down system.
3.Patterned double jersey frame system ,Higher fabric quality.
4.Three shafts transmission system.
5.Single adjusting key per feeder.
Product Advantages
1.Single adjusting key per feeder.
2.Three axis linkage transmission system, improve the reliability and durability of the transmission system, enhance the
stability of the machine and high speed dynamic accuracy of the machine.
3.The yard guide ring can be adjusted as a whole, and the yard guide can be adjusted separately.
4.The unique big tripod structure ensures the absolute engagement of the gears, and keeps the equipment stable and efficient.
5.Unique yarn feeding aluminum disc anti-slip setting, avoid parallel lines.
6.Independent patented take-down system.
7.Large pattern range with up to 4 needles tracks in cylinder cam and a wide gauge fabric.
8.Different frame types available for different production requirement.
Type | DJI 3.2 |
Diameter [inch] | 30” - 40” |
No. Of feeders | 98F - 128F [3.2 feeds per inch ](Example :34” 108F) |
Speed factor [max] | 850(Example : 25rpm at 34”) |
Gauges [E] | 14GG-44GG |
Tubular frame | Open width frame | ||||
Standard tubular frame | Giant tubular frame | Standard Open width frame | Giant open width frame | ||
Frame for 550 mm fabric rolls | Frame for 680mm fabric rolls | Frame for 330mm fabric rolls | Frame for 680mm fabric rolls | ||

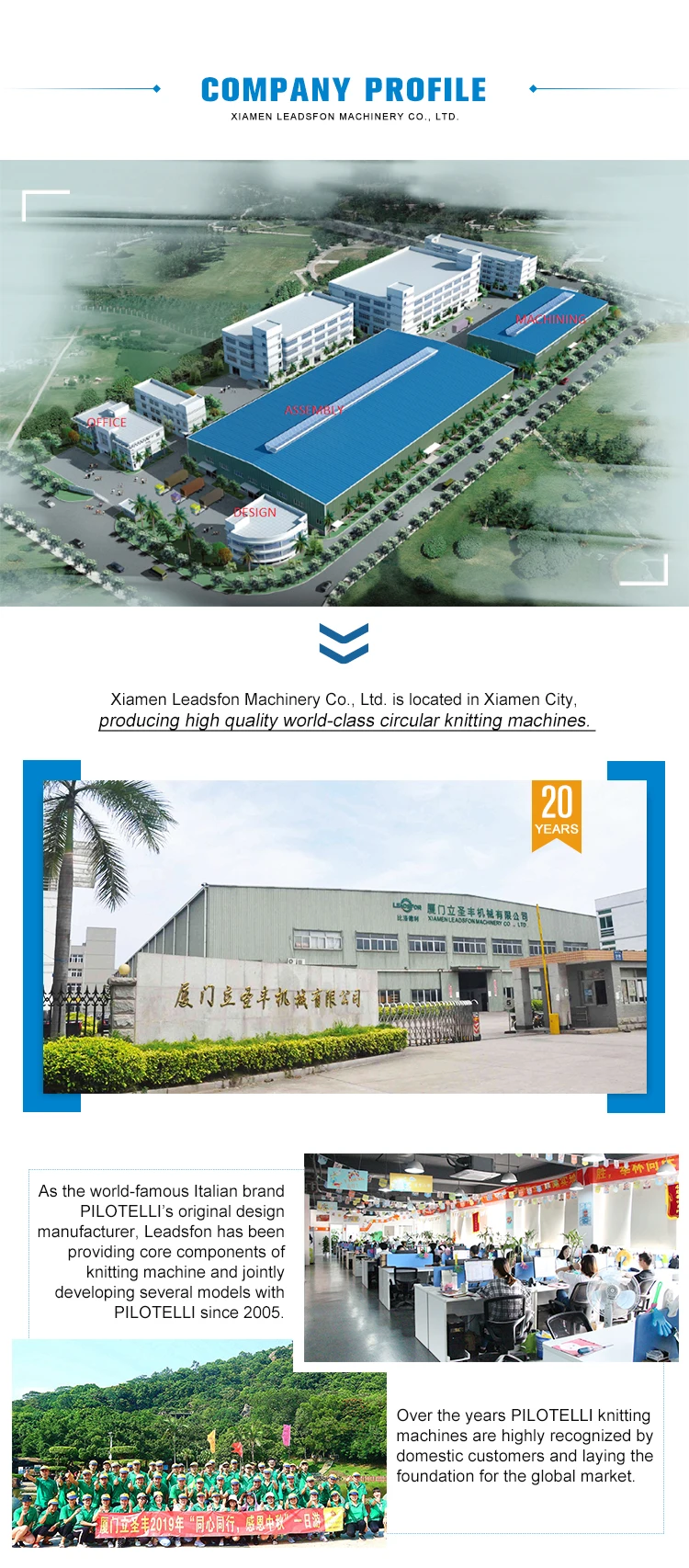

Company Profile
Certifications
Exhibition
Our Customers
FAQ
Q : Where are your factory locate in ?
A : Our company is located in XIAMEN city, FUJIAN province.
Q : Are all the main spare parts of machine are produced by your company ?
A : Yes, all the main spare parts are produced by our company with most advanced processing.
Q : Will your machine be tested and adjusted before the machine delivery ?
A : Yes, we will test and adjust the machine before delivery, also if customer have special fabric demand , we can knit and test it in the machine before machine delivery
Q : Do you have after sales service ?
A : Yes, We have excellent after-sales service, can give quick response, supporting in Chinese, English and Spanish . Video
support is available. We have training center in our factory.
Q : How long does the warranty last ?
A : We offer warranty for about one year after customer received our products.
Q : What are the main applications for the fabrics produced by your machines ?
A : Fabrics knitted by our machines mainly can be used for Garments, Home textile ( like bedding sheet , mattress fabric, carpet), Sports fabric ( like Yoga fabric, diving fabric, sportswear ), Shoe fabric and so on. Also for jacquard machine, the pattern are easily to make by computer without limitation so the fabric can be widely used .
A : Our company is located in XIAMEN city, FUJIAN province.
Q : Are all the main spare parts of machine are produced by your company ?
A : Yes, all the main spare parts are produced by our company with most advanced processing.
Q : Will your machine be tested and adjusted before the machine delivery ?
A : Yes, we will test and adjust the machine before delivery, also if customer have special fabric demand , we can knit and test it in the machine before machine delivery
Q : Do you have after sales service ?
A : Yes, We have excellent after-sales service, can give quick response, supporting in Chinese, English and Spanish . Video
support is available. We have training center in our factory.
Q : How long does the warranty last ?
A : We offer warranty for about one year after customer received our products.
Q : What are the main applications for the fabrics produced by your machines ?
A : Fabrics knitted by our machines mainly can be used for Garments, Home textile ( like bedding sheet , mattress fabric, carpet), Sports fabric ( like Yoga fabric, diving fabric, sportswear ), Shoe fabric and so on. Also for jacquard machine, the pattern are easily to make by computer without limitation so the fabric can be widely used .
