Электродвигатель для сварки с подачей проволоки 24 В высоким крутящим моментом аппарат подачи Mig
- Категории: Other Welding & Soldering Supplies >>>
- Поставщик: Guangzhou,Huiyun,Science,&,Technology,Co.,Ltd.Guangzhou,Ltd.
Поделиться:
Описание и отзывы
Характеристики

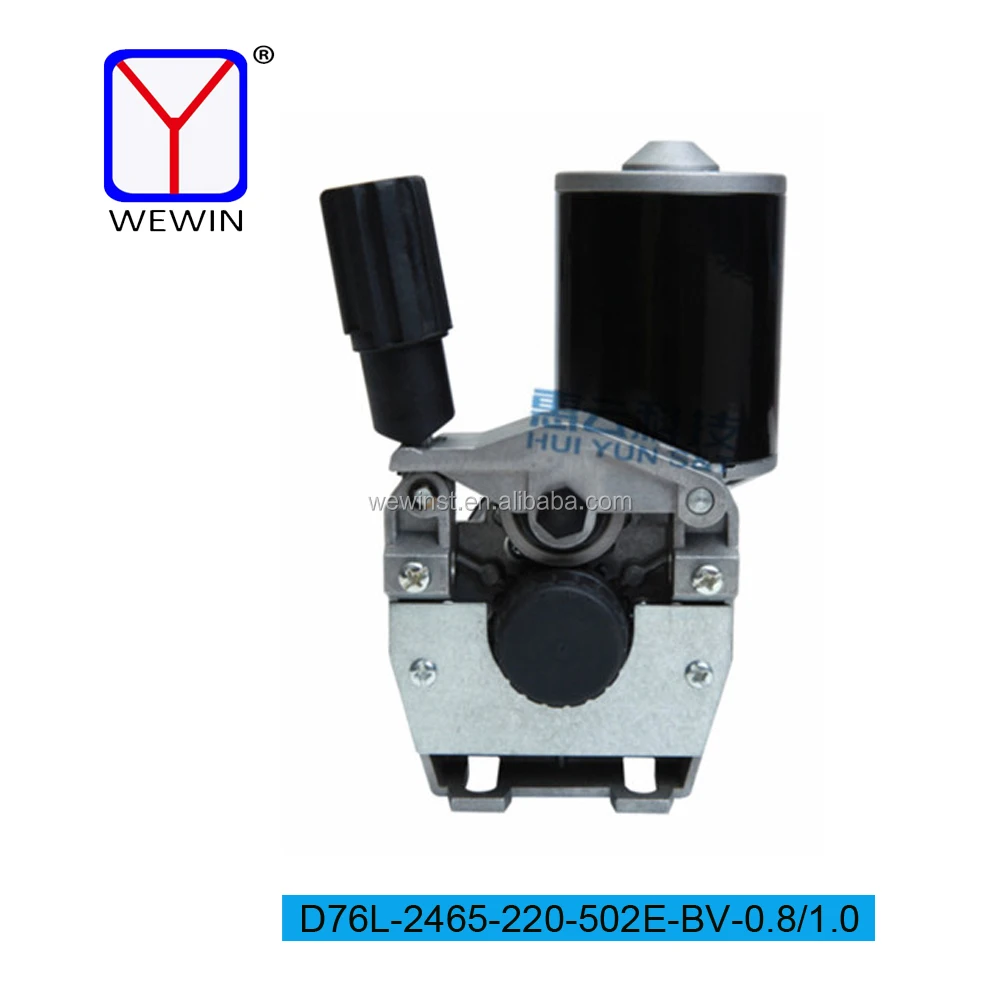

Product show

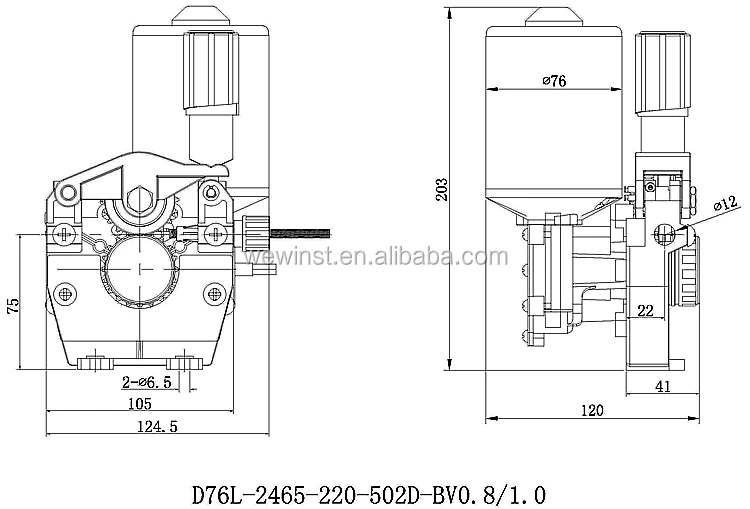

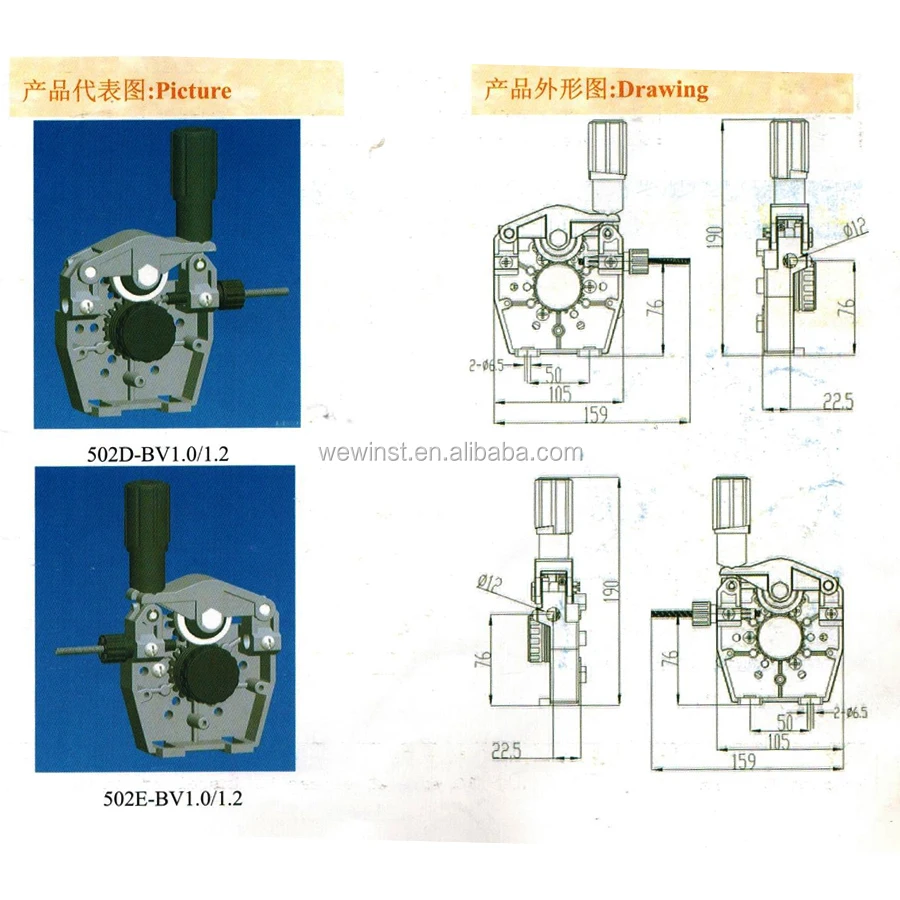

Drawing

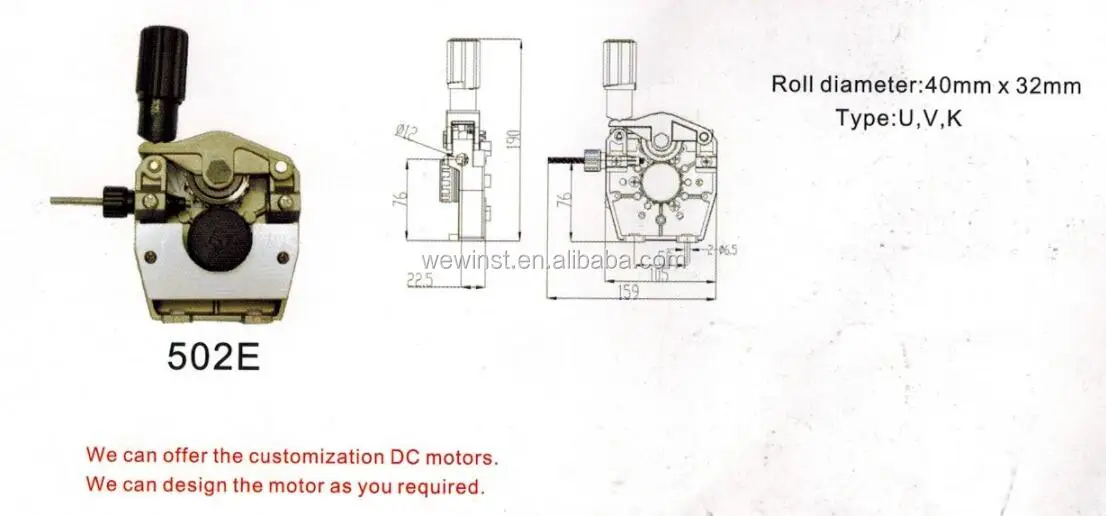

50 Wire feeder frame (Aluminium casting feed frame)
Product Features
(1) This wire feeder use our own designed motor which is special for welding machine with a gear ratio is 20/1,it works at low noise and high torgue.
(2) The standard motor for this kinds wire feeder is 95w ,220RPM, also you can ask the 65w ,220RPM motor.
(3) The roll also can use the 40mm*32mm rolls,motor can be fixed encoder and hall-sensor and opto-switch.
(4) It can be used for the welding machine which the welding current isless than 500A,the welding machine can work at spot weld and continue weld.
| Motor type: | D76L |
| Motor voltage: | DC24V |
| Motor output power: | 65W |
| Noload speed: | 220rpm |
| Noload current: | 1.5A |
| Stall torque: | 20N.M |
| Stall current: | 18A |
| Wire feeder fram type: | 502E |
| Wire feeder roll size: | 40mm*32mm |
| Apply for wire roll weight: | 15kg, 5kg |
| Feed wire diameter: | 0.6mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm |
| Maximum feed speed: | 26m/min |
| Minimum stable operating voltage under rated load: | DC4.5V |
Product code introduction
How to distinguish the type of feed frame?
For example: P502E-BV-0.8/1.0
P means plastic feed frame, casting feed frame without “P”.
502 is the code for wire feed frame. We have 20 401 402 404 501 504 P504 series.
D is the position of handle (looked from the positive direction),“D”is the righ handle, “E”is the left handle.
B is the diameter of roll, Unit:mm. “A”means the roll diameter is φ30,“B”means the roll diameter is φ40.
V is the type of roll,we have V, U, K, three type. “V”fit to steel wire,“U”fit to fluxcore wire and “K”fit to aluminium wire.
0.8/1.0 is the trough dimension of roll, unit:mm,the figure same as the welding machine diameter.We can change it for you.
The feed-roll dimension can change it for your welding wire size. Our Standard feed-roll size: 0.6/0.8,0.8/0.9,0.8/1.0,1.0/1.2, 1.2/1.6,1.6/2.0,2.0/2.4.

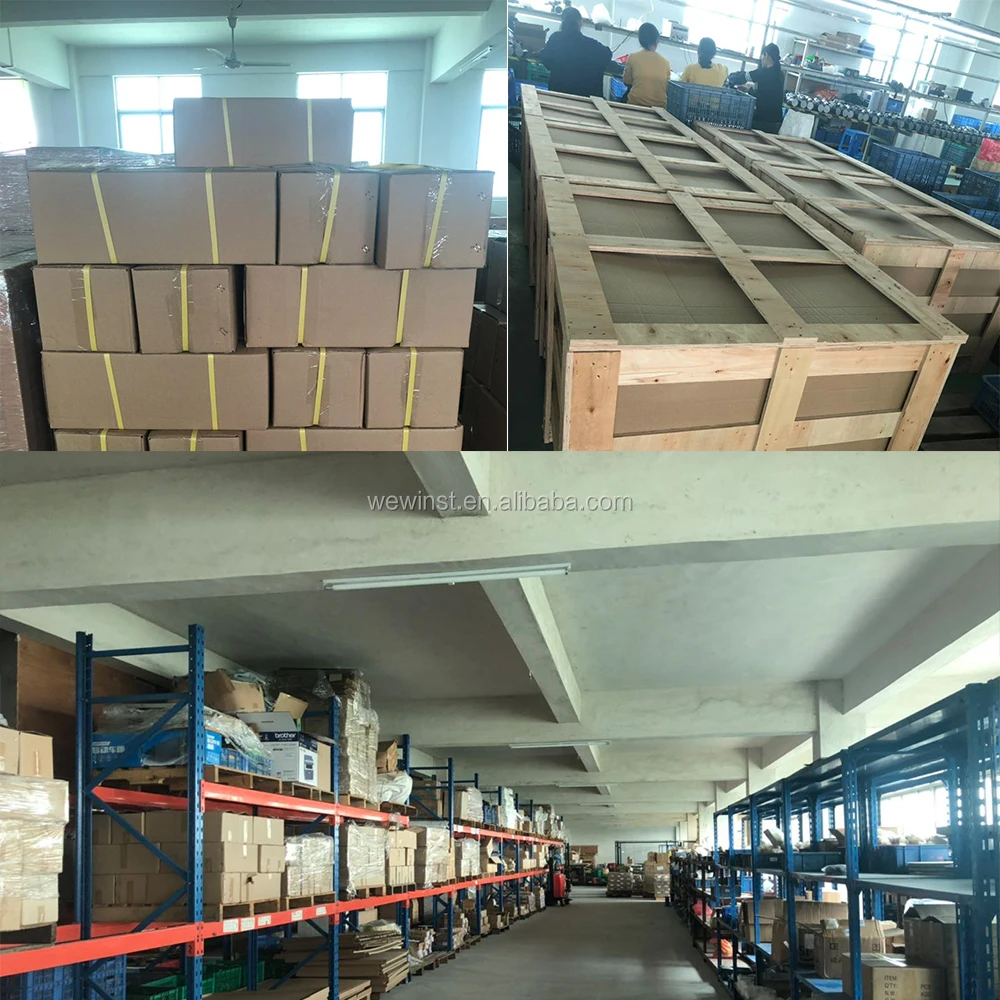

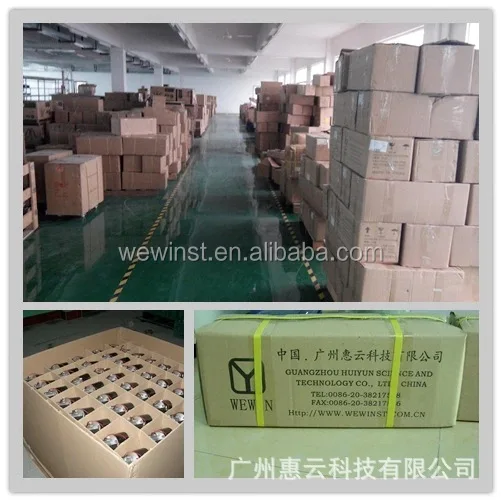

Packaging&Shipping

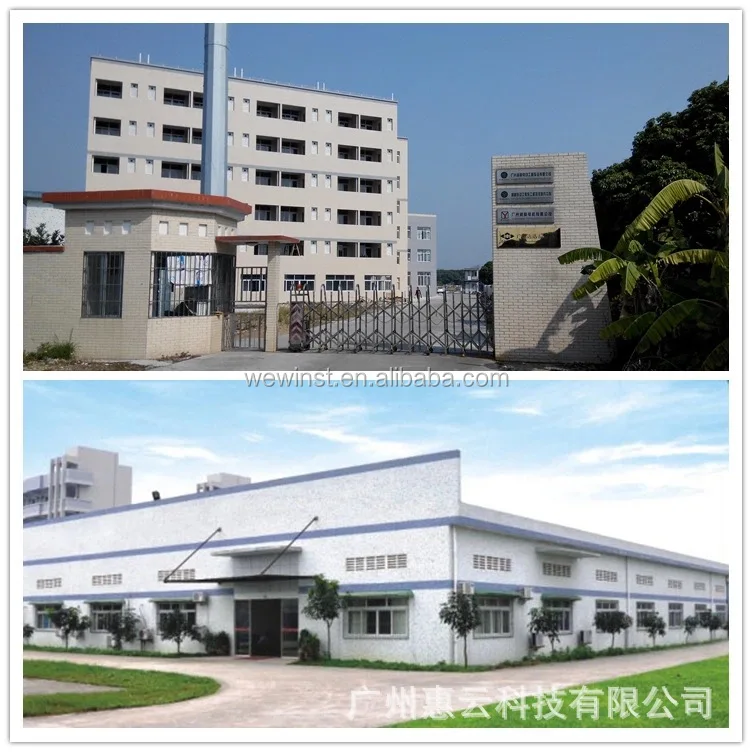

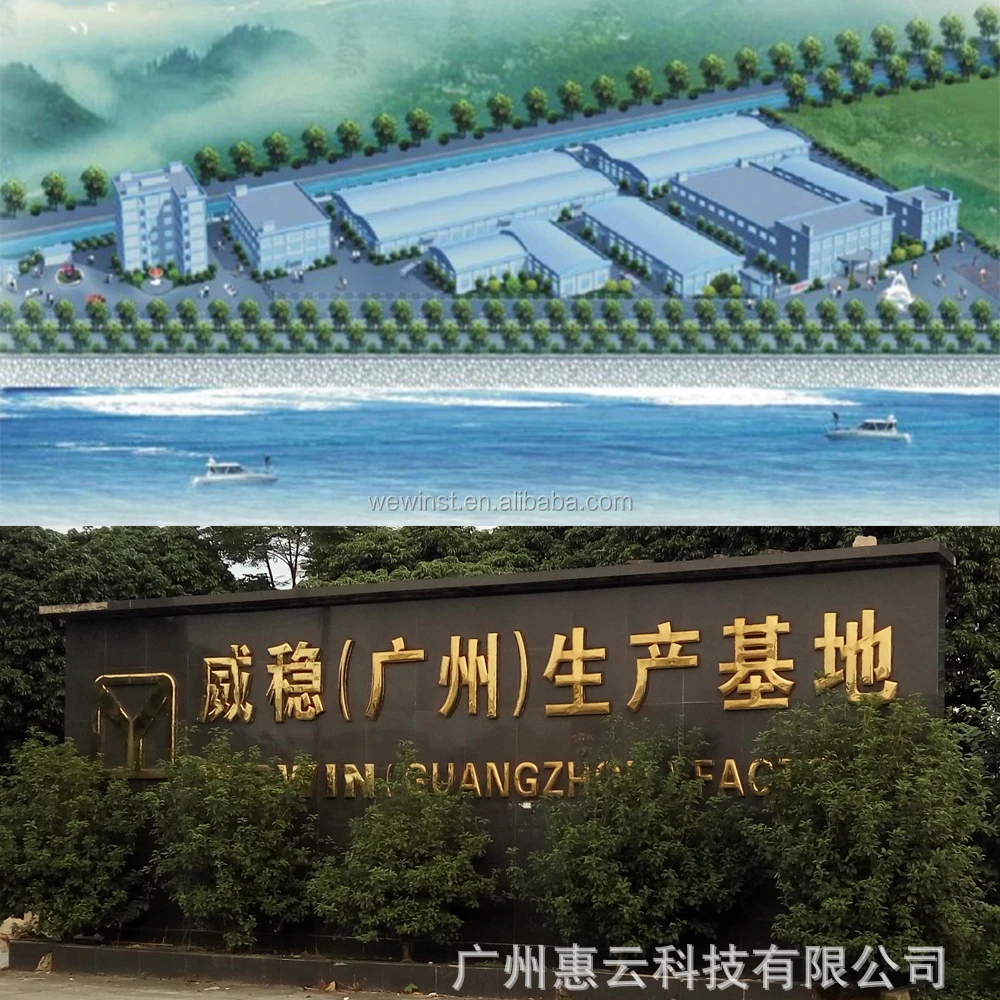

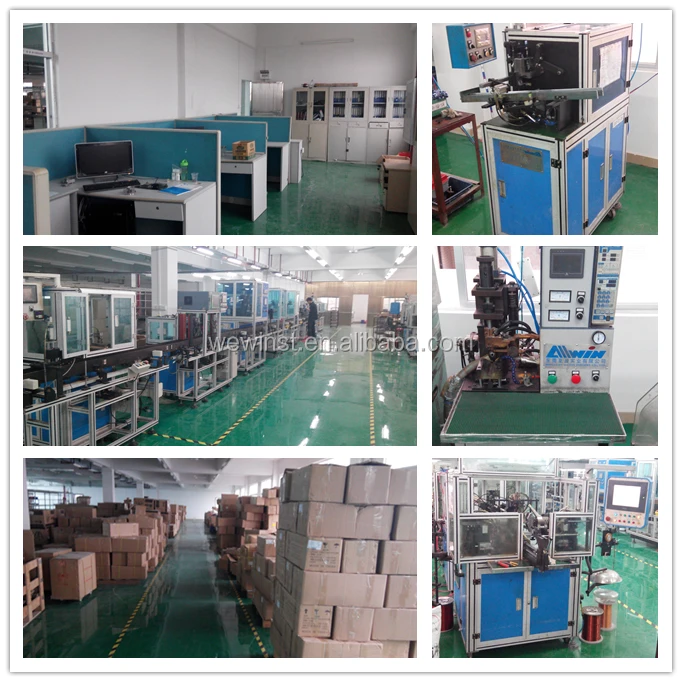

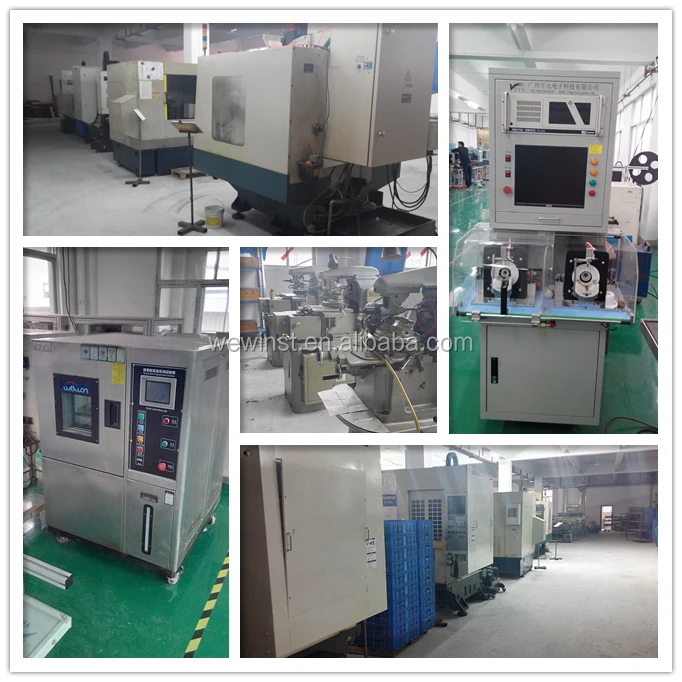

Production line
The 19th Beijing ESSEN Welding and Cutting Fair
Certificate
