Символ питания 5Pin 1NO1NC полностью подсвеченная высокая круглая головка 24 вольт Светодиодная Кнопка 19 мм Переключатель
- Категории: Push Button Switches >>>
- Поставщик: Jiangxi,Shuangdu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Power Symbol 5Pin 1NO1NC Full Illuminated High Round Head 24 Volt Led Push Button 19MM Switch Unlocked
Description:Great for electron magnetic Starter, relay, Horn Button Switch,
PC Power Switch or any circuit controls on over 500,000 cycles.
High quality metal material & IP65/IP67 waterproof protection can be used in wet or dusty environment.
Specification:
Mounting Hole Size: Φ19mm
Switch Rating: 3A to 5A/250V AC
Switch Combination : 1NO normally open (1NO1NC optional or 2NO2NC optional)

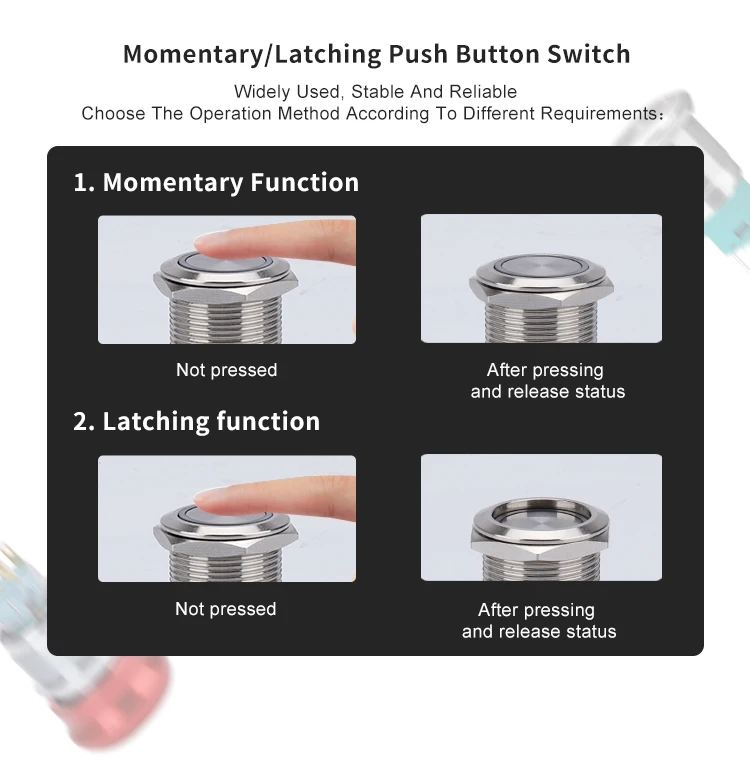

Operated function: Momentary/ Latching
Head type: Domed /High rise/ Flat Head
Enclosure Material: Nickel Plated Brass/ Stainless Steel /Aluminum oxide
Degree of Protection: IP67, IK08
Wire Connector:
Some types are With the wire connector, you don't need to solder the terminals, make installing very easy, Saves the issue of soldering to the switch, and possibly melting it as well, You can replace the switch anytime by just unplugging the switch from its socket
Note:
-These switches come with a rubber O-ring which makes them splash resistant
but they can NOT be submerged underwater
Product Paramenters
Model Specification | ||
Product name | Waterproof Push Button Switch | |
Mounting diameter | 19mm led button, 12V 19mm button switch | |
Head shape | High Round Head | |
Switch Combination | 1NO1NC / 2NO2NC / 2NO | |
Operation type | Momentary / Latching | |
Rated Current | 3A/5A | |
Illuminating type | illuminated | |
Common housing color | Silver | |
Voltage Available | 3V/5V/12V/24V/36V/110V/220V/250V | |
Housing material | Brass nickel,Stainless steel,aluminum oxide | |
Contact Resistance | 50mΩ max | |
Insulation Resistance | 1000MΩ Min | |
Dielectric Intensity | 2000VAC | |
Accessories | Nut, Rubber Waterproof O-ring | |

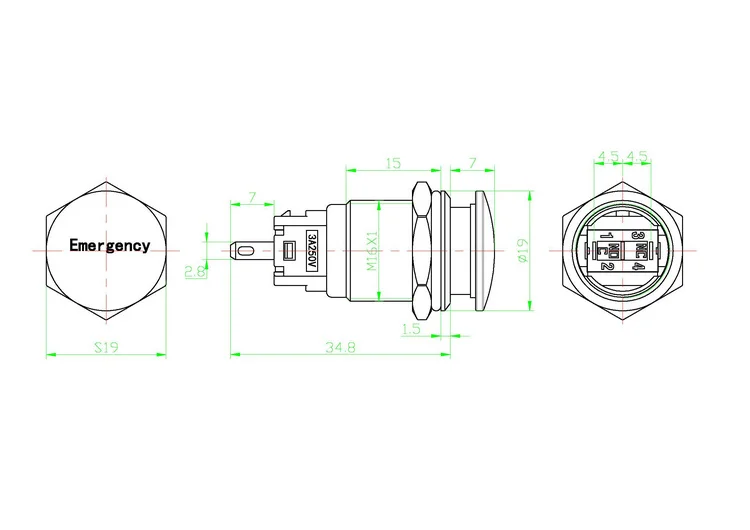

Details Images
Company Profile
Product packaging
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? push button Switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? 19mm switch, IP65 reset switch, 19mm led button, 12V 19mm button switch
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? 12V LED switch
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? push button Switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? 19mm switch, IP65 reset switch, 19mm led button, 12V 19mm button switch
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? 12V LED switch
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
