6 лопастей 12 футов малошумный воздушный охладитель большие промышленные экстракторы HVLS
- Категории: Other Ventilation Fans >>>
- Поставщик: Guangzhou,Hengda,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

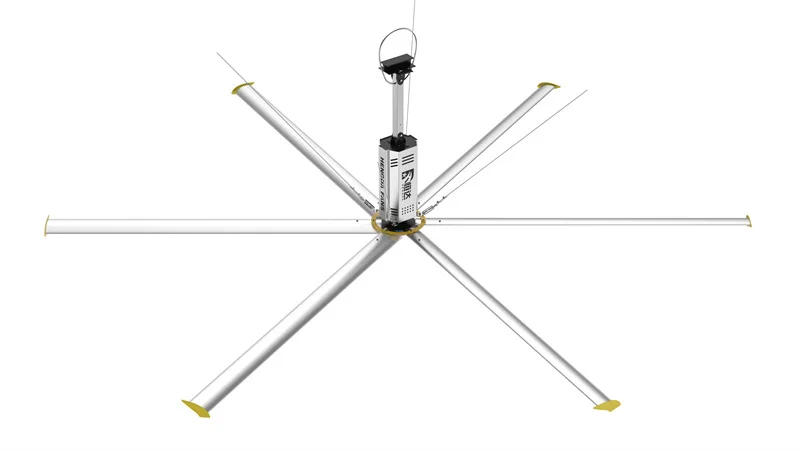

Product Overview
A high-volume low-speed (HVLS) fan is a type of mechanical fan greater than 6 feet (2.0 m) in diameter. HVLS fans are generally
ceiling fans although some are pole mounted. HVLS fans move slowly and distribute large amounts of air at low rotational speed–
hence the name "high volume, low speed."
This variety of fan is almost always installed in large indoor spaces with high ceilings, and is used very often in industrial,
commercial, or agricultural spaces. Fans installed in spaces like warehouses, barns, hangars and distribution centers can prevent
heat stress, increase worker comfort and the productivity of both workers and livestock. HVLS fans are also used in commercial
spaces, where air conditioning is more common, but increased air movement from ceiling fans can cost-effectively augment occupant
comfort or prevent stratification. Typical commercial applications include shopping malls, churches, office buildings, airport
terminal buildings, fitness centers and schools.
HVLS fans are incredibly versatile, environmentally friendly, and can save you money by lowering operating expenses. HVLS Fans can
even contribute to increased worker productivity!
ceiling fans although some are pole mounted. HVLS fans move slowly and distribute large amounts of air at low rotational speed–
hence the name "high volume, low speed."
This variety of fan is almost always installed in large indoor spaces with high ceilings, and is used very often in industrial,
commercial, or agricultural spaces. Fans installed in spaces like warehouses, barns, hangars and distribution centers can prevent
heat stress, increase worker comfort and the productivity of both workers and livestock. HVLS fans are also used in commercial
spaces, where air conditioning is more common, but increased air movement from ceiling fans can cost-effectively augment occupant
comfort or prevent stratification. Typical commercial applications include shopping malls, churches, office buildings, airport
terminal buildings, fitness centers and schools.
HVLS fans are incredibly versatile, environmentally friendly, and can save you money by lowering operating expenses. HVLS Fans can
even contribute to increased worker productivity!
PRODUCT CONFIGURATION
Case Video
PRODUCT SPECIFICATIONS
Model No | Diameter | DIAMETER | Blade Number | Power | Max speed | Weight | Air Volume |
HD-7300 | 24FT | 7300MM | /6/8/10 | 1.5KW | 20-55RPM | 140KG | 1200m2 |
HD-6100 | 21FT | 6100MM | /6/8/10 | 1.5KW | 20-55RPM | 130KG | 1000m2 |
HD-5500 | 18FT | 5500MM | /6/8/10 | 1.5KW | 20-55RPM | 125KG | 800m2 |
HD-4900 | 16FT | 4900MM | /6/8/10 | 1.1KW | 20-72RPM | 120KG | 500m2 |
HD-3600 | 12FT | 3600MM | /6/8/10 | 1.1KW | 20-72RPM | 110KG | 300m2 |
HD-2500 | 8FT | 2500MM | /6/8/10 | 0.75KW | 20-100RPM | 85KG | 150m2 |
Successful Project
Project in Thailand
Project in India
Project in Russia
Company Profile
Company Profile
Hengda Technology Co., Ltd. is a ventilation and cooling solution technology company integrating product development, production, sales and installation. The company has 16 years of industry experience. With many years of service experience, it focuses on animal husbandry, flower greenhouses, tall spaces, and workshops. One-stop service provider for solving ventilation and cooling.

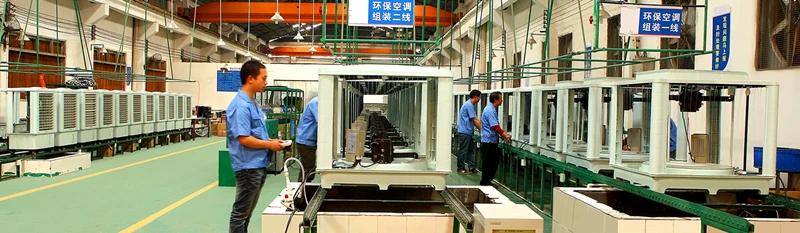

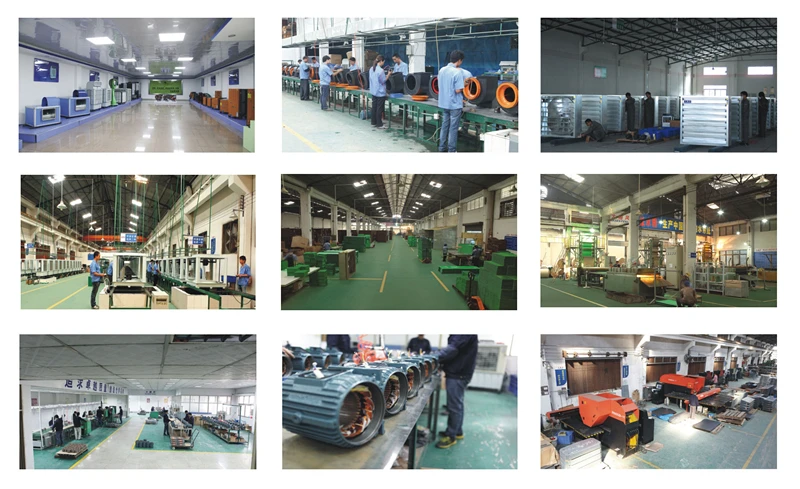

Semi-automated production workshop
Over the years, it has provided professional and efficient one-stop service for low-carbon ventilation and cooling projects for a large number of enterprise users in various industries, including the Fortune 500, and contributed Hengshuangda's own strength to global enterprises to participate in energy conservation and emission reduction.
FAQ
1.What's the main benefits of this HVLS fan?
a.three-dimensional natural breeze with speed 1--3m/s,which improve employees comfort obviously;
b.energy saving, the most economical start up and operating cost available;
c.the coverage of a OPEN SERIES fan with diameter 7.3m(24ft) equals to that of 50 sets small sized 0.75m(2.5ft) fan.
2.Which kind of building is suitable to install this HVLS fan?
There are no special requirements for the installation site neither, such as factory workshop, warehouse, commercial center, train station, bus station, exhibition hall,stock farm,all these places can install our industrial fans with voltage 220V or 380V available.
As long as the plant height of 5.5 meters, regardless of plant structure is steel structure, concrete structure, spherical grid structure or other complex structure,our industrial fans can be installed;
3.Is OEM&ODM service available for you?
Yes.
We have professional R&D team to satisfy your OEM&ODM requirements.
4.What's the warranty time of your HVLS fan?
We provide the quality certification, user manual, packing list, quality feedback card.
All the components is 3 years warranty,fans hub and blades is lifetime warranty.
5.What's the delivery time of your HVLS fan?
5--7 days if the order is less than 30 sets.
a.three-dimensional natural breeze with speed 1--3m/s,which improve employees comfort obviously;
b.energy saving, the most economical start up and operating cost available;
c.the coverage of a OPEN SERIES fan with diameter 7.3m(24ft) equals to that of 50 sets small sized 0.75m(2.5ft) fan.
2.Which kind of building is suitable to install this HVLS fan?
There are no special requirements for the installation site neither, such as factory workshop, warehouse, commercial center, train station, bus station, exhibition hall,stock farm,all these places can install our industrial fans with voltage 220V or 380V available.
As long as the plant height of 5.5 meters, regardless of plant structure is steel structure, concrete structure, spherical grid structure or other complex structure,our industrial fans can be installed;
3.Is OEM&ODM service available for you?
Yes.
We have professional R&D team to satisfy your OEM&ODM requirements.
4.What's the warranty time of your HVLS fan?
We provide the quality certification, user manual, packing list, quality feedback card.
All the components is 3 years warranty,fans hub and blades is lifetime warranty.
5.What's the delivery time of your HVLS fan?
5--7 days if the order is less than 30 sets.
