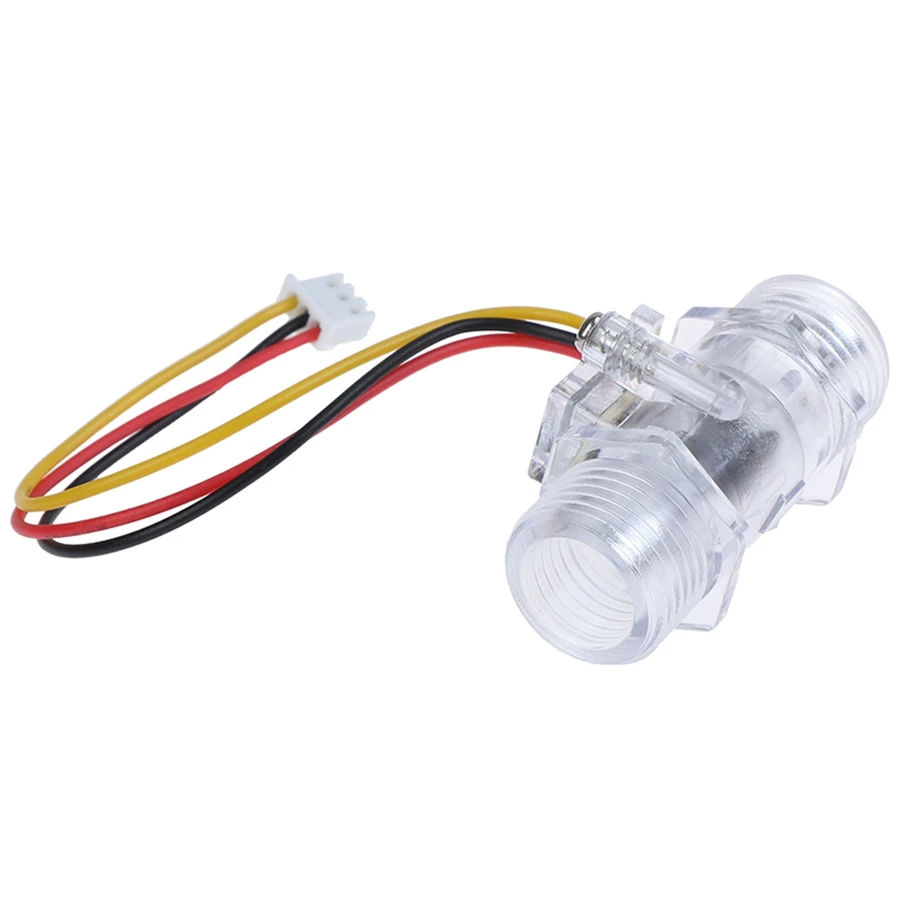

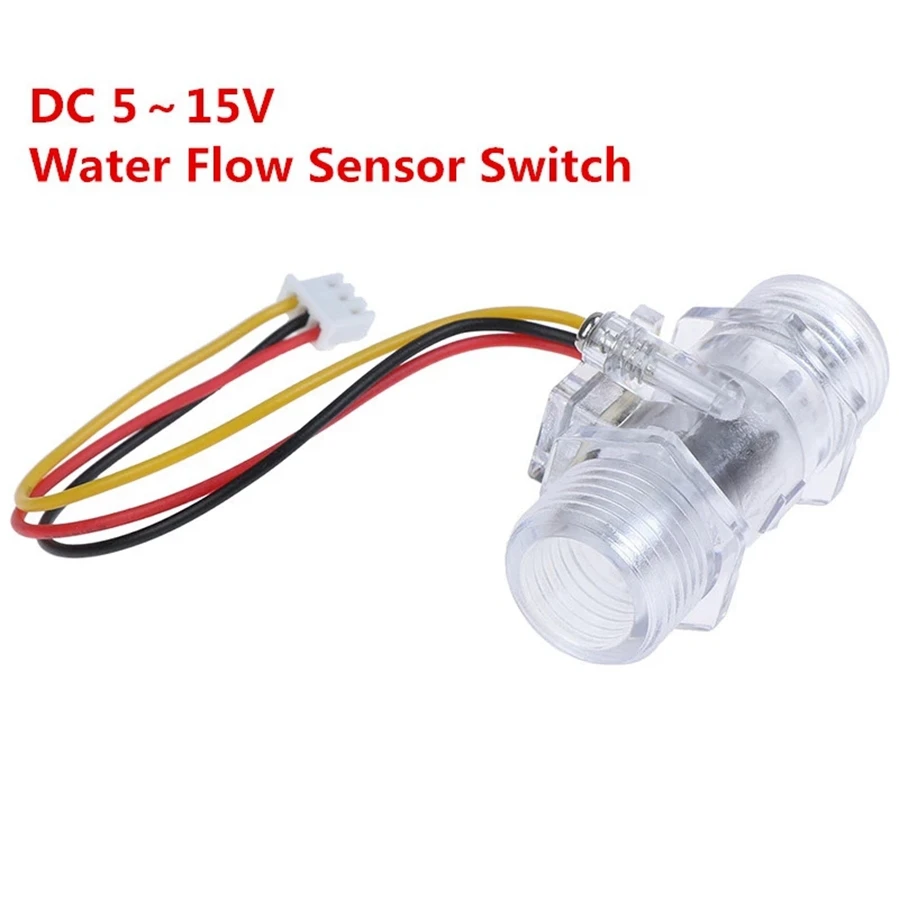

Переключатель с датчиком расхода воды G1/2 дюйма прозрачный корпус для водонагревателей 5-15 В постоянного

Feature:

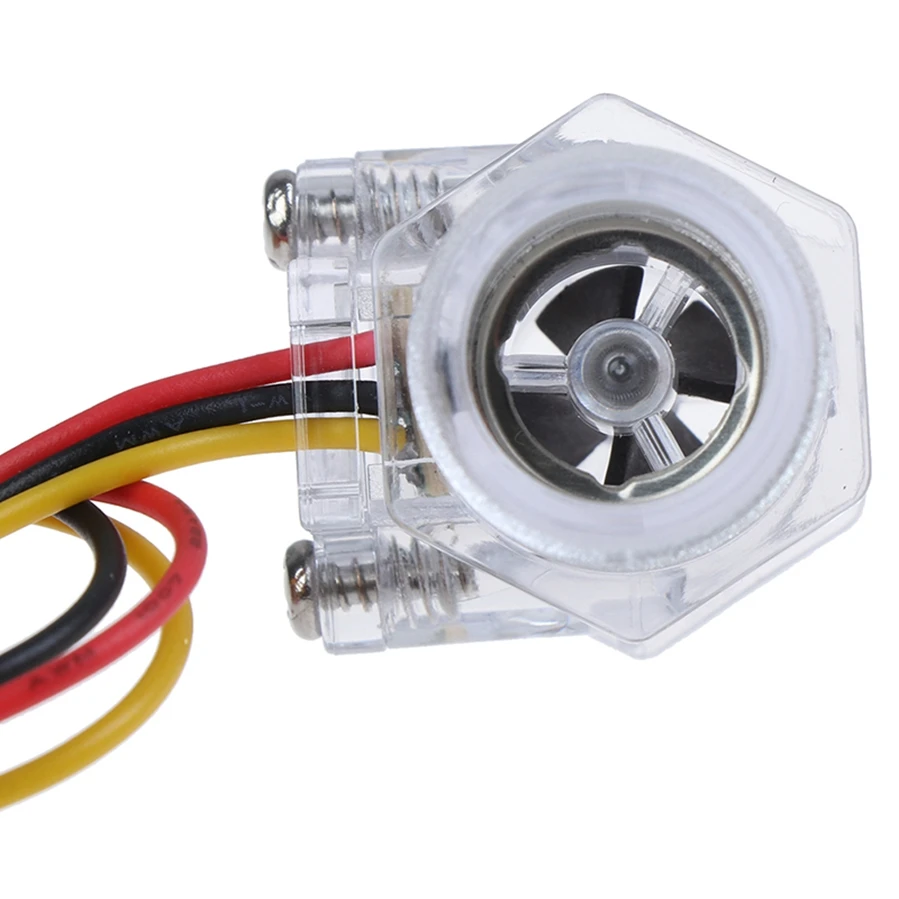

Water flow sensor is mainly consists of plastic valve body, rotor assembly and Hall Current Sensor
Can use for Water heaters, credit card machines, water vending machine, flow measurement device.
Inlaid with stainless steel impeller shaft, durable wearable
Seal Ring with the upper and lower force structure never leaks
Mounted vertically, should not exceed 5 degrees inclination.Temperature of Medium should not exceed 120°C

Specification:
Material: Plastic / monocrystalline
Color: Transparent
Working voltage: DC 5~15V
Maximum operating current: 15 mA (DC 5V).
Working voltage range: DC 5~15 v.
Load capacity: ≤ 10 mA (DC 5V).
Work temperature: ≤ 80°C
Work humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 1.75Mpa
Storage temperature: -25~+80 ° c
Save humidity: 25%-95%RH
Flow Range: 1-30L/min
Insulation resistance:> 100MΩ
Accuracy (in 1 ~ 30L MIN): ± 10%
Flow pulse characteristics (5xQ): Q = L / Min ± 3%
Output pulse duty cycle: 50% ± 10%
External threads: Approx. 1/2"
Interface Type:1/2"(1/2" Tubing)
Dimension:54 x 29mm/2.13 x 1.14"(L x W)

Package includes:
1 Pc x Water Flow Sensor Switch
