Product Overview

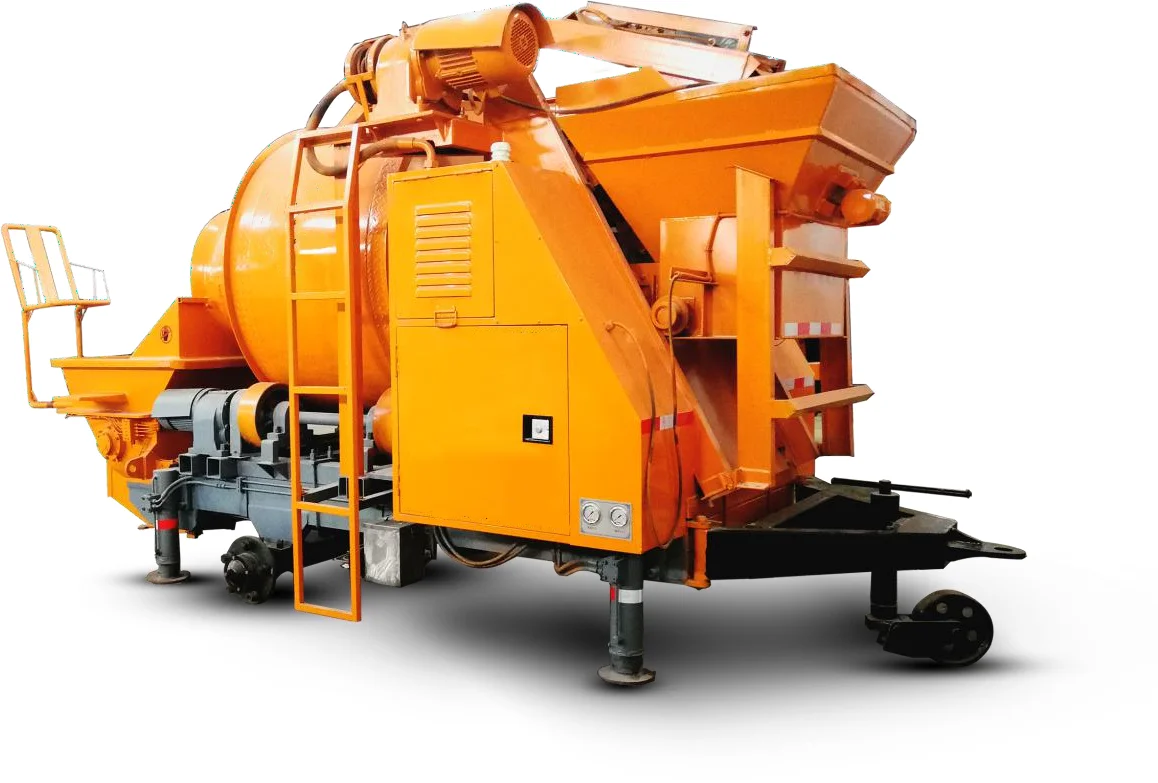

Diesel engine mixer concrete mixer with pump
Mixing and pumping of the perfect combination, to save weight and transportation space frame.
Feature
1.high work efficiency.
2. Save labor costs, reduce labor intensity.
3. Smaller power, consider the carrying capacity of rural power grid.
4. Simple operation, easy to use.
5. Double cylinder hydraulic pumping system, capable of delivering crushed stone concrete, stable performance, safe and reliable.
6. Long distance delivery.
2. Save labor costs, reduce labor intensity.
3. Smaller power, consider the carrying capacity of rural power grid.
4. Simple operation, easy to use.
5. Double cylinder hydraulic pumping system, capable of delivering crushed stone concrete, stable performance, safe and reliable.
6. Long distance delivery.
ITEM | UNIT | HBTS40-13-78R |
Concrete Output | m³/h | 40 |
Conveying Distance (Horizontal Distance/Vertical Height) | m | 500/150 |
Distribution valve | S pipe | |
Maximum aggregate size | mm | 30 |
Concrete slump range | mm | 100～200 |
Concrete Cylinder Diameter | mm | φ180×1000 |
Mixing capacity | L | 600 |
Discharge capacity | L | 450 |
Hopper Capacity/ Filling Height | m³/mm | 0.4/1400 |
Pumping pressure | mpa | 23 |
Hopper mixing working pressure | mpa | 14 |
Fuel tank capacity | L | 150 |
Size | mm | 5500×1900×2420 |
