Product Overview




Eloong Heat Resistance Ceramic Structured Tower Packing Ceramic Corrugated-Plate Packing
Ceramic structured packing has similar structure with grid structured packing, which is composed of several smooth surface
corrugated sheets in 60° or 45°. The angle of inclination of the corrugations of adjacent sheets is reversed with respect to the
vertical column axis, forming mixing cells at every point where the corrugation intersect.

This promotes intimate mixing and radial distribution of the liquid and gas streams. Each subsequent element is rotated about thecolumn axis so that the sheets of one element are opposed to the sheets of the elements above and below. In passing through each element, gas and liquid are thoroughly mixed in the direction parallel to the plane of the sheets. By rotating subsequent elements, excellent mixing and spreading, both side to side and front to back are obtained over the entire cross section of the tower.

Ceramic structured packing Features:
1. High liquid & vapor loading, Column diameter could be designed smaller for new equipment and capacity could be increased
dramatically for existing column revamp.
2. High resistance to nearly all mineral and organic acids and derivatives, partly resistant to alkalis.
3. High mass-transfer efficiency. Much higher specific surface area than random packing.
4. Low pressure drop, considerable energy savings.
5. Wide turn down ratio. Easy to scale up.
6. Suitable for all sizes of column.

Application:
Not only widely used in coal gas washing tower, fertilizer heat gas saturation tower, naphthalene washing tower, ammonia washing tower, but also as the support for heat exchange machine , catalyst, and suit for a big tower rebuilding/revamp..




Physical Property
Item
Unit
Value
Specific gravity
g/cm3
2.5
Water absorption
wt%
≤0.5
Acid resistance
wt%
≥99.5
Loss in burn
wt%
≤5.0
Max. operating Temp.
°c
800
Crush strength
MPa
≥130
Moh’s Hardness
Scale
≥7


Spec.
Specific surface(m2/m3)
Bulk density (kg/m3)
Void ratio(%)
Obl. angle
Pressure drop (mmHg/m)
Theo. plate(m-1)
Hydraulic diameter (mm)
Liquid load (m3/m2h)
Max. Factorm/s (Kg/m3)-1
125Y
125
320
90
45°
1.8
1.8
28
0.2-100
3
160Y
160
370
85
45°
2
2
15
0.2-100
2.8
250Y
250
420
80
45°
2
2.5
12
0.2-100
2.6
350Y
350
470
78
45°
2.5
2.8
10
0.2-100
2.5
400Y
400
500
75
45°
3
3
8
0.2-100
2
450Y
450
520
72
45°
4
4
7
0.2-100
1.8
550Y
550
620
74
45°
5.5
5-6
6
0.18-100
1.4
700Y
700
650
72
45°
6
7
5
0.15-100
1.3
100X
100
280
92
30°
1.5
1
30
0.2-100
3.5
125X
125
300
90
30°
1.8
1.5
28
0.2-100
3.2
160X
160
350
85
30°
2
1.8
15
0.2-100
3
250X
250
380
80
30°
2.5
2.3
12
0.2-100
2.8
350X
350
450
78
30°
3
2.5
10
0.2-100
2.6
400X
400
480
75
30°
4
2.8
8
0.2-100
2.2
450X
450
500
72
30°
4.5
3-4
7
0.2-100
2
470X
470
440
75
30°
5
5
7
0.2-100
1.8
550X
550
620
74
30°
5.5
5-6
6
0.18-100
1.4
700X
700
650
72
30°
6
7
5
0.15-100
1.3

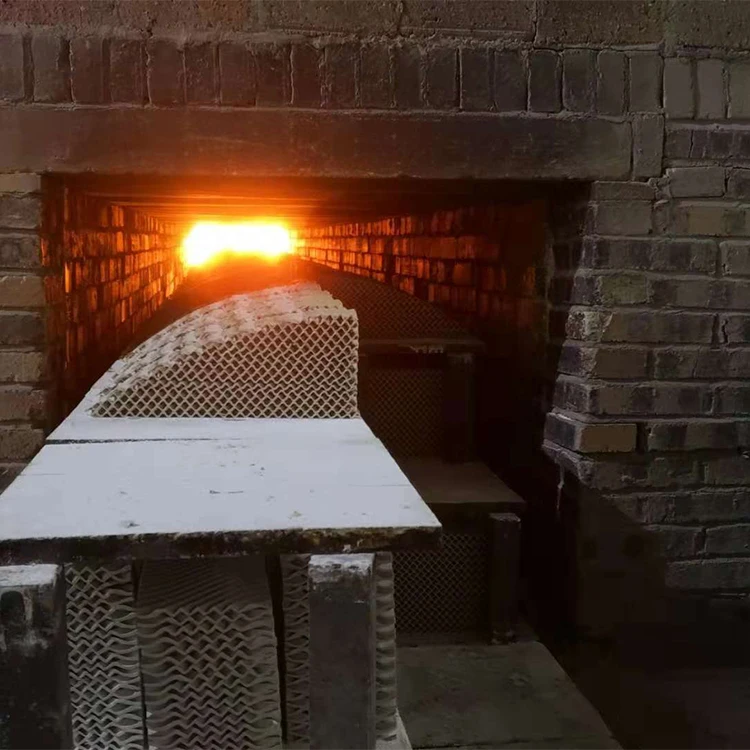

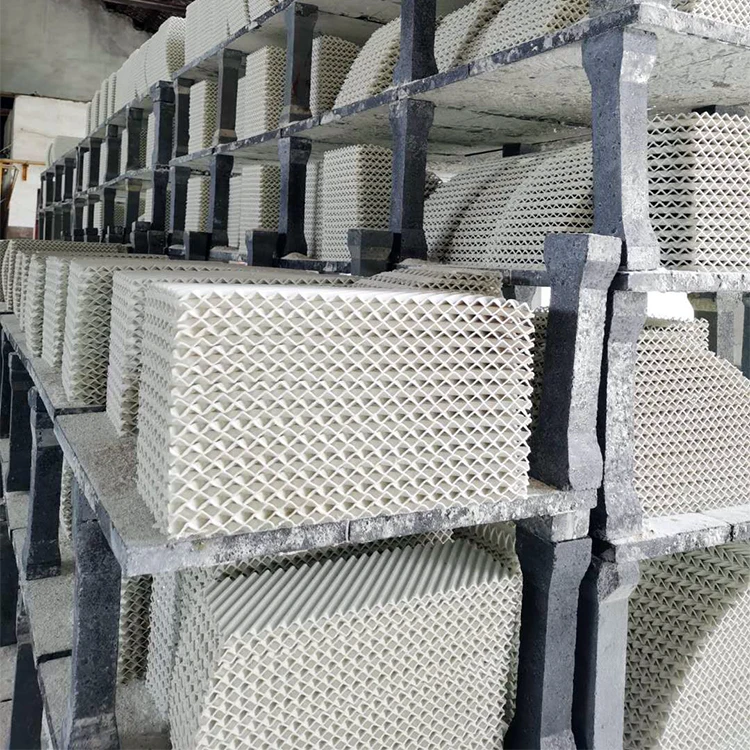

Our workshop


Plastic Random Packing Workshop

Tower internals workshop

Precision mold workshop



Intelligent Stereoscopic warehouse

Metal Random packing Workshop

Metal structured Packing Workshop



Certifications




Customer Photos




Why Choose Us




Product packaging




SIMILAR PRODUCTS


Metal Pall ring
Metal Corrugated-plate Packing
Plastic Teller Rosette Ring


FAQ


Q1：What's the MOQ?
A1 : The MOQ is 1 cubic meter or 1 ton, The price will be higher if the quantity is less than 1 cubic meter or 1 ton.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
