Product Description


Product Application

The China automatic PP plate filter press for sale  is widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food ,pharmacy,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.


Chemicals: dyes, pigments, titanium dioxide, manganese, caustic soda, soda ash, chlor-alkali salt mud, white carbon black, saponin, graphite, bleach, Synaptic powder phosphor, sodium hydrosulfite, potassium chlorate, sulfuric acid

Medicine: antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu Midecamycin, tetracycline, berberine, oxytetracycline), calcium phytate, traditional Chinese medicine inositol, growth derived sand, organic phosphorus glucoamylase.

Food: rice wine, white wine, fruit juice, beverage, beer, yeast, citric acid, vegetable protein, plant density sweetener, glucose, stevioside, malt sugar, starch, rice flour, corn syrup, gum, carrageenan, monosodium glutamate, spices, sauce, liquid, oral liquid, soy milk, seaweed.

Metallurgy: gold, silver, copper, iron ore, rare earth powder, not to send mine.

Refining: white oil, sesame oil, light oil, glycerin, mechanical oil, vegetable oil.

Of clay: kaolin, Run land, activated earth, china clay, ceramic soil.

Sewage treatment: Chemical sewage, smelting wastewater, plating wastewater, leather waste, printing and dyeing wastewater brewing wastewater, pharmaceutical wastewater, environmental sewage, etc

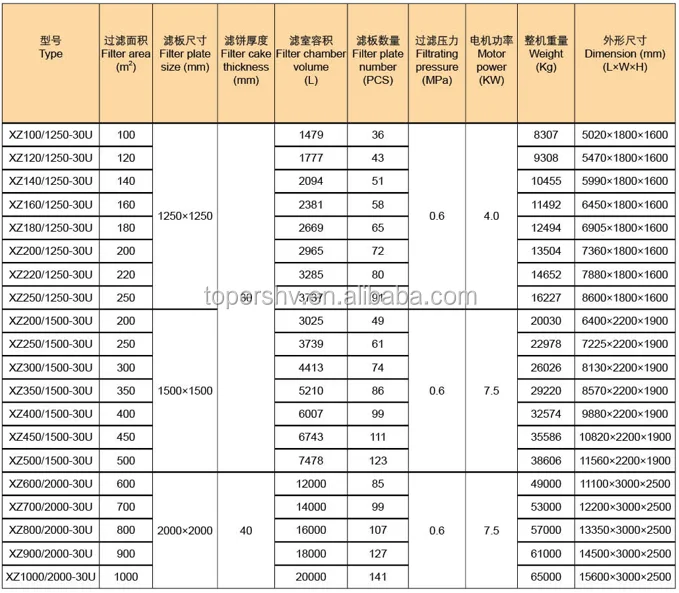

Technical data of the filter press

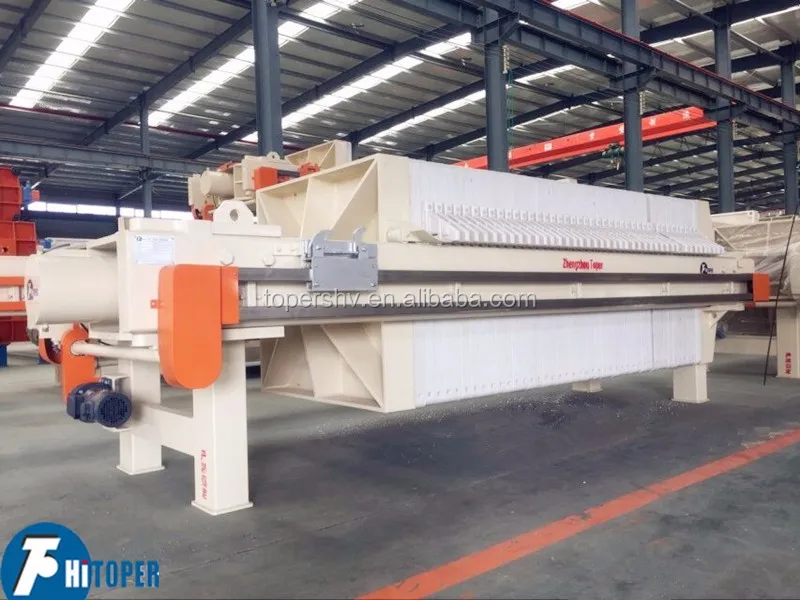

--------------------China automatic PP plate filter press for sale








Main Features----China automatic PP plate filter press for sale

1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin,
 then painted by epoxy primer to get higher intensity and corrosion resistance.

2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.

3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.

4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing,
air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure
 oil pipe for gb soft connection

5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical

components, Split type or can be fixed on the beam.



Detailed Images

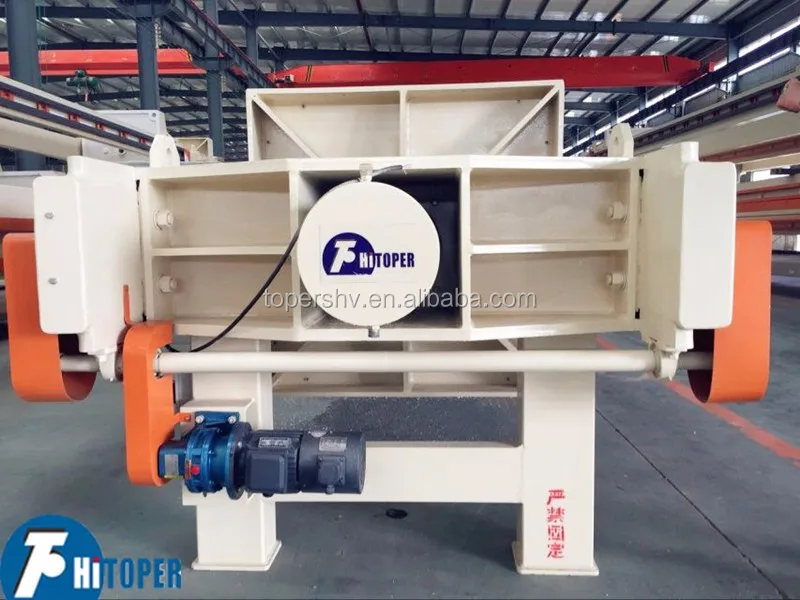

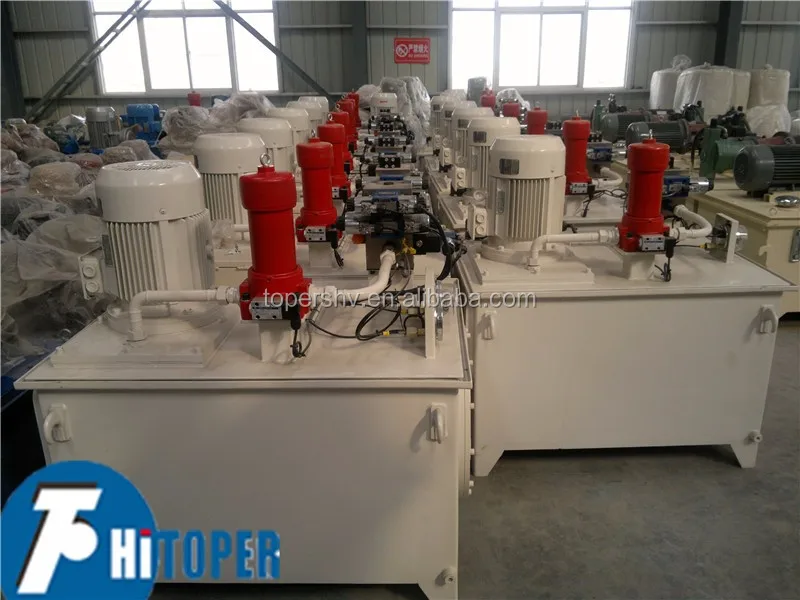

1.Hydraulic station

1.11Hydraulic unit, carbon steel bending welding and sealing.
A.Air filters external oil pumps of Shanghai Dazhong brand, with a better cooling effect and easy maintenance
B.Hydraulic valves of Shanghai Huadao brand.
C.High pressure oil pipe (36Mpa, 1.5m) and low pressure oil pipe (22.4Mpa, 2m), China standard soft connection.

1.12 Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, Inner diameter and stroke is Φ250X650, pressing pressure is 18-20MPa.

1.13 Piston rod, Medium-frequency hardening with 45# steel, the surface hardness can be HRC48-50, and there is a protect cover outside.

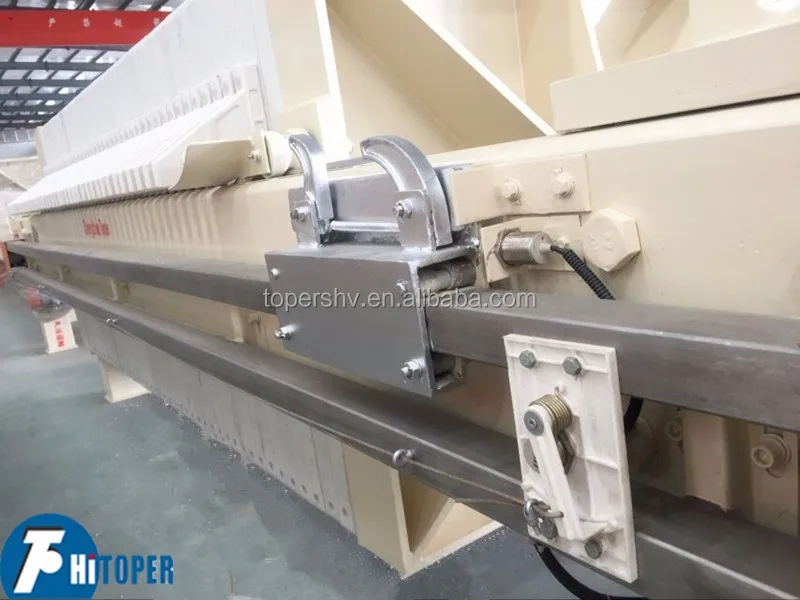

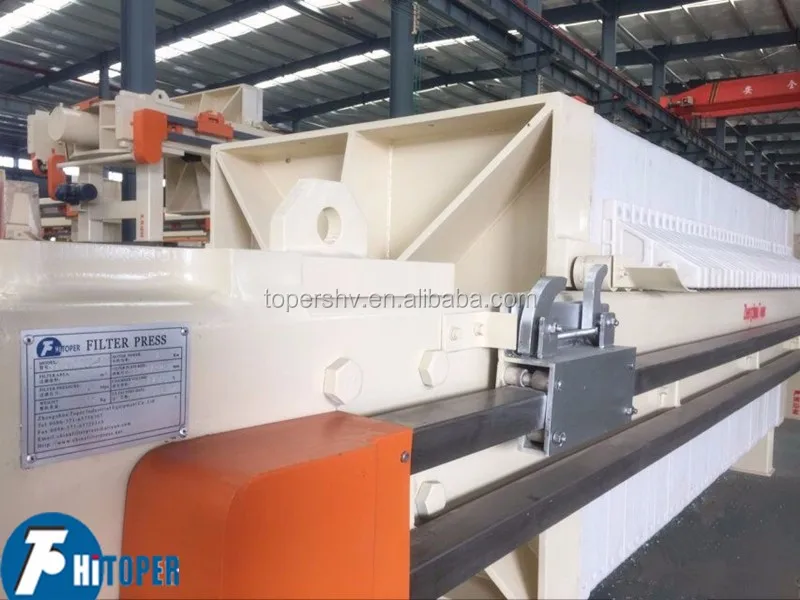

2.Beam

Material of high quality carbon steel Q345 ( Length & width & thickness, 360×110×12mm rectangular tube), box welded structural design, automatic submerged arc welding process with weld smooth and beautiful. Still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.



3.Filter plate

3.11 Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength, producing by using 5000 tons high-pressure compressor, every plates before delivery is tested under high pressure 27MPa.
3.12 External size is 1250*1250mm, inner size is 1150*1150mm, thickness is 65mm, and weight is 67kg.

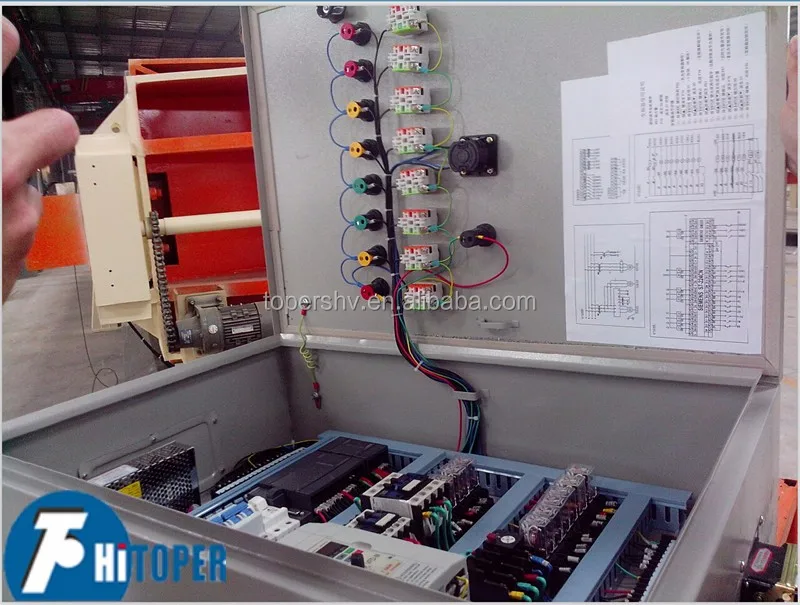

4.Control cabinet

The cover is carbon steel with spray with button operation, Chinese famous brand inverter and electronic components. Also as you need we can provide you with PLC control, Delta inverter and Schneider electronic components, more extra fees will be needed with your actual situation.



Packing & Delivery


Packaging for the main machine
Size
5020x1800x1600mm
Weight
8307kgs



Packaging Details
The normal package for the filter press machine is shrink-wrapped;and we can also make wooden package or stainless steel case package as requried


Packaging for the mathced parts
Size
680 (L) * 520 (W) * 760 (D)
Weight
50kgs



Packaging Details
For the hydraulic station and filter cloths or other matched parts like the open flow taps ,filter cloth claps,oil pipe etc. all packed in wooden case
