Автоматическая машина для намотки фольги трансформатора медных алюминиевых катушек низкого
- Категории: Electric Equipment Making Machinery >>>
- Поставщик: Jiangxi,Hongjun,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

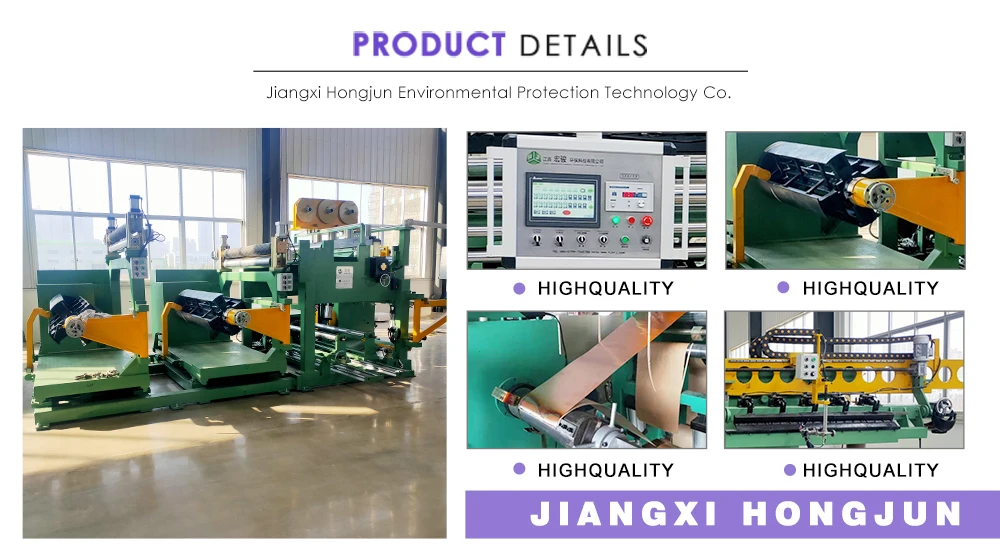

Product Details
Product Paramenters
Typical standard specifications are shown below, these can be easily modified as requested. | ||||||||||||||||
No. | Item | Data | ||||||||||||||
1 | Model | BRJ-1600-2 | BRJ-1400-2 | BRJ-1200-2 | BRJ-1000-2 | BRJ-800-2 | BRJ-600-2 | BRJ-400-2 | ||||||||
2 | Coil width(mm) | 1600 | 1400 | 1200 | 1000 | 800 | 600 | 400 | ||||||||
3 | Coil form | Round/Rectangular | Round/Rectangular | Round/Rectangular | Round/Rectangular | Round/Rectangular | Round/Rectangular | Round/Rectangular | ||||||||
4 | coil material | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | ||||||||
5 | foil thickness | Cu:0.5~1.8 Al:0.5~2.0 | Cu:0.5~1.8 Al:0.5~2.0 | Cu:0.5~1.8 Al:0.5~2.0 | Cu:0.5~1.8 Al:0.5~2.0 | Cu:0.5~1.8 Al:0.5~2.0 | Cu:0.5~1.8 Al:0.5~2.0 | Cu:0.5~1.8 Al:0.5~2.0 | ||||||||
6 | winding power | 30 KW | 22 KW | 18.5KW | 18.5 KW | 15 KW | 15 KW | 11 KW | ||||||||
7 | winding speed | 0~24RPM | 0~24RPM | 0~24RPM | 0~24RPM | 0~24RPM | 0~24RPM | 0~24RPM | ||||||||
8 | working pressure | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | ||||||||
9 | working tension. | ≥24000N·m | ≥20000N·m | ≥18000N·m | ≥16000N·m | ≥15000N·m | ≥15000N·m | ≥10000N·m | ||||||||
10 | loading weight | 3500kg | 3500kg | 3000kg | 2500kg | 2000kg | 1800kg | 1500kg | ||||||||
11 | Rectify mode | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | ||||||||
12 | welding way | TIG | TIG | TIG | TIG | TIG | TIG | TIG | ||||||||
Equipment main part:
1. Uncoiling and rectifying device: (1 set)
2. Charging and wool pressing device;(1 set)3. Cleaning device; (1set)
4. Deviation correction sensor device;(1 set)
5. Sheering device; (1 set)
6. insulation layer and winding device: (1set)
7. End insulation unwinding device; (3 sets left and 3 sets right)
8. Welding device; (1 set )
9. Winding device;(1set)
10. Winding and pressing device;(1set)
11. Layer insulation unwinding device; (2 sets)
General description about the machine
1.Introduction
BRJ-400-2 Automatic Low Voltage Dry Type Transformer Making Equipment Foil Winding Machine is used to wind coils made of copper or aluminum foil. This kind of Automatic Transformer Foil Traverse Winding Machine can handle one or two layers of conductor foil and one or two layers of insulation material (such as paper or similar). Bus bars are welded with TIG welding process. The automatic foil edge alignment will make sure that the coil edges are straight and smooth. Programming of this machine is done by means of a touch screen user interface.
2. features:
1 )Tension system, compare with the traditional passive tension can guarantee the stability of the whole process of winding tension.
1 )Tension system, compare with the traditional passive tension can guarantee the stability of the whole process of winding tension.
2) adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.
3 )Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and display, intuitive and accurate.
4) Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.
5)using compressed air to generate tension, the whole machine hydraulic system, the whole machine without vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.
Production Process
Company Information
Recommend Products
Our Advantages
Best after-sale service :
1.All machine can be customized as per your requirement ,we have rich experience for design and development.
2.We can provide one-stop solution at competitive price and outstanding service.
3.After sales service assurance,service for machine using all life.
4.Quality guarantee,we strictly control the quality from the raw material to the finished product,and we will test the machine before delivery.
5.We are one of the most reliable supplier in transformer industry in China.
Packaging Shipping
FAQ
1)Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands .Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears.
4)Q:What about the payment term ?
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before shipment.
5)Q:And the delivery time?
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 50 working days after received your down payment.
6)Q: what services can we provide?
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,"
