Products Description
Scrap Metal Crusher
Processing the scrap steel by using the crusher, then using a sorting system for broken scrap sorting to obtain purse high-quality scrap iron steel.
Technical Parameter
Model | Power | Rotating speed | Capacity(t/h) | Weight(t) |
YXJ-800 | 37-55 | 1250 | 0.7-1 | 3.2 |
YXJ-1000 | 45-75 | 1250 | 0.8-1.5 | 7.6 |
YXJ-1300 | 90-150 | 860 | 2-4 | 11.5-26 |
YXJ-1600 | 200-280 | 750 | 4-6 | 16.6-35 |
YXJ-1800 | 220-450 | 650 | 6-10 | 32-48 |
YXJ-2000 | 315-630 | 650 | 8-12 | 35-65 |
YXJ-2200 | 500-900 | 650 | 15-20 | 35-65 |
YXJ-2400 | 1250-2250 | 650 | 20-45 | 85-120 |
YXJ-2800 | 1600-3300 | 650 | 70-100 | 145-230 |
YXJ-3000 | 3300-4400 | 650 | 110-140 | 280-760 |
Tell us your capacity

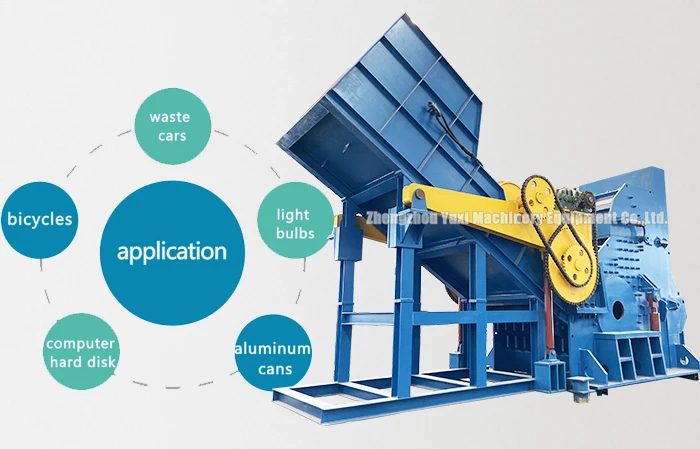

Application
For crushing bicycles, waste cars, refrigerators, washing machines, computer hard disk, motherboard, iron, aluminum skin, aluminum cans, aluminum products, light bulbs, waste paint cans, cans, beer bottles and other.
Details Images
Forced Feeding Machine
Efficient feeder to increase feed speed and increase productivity.
Scrap Metal Crusher Rotor
The rotor disc drives the hammerhead, and the hammerhead rotates at high speed to continuously hit the material.
Configuration Line
Equipment Configuration
1.Feeding conveyor;
2. Crusher;
3.Discharge conveyer;
4.Vibrating conveyor;
4.Vibrating conveyor;
5. Magnetic separator;
6.Output conveyer.
Flow Chat
Working Principle
1. Scrap iron and steel raw material through the chain conveyor is transported to the metal crusher inlet slope, the biaxial or uniaxial rotational speed, the cutter head on the material is cut, torn and pulled, so that the material enters, and is squeezed, torn and sheared at the same time, so all kinds of metal.2. Using the high speed rotation of the impeller will long metal stirring tear break, the crushed metal from the top of the mouth into the metal crusher cavity, by the high-speed rotating plate gear wring, tearing into small pieces, the outflow from the bottom of the screen, mesh size can be selected according to user of metal particle size requirements.
Feature
1. The yield is high;
2. Stable chemical composition of molten steel, low content of sulfur and phosphorus;
3. The smelting period is shortened;
4. The service life of the furnace lining is prolonged;
5. Air pollution and slag are reduced;
6. The power consumption per ton of molten steel is reduced.
40T/H metal crusher for Egypt
