Сдавливаемая ручка-триггер 76 мм SS304 силиконовый или скэп сухая Емкость для сиденья 3 дюйма трехзажимный
- Категории: Butterfly Valves >>>
- Поставщик: Wenzhou,Shuangzhan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

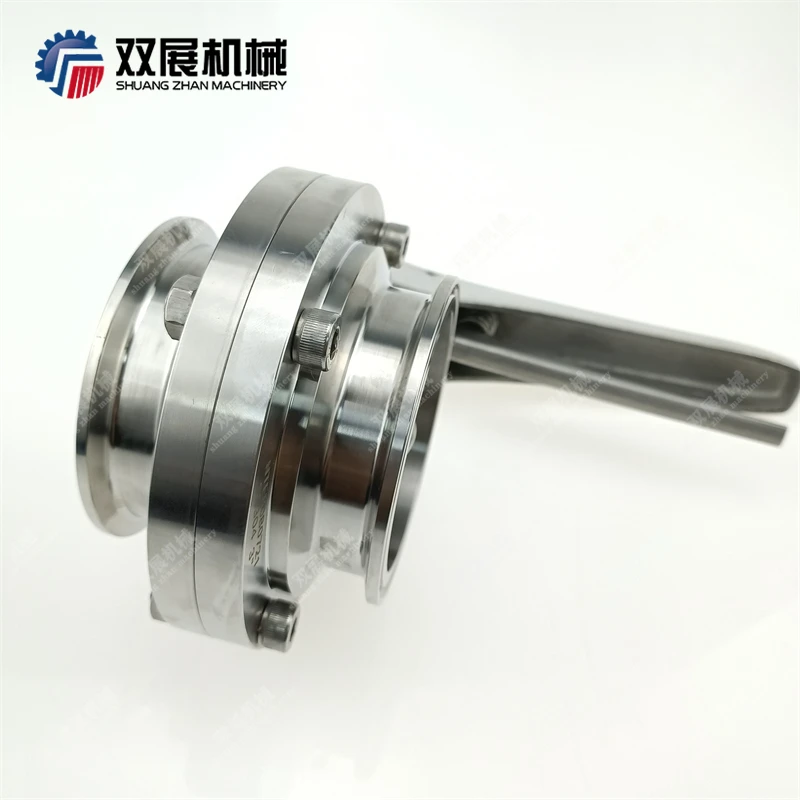

This 3" sanitary butterfly valve has a squeeze-trigger lock on it and can be locked in 13 different positions. The handle is simply squeezed to rotate the valve gate and can be rotated 180 degrees so it can be closed on either side.
Butterfly valves can be cleaned in place as there are no pockets for dirt to hide. They are also lighter and more compact than tri-clover compatible ball valves.
We recommend butterfly valves at vessel outlets and on fermenters, but use ball valve on pump outlets.
Butterfly valves can be cleaned in place as there are no pockets for dirt to hide. They are also lighter and more compact than tri-clover compatible ball valves.
We recommend butterfly valves at vessel outlets and on fermenters, but use ball valve on pump outlets.
Features:1. Forged valve body and disc
2. Body and handle material: SS304 stainless steel
3. Seat Material: Silicone/EPDM/FPM
4. Locking Positions: 13
3. Size available: 3/4" to 6“
4. EPDM/silicon/FPM valve seat optional
5. Food grade finish
Sanitary Butterfly Valves are constructed from Stainless Steel with a 32Ra ID/OD polish. Available with your choice of end connection (Tri-Clamp or weld), seat material (black epdm, red silicone, or brown FKM), and handle style (pull, infinite, or trigger), or actuator (fail close, fail open, or double acting). All valves are 100% hydraulic tested and 100% inspected prior to shipment! Rated for 0.4 inHg of vacuum at 68°F and operation at temperatures from 15°F to 200°F.
Shuangzhan Machinery (new tek) is a growing factory which focus on developing high quality, intelligent, sanitary valves,
equipments used in beverage and dairy field, sanitary pumps, sanitary pipe fittings, and a variety of fluid engineering
applications. The products are widely used in wine, food, beverage, pharmaceutical, biopharmaceutical, water treatment, fine chemicals and other industrial fields.
equipments used in beverage and dairy field, sanitary pumps, sanitary pipe fittings, and a variety of fluid engineering
applications. The products are widely used in wine, food, beverage, pharmaceutical, biopharmaceutical, water treatment, fine chemicals and other industrial fields.
