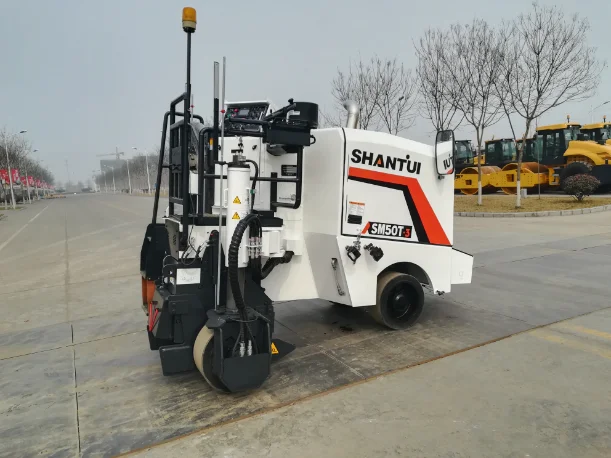

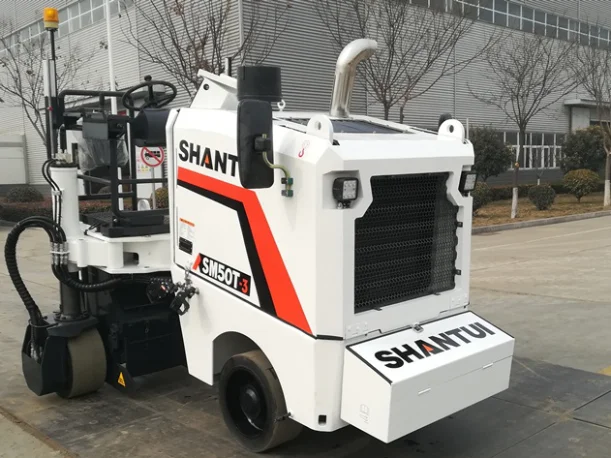

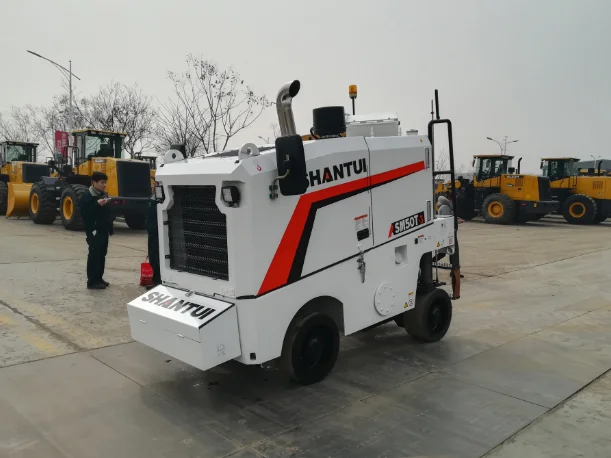

SHANTUI Powerful Road Milling Machine 500mm Width Road Milling Machine SM50T-3
CONTACT INFORMATION
Name:Ruben
Whatsapp:008613351280812
CHN/ENG/ESP
Contact me via WhatsApp so we can communicate more conveniently
Looking forward to your message.
Product Description
Overall dimensions of machine (mm) 3105*2075*2340
Traveling speed (km/h) 0-8
Working speed (m/min) 0-50
Detail Specifications:
| Parameter name | SM50T-3 (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 6600 |
| Transport weight(Kg) | 6280 |
| Maximum milling width (mm) | 500 |
| Maximum milling depth (mm) | 180 |
| Engine | |
| Engine model | WP4.1 |
| Rated power/rated speed (kW/rpm) | 103/2300 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 3105*2075*2340 |
| Driving performance | |
| Traveling speed (km/h) | 0-8 |
| Working speed (m/min) | 0-50 |
| Conveyor System | |
| Width of conveyor belt (mm) | - |
| Swing angle of conveyer (Rightward/leftward) (°) | - |
| Tank capacity | |
| Fuel tank (L) | 180 |
| Working device | |
| Number of milling cutters (Piece) | 54 |
