20 л 1:1 AB клейкий герметик система смешивания разливочная машина для наполнения дозатор клеевого


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

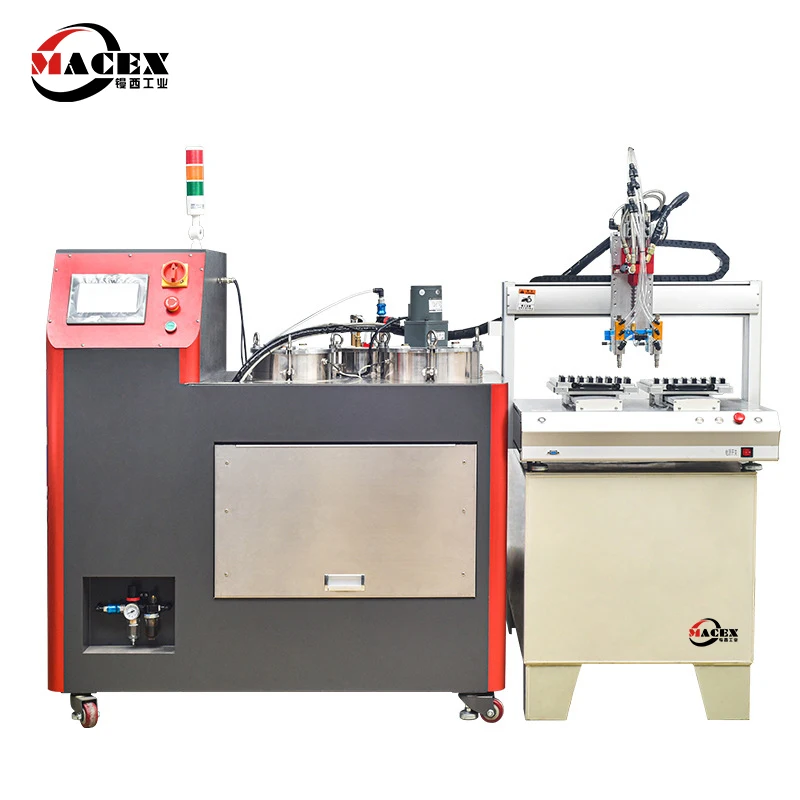

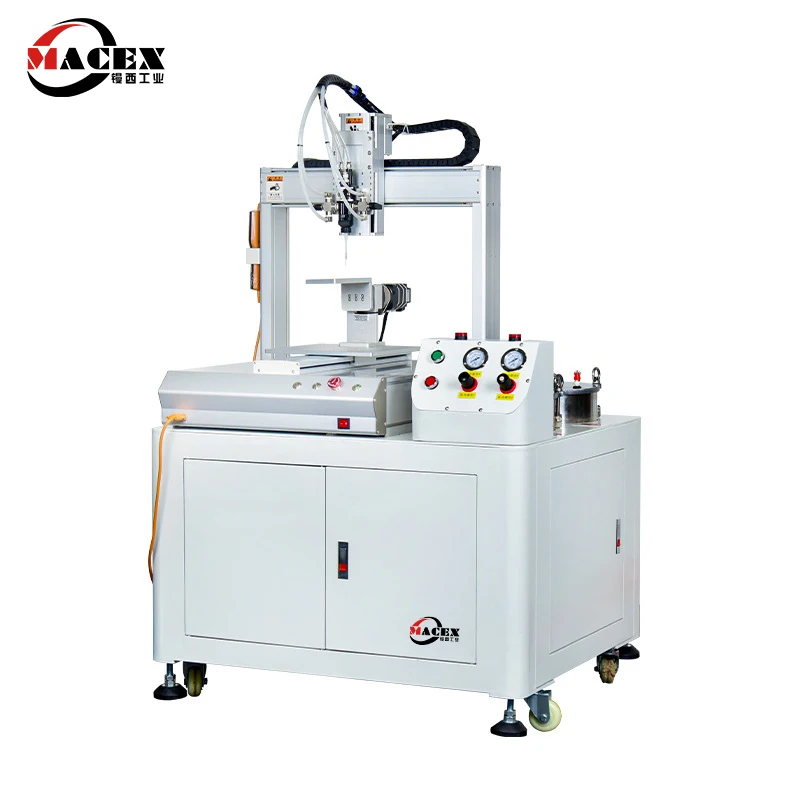

Product Description


The scope of work
600(X)*300(Y)*100(Z)mm (customizable)
Maximum speed
300mm/sec
Proportioning accuracy
±2%
Spit out accuracy
±2%
Mixed ratio
100:100~100:20 or 100:20~100:10
Spit glue speed
1g/sec~15g/sec 5g/sec~30g/sec
Operational viscosity
<20000CPS
Measurement method
Stepper motor + gear pump/rotary plunger pump servo motor + piston pump
transfer method
Micro stepping motor + timing belt (optional servo motor + ball screw)
power supply
AC220V 50HZ 2.5KW
Machine size
2180(L)*1170(W)*1600(H)mm
weight
About 130kg
working environment
Humidity: 20-90%, temperature: 20-60℃
XYZ axis stepper motor
High-precision micro-stepping motor with driver
Tank mixing system
One set/two sets (optional)
guide
Taiwan TBI/Shanghai Bank

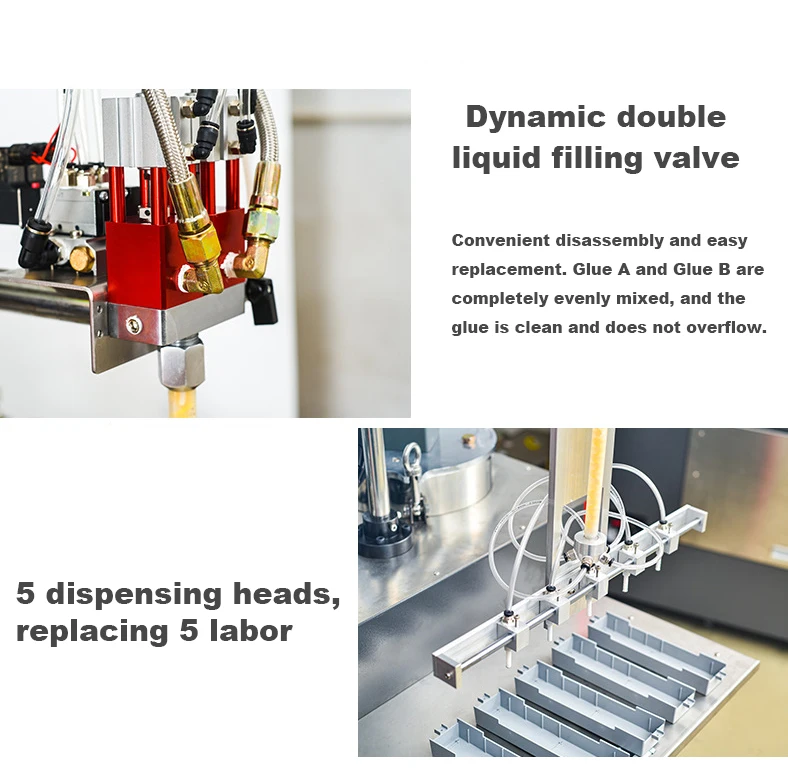

Static mixing valve
Optional dynamic mixing valve according to glue

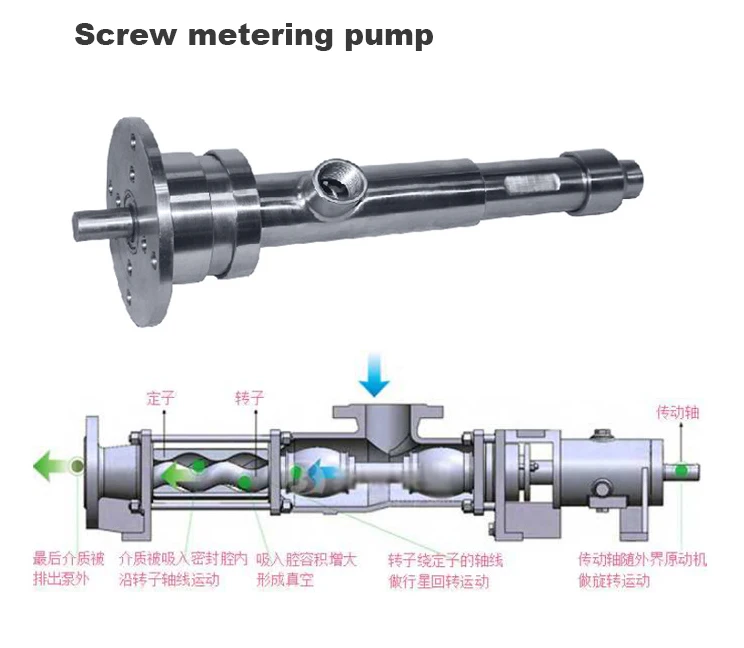

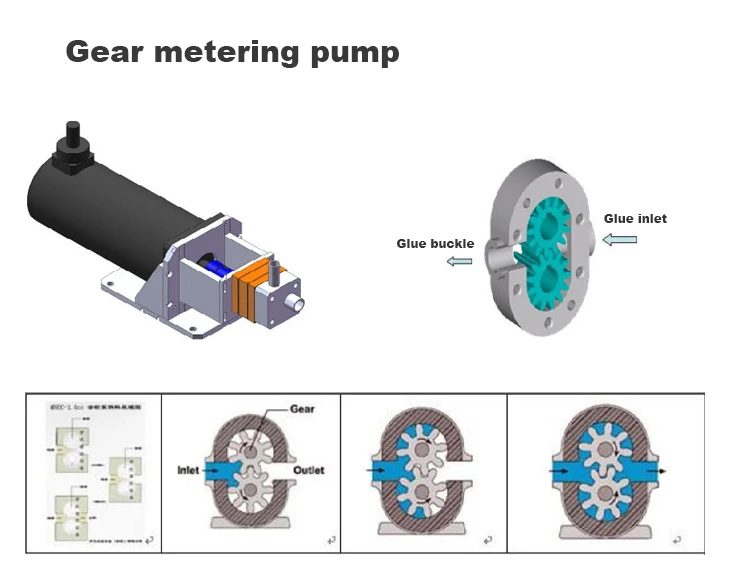

High-precision metering pump
According to the glue, it can be equipped with gear pump or rotary plunger pump/piston pump
Metering motor
Stepping motor

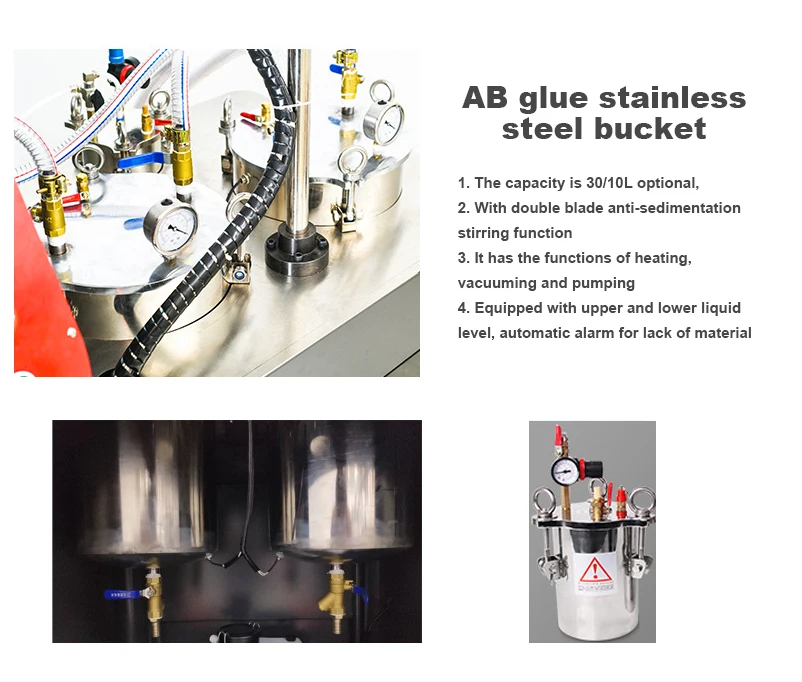

Storage barrel

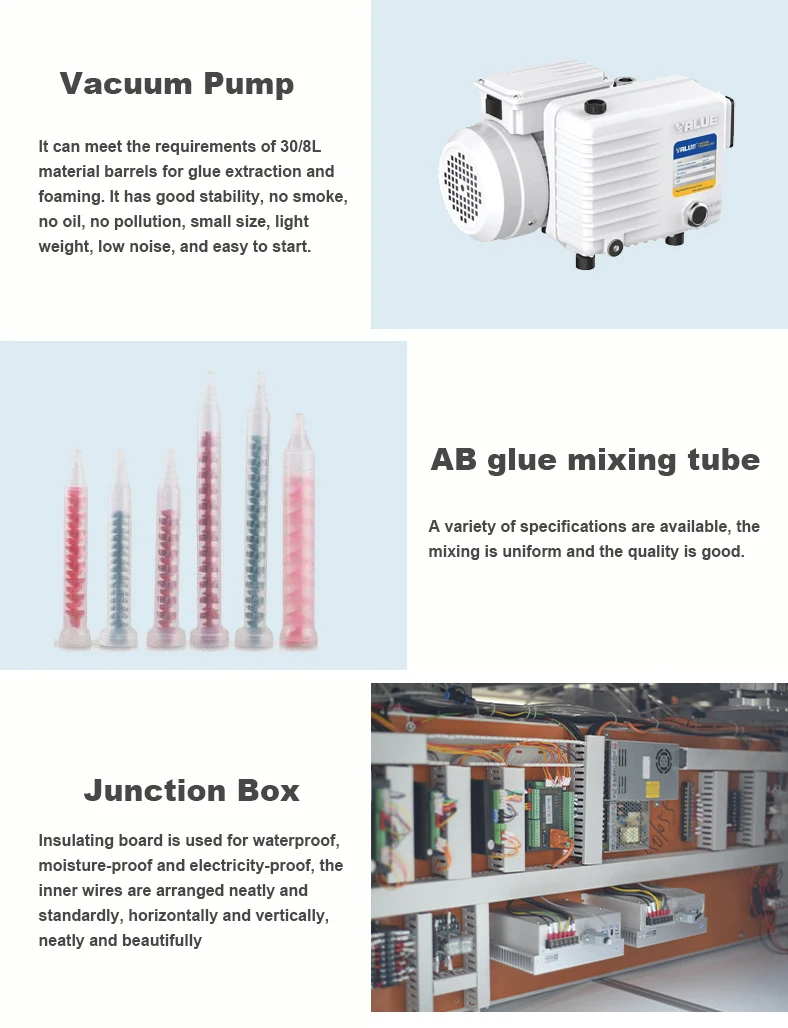

15L/30L/70L, optional vacuum deaeration or heating function
Hose
Teflon tube
Automatic glue filling software
Automatic research and development
Dynamic stirring detection system
Optional
Glue outlet pressure detection
Optional
Semi-automatic cleaning device
Optional


All products are non-standard customized, please contact our engineers for more product parameters.


  • Product Description

What is electronic potting?

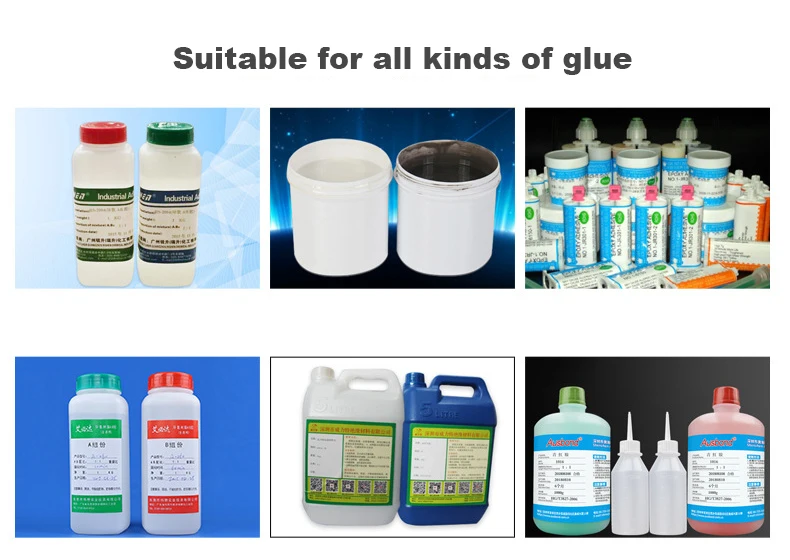

Potting is to pour polyurethane potting glue, silicone potting glue, epoxy resin potting glue into devices equipped with
electronic components and circuits with equipment or manual methods. Under normal temperature or heating conditions, it will be cured into performance Excellent thermosetting polymer insulating material, so as to achieve the purpose of bonding, sealing, potting, coating protection, etc.





Features:
English operation interface, easy to learn, professional error correction and foolproof design
Powerful editable operating system, can store multiple sets of data, improve the programming time for line change

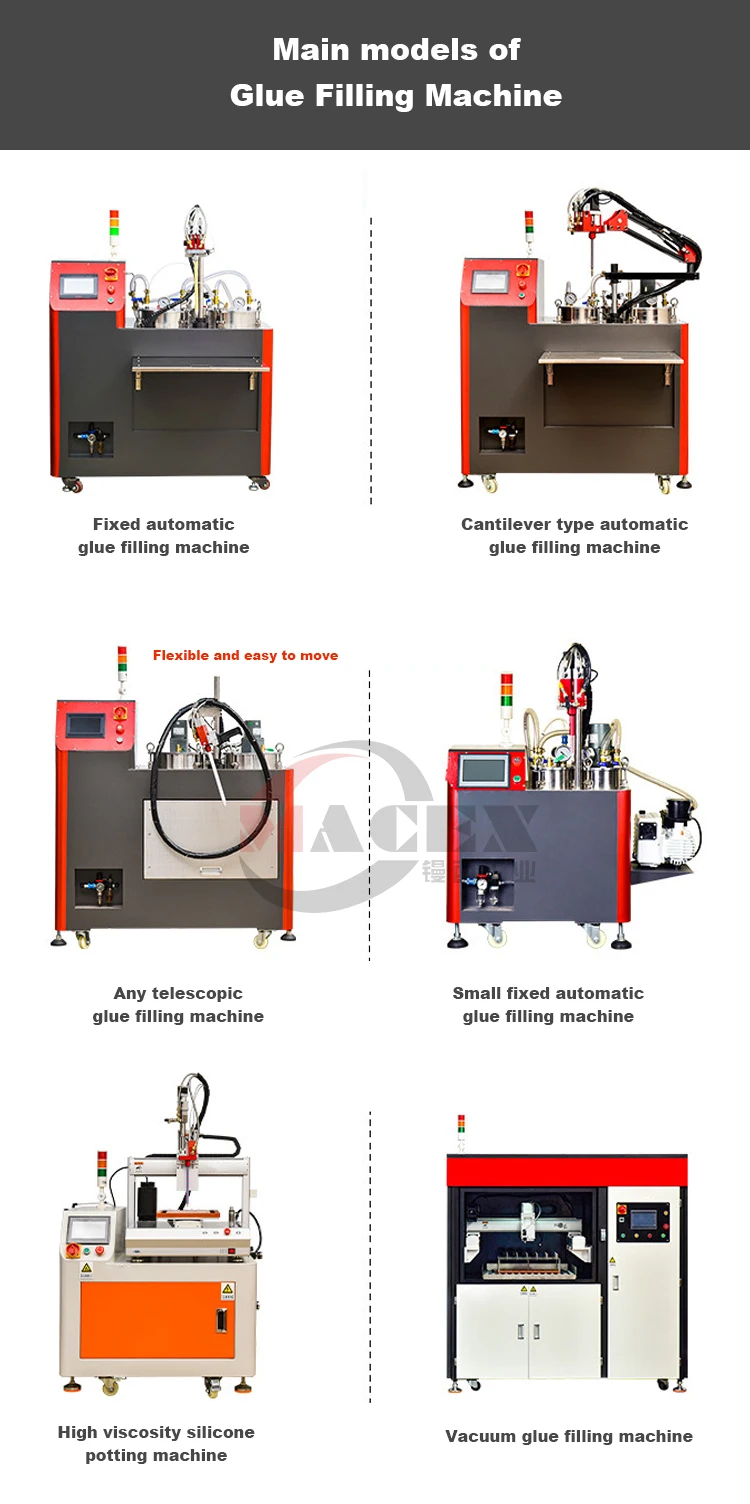

One machine with multiple heads, filling multiple products at one time, one machine with five people
Glue output ratio, time, speed, amount of glue, easy to set
Adjustable instantaneous suction stop valve, good ratio, anti-drawing, glue dripping, and new breakthrough in glue overflow
Precision wear-resistant metering gear pump, strong continuous glue output, can be customized


Automatically develop the speed servo dynamic mixing system to ensure uniform mixing, unique travel and rotation seal design
Equipped with automatic pressure sensor, timing debinding function and automatic cleaning function
Multi-layer transition system of the material barrel, and equipped with a sensitive liquid level sensor alarm system


Related Products

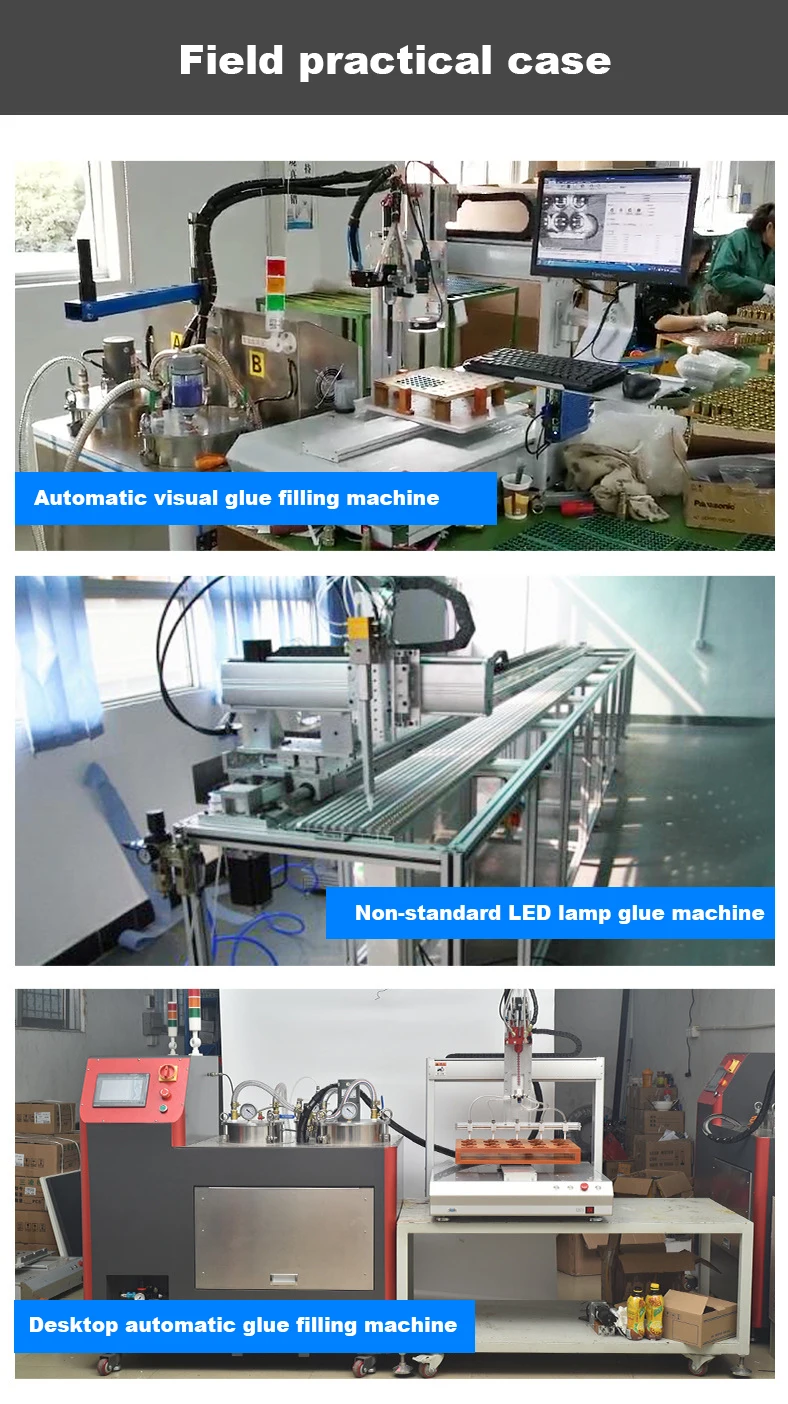

Applications


LED display glue, LED energy-saving lamp glue, LED power supply glue, LED light bar glue, computer power supply glue, relay module glue, sensor glue, PCB board glue, solar panel glue, coil Glue filling, soft light bar filling, point light source filling, surface post screen filling, etc.
















Packing&Shipping

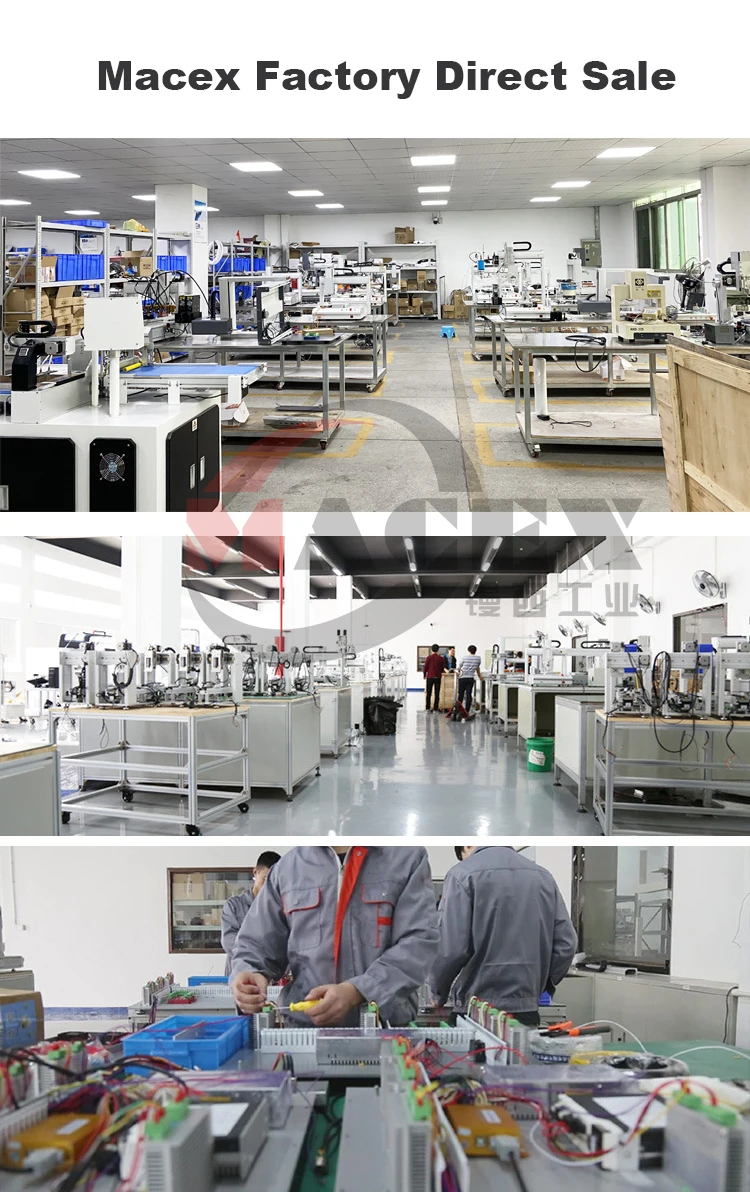

Factory








FAQ


1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(00.00%),Western Europe(00.00%),South
Asia(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South America(00.00%),Eastern Asia(00.00%),Northern Europe(00.00%). There are
total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Soldering machine,Precision spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine

4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our
own success.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
